Foreword

Warning

Thank you for purchasing this Godox Product!

This Zoom RGB LED Video Light SZ150R is a RGB continuous light with multiple

functions. Freely switch LED bicolor mode, colorful light mode and 37 situational

special effects modes. Suitable for almost all shooting occasions e.g. live, camping,

portrait shooting, make up, video, wedding, children photography, etc. It’s portable

and easy to be operated.

Features:

● Freely switch LED bicolor mode, colorful light mode and 37 situational special effects

modes

● Easy to adjust color temperature, light brightness, hue and color saturation

● Combined control by smartphone APP/2.4G wireless/DMX control

● Blink and change colors with the rhythm of music

● Without fan, noise and interference in silent mode

● Offer strong light in light burst mode

● Manually zooming from 20° to 65°

● With a colored display to clearly show the parameters

● Excellent heat dissipation system

Always keep this product dry. Do not use in rain or in damp conditions.

Do not disassemble. Should repairs become necessary, this product must be

sent to an authorized maintenance center.

Keep out of reach of children.

As this product do not have waterproof function, please take measures of

waterproof in rainy or damp environment.

As this product may heat up in working, please do not touch.

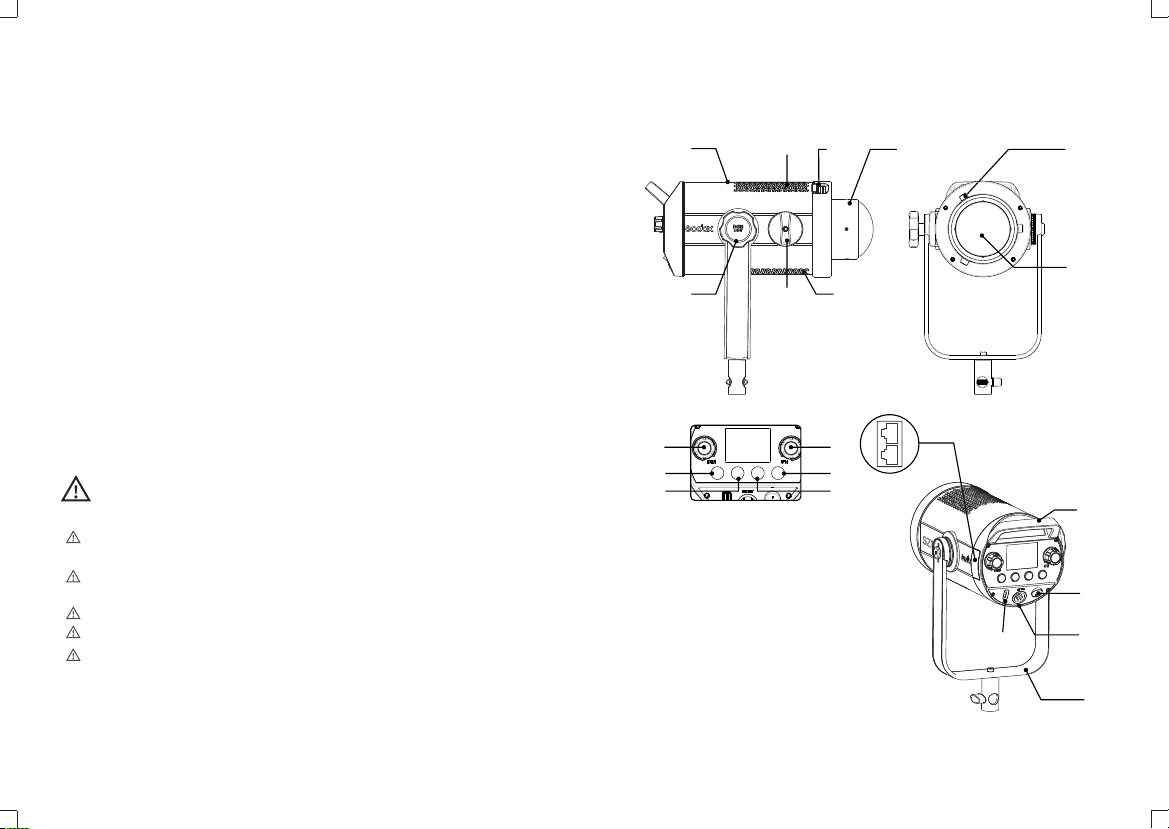

Name of Body





  













MENU FX HSI CCT



MENU FX HSI CCT













01. Body

02. LED Beads

03. Protect Cover

04. Bowens-mount

05. Accessory Locking

Ring

06. Bracket Screw

07. U-type Bracket

08. Zooming knob

09. Fan Inlet

10. Thermovent

11. Handle

12. Power Socket

& Fuse Holder

13. Power Switch

14. Menu Button

15. FX Button

16. HSI Button

17. CCT Button

18. FN Adjusting Button

19. DIM Adjusting Button

20. USB Upgrade Port

21. RJ45 Port x2

- 13 - - 14 -

1. Different Function Display

from 1 to 13 special effects

2. DIM: Brightness Display

• Menu Interface

1. CH Chanel

2. GR Group

3. ID

4. DMX Option

5. Silent Mode Selection

6. Bluetooth Function Reset

7. V0.3 (version number)

8. MAC(Bluetooth number)

• FX Interface

• HSI Interface

1. H: Color Circle

2. S: Saturation

3. DIM: Brightness Display

1. 2800K~6500K: Color Temperature

2. G/M: Hue

3. DIM: Brightness Display

• CCT Interface

LCD Panel

CH32 GR AMENU

CH: 32

ID: 99

DMX:512

GR: A :ON

RESET

Ver:0.3 MAC:DA4C

DIM:75%

CH32 GR AIncluded Items

Body *1 Reflector *1 Protect Cover *1

Power Cable *1 Instruction

Manual *1

Adapter *1

- 15 - - 16 -

DIM:75%

G/M:-50 0 50-50

4100K 2800 6500

CH32 GR ACCT

DIM:75%

CH32 GR AHSI

H:240°

S:90%

0°180°360°

0 1000

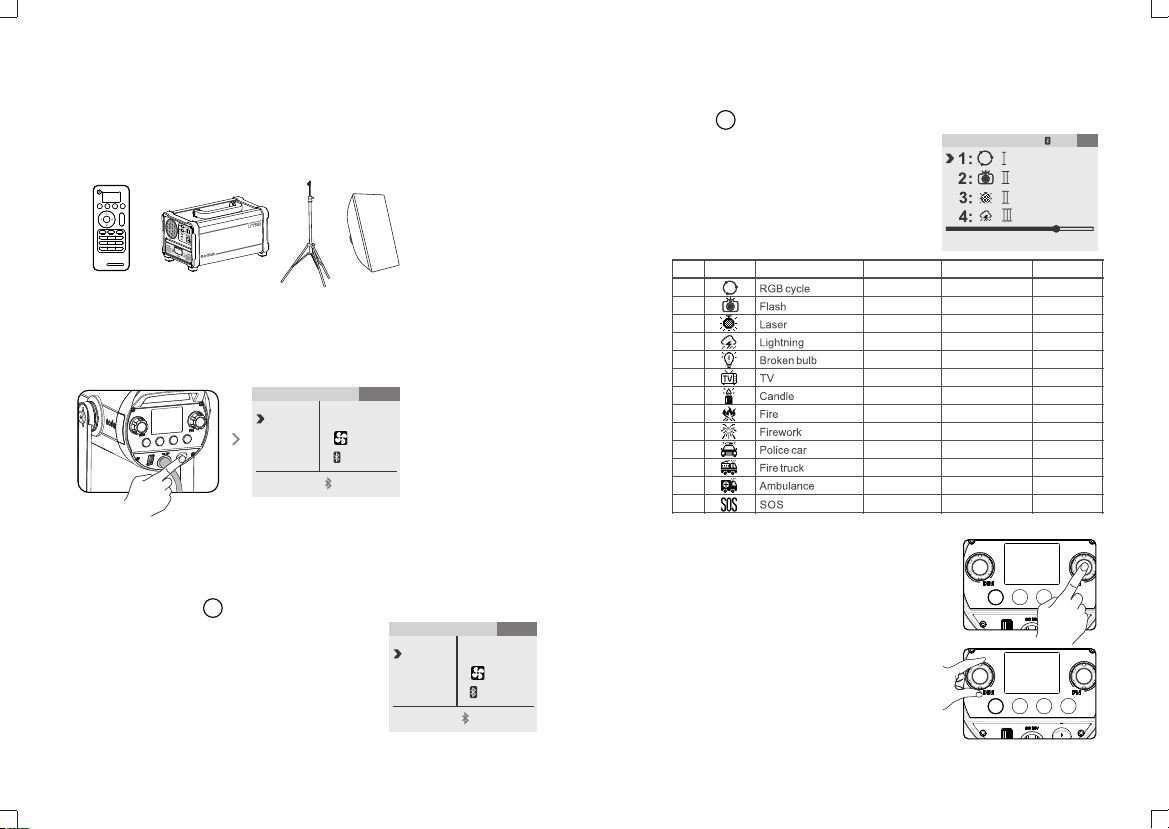

Optional Accessory

The product can be used in combination with the following optional accessories

so as to achieve best photography effects:

RC-R9 Remote control, inverter, softbox, umbrella, light stand, honey comb,

beauty dish, snoot, etc.

Power Supply

Connect the SZ150R to power source with adapter and power cable. Press the

power switch to turn on the LED light.

• Menu Button

Press the MENU button and the LED light will

enter menu interface. In this interface, CH

channel (1 to 32), GR group (A/B/C/D/E/F), ID

(OFF/01 to 99), DMX function (OFF/ON), silent

mode (OFF/ON) and Bluetooth can be set.

FX HSI CCT

Operation

1. Setting

• FX Button

1. Press the FX button and the LED light will

enter FX interface. In this interface, you can set

37 different special effects which are divided

into 13 categories according to your demands.

No. Display Situation Display

Slow speed

Flash

Birthday party

Discontinuous

Slow speed

Discontinuous

Firewood

Brief

Strong flash

Medium speed

Press conference

KTV

Frequent

Medium speed

Frequent

Campfire

Continuous

Frequent flash

Quick speed

Paparazzi

Disco

Sustainable

Quick speed

Sustainable

Fire hazard

Show

Quick flash

Display IIIDisplay II

2. In FX mode, press the FN select dial to choose

the special effect modes from 1 to 13 categories.

And the modes will display circularly by turning the

select dial. After choosing the current mode, press

down the FN multifunctional select dial from, 

and . And the modes will display circularly when

keeping pressing the FN multifunctional select dial.

Turn the DIM select dial to choose brightness from

0% to 100% and the brightness value will be

precisely displayed on the LCD panel.

- 17 - - 18 -

CH32 GR AMENU

CH: 32

ID: 99

DMX:512

GR: A :ON

RESET

Ver:0.3 MAC:DA4C

CH32 GR AMENU

CH: 32

ID: 99

DMX:512

GR: A :ON

RESET

Ver:0.3 MAC:DA4C

DIM:75%

CH32 GR A
