GLX GLS-4-MOD User manual

GLX LED STAGE 4 MANUAL

GLS-4-MOD

owners manual

GLX LED STAGE 4 MANUAL

Thanks for choosing the GLS-4-MOD lighting system. In order to make the best use of your LED

SYSTEM, please read the following carefully.

Important notes

1. Read these instructions.

2. Keep these instructions.

3. Do not use the GLS-4-MOD near water.

4. Clean only with dry cloth.

5. Install in accordance with the manufacturer’s instructions.

6. Do not block any ventilation openings.

7. To reduce the risk of fire or electric shock, do not expose this apparatus to rain or moisture.

8. Protect the power cord from being walked on or being pinched.

9. Unplug this apparatus when unused for long periods of time.

There are no user serviceable parts inside. All servicing has to be done by qualified service personnel.

Servicing is required when the GLS-4-MOD has been damaged in any way, such as when the power

supply cord or plug is damaged, when objects have fallen onto the GLS-4-MOD, when it has been

exposed to rain or moisture, or when the GLS-4-MOD does not operate normally.

Warning: damages caused by the disregard of this user manual are not subject to warranty.

Installation of the GLS-4-MOD

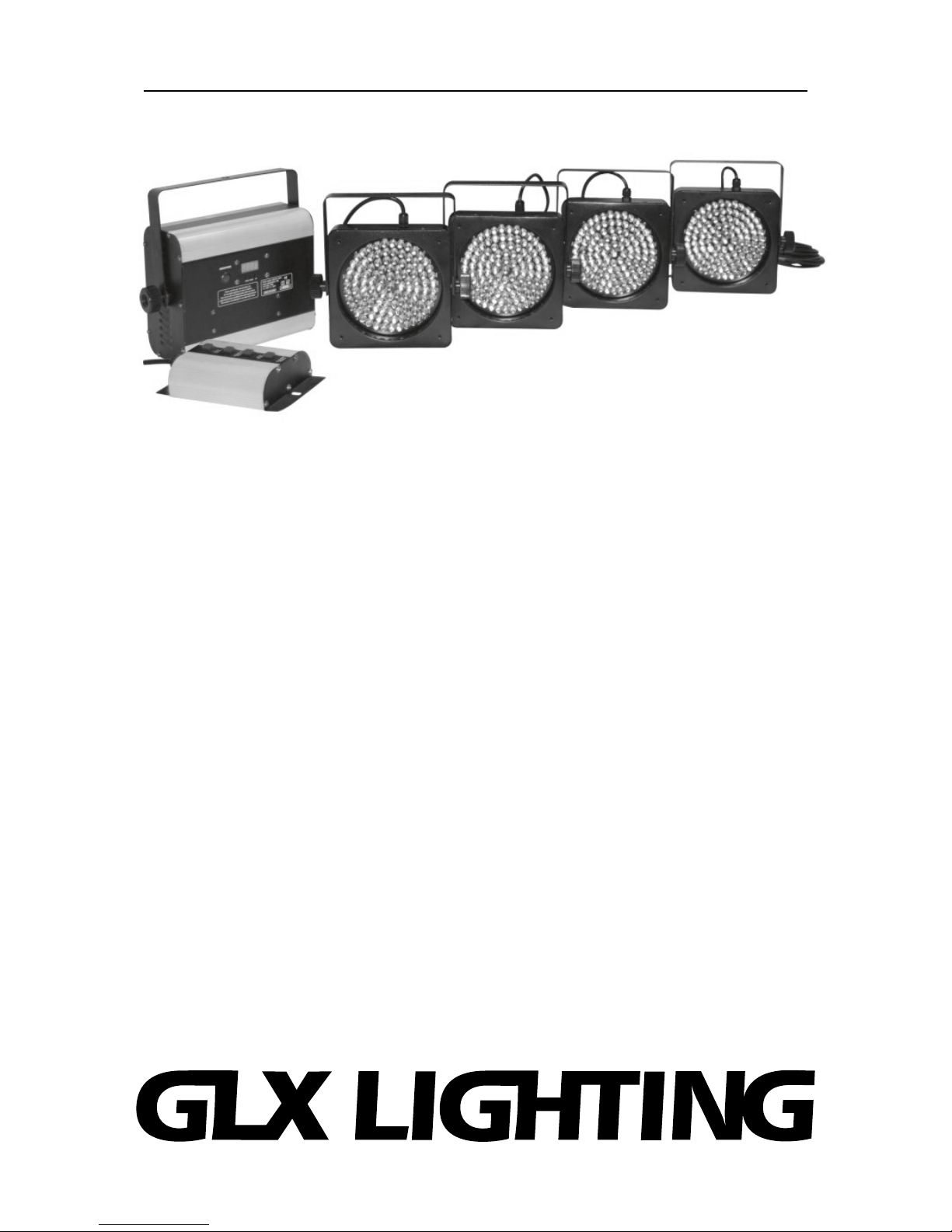

The GLX Lighting LED stage 4 modular led system holds:

 4 seperate spots

 1 PCB module with display

 1 controller

Connect the spots and the controller to the module and plug in the power cord. The GLS-4-MOD starts

running in automatic mode. The spots and the module can be placed on a crossbar, lighting stand or

truss. Please note: for overhead rigging in public or industrial areas, a series of safety instructions have

to be followed that this manual can only give in part.

Main connection

The device must only be connected in compliance with the IEC standards. The electric installation must

be equipped with a Residual Current Device (RCD) with a maximum fault current of 30mA. Lighting

effects must never be connected to dimming packs.

Operation

After you power up the GLS-4-MOD, the LED’s start running and the display lights up. The device has

two operating modes; it can be operated in sound controlled or in DMX-controlled mode.

You can choose the desired mode via the button MENU, UP and DOWN:

When the display shows A*** you can choose the desired DMX address via the UP or DOWN buttons.

When the display shows *512 the device is in DMX mode. To switch to sound controlled mode, press

the DOWN button.

When the display shows *SND the device is in sound controlled mode. To switch to DMX mode, press

the UP button.

When the display shows S** you can choose the desired speed of the internal programs. Default is 51;

for increasing speed press the DOWN button, for decreasing speed press the UP button.

GLX LED STAGE 4 MANUAL

DMX controlled operation

You can control the spots individually via your DMX controller.

DMX-512 connection

Only use a stereo shielded cable with 3-pin XLR-connectors in order to connect the controller with the

fixture or one fixture with another.

Master - slave operation

The Master - slave operation enables several devices to be synchronized and controlled by one master

device. On the rear panel of the GLS-4-MOD module you can find an XLR socket, which can be used

for connecting several devices. Choose the device which is to control the effects (master). Connect the

OUT jack with the IN of the next device. Set the master device to SOUND mode and set each slave

device to the same DMX address.

Operation via controller

Connect the controller with the GLS-4-MOD via the 5-pin connection cable with plug.

Controller functions

Switch 1 Preset:

1 X press = white

2 X press = red

3 X press = green

4 X press = blue

5 X press = cyan

6 X press = yellow

7 X press = violet

8 X press = color change every second in a continuous loop

9 X press = color fade every 3 seconds in a continuous loop

Switch 2 Sound

Switch 3 Freeze

Switch 4 Blackout

To discontinue operation of the controller, press switch 1 and 4 simultaneously, then release both

switches simultaneously.

Cleaning and maintenance

Make sure that:

1. All screws used for installing the devices or parts of the device have to be tightly connected and must

not be corroded.

2. There must not be any deformations of the housings, fixations and installation spots (ceiling,

suspension, trussing)

3. The electric power supply cable must not show any damages, (e.g. porous cables) or sediments.

Further instructions depending on the installation spot and usage have to be adhered by a skilled

installer and any safety problems have to be removed. Disconnect from mains before starting

maintenance operation.

We recommend frequent cleaning of the device. Please use a soft lint-free and moistened cloth. Never

use alcohol or solvents!

GLX LED STAGE 4 MANUAL

Replacing the fuse

Only replace the fuse by a fuse of the same type and rating.

Step 1: Open the fuse holder on the rear panel of the module with a fitting screw driver.

Step 2: Remove the old fuse from the fuseholder.

Step 3: Install the new fuse in the fuseholder

Step 4: Remount the fuseholder in the housing

Before replacing the fuse, unplug the GLS-4-MOD.

Technical specifications

Power supply: 220-250V AC, 50-60 Hz~

Power consumption: 70W

Number of DMX channels: 15

DMX-512 connection: 3 pin XLR

Number of 10mm LEDs: 432

Beam angle: 25º

Sound-control: Via built-in microphone

Maximum ambient temperature Ta: 45ºC

Maximum housing temperature TB (steady state) 60ºC

Min.distance from flammable surfaces: 0.50m

Min.distance to lighted object: 0.10m

Fuse: F 2A, 250V

Packing Dimensions (LxWxH): 136 X 41 X 19,5

Weight: 8,5kg

GLX LED STAGE 4 MANUAL

Channels

Channel 1 - Internal programs, auto mode and sound controlled mode

Value Function

000-009 Off

010-029 Program 1

030-049 Program 2

050-059 Program 3

070-089 Program 4

090-109 Program 5

110-129 Program 6

130-149 Program 7

150-169 Program 8

170-189 Program 9

190-209 Program 10

210-229 Program 11

230-249 Auto Mode: Internal Programs

250-255 Sound controlled Mode

Channel 2 - Master Dimmer Channel 3 - Strobe

Value Function Value Function

000-009 Off 000-009 Off

010-255 Dimming from 0 – 100% 010-255 Flash with increasing speed

Channel 4 – spot 1 RED Channel 5 – spot 1 GREEN

Value Function Value Function
