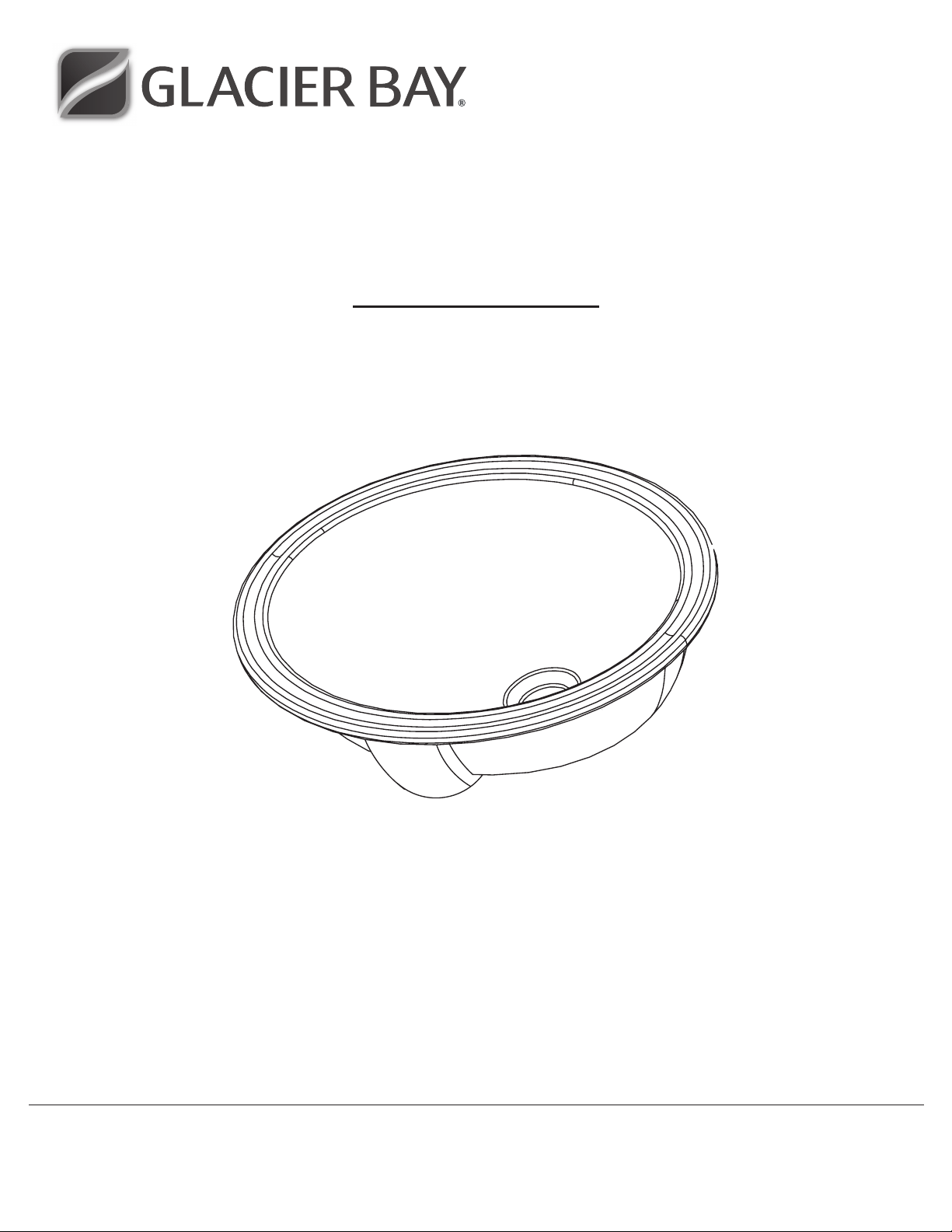

Glacier bay W0183 User manual

THANK YOU

We appreciate the trust and condence you have placed in Glacier Bay through the purchase of this sink. We strive to continually create

quality products designed to enhance your home. Visit us online to see our full line of products available for your home

improvement needs. Thank you for choosing Glacier Bay!

USE AND CARE GUIDE

LAVATORY SINK

Questions, problems, missing parts? Before returning to the store,

call Glacier Bay Customer Service

8 a.m. - 7 p.m., EST, Monday - Friday, 9 a.m. - 6 p.m., EST, Saturday

1-855-HD-GLACIER

HOMEDEPOT.COM/GLACIERBAY

Item #000-000

Model #'s W0183,W1123,

W1133,W3723

Table of Contents ................................... 2

Safety Information .................................. 2

Warranty .......................................... 2

Pre-Installation .................................... 2

Planning Installation ...............................3

Tools required ....................................3

Hardware Included ................................3

Package Contents .................................4

Installation . ....................................... 5

Maintenance ....................................... 7

Care and Cleaning .................................. 7

Troubleshooting .................................... 7

Table of Contents

Safety Information

Warranty

WARNING: Handle with care. Vitreous chinaware is

glass-like with sharp edges if broken. Do not drop, handle

roughly, or overtighten bolts.

CAUTION: Observe local plumbing and building codes.

LIMITED LIFETIME WARRANTY

Glacier Bay products are manufactured with superior quality standards and workmanship and are backed by our limited lifetime

warranty. Glacier Bay products are warranted to the original consumer purchaser to be free of defects in materials or workmanship.

We will replace FREE OF CHARGE any product or parts that prove defective. Simply return the product/part to any of The Home Depot

retail locations or call1-855-HD-GLACIER (1-855-434-5224) to receive the replacement item. Proof of purchase (original sales receipt)

from the original consumer purchaser must be made available for all Glacier Bay warranty claims.

This warranty excludes incidental/inconsequential damages and failures due to misuse, abuse or normal wear and tear. This warranty

date of purchase, with all other terms of this warranty applying except the duration of warranty.

Some states and provinces do not allow the exclusion or limitation of incidental or consequential damages, so the above limitations

province to province. Please see a store or contact 1-855-HD-GLACIER for more details.

Contact the Customer Service Team at 1-855-HD-GLACIER or visit WWW.HOMEDEPOT.COM/GLACIERBAY.

3 HOMEDEPOT.COM/GLACIERBAY

Please contact 1-855-HD-GLACIER for further assistance.

Pre-Installation

PLANNING INSTALLATION

Before beginning installation of this product make sure all parts are present. Compare parts with the Hardware Included and Package

Contents lists. If any part is missing or damaged, do not attempt to assemble, install, or operate the product. Contact customer service for

replacement parts.

NOTE:

Hardware not shown to actual size.

TOOLS REQUIRED

HARDWARE INCLUDED

Part Description Quantity

AA Bolt 4

BB Washer 4

CC Buttery Nut 4

DD Embedded Screw 4

EE Clip 4

AA BB EECC

Screwdriver Drill

Silicone sealant Scissors

Measuring tape

Pencil

Pre-Installation (continued)

PACKAGE CONTENTS

APPLICABLE MODEL

Part Description Quantity

ALavatory sink 1

W1133 W3723

19.49 in.

15.43 in.

7.09 in.

W1123

7.24 in.

W0183

17.52 in. 20.95 in.

14.17 in.

14.96 in.

14.57 in.

20.98 in.

8.27 in.

7.09 in.

5 HOMEDEPOT.COM/GLACIERBAY

Please contact 1-855-HD-GLACIER for further assistance.

Installation

Marking the basin location

Cutting the counter hole

Remove the template supplied with the product

and cut along the line with scissors to trim the

outline of the basin.

Mark the position of the basin on the counter

with the template.

Drill and cut a start hole inside the previously

marked cut line and cut the counter top

along the outline.

Clean and remove throughly the chips after

cutting.

Setting screws and clips

Applying silicone sealant

Evenly embed the screws.

Tighten each clip over the rim.

Apply silicone sealant on the edge of the basin.

Put the basin under the counter top, align the marked

line, and press upwards.

Adjust the

distance

accordingly

Installation - (continued)

Attaching the sink

Sealing the seam

Tighten the bolts and clips to hold the the

basin tight to the counter top.

Apply silicone sealant along the seam

between counter and sink.

Cleaning the sink

Checking for leaks

Clean all working faces.

Connect the water supply and run water.

Check faucet and water inlets for leaks.

There may be leaks if the faucet, water inlets

and drain were not well connected.

7 HOMEDEPOT.COM/GLACIERBAY

Please contact 1-855-HD-GLACIER for further assistance.

Run water for a few minutes to nd any leaking parts and tighten.

Change faucet, pipe, or drain if leak is not solved.

Adjust screw nuts and clips.

Change the sink.

Problem Solution

Sink is loose.

Water is leaking.

Don't use any hard tools or rough fabric to touch, hit, or knock the surface of the ceramic.

The sharp edges are easily broken.

Don't use other abrasive cleansers to clean the surface because they will damage the glaze.

Please use neutral cleanser or soap to clean the basin, and then dry the basin with clean soft cloth.

Clean immediately if any strong acid, strong alkali, tea, coffee, or ink is spilled on the ceramic surface.

Care and Cleaning

Troubleshooting

Maintenance

Questions, problems, missing parts? Before returning to the store,

call Glacier Bay Customer Service

8 a.m. - 7 p.m., EST, Monday-Friday, 9 a.m. - 6 p.m., EST, Saturday

1-855-HD-GLACIER

HOMEDEPOT.COM/GLACIERBAY

Retain this manual for future use.
