Giant Power Pro V3 User manual
|EN|

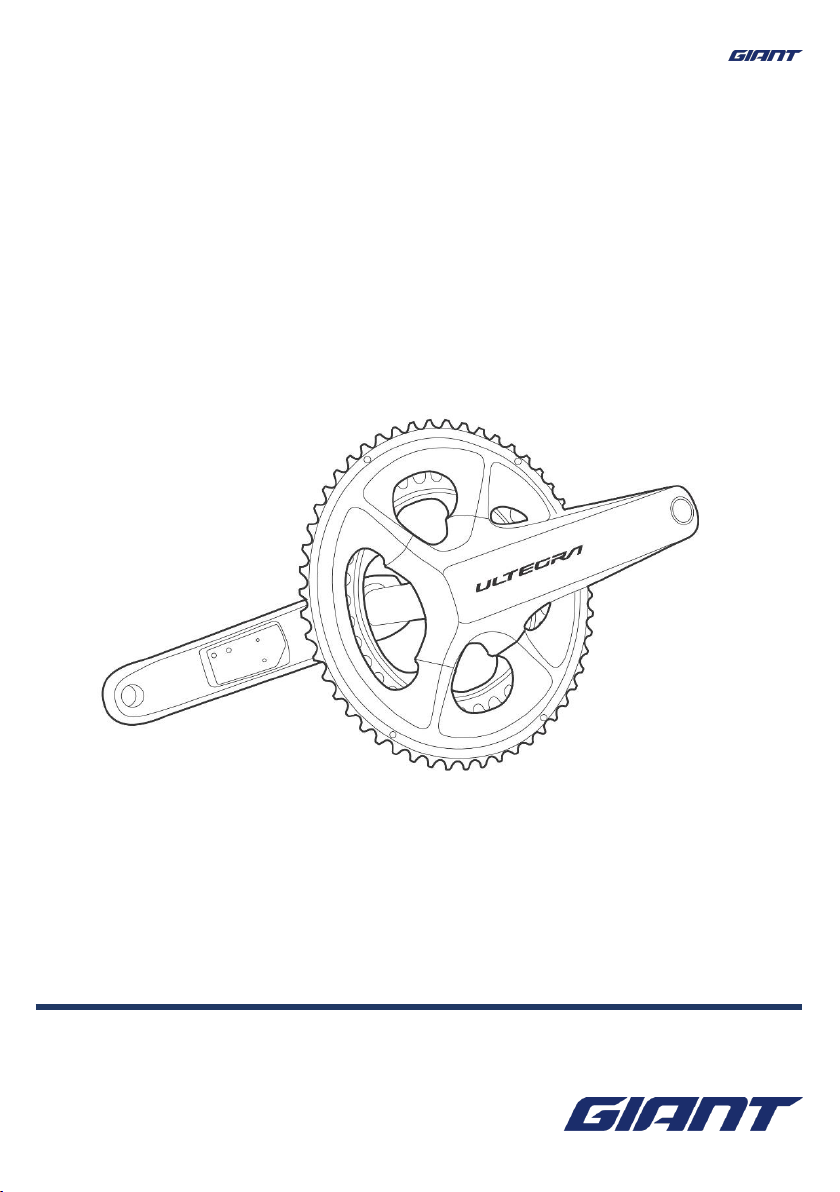

GIANT Power Pro V3
User Manual
|EN| POWER PRO V3
2
INTRODUCTION
Congratulations on the purchase of your new Giant Power Pro V3. The all-new Giant Power Pro V3 is a
crank-based, true dual side power meter with increased precision. Power Pro power meter makes
training with power more accessible to more riders everywhere and features built-in gyro sensors that
help compensate for ground surge impacts occurring on uneven surfaces, delivering clean and
accurate data through an integrated system that’s precise, reliable and simple to set up. Giant Power
Pro V3 is powerful in a simplified package for all enthusiast riders.
PRODUCT ANATOMY
❶LED INDICATION LIGHT
❷MAGNETIC CHARGING PORT
Right crank
Left crank
❶
❷
❷
❶
Left crank
|EN| POWER PRO V3
3
CHARGING CABLE
Every GIANT Power Pro V3 comes with a dedicated charging cable. Please make sure that this cable is
included when purchasing Power Pro.
Please note that the USB charger is not included.
LED INDICATIONS
There is a LED indicator light on both side of Giant Power Pro V3. This indicator light shows various
conditions.
Waking up Power Pro V3:
Simply by rotating the crank arm backwards 2 or 3 full turns:
Indicator light blinks GREEN 10 times : Battery capacity is more than 60%
Indicator light blinks YELLOW 10 times : Battery capacity is between 30~60%
Indicator light blinks RED 10 times : Battery capacity is less than 30%
While charging:
Indicator light is RED : Charging is in progress.
Indicator light is GREEN : Charging is complete.
Indicator light does not light up or blink:
The battery may be damaged or the unit has other problems, please contact an authorized Giant
retailer for assistance.
|EN| POWER PRO V3
4
IMPORTANT NOTICE BEFORE RIDING
We strongly urge you to read the Bicycle Owner’s Manual thoroughly before your first ride. Read and
make sure that you understand every point in this manual, especially the “Safety” section. If you have
any questions, please contact your local authorized Giant retailer.
This user manual contains important safety, performance, and service information. Please read the
user manual before starting to use your new Giant Power Pro V3 and keep it for future reference.
For your safety, we recommend that you to focus on your surroundings while riding. Avoid staring at
the cycle computer or smartphone screen. This may compromise your traffic awareness, and possibly
lead to serious accident.
SERVICE AND TECHNICAL SUPPORT
If you encounter difficulties or are uncertain about anything mentioned in this user manual, please
contact an authorized Giant retailer,
or visit: https://www.giant-bicycles.com/global/showcase/power-pro
For more information, please visit:
https://www.giant-bicycles.com/global/manuals
To find a dealer or to learn more about Giant, please visit: www.giant-bicycles.com
|EN| POWER PRO V3
5
QUICK START
1. CHARGING THE BATTERY
Connect the charging cable to a USB power source. For best results, we recommend using a dedicated
USB charger with output current of 1~2A.
Connect the cable to the charging port on GIANT Power Pro V3. The unit should start charging
immediately.
Fully charge the battery of Power Pro V3 before using it for the first time.
Indicator light is RED : Charging is in progress.
Indicator light is GREEN : Charging is complete.
! CAUTION
Input voltage: 5V±10%
Input current: 1~2A
Charging time: Approximately 1 hour for a full charge.
The battery should be fully recharged once every 2 months when Power Pro V3 is not being used for a
longer time.
|EN| POWER PRO V3
6
2. PAIRING WITH CYCLING COMPUTER OR RIDELINK APP
GIANT Power Pro V3 is compatible with cycling computers that have BLUETOOTH and ANT+
functions and ability to record power information.
1. Rotate the crank arm backwards two or three full turns to wake up Giant Power Pro V3.
2. The Indicator light blinks showing its battery status.
3. Refer to the user manual of the cycling computer to pair with Power Pro V3. The pairing
procedures may differ between various brands.
Below shows the pairing process with a GIANT DASH M200 cycling computer.
Step 1
Select Connections
Step 2
Select Manage sensors
Step 3
Select ADD sensors
Step 4
Select
Search via Bluetooth
Step 5
Select your Power Pro
Step 6
Select
Add to all Profiles or
Confirm
Step 7
Confirmation message
pops out
Step 8
Your Power Pro is
now ready to use
|EN| POWER PRO V3
7
Alternatively, Giant Power Pro V3 can also be paired with GIANT RideLink APP via your smart
phone. The paring procedure is similar:
1. Download and install GIANT RideLink APP from Google Play (Android) or APP Store(iOS)
2. Rotate the crank arm backwards two or three full turns to wake up Power Pro V3.
3. The Indicator light blinks showing its battery status.
4. Follow the instructions from the GIANT RideLink APP to pair with Power Pro V3.
Below shows the pairing process with GIANT RideLink APP.
Step 1
Tap Power Meter
Step 2
Tap Connect Device
Step 4
Once connected, the
RideLink shows
current battery
status,firmware
version and
available update.
Tap GO to start using
your Power Pro
Step 3
Find your Power Pro and tap Connect
|EN| POWER PRO V3
8
3. CALIBRATE/ZERO RESET
For best results, it is recommended to perform the calibration procedure before every ride. Some
APPs, or cycling computer may refer it as Zero Offset, or Zero Reset, which is exactly the same thing.
This is the most essential process and it only takes seconds.
Before the calibration, keep the driveside crank arm in 12 o’clock position while the bike is
positioned horizontally. Leave the crank in stationary position.
Do not attempt the calibration procedure while you’re on the bike. Do not Apply any force on the
pedals, either.
Refer to the manufacturer’s user manual of the cycling computer to calibrate with Power Pro V3.
The procedures may differ between different computer brands, but in general it’s very similar.
During the process of calibration, you should find indicator lights from both cranks blink
BLUE for a few times.
Once the calibration is successful, you may get a confirmation message “successful” or “0” from the
computer.
Below shows how to calibrate with GIANT RideLink APP.
Step 1
Tap Calibration
Then tap Yes
Step 2
Position the right-
hand crank at 12
o’clock.
Tap Start Calibration
Step 3
Calibration should
take less than a few
seconds.
Step 4
Once completed,
tap Done and you’re
ready to ride.
|EN| POWER PRO V3
9
Below shows how to Zero reset with a GIANT DASH M200 cycling computer
RIDELINK APP AND FIRMWARE UPDATE
Giant continuously keeps developing and releasing the updated versions of firmware to provide the
latest functionalities. The latest firmware version for Giant Power Pro V3 can be updated by using Giant
RideLink APP.
The Giant RideLink APP is available for Apple® iOS and Android system. Please go to the App Store® or
Google Play to search Giant RideLink APP and download it.
Step 1
Enter the Manage
sensors page.
Select your Power Pro
Step 2
Select Zero reset
Step 3
(Zero reset in
progress...)
Step 4
(Zero reset Success!)
You are ready to ride.
|EN| POWER PRO V3
10
SPECIFICATIONS
Dependent crank
SHIMANO ULTEGRA FC-R8100
Compatible chainring ratio
50/34T, 52/36T
Crank length options
165mm / 170mm/172.5mm/175mm
Connections (BLE/ANT+)
BLE/ANT+
Battery type
Lithium-ion
Battery running time
100 hours
Battery charge time
1 hour
State of charge indicator (Y/N)
Yes
Accuracy
± 2%
Temperature compensation
Yes
Left/Right balance (Y/N)
Yes
Firmware APP
GIANT RideLink
Water resistance capability
IPX7
Intended use
Road, Gravel cycling
