Genius TREK 320R User manual
English
-1-
Trek 320R Features
1 SnapShot Button
2 LED Indicator
3 Lens
4 Swivel Base
Installing the Trek 320R
1. Please install the driver first and then connect Trek 320R to
the USB port.
2. Installing the Trek 320R driver
a. Insert the Trek 320R Installation CD into the CD-ROM drive.
b. The Autorun screen will bring up the installation screen. Click on
“Driver” then simply follow the on-screen instructions.
c. Install “DirectX”from the CD.
Notice: If theAutorun screen doesn’t start, please follow these steps:
zClick on “Start Menu”.
zType D：\SETUP.EXE, then click “Enter” key.
(Assume your CD-ROM is in Drive D)
3. Insert the Trek 320R’s USB cable to your desktop’s or
laptop’s USB port.
English
-2-
4. Complete software and hardware installation. You can
install the software you would like for video
conferencing or chat with your friends.
NOTE
To remove the driver installation:
Please go to the taskbar and follow “Start” Æ“Program” Æ“Trek
320R”ÆClick “Uninstall”, then follow the on-screen instructions to remove
the driver.
Genius Application (Windows Only)
You can use our software to capture the real-time image, record or
execute the simply security function.
To run the software, please go to the task bar and follow “Start”Æ
Click “Program”ÆChoose “Trek 320R”ÆClick “Trek 320R”. Or you
may execute the software by simply clicking the shortcut of “Trek
320R”.
English
-3-
NOTE
After installing the driver of Trek 320R, the system will automatically create a
file (C:\WINDOWS\Album or C:\WINNT\Album) to save the images you take
using the Genius Application.
1. Description for the major icon
Preview mode
Snapshot mode
Video Clip Mode
Security monitoring system
Exit
Camera Control
NOTE
In the “camera control section”, you can personalize your camera
settings for different circumstances.
English
-4-
1Environment
You may adjust the values for different lighting. The default value isAuto (Auto
White Balance)
2Rotation:
You can flip the image horizontally or vertically
3Extension:
You can select different sizes of image resolution
4Frequency:
Select the correct frequency according to the country where you are using the
web camera.
English
-5-

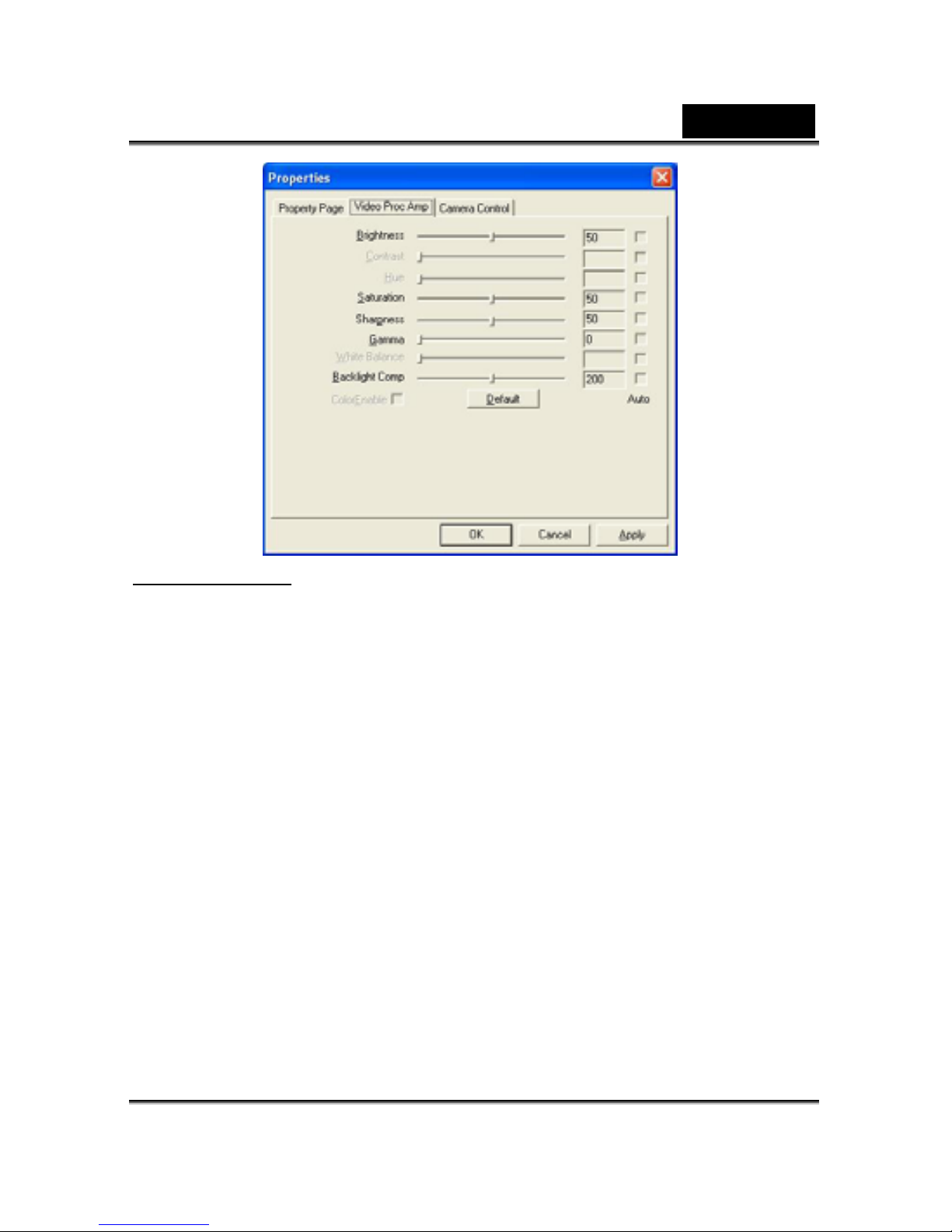

Video Proc Amp:
In this section, you can adjust different values for the image itself.
-Press “Default” to return to the manufacturer’s settings.
English
-6-
Camera Control:
Select the values of “Exposure” according to the environment where you are using
the web camera.
Before adjusting the values, please unclick the “Auto”.
-Press “Default” to return to the manufacturer’s settings.
English
-7-
2. Preview Mode
You can use the function buttons on the control panel to zoom in/out and
move upward/downward/left/right.
Zoom in the image
Zoom out the image
Move the image upward
Move the image downward
Move the image to the left
English
-8-
Move the image to the right
Resolution Selection
There are 2 categories of resolution: RGB24 and
I420. You can select 5 different image resolutions for
each of them. The file size of I420 will be smaller than
RGB24. So, I420 may be the better choice for
transmission.
3. SnapShot Mode
You can press the Snapshot button in the right of the circle to take a
picture right away and share with your friends.
Send photo by e-mail
English
-9-
Shoot continuously
Resolution selection
This section shows the resolution you selected in
the “Preview Mode”. If you want to change the
resolution, please click “ ”to go back to the
“Preview Mode” to make the changes.
4. Video Clip Mode
You can record real-time image in this section.
Send photo by e-mail
English
-10-
Convert AVI files into MEPG-1 format
Start recording
Stop recording
Exit the Video Clip Mode
To Create animation
Press to start; Press to stop
Press to return to the video recording mode
This function has to be under the resolution of RGB24 320 x
240 or I420 320 x 240. Please make sure the resolution is
correct before executing this function.
Resolution selection
This section shows the resolution you selected in the “Preview
Mode”. If you want to change the resolution, please click
“”to go back to the “Preview Mode” to make the changes.
5. Security Monitoring System
This function records any movements that appear in front of your monitor
automatically. It can also record anytime until the HD is full. If there’s no
movement, it will shut down automatically after four seconds otherwise it
will be active when detecting new movement. It’s a great security
