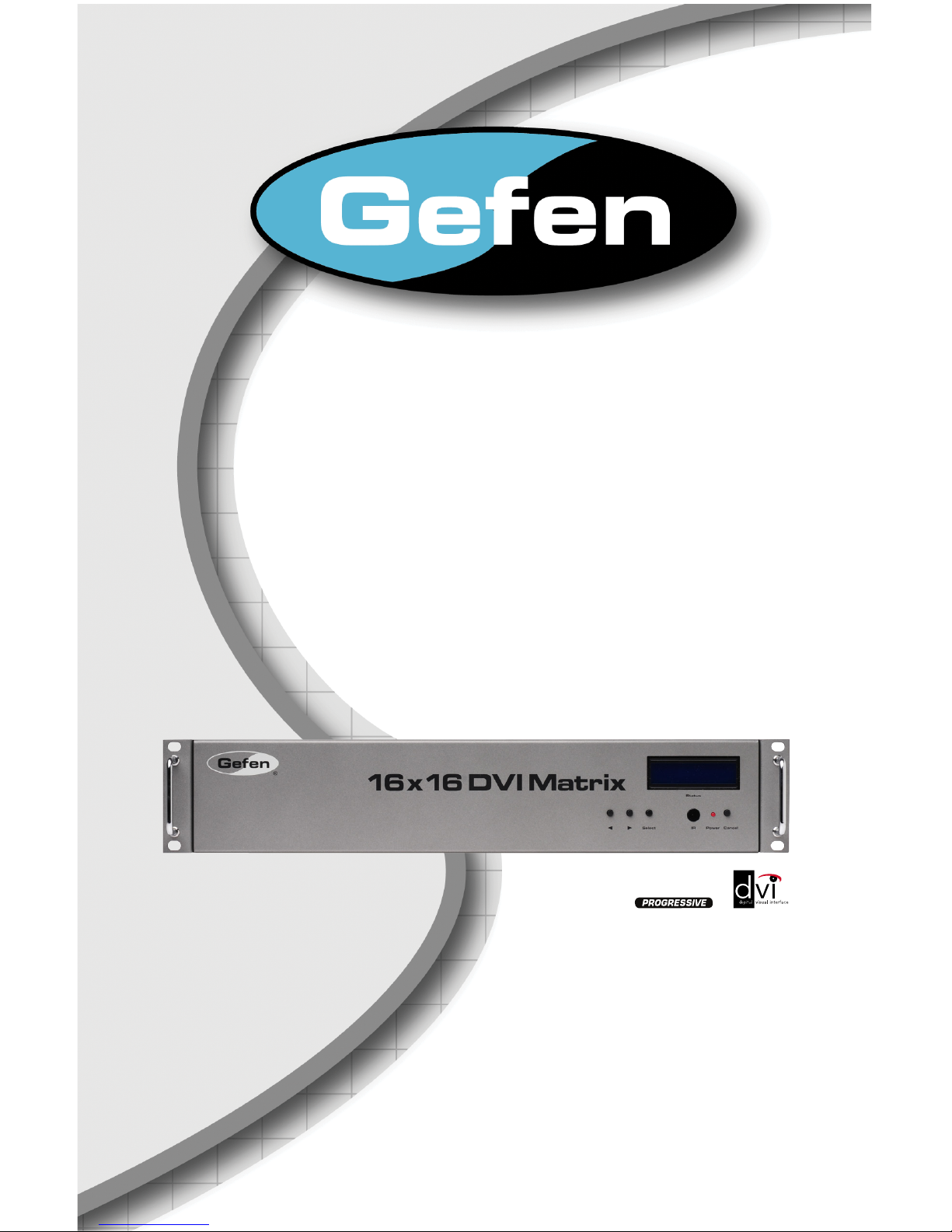

Gefen EXT-DVI-16416 User manual

1080P

16x16 DVI Matrix

EXT-DVI-16416

User Manual

www.gefen.com

ASKING FOR ASSISTANCE

Technical Support:

Telephone  (818)772-9100

   (800)545-6900

Fax   (818)772-9120

Technical Support Hours:

8:00AMto5:00PMMondaythroughFriday,PacicTime



Write To:

Gefen,LLC

c/oCustomerService

20600NordhoffSt

Chatsworth,CA91311

www.gefen.com

[email protected]

Notice

Gefen,LLCreservestherighttomakechangesinthehardware,packagingandany

accompanyingdocumentationwithoutpriorwrittennotice.

16x16 DVI Matrix isatrademarkofGefen,LLC

©2011Gefen,LLC.AllRightsReserved

Alltrademarksarethepropertyoftheirrespectiveowners.

Rev C16

CONTENTS

1 Introduction

2 OperationNotes

3 Features

4 PanelLayout

4  FrontPanel

5  BackPanel

6 PanelDescriptions

7 IRRemoteControl

7  LayoutandDescription

8  InstallingtheBattery

8  SettingtheIRChannel

9 Connectingthe16x16DVIMatrix

9  WiringDiagram

10 Operatingthe16x16DVIMatrix

10  StatusScreen

11  RoutingSources

12  EnteringStandbymode

13  ExitingStandbymode

14 RoutingSourcesusingtheIRRemoteControl

15 RS-232/IPControl

17 RS-232/Telnet/UDPCommands

17  EDIDManagement

22  IP/TelnetConguration

30  Routing

33  Masking

35  Miscellaneous

43 WebInterface

43  ViewMatrixStatus

47  ManageEDID

53  Masking

54  IPConguration

56  Backup/Restore

57  PowerManagement

59 FirmwareUpdate

60 WarningMessages

62 Specications

63 Warranty

64 Licensing

Congratulationsonyourpurchaseofthe16x16DVIMatrix.Yourcompletesatisfactionis

veryimportanttous.

Gefen

Gefendeliversinnovativecomputerandelectronicsolutionsthatharnessintegration,

extension,distributionandconversiontechnologies.Gefen’sreliable,plug-and-play

productssupplementcross-platformcomputersystems,professionalaudio/video

environmentsandHDTVsystemsofallsizeswithhard-workingsolutionsthatareeasyto

implementandsimpletooperate.

The Gefen 16x16 DVI Matrix

SimplifytheprocessofroutingmultipleDVIsourcesgivingtheabilitytoroutesources

withoutlosingqualityorresolution.Route16sourcesto16digitalmonitorsusingtheGefen

16x16DVIMatrix.TheMatrixprovidesasimple,reliable,andhighlyeffectivemethodof

streamlininganyinstallationusingmultiplesourcesandoutputs.Ittakesthehassleoutof

multiplewiringschemes.FourmethodsareavailableforcontrollingtheGefen16x16DVI

Matrix:Frontpanelbuttons,IRremote,RS-232interface,orusingIPcontrol.

How It Works

The16x16DVIMatrixhassixteenDVIinputsandsixteenDVIoutputs.Connectyour

sixteencomputerstotheDVIinputportsontheMatrix’sinputside.ConnecttheMatrix’s

sixteenDVIoutputstothedisplays.ConnectthepowersupplytotheMatrixandconnect

thepowercordtoanavailablewalloutlet.Theconnecteddisplayswillshowvideo

accordingtotheselection.

NOTE:ThisdeviceonlysupportsDVI-D.

INTRODUCTION

OPERATION NOTES

READ THESE NOTES BEFORE INSTALLING OR

OPERATING THE 16X16 DVI MATRIX

• The16x16DVIMatrixdoesnotsupportHDCPcontent.

• MakesurethataDVImonitorispoweredandconnectedtooneoftheDVIoutputson

the16x16DVIMatrixbeforeapplyingpower.Bydefault,theLocalEDIDisreadfrom

theconnectedmonitorandiscopiedtoall16DVIinputsoncetheMatrixhasbeen

turnedon.IfamonitorisnotdetectedbytheMatrixatpower-on,adefault(internal)

EDIDof640x480willbeused.ThisfunctionalitycanbedisabledusingtheSecure

LocalEDIDfunctionusingRS-232,Telnet,UDP,orthebuilt-inWebinterface.

• Thereisnointernalscalinginthe16x16DVIMatrix.Eachmonitorattachedtothe

Matrixmustbeabletodisplaytheresolutionsoutputbythesourcedevice(s).For

maximumcompatibilityitisrecommendedthatonlyonecommonresolutionbeused

byeachsourcedevice.

• AdvancedEDIDfeaturesareaccessibleusingRS-232,Telnet,UDP,orthebuilt-in

Webinterface.

• RoutingandEDIDfeaturescanbemanagedusingthebuilt-inIPcontrolfeatures.

• ThismatrixsupportsDynamicEDID.Seepages17and44fordetails.

FEATURES

Features

• Supportsresolutionsupto1920x1200

• StatusLCD(showsroutingstatus)

• AdvancedEDIDmanagementprovidesrapidintegrationofsourcesanddisplays

• DynamicEDIDsupport

• SerialRS-232interfaceforremotecontrolviaacomputerorcontrolautomation

devices

• IPControl(Telnet,UDP,andWebinterface)

• Outputmaskingcommand

• IRRemoteControl

• IRExtender

• Standbymode

• SupportsDDWGstandardsforDVI

• Rack-mountable

Package Includes

(1)16x16DVIMatrix

(16)6ft.DVIcables(M-M)

(1)IRRemoteControlUnit

(1)ACPowerCord

(1)Quick-StartGuide

PANEL LAYOUT

Front Panel

21 4

PANEL LAYOUT

Back Panel

11 10

PANEL DESCRIPTIONS

1 ControlButtons

Thesebuttonsareusedtonavigatethefunctionsofthe16x16DVIMatrix.Forcomplete

detailsonthesecontrolsandhowtheyareused,seepages10-13.

2 Infrared(IR)Receiver

ThisIRreceiverwillacceptcommandsfromtheRMT-16416IRremotecontrol.Line-of-

sightbetweenthisreceiverandtheremotecontrolsneedstobepreservedforproper

operation.

3 PowerLEDIndicator

ThisLEDindicatorwillbeactivewhentheincluded24VDCpowersupplyisproperly

connectedtotheunit.

4 CancelButton

Thisbuttonisusedtoreturntheusertothemainstatusscreenoncearoutingchangehas

beeninitiatedandtheuserdecidestonotcontinuewiththechange.

5 MainLCDDisplay

This2line16characterdisplaywilldisplaystatusinformationandisalsousedtomanage

thedisplay/sourceroutes.

6 DVIInputPorts1-16

Theseinputsareusedtoconnectupto16DVI-capablesources.

7 10/100EthernetControlInterface

Thisportisusedtoconnectthe16x16DVIMatrixtoanetworkforIPcontrol.Seepage16

formoreinformation.

8 24VDCPowerReceptacle

Theportwillacceptpowerfromtheincluded24VDCpowersupply.

9 DVIOutputPorts1-16

Theseoutputsareusedtoconnectupto16DVI-capabledisplays.

10 RS-232SerialCommunicationsInterface

Thisinterfacewasdesignedtoacceptcommandsfromanexternalcontrolsystem.This

portwillallowswitchingcommandsaswellasEDIDmanagementandconguration

operations.Seepage15formoreinformation.

11 IRExtenderJack

AcceptsanoptionalIRExtenderwhichallowsrelocationoftheIRreceiverupto6feet

awayfromtheMatrix.
