Gefen EXT-COMPAUD-44424 User manual

www.gefen.com

www

ggg

eee

www.gefen.com

4x4 Component

w/Audio Matrix

EXT-COMPAUD-44424

User Manual

ASKING FOR ASSISTANCE

Technical Support:

Telephone (818) 772-9100

(800) 545-6900

Fax (818) 772-9120

Technical Support Hours:

8:00 AM to 5:00 PM Monday thru Friday PST

Write To:

Gefen LLC.

c/o Customer Service

20600 Nordhoff St

Chatsworth, CA 91311

www.gefen.com

[email protected]

Notice

Gefen Inc. reserves the right to make changes in the hardware, packaging and

any accompanying documentation without prior written notice.

4x4 Component w/Audio Matrix is a trademark of Gefen LLC.

All trademarks are the property of their respective owners.

Rev A3

CONTENTS

1 Introduction

2 Operation Notes

3 Features

4 Panel Layout

5 Connecting And Operating The 4x4 Component w/Audio Matrix

6 RMT-16-IR Remote Installation

7 IR Channel Conﬁguration

8 RS-232 Serial Control Interface

9 Rack Mount Installation

10 Speciﬁcations

11 Warranty

Congratulations on your purchase of the 4x4 Component w/Audio Matrix. Your

complete satisfaction is very important to us.

Gefen

Gefen delivers innovative, progressive computer and electronics add-on solutions

that harness integration, extension, distribution and conversion technologies.

Gefen’s reliable, plug-and-play products supplement cross-platform computer

systems, professional audio/video environments and HDTV systems of all sizes

with hard-working solutions that are easy to implement and simple to operate.

The Gefen 4x4 Component w/Audio Matrix

The Gefen 4x4 Component w/Audio Matrix offers unprecedented ﬂexibility and

convenience by routing high deﬁnition video and analog/digital audio from any of

four sources to any of 4 local displays and audio reproduction equipment.

Full High-Resolution HDTV signals are supported up to a resolution of 1080p.

The Gefen 4x4 Component w/Audio Matrix works with any Component Video

source including DVD players, cable boxes, and satellite set-top boxes that

connect to a Component display. Every source is accessible at all times by any

display by selecting it with the IR remote.

How It Works

Connect up to 4 local Component AV sources to the Matrix’s inputs. Connect the

outputs to up to 4 Component displays and audio receivers, plug in the power

supply, and crisp, vibrant video with audio will appear at the chosen locations.

INTRODUCTION

READ THESE NOTES BEFORE INSTALLING OR

OPERATING THE 4X4 COMPONENT W/AUDIO MATRIX

• The 4x4 Component Audio Matrix is housed in a metal box for better RF

shielding.

• The 4x4 Component Audio Matrix works with all component displays.

OPERATION NOTES

Features

• switches easily between any four component/audio sources

• Sends up to four video inputs to any four remote displays

• Maintains 1080p, and 2k resolution video

• Discrete IR remote (included)

• Serial RS-232 remote port (for unattended control)

• Rack ears included

Package Includes

(1) 4x4 Component w/Audio Matrix

(4) 6-foot 5 RCA Component Audio/Video cables

(1) 24V DC Power Supply

(1) Rack Ears

(1) IR Remote

(1) User Manual

FEATURES

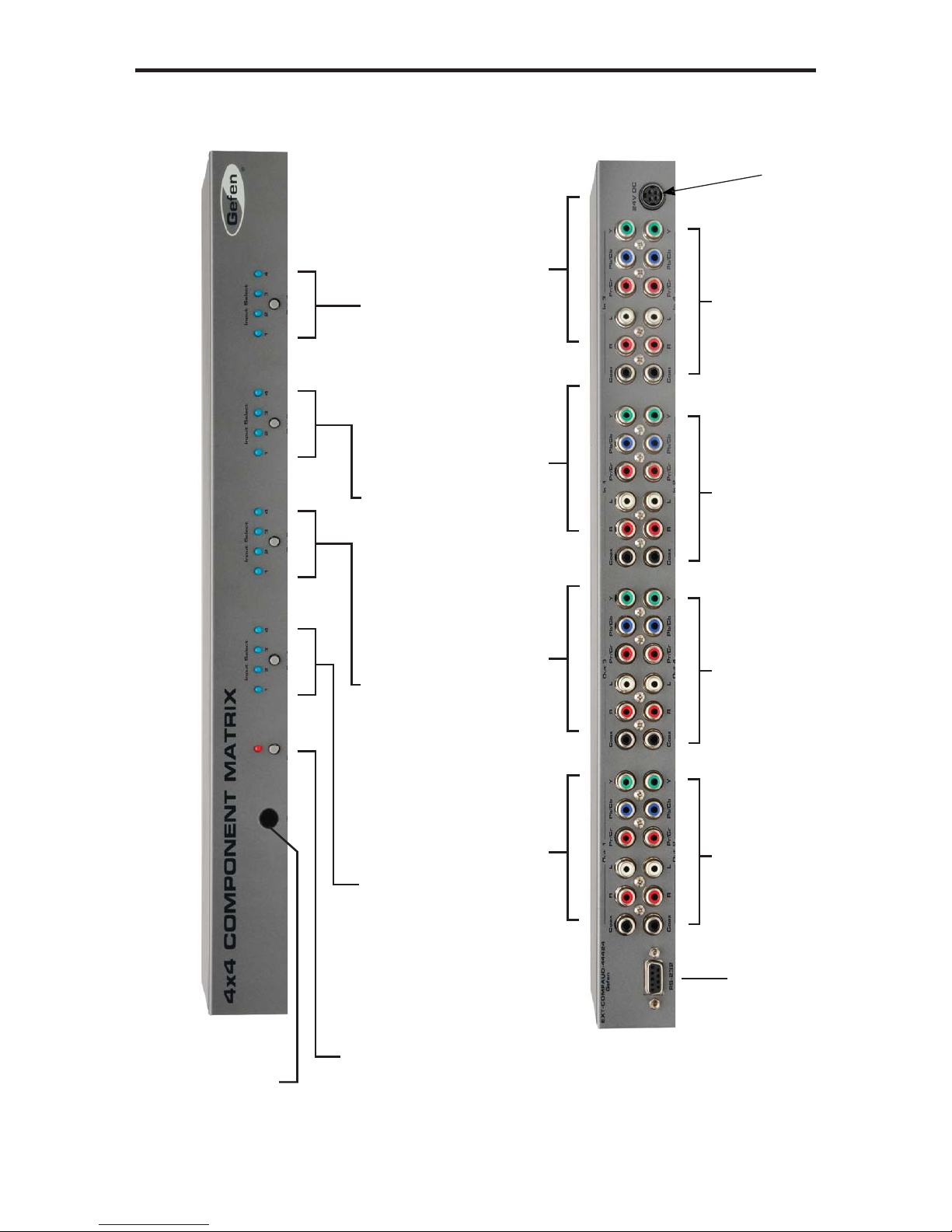

Front Panel

RS232 Controller Port

Display 2

LED Source Indicator

and selector button

Display 4

LED Source Indicator

and selector button

IR Sensor

Power Indicator

and Power button

Back Panel

Connects to 12VDC Power

Supply

Component & Analog/Digital

Audio Input 4

Component & Analog/Digital

Audio Input 2

Component & Analog/Digital

Audio input 1 Component & Analog/Digital

Audio Input 3

Component & Analog/Digital

Audio Output 4

Component & Analog/Digital

Audio Output 2

Component & Analog/Digital

Audio Output 3

Component & Analog/Digital

Audio Output 1

Display 1

LED Source Indicator

and selector button

Display 3

LED source Indicator

and selector button

PANEL LAYOUT

How to Connect the 4x4 Component w/Audio Matrix

1. Connect up to 4 component video/audio sources to the 4x4 Component w/

Audio Matrix inputs using the supplied 5 RCA analog stereo audio cable

Optionally, connect digital coaxial audio to the 4x4 Component w/Audio

Matrix using a user supplied digital coaxial cable.

2. Connect up to 4 component video displays to the 4x4 Component w/Audio

Matrix outputs using user supplied component cables.

3. Connect analog/digital audio outputs on the 4x4 Component w/Audio Matrix

to either the component displays or a separate audio receiver.

4. Connect the included 24V DC power supply to the 4x4 Component w/Audio

Matrix.

How to Connect the 4x4 Component w/Audio Matrix

Routing of video to displays is done using either the included RMT-16-IR

remote control or the direct select buttons located on the front panel of the 4x4

Component w/Audio Matrix.

Using the RMT-16-IR remote control

The RMT-16-IR remote control uses 16 buttons to select 1 of 4 sources for each

display to view. Each output display has a grouping of 4 buttons allocated for

selecting each source. Use the chart below to route video to your desired display.

Using the Direct Source Buttons

Each display output on the 4x4 Component w/Audio Matrix has a push-button

located on the front panel. Pressing this button will cycle through the 4 source

inputs. Press the button for each display repeatedly to select the desired source

for viewing on that display.

RMT-16-IR

Button Source Display

111

221

331

441

512

622

732

842

RMT-16-IR

Button Source Display

913

10 2 3

11 3 3

12 4 3

13 1 4

14 2 4

15 3 4

16 4 4

CONNECTING AND OPERATING THE 4X4 COMPONENT W/AUDIO MATRIX

1. Remove battery cover from the back of the RMT-16-IR remote.

2. Verify that DIP switches 1 & 2 are in the down (OFF) position.

3. Insert the battery, hold the battery so that you can see the positive side facing

up. The side that is not marked must be facing down.

4. Test the RMT-16-IR remote by pressing ONLY one button at a time. The

indicator light on the remote will ﬂash once each time you press a button.

WARNING: Do not press multiple buttons simultaneously and do NOT press buttons

rapidly. These actions will cause the remote to reset and steps 1-4 will have to be

repeated.

NOTE: The RMT-16-IR ships with two batteries. One battery is required for

operation, the second battery is complimentary.

RMT-16-IR REMOTE INSTALLATION

IR CHANNEL CONFIGURATION

How to Resolve IR Code Conﬂicts

In the event that IR commands from other remote controls conﬂict with the

supplied RMT-16IR remote control, changing the remote channel will alleviate

this issue. The RMT-16IR remote control has a bank of DIP (Dual Inline Package)

switches for conﬁguring the remote channel that both units use to communicate.

The 4x4 Component w/Audio Matrix can be put into a mode that will uses its

front LED array to indicate which remote channel is being used and also give the

user the ability to modify the currently used IR remote channel. These IR channel

settings must exactly match each other for proper operation.

The DIP Switch bank on the RMT-16IR is located underneath the battery cover.

Follow these steps to place the 4x4 Component w/Audio Matrix into IR channel

setup mode.

1. Turn on the 4x4 Component w/Audio Matrix.

2. Press and hold the front panel POWER button for 5 seconds to enter the

setup mode (All output LED’s except for Output 1 will be off). The Output 1

LED source indicator (page 4) will display the currently selected IR channel.

The active LED, either 1, 2, 3, or 4, will indicate which IR channel is being

used.

3. Note the IR channel used on the RMT-16IR remote and press the Output 1

selector button to cycle to the IR channel that is being used.

4. Press the POWER button to save the settings and exit the IR channel setup

mode.

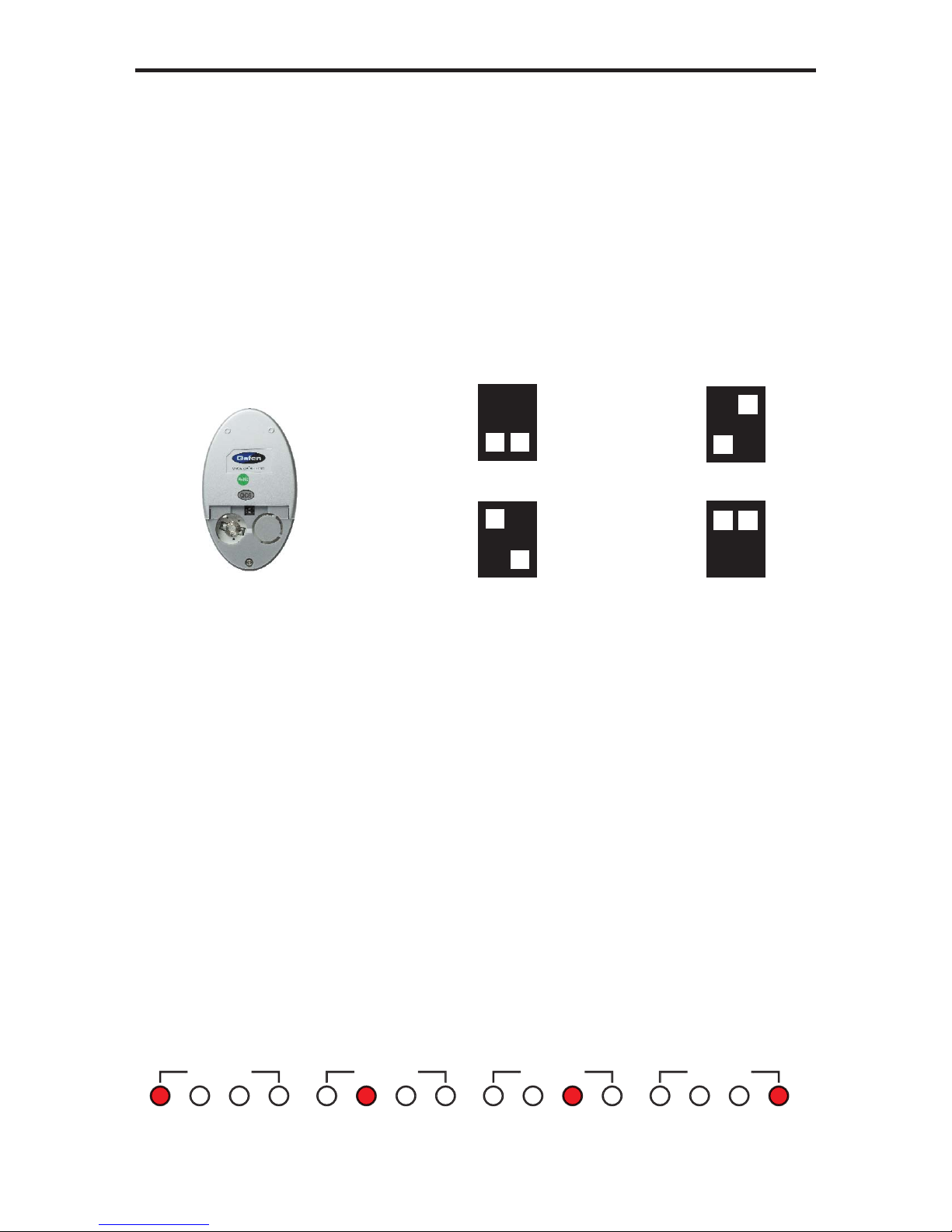

Channel 1:

Default

1 2

Channel 3:

1 2

Channel 2:

1 2

Channel 4:

1 2

Left: Picture of the opened rear battery

compartment of the RMT-16IR remote showing

the exposed DIP Switch bank between the

battery chambers.

Output-1

1Channel 1

234

Output-1

1Channel 2

234

Output-1

1Channel 3

234

Output-1

1Channel 4

234
