GE GE Profile PDW8700JBB User instructions
Specification Created 9/03
250122
TM

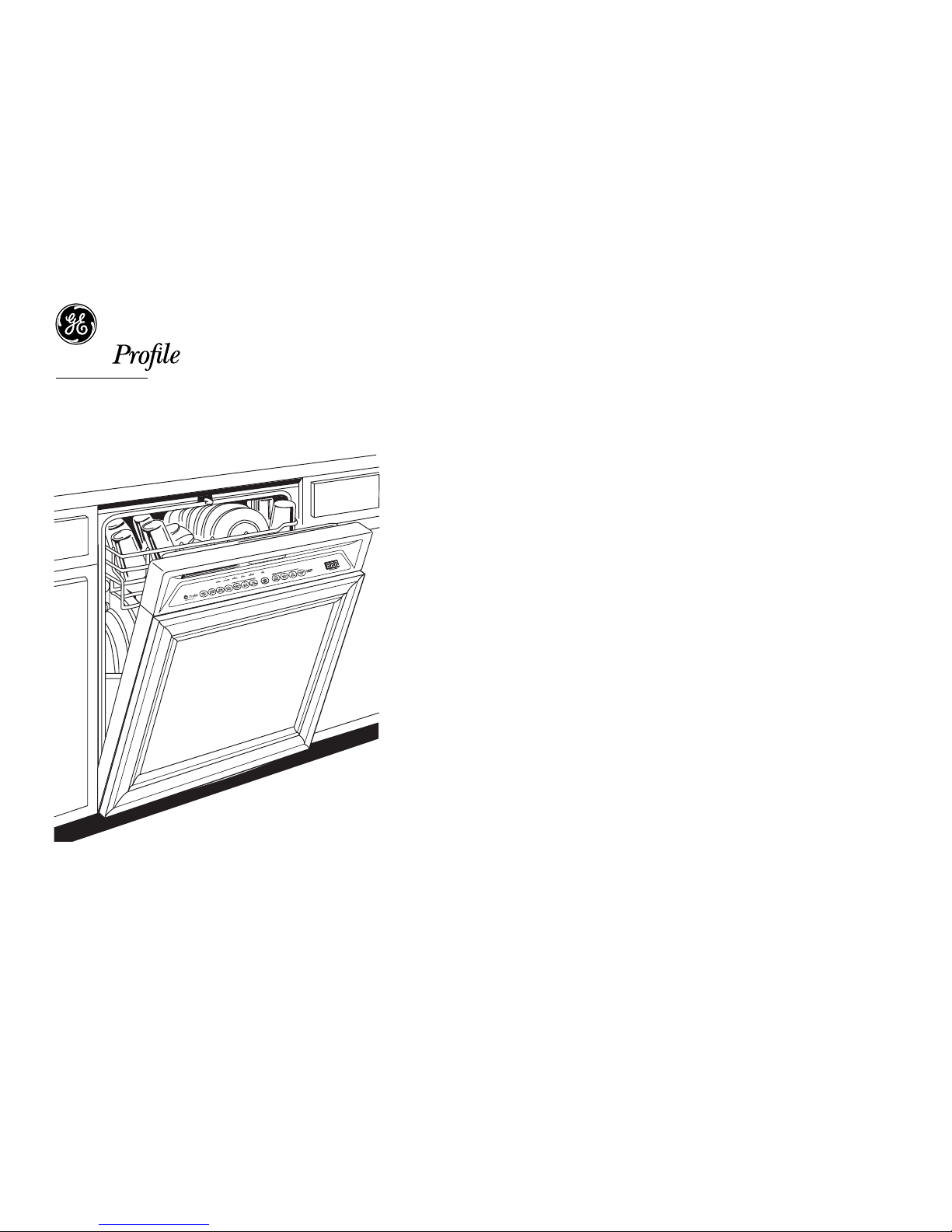

PDW8700JWW/CC/BB – GE Profile™Stainless Built-In Dishwasher
24
25-1/4
21-1/4
44 (Adjustable)
34" MIN.
adj.to 35"
27-1/2
22-1/2
Built-In Dishwasher Dimensions
(in inches)
Electrical Rating
Voltage AC. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 120
Hertz . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 60
Total connected load amperage. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9.1
Calrod®heater watts max. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 875
For use on adequately wired 120-volt, 15-amp circuit having 2-wire
service with a separate ground wire. This appliance must be
grounded for safe operation. For answers to your Monogram,
®GE Profile™or
GE®appliance questions, visit our website at
GEAppliances.com or call
GE Answer Center®service, 800.626.2000.
R
Listed by
Underwriters
Laboratories
As an ENERGY STAR®partner,
GE has determined that this product
meets the ENERGY STAR®
guidelines for energy efficiency.
Wood Insert Cutout Dimensions (in inches)
Kits: GPF825 and GPF875
B
See Detail E for 3/4" Panel Detail E for 3/4 panel only
Door insert ABack ViewFront View
F
F
1-7/8 1-7/8
20
Section F-FC
3/8
3/4
Panel
Kit A B C Thickness
GPF825 25-1/16" 23-1/2" N/A 1/4"
GPF875 25-7/16" 23-3/4" 1/4" 3/4"
This wall area
must be free of
pipes or wires
Countertop
4
6
Hot
water
line on
left
44
2Plumbing and electrical
service must enter
inside shaded area
24" From wall
24" MIN.
90°
19" MIN. from wall
24"
MIN.
6
34-1/2±1/4"
Underside
of countertop
to floor
55
90°
Electrical
wiring on
right
Electrical
wiring is
3" from
cabinet
Specification Created 9/03
250122
TM
PDW8700JWW/CC/BB – GE Profile™Stainless Built-In Dishwasher
Features and Benefits
• Full-length flat door – Blends almost seamlessly with adjacent cabinetry (custom panel
kit available).
• Bright annealed stainless steel tub and door liner – A lustrous finish and lasting beauty
that resists stains and corrosion.
• Removable/four-position adjustable upper rack – Pulls out completely or moves up, down
or diagonally for maximum loading flexibility.
• Countdown display with 24–hr. delay – Signals remaining cycle time and starts the dishwasher
when no one’s home or during off peak hours when utilities are at reduced rates.
• Color-matched nylon Pearlescent™racks – Complements the radiance of stainless steel.
• QuietPower™VI sound package – Features the fan-assisted drying system, the new concealed
ActiveVent and an enhanced insulation package to make this the quietest GE Profile
dishwasher ever.
• 100% fold-down tines – Provide maximum loading flexibility in the lower rack.
• Four sets fold-down tines, four sets StemSafe™
,upper rack – Provide additional flexibility
for loading odd-shaped items and for safely washing fine stemware.
• Cutlery tray – Protects cutlery or flatware and leaves space underneath for more dishes.
• Plastics cycle – Optimizes wash and dry temperatures to protect plastics and dry dishes fully.
• Model PDW8700JWW – White on white
• Model PDW8700JCC – Bisque on bisque
• Model PDW8700JBB – Black on black
