Specification Created 7/01
TM
PDW7700G—GE Profile™Built-In Dishwasher
For answers to your Monogram,
® GE Profile™or
GE appliance questions, visit our website at
GEAppliances.com or call
GE Answer Center®service, 800.626.2000.
R
Listed by
Underwriters
Laboratories
24
25-1/4
21-1/4
44 (Adjustable)
34-1/8 MIN.
adj.to 35
27-1/2
22-1/2

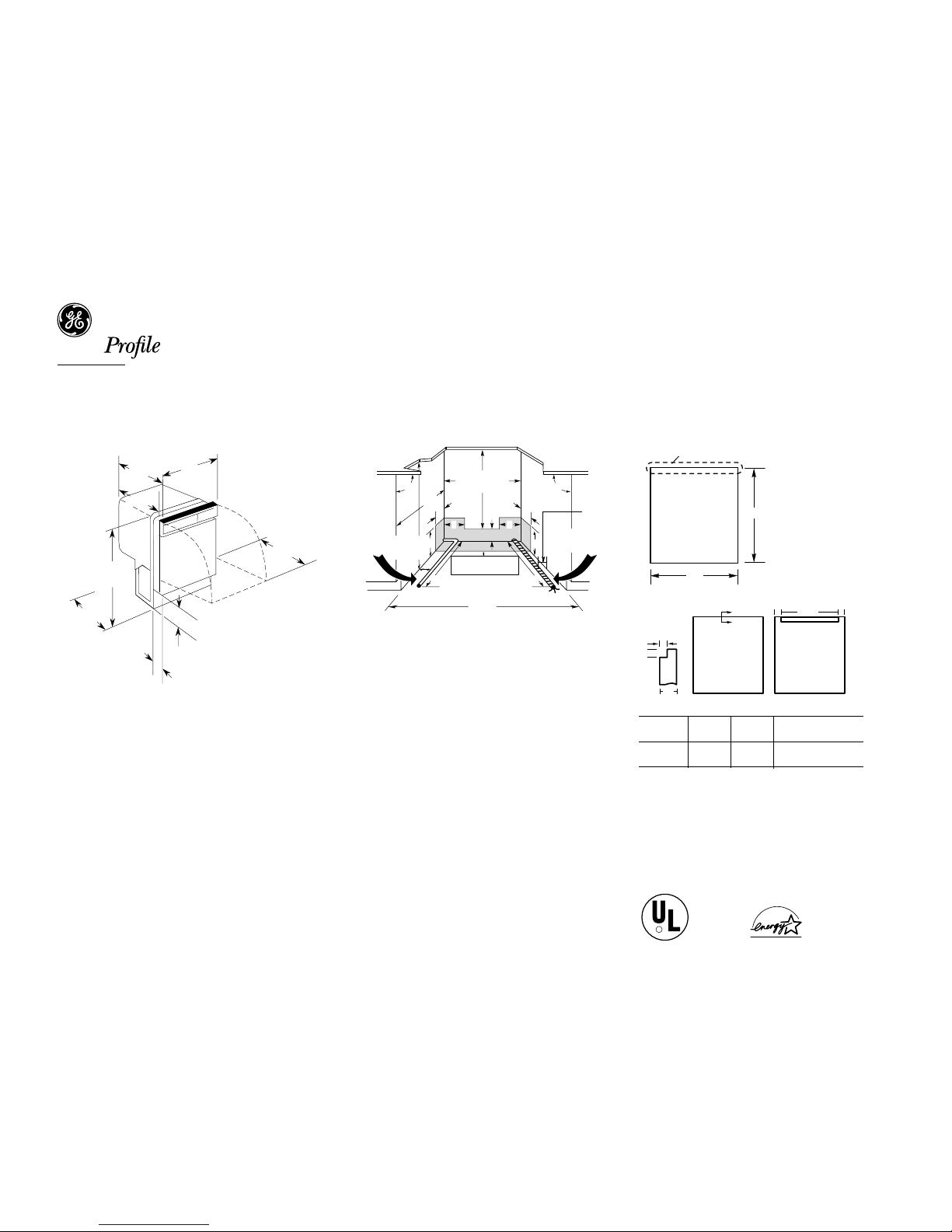

Built-In Dishwasher Dimensions
(in inches)
Models/Kit A B C - Panel Thickness
GE Models
GPF625 Kit* 25-1/16" 23-1/2" 1/4"
GPF675 Kit** 25-7/16" 23-3/4" 3/4"
**GPF800 Heavy Spring Kit required for custom door panel
weighing more than 4 lbs.
**GPF800 Heavy Spring Kit included.
Wood Insert Cut-Out Dimensions
(flat door models only)
B
See Detail E for 3/4" Panel
Door insert A
Detail E for 3/4 panel only
Back ViewFront View
F
F2219-3/4
Section F-F
3/8
3/8
3/4
Electrical Rating
Voltage AC.......................120
Hertz ..................................60
Total connected load amperage.....9.1
Calrod®heater watts max...............875
For use on adequately wired 120-volt,
15-amp circuit having 2-wire service with
a separate ground wire. This appliance
must be grounded for safe operation.
As an ENERGY STAR®partner,
GE has determined that this product
meets the ENERGY STAR®
guidelines for energy efficiency.
Dishwasher Rough-In Information
Note: Dishwasher must not be installed more
than 10 feet from sink for proper drainage.
All plumbing and electrical work must be in
accordance with local codes.
The power cord and connections must comply
with the National Electrical Code Section 422
and/or local codes and ordinances. The cord
must be no longer than 6 ft. from the junction
box to the receptacle.
Installation Information
(in inches)
This wall area
must be free of
pipes or wires
Countertop
4
6
Hot
water
line on
left
44
2Plumbing and electrical
service must enter
inside shaded area
24" From wall
24" MIN.
90°
19" MIN. from wall
24"
MIN.
6
34-1/2±1/4"
Underside
of countertop
to floor
55
90°
Electrical
wiring on
right
Electrical
wiring is
3" from
cabinet
Specification Created 7/01

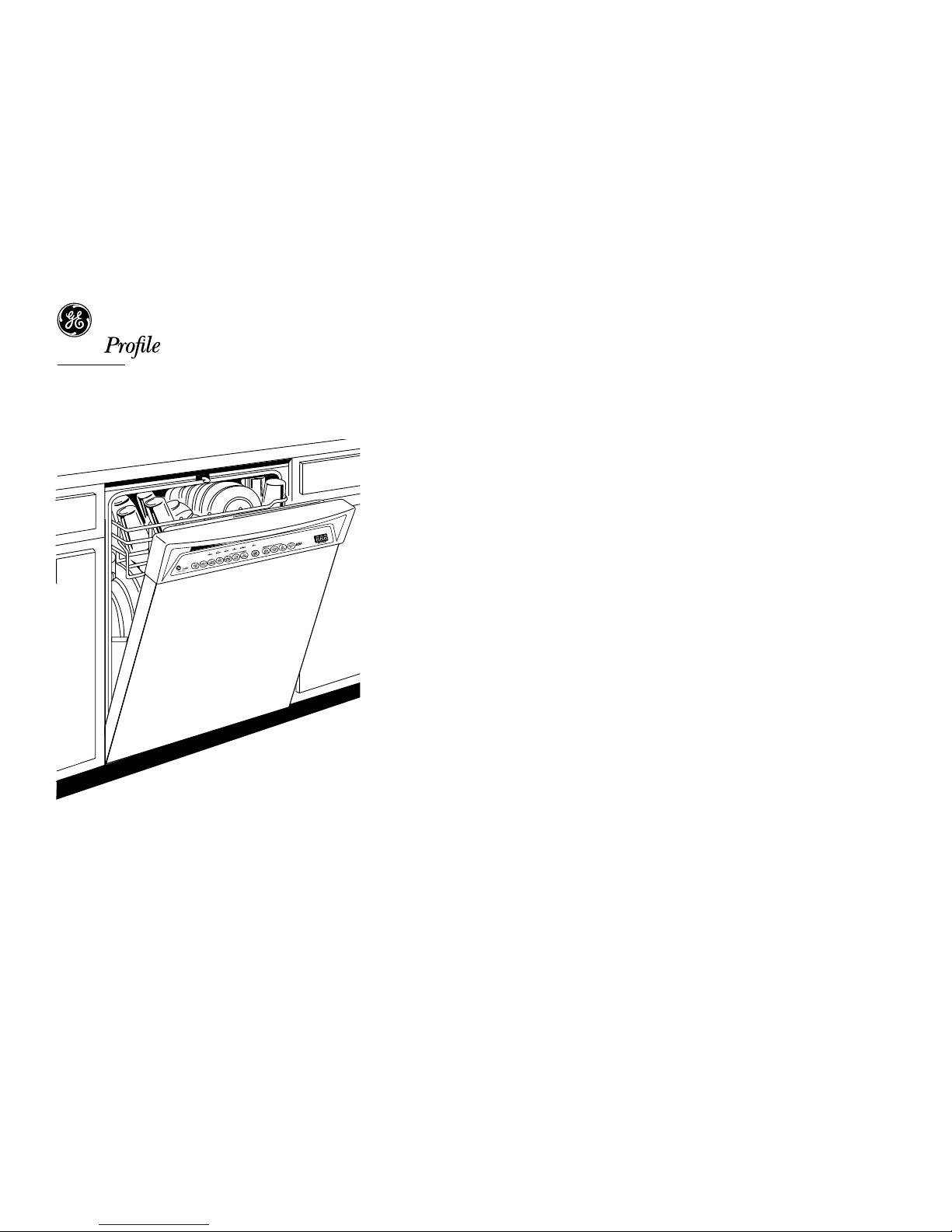

TM
PDW7700G—GE Profile™Built-In Dishwasher
Features and Benefits
•Energy Star®Qualified
•Full-Length Flat Door Accepts CustomStyle™Panels
•Tall-Over-Tall™Towerless Rack Design: Tiered Upper Rack w/Nylon Fold-Down Tines &
StemSafe™System, Lower Rack w/Nylon Fold-Down Tines & ExtraShelf
•QuietPower™IV Sound Insulation Package with ActiveVent II System
•ExtraClean™Towerless Wash System with Six Wash Levels
•ExtraClean™Sensor with Integrated Automatic Temperature Control
•Variable Cycles: Anti-Bacteria (NSF Certified), Cookware, Normal Wash, China/Crystal
Glasses, SpeedCycle™Selection and Rinse Only
•Three Full-Size, Direct-Feed Wash Arms
•100% Triple Water Filtration System with ExtraFine™Filter/Dual Pumps and Motors
•Inlaid Light-Touch Electronic Controls with Three Digit Display and Status
Indicator Lights
•Three-Piece Modular Silverware Basket with Cell Covers
•Multi-Wattage Heating Element
•Enhancements: Start/Reset, Child Lock-Out, Delay Start (1-9 Hours), Heated Dry,
Added Heat, Pre-Wash and Auto HotStart™Feature
•Hard Countertop Ready
•Lifetime Warranty on Tub and Door Liner
•Model PDW7700GWW - White on white
•Model PDW7700GBB - Black on black
•Model PDW7700GCC - Bisque
