GE GDWF160RSS Manual
Specification Revised 3/10 350218
Listed by
Underwriters
Laboratories

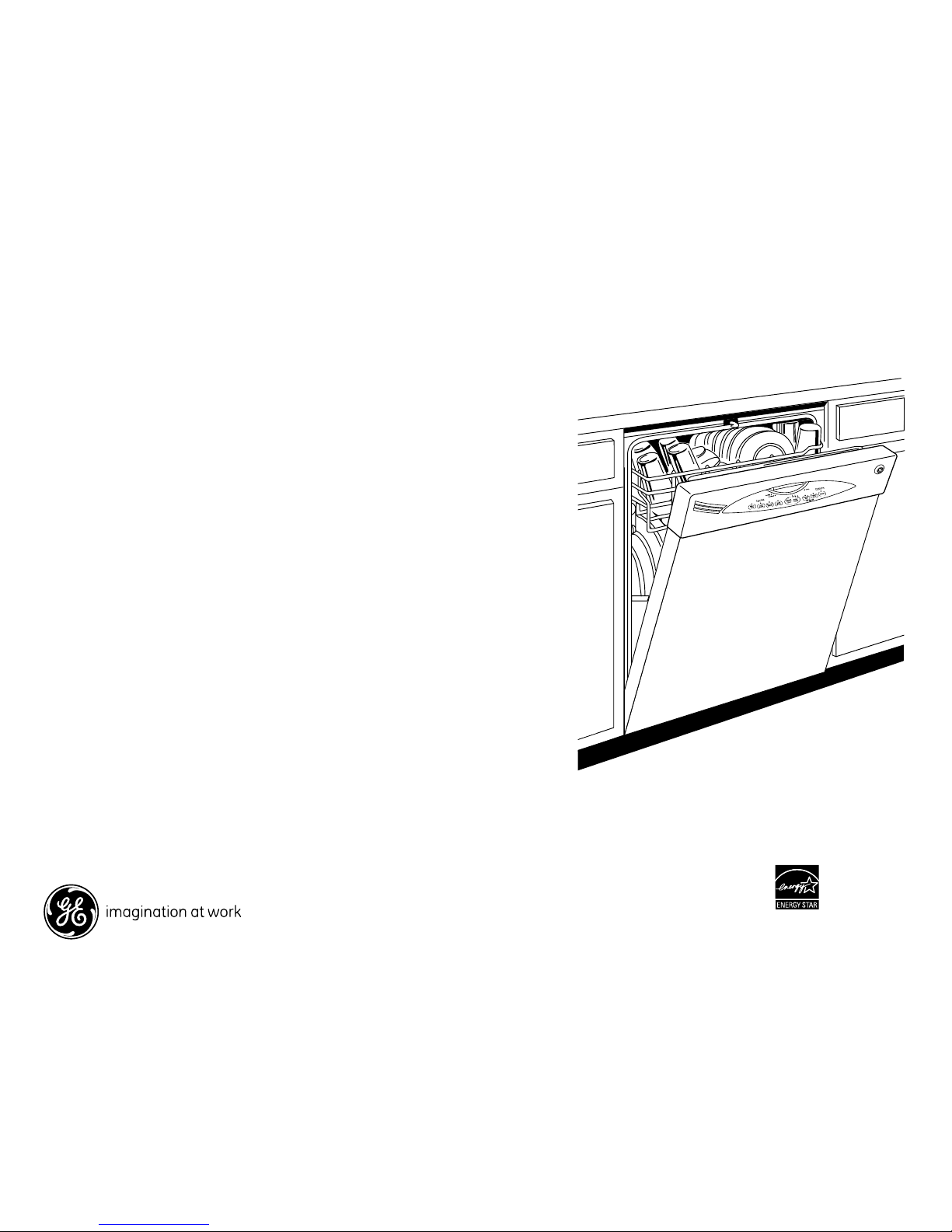

GDWF100R/160R
GE®Built-In Dishwasher
For answers to your Monogram,
® GE Profile
™or
GE®appliance questions, visit our website at
ge.com or call GE Answer Center
®service,
800.626.2000.
24
25-1/4*
21-1/4
44 (Adjustable)
27-1/2
22-1/2
34" MIN.
adj. to 35"
* Allow an additional 2.525” for the handle on
GDWF160/100 Series models.
This wall area
must be free of
pipes or wires
Countertop
4
6
Hot
water
line on
left
44
2Plumbing and electrical
service must enter
inside shaded area
24" From wall
24" MIN.
90°
19" MIN. from wall
24"
MIN.
6
34" to 34-3/4"
Underside
of countertop
to floor
5 5
90°
Electrical
wiring on
right
Electrical
wiring is
3" from
cabinet
Dimensions and Installation Information (in inches)
Electrical Rating
Voltage AC.......................................................... 120
Hertz.................................................................... 60
Total connected load amperage............. 10
Calrod®heater watts max....................... 875
For use on adequately wired 120-volt, 15-amp circuit
having 2-wire service with a separate ground wire.
This appliance must be grounded for safe operation.
As an ENERGY STAR®
partner, GE has determined
that this product meets the
ENERGY STAR guidelines
for energy efficiency.
350218
Specification Revised 3/10
GDWF100R/160R
GE®Built-In Dishwasher
GDWF100RWW/BB
Features and Benefits
•Brightannealed stainlesssteel interior- Lustrousinteriorlooks great
and stands up to stains
•PureCleanwash system with 5-stage filtration- Multiplefiltration
levels ensure clean dishes
•CleanSensor
™- A tiny laser measures soil levels and water
temperature to adjust to the ideal cycle time
•SaniWash cycle - Special cycle reduces 99.999% of harmful germs
and bacteria
•2/4/8-hourDelay Start - Set the time to wash dishes at a later time
•Nylon racks - Durable racks are designed to resistrust and secure
dishes
•Model GDWF160RSS – Stainlesssteel
•Model GDWF100RWW– White on white
•Model GDWF100RBB – Black on black
As an ENERGY STAR®
partner, GE has determined
that this product meets the
ENERGY STAR guidelines
for energy efficiency.
•Steam Pre-Wash option - Steam helps loosen tough soils before any cycle
This manual suits for next models
