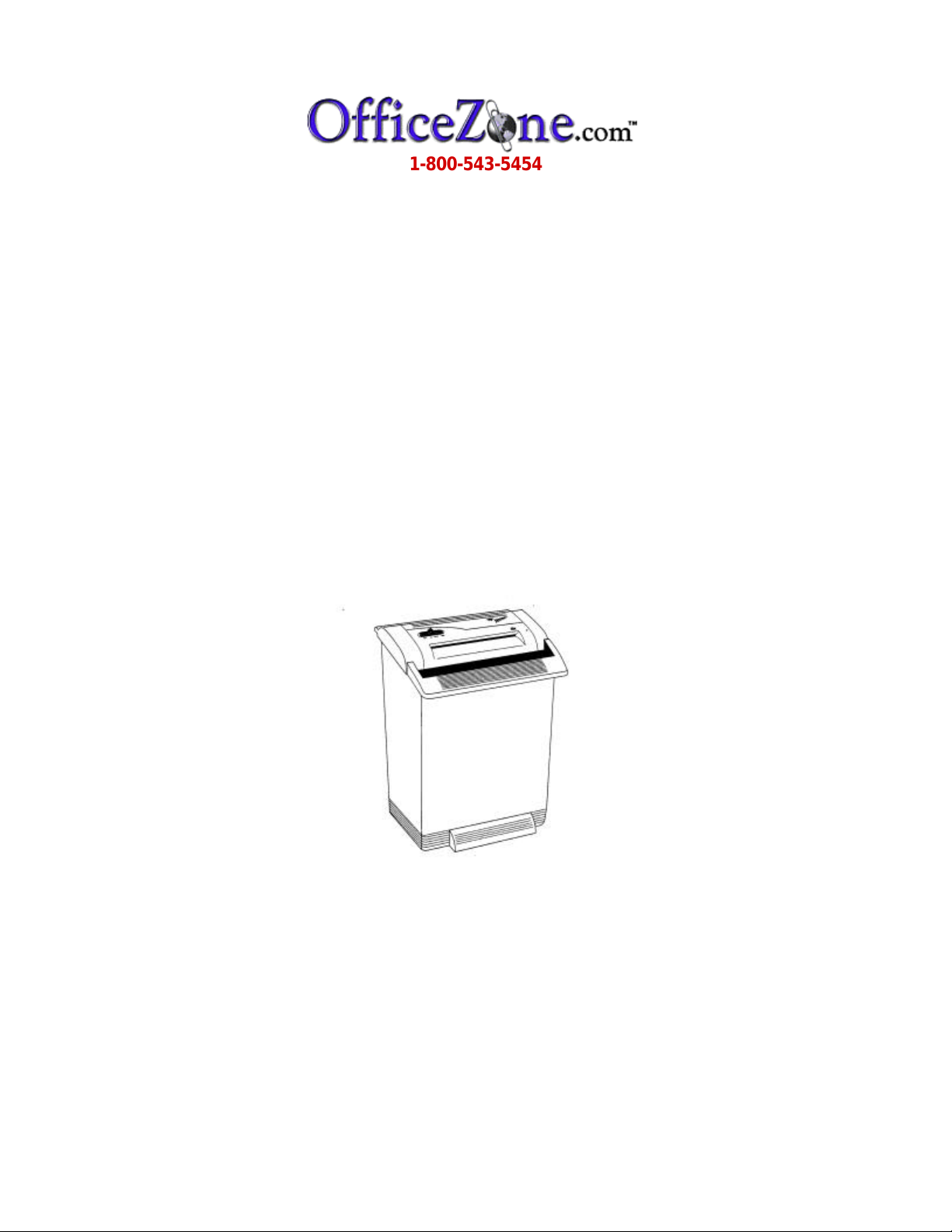

GBC® Shredmaster® 80S Shredder

Operating Procedures

Office Zone

1-800-543-5454

Important Safety Instructions

In this instruction manual and on the product are important safety messages. Read these messages

carefully.

The safety alert symbol precedes each safety message in this instruction manual and on the

product. This symbol indicates a potential personal safety hazard that could hurt you or others, as

well as cause product or property damage.

The following warning is found on the bottom of the product.

This safety message means that you could be seriously hurt or killed if you open the product and

expose yourself to hazardous voltage.

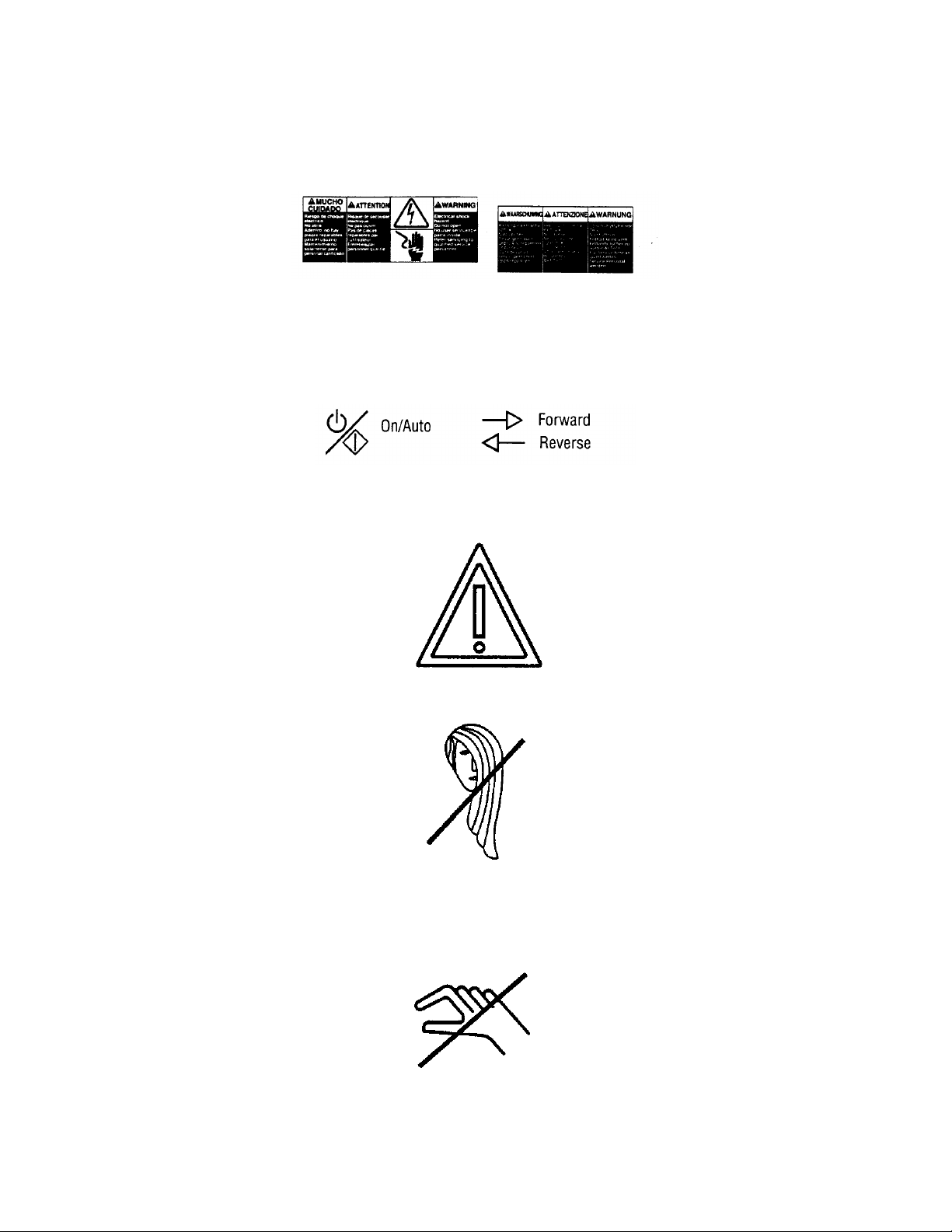

The following ISO and IEC symbols appear on this product, and their meanings are as follows:

This means you should be careful because long hair can become entangled in the cutting head.

This could hurt you.

This means don’t reach into the feed opening of the cutting head. This could hurt you.

This means be careful of ties and other loose clothing which could become entangled in the cutting

head. This could hurt you.

This means you should be careful of loose jewelry, which could become entangled, in the cutting

head. This could hurt you.

Electrical Safeguards

•Unplug your shredder before moving it, emptying the basket, or when it is not in use for an extended period

of time.

•Do not operate with a damaged power supply cord or plug, after it malfunctions, or after it has been

damaged in any manner.

•Do not overload electrical outlets beyond capacity as this can result in fire or electrical shock.

•The socket-outlet shall be installed near the equipment and shall be easily accessible.

•Do not alter attachment plug. Plug configured for the appropriate electrical supply.

Service

•Do not attempt to service or repair the unit yourself. In the U.S. and Canada, if your shredder is under

warranty return it to the point of purchase for replacement or repair.

80S Specifications

115 Volt 220-240 Volt

Throat Width: 9” 230 mm

Shred Width: 1 / 4” 4 mm

Sheet Capacity: 9-10 sheets of 20# bond 9-10 sheets of 70 gm/m

Speed: 9 Feet/Minute 2.7 Meters/Minute

Amperage: 2.0 Amps 2.0 Amps

Duty Cycle: 3/25 Min (On/Off) 3/25 Min (On/Off)

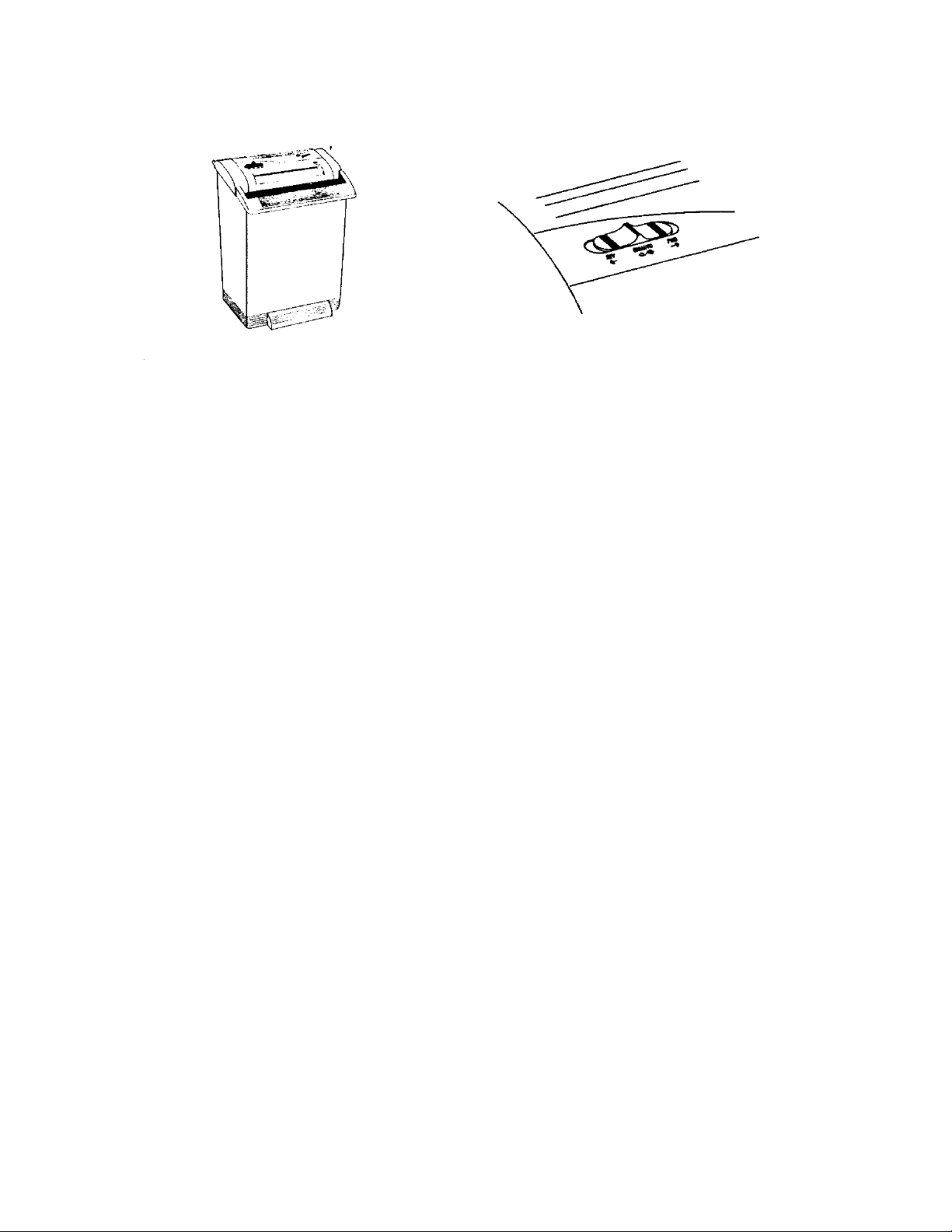

Installation

Position the shredder onto the basket. Once the unit is correctly positioned on the basket, plug it

into a standard AC outlet.

Materials you can shred

Your shredder will handle most any type of office paper documents. You can safely shred

documents containing staples, however, other metal items may damage the shredder.

On / Auto

Simply insert paper into the center of the throat. Once your document has activated the trigger

switch the unit will turn on and off automatically.

Forward and reverse

Moving the switch to either of these positions will cause the unit to run in the corresponding

direction.

Clearing Jams

If a paper jam occurs, switch the unit to the reverse position until the paper is out of the throat. If

a jam occurs with paper more than halfway through the cutters momentarily switch into the

REVERSE position until about 1 / 2” to 1” shredded paper reverses out. Tear off two or three

sheets and switch into the FORWARD position to clear the paper jam. In some cases, it may be

necessary to alternate between FORWARD and REVERSE positions several times to help clear

excess paper from the cutting area.

Thermal cut-off feature

This shredder is designed for low volume shredding, and is not intended for continuous operation. This

unit features a thermal cut-off device that automatically shuts off the shredder if run for an extended period

of time. If this occurs, simply allow the shredder to cool for 25 minutes before resuming operation.
