GBC Shredmaster 1130S User manual

1.0 1130S Introduction

This service manual covers adjustment, disassembly, operation, preventative maintenance, trou-

bleshooting procedures and contains an illustrated parts list for the GBC Shredmaster 1130S shred-

der. The GBC Shredmaster 1130S straight cut shredder is designed for small offices and low vol-

ume requirements.

Innovative engineering has provided this shredder with the following operating and safety features:

1. Automatic Operation- The unit begins to operate when paper actuates the trigger in the shred-

der throat area. The motor stops running when the paper has cleared the cutting head and after the

shredder has timed out.

2. Overload Warning- Whenever the capacity of the shredder is exceeded the unit will stop shred-

ding and the "Reverse" icon will illuminate.

3. Bin Full- When the shred bag becomes full, the motor automatically turns off and the "Bin full"

icon will illuminate. The shredder will not operate until the shredded material is either compacted or

emptied.

4. Door Ajar- When the door of the shredder is not fully closed, the "Door Ajar" icon will illumi-

nate. This is a safety feature that will only allow the shredder to operate when the cabinet door is in

the closed position.

Before attempting any repairs on the 1130S shredder, review the operating instructions first to gain

experience and familiarity with its operation. You will then be better prepared to use the remaining

sections of this manual to troubleshoot and repair the shredder.

4

5

Required

Electrical

Service:

115V AC +/ -

10%, 60 Hz, 15 Amp

Electrical

Rating: 115V AC

3A, @ 60Hz

Motor:

1/8 Hp

Thermally Protected

Duty Cycle: 10 Min. On/30 Min. Off

Dimensions:

HxWxD 26.75’’ x 16.75’’x 15’’

(67.9 x 42.5 x 38.1 cm)

Weight W/

Cabinet: 38.71 lbs.

Shredding

Speed: 25 FPM @ 1 sheet

Shred Size: 5/32’’ (4mm)

Throat

Width: 9 1/4’’ (23.5cm)

Capacity: 11-

12 sheets of 20# Bond

Paper

Noise Level: 68 dB No Load

Shipping

Carton

Dimensions:

HxWxD

32.06’’ x 22.5’’ x 20’’

(81.4 x 57.15 x 50.8 cm)

2.0 1130S Specifications

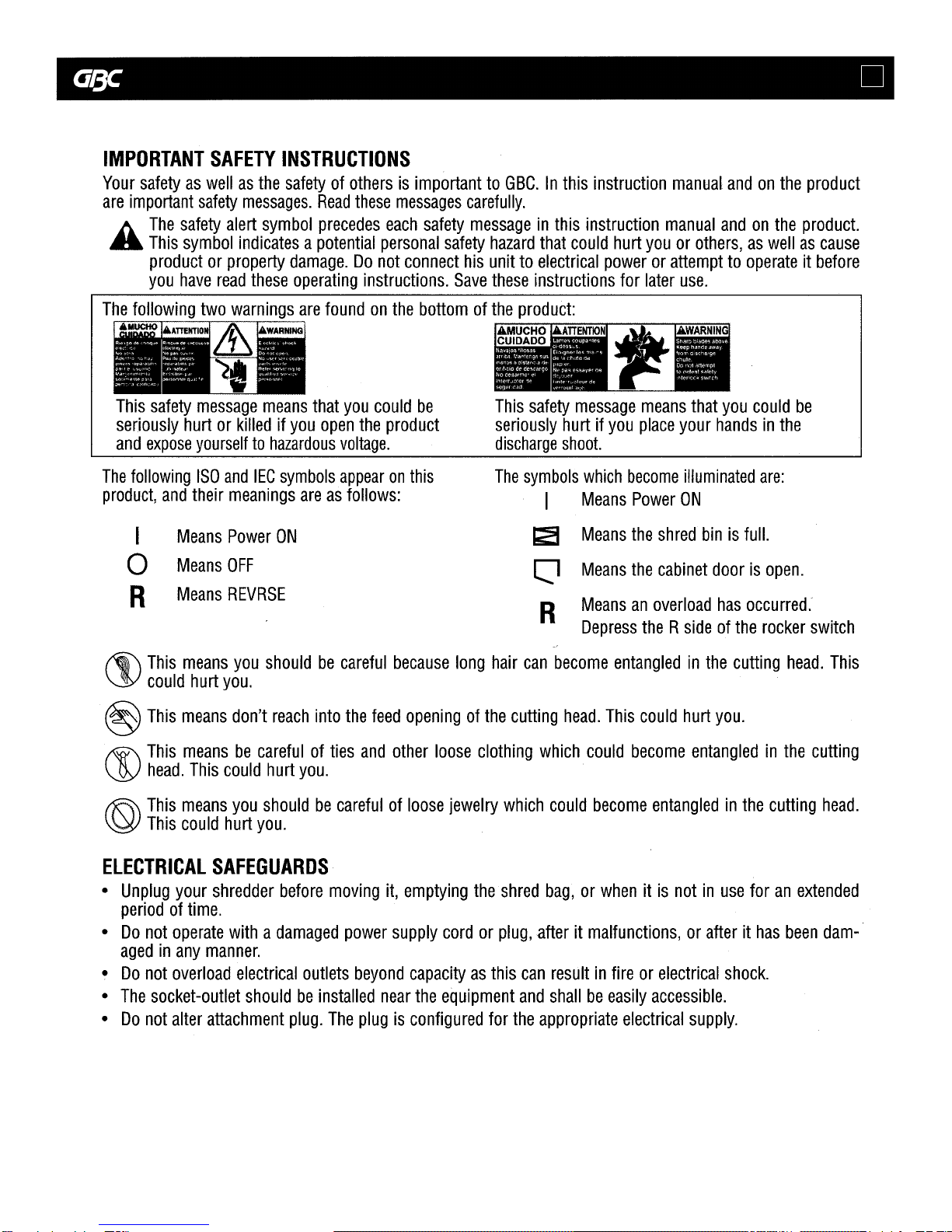

3.0 1130S Safety Instructions6

7

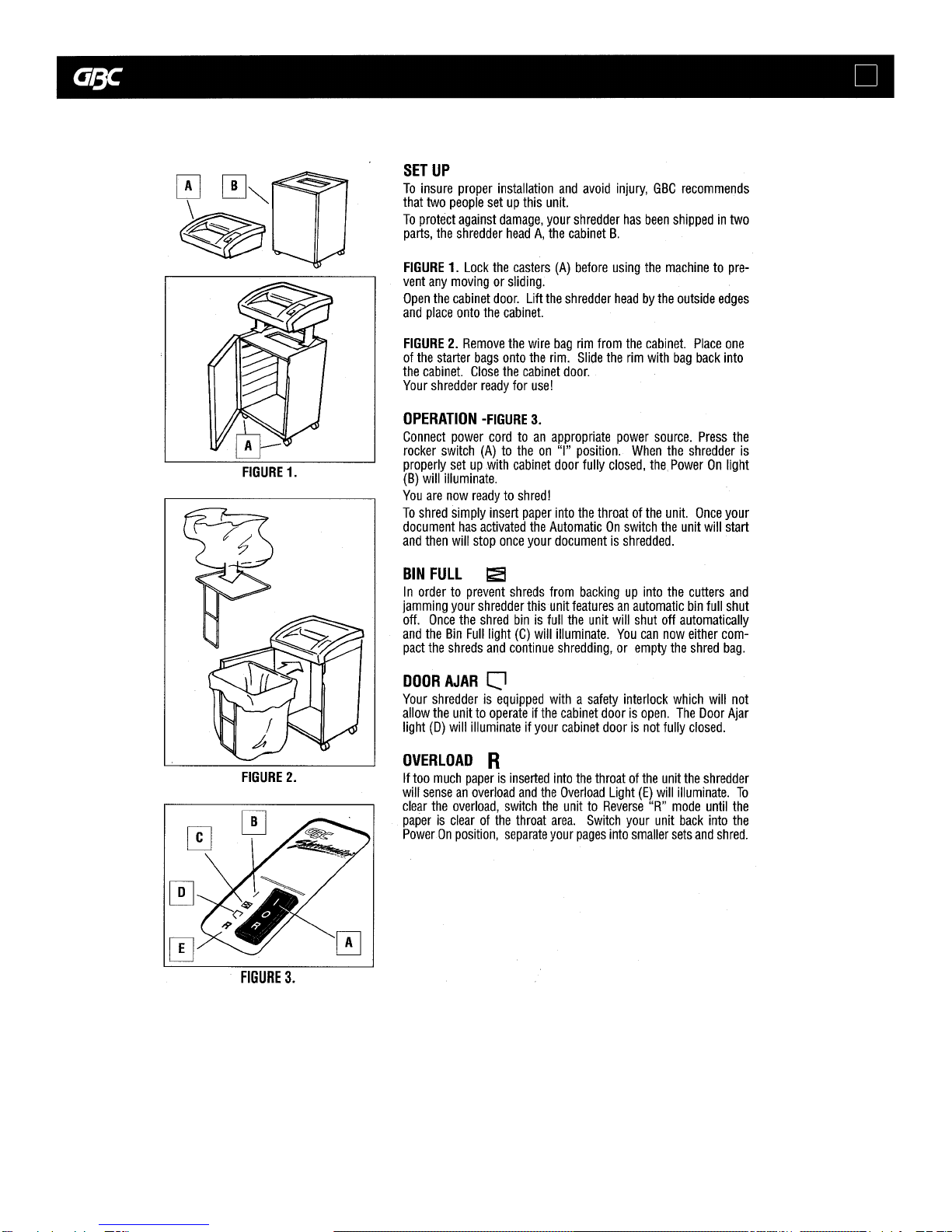

3.0/4.0 1130S Installation/Operation
