GAI-Tronics KETS 1141 User manual

Doc. No. 502-20-0140-001 Iss1. Feb 2013. (CN35676-010)

Installation and User Guide

KETS 1141

Titan Illuminated

Crossing Telephone

WARNING

THIS TELEPHONE REQUIRES A SPECIFIC SET UP PROCEDURE,

DETAILED IN THIS MANUAL.

PHONES MAY FAIL TO OPERATE IF NOT SET UP

CORRECTLY ON INSTALLATION.

GAI-TRONICS

Press

LIFT

HANDSET

PRESS

BUT

AIT

FOR

ANSWER

2 KETS 1141 Titan Illuminated Crossing Telephone

KETS 1141 Titan Illuminated Crossing Telephone 3

CONTENTS

Safety and Care Information....................................................................... 4

Product Description .................................................................................... 4

2.1.

At a Glance .................................................................................. 5

KETS System Summary............................................................................. 6

Addressing Procedure ................................................................................ 6

Operation / Testing ..................................................................................... 7

Installation .................................................................................................. 8

6.1.

General ........................................................................................ 8

6.2.

If glands are required ...................................................................8

6.3.

Wall mounting .............................................................................. 9

6.4.

Pole mounting ............................................................................ 10

Connections ............................................................................................. 12

Legend Panel. .......................................................................................... 13

8.1.

Legend panel dimensions .......................................................... 13

8.2.

Fitting the legend panel.............................................................. 14

Cleaning ................................................................................................... 14

9.1.

Normal Cleaning ........................................................................ 14

9.2.

Stainless Steel Push-button ....................................................... 14

9.3.

Graffiti......................................................................................... 14

10.

Aftercare................................................................................................... 15

11.

Technical Specifications ........................................................................... 16

12.

CE Declaration ......................................................................................... 18

4 KETS 1141 Titan Illuminated Crossing Telephone

1. Safety and Care Information

▲

THIS TELEPHONE IS FOR

THE KETS (Kestrel Emergency Telephone

System) ONLY. DO NOT ATTEMPT TO CONNECT THIS TELEPHONE TO

A PABX or PSTN LINE OR TO PETS.

▲

The safety of the user/installer relies on the isolation of the telephone

network and not on the earthing of the case

▲

Pleas

e read these instructions thoroughly before starting installation.

These products must be installed by competent personnel familiar with

telephone installation.

▲

Telephone network voltages can be hazardous. Take adequate

precautions when opening the case or installing. If in doubt, disconnect

the telephone line elsewhere before accessing the line connections.

▲

For increased protection against lightning transients, attach a local

earth to the main terminal block (see section 7)

2. Product Description

This manual describes the KETS 1141 model Titan telephone, designed for

use on KETS (Kestrel Emergency Telephone System) at automatic half

barrier (AHB) level crossings in the UK. The product was introduced as an

alternative to PETS, and delivers the functionality of PETS, but is not

electrically compatible with any PETS interface. It can only be connected to a

dedicated KETS interface.

The product identity label is BROWN (as opposed to the blue label visible on

PETS units)

For the full list of product features, please see the specifications in section 11.

KETS 1141 Titan Illuminated Crossing Telephone 5

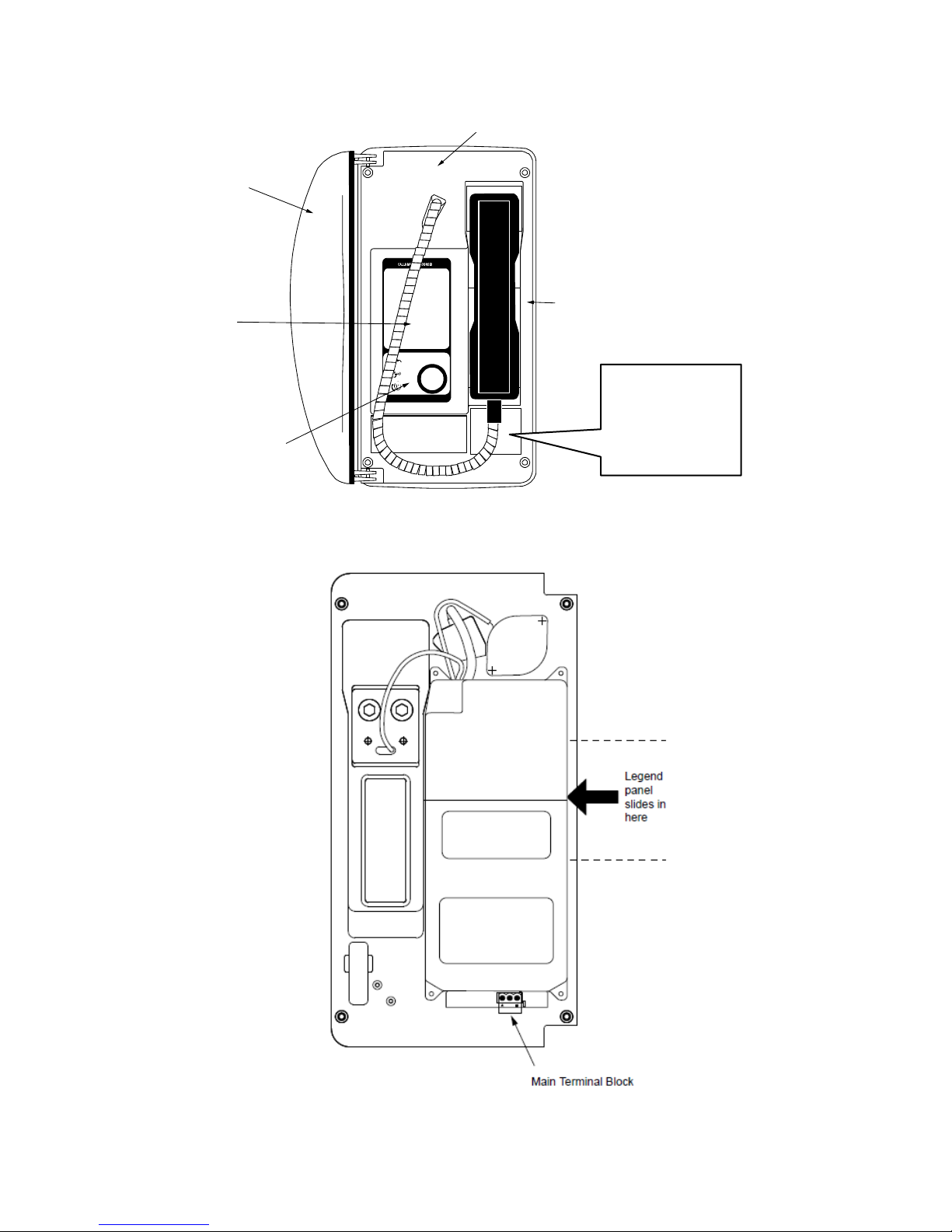

2.1. At a Glance

Press

LIFT

HANDSET

PRESS

BUTTON

WAIT

FOR

ANSWER

Door

Handset

Pushbutton

Faceplate

Illuminated

panel

KETS product

identity label

(Brown)

6 KETS 1141 Titan Illuminated Crossing Telephone

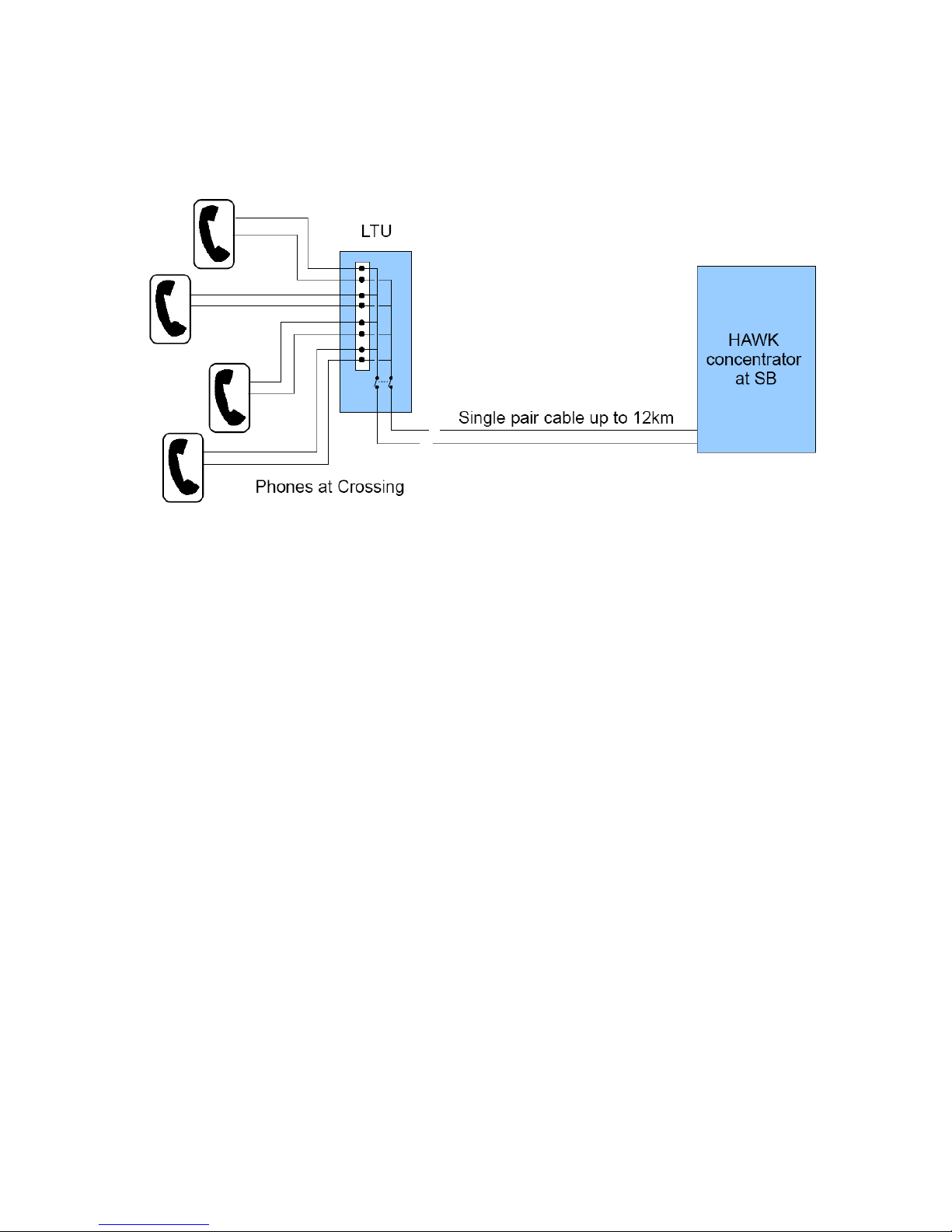

3. KETS System Summary

KETS is an "omnibus" system, meaning that all the telephones are connected

in parallel on a single cable pair from the crossing to the concentrator.

In practice all the phones at a crossing are connected into a Line Termination

Unit (LTU), but this is a passive device containing only line conditioning

components, terminals to connect up to 4 devices to a common pair and an

ON OFF switch to isolate all crossing phones from the line. The ability for 4

telephones to work independently on a single pair with detailed fault

monitoring and without interfering with each other relies on each telephone

being an intelligent device with its own unique address on the system.

4. Addressing Procedure

To make sure that a KETS phone automatically acquires the correct address

the rules are simple:

1. Only apply power to a phone when the handset is OFF HOOK.

2. Always test ALL phones at a crossing before leaving site, even

if only a single unit has been changed.

These rules apply equally to a complete new crossing installation or

replacement of a unit or units on an existing installed crossing.

If a KETS phone powers up with the handset on hook, it will retain its previous

address. So, in the event of temporary disconnection or power interruption, all

phones will retain their original addresses and function normally.

When installing or replacing a phone, it is essential that it does not retain any

previously set address, for example from another crossing, which may cause

a conflict. Powering up with the handset off hook will force it to acquire a new,

unique address.

KETS 1141 Titan Illuminated Crossing Telephone 7

Always check the function of all KETS phones after any replacement has

been made. If any individual phone does not perform as expected, it is usually

because the above procedure has not been followed. In this case follow

these steps to recover:

•disconnect power from all the phones (using the LTU switch),

•take all the handsets off hook,

•turn the LTU switch back on

•Replace all the handsets one by one

This will ensure that every phone acquires a unique address.

Note this situation can only occur as a result of maintenance activity, not

during normal operation or as a result of power or line interruption.

5. Operation / Testing

Normal operation of the phone is as follows:

Open the door - the illumination panel will come on

Lift handset - dial tone is heard but the call does not start.

Press button - ring tone is heard until the call is answered.

The call is cleared when the signaller hangs up, regardless of whether the

user hangs up.

When a call is made from the signal box back to the crossing, all KETS

phones on the line pair will ring.

When a handset is lifted the call is connected to that phone, and all the other

phones will stop ringing.

8 KETS 1141 Titan Illuminated Crossing Telephone

6. Installation

6.1. General

IMPORTANT

All possible measures must be taken to ensure water, fluid or dust

does not contaminate the internal components of the telephone whilst

unpacking, preparing and installing the telephone in inclement weather

conditions or by negligence.

Failure to do so may invalidate your warranty.

These telephones are supplied without connection leads – cabling to the

telephone network must be supplied and installed by the installer. Because of

this, extra precautions must be observed: installation must be carried out by

trained personnel. Contact GAI-Tronics if installation service is required.

1. To prepare for installation, open the door, then undo the four retaining

screws to remove the faceplate from the rear enclosure. A 3mm Allen

key is required.

2. Line connections are on the reverse of the faceplate, on the lower edge

of the PCB as it protrudes from the back box.

3. The Titan telephone is intended for vertical installation to a wall or pole.

Select the required mounting method (section 6) and mount the rear

enclosure first where applicable.

4. Route the required cable through a gland as appropriate.

5. Make sure the handset is off the cradle before connecting the

telephone to the line

6. Make connections following section 7.

Ensure that both cable entries are sealed with either a gland or a black

blanking plug as described.

7. Replace the handset on its cradle.

8. Re-fit the faceplate ensuring a weatherproof seal is maintained.

9. Test the operation of the telephone (sections 4 & 5) noting that all KETS

phones at the crossing must be tested before leaving site. Installation is

now complete.

6.2. If glands are required

Before mounting the telephone, check the cable routing and requirements. If

glands are required, fit them to the case as follows:

KETS 1141 Titan Illuminated Crossing Telephone 9

1. Remove the RED blanking plug leaving the other (usually BLACK) in

place.

2. Select the appropriate sized gland:

Use the smaller gland for cables diameters 4 - 7mm.

Use the larger gland for cable diameters 8 - 13mm.

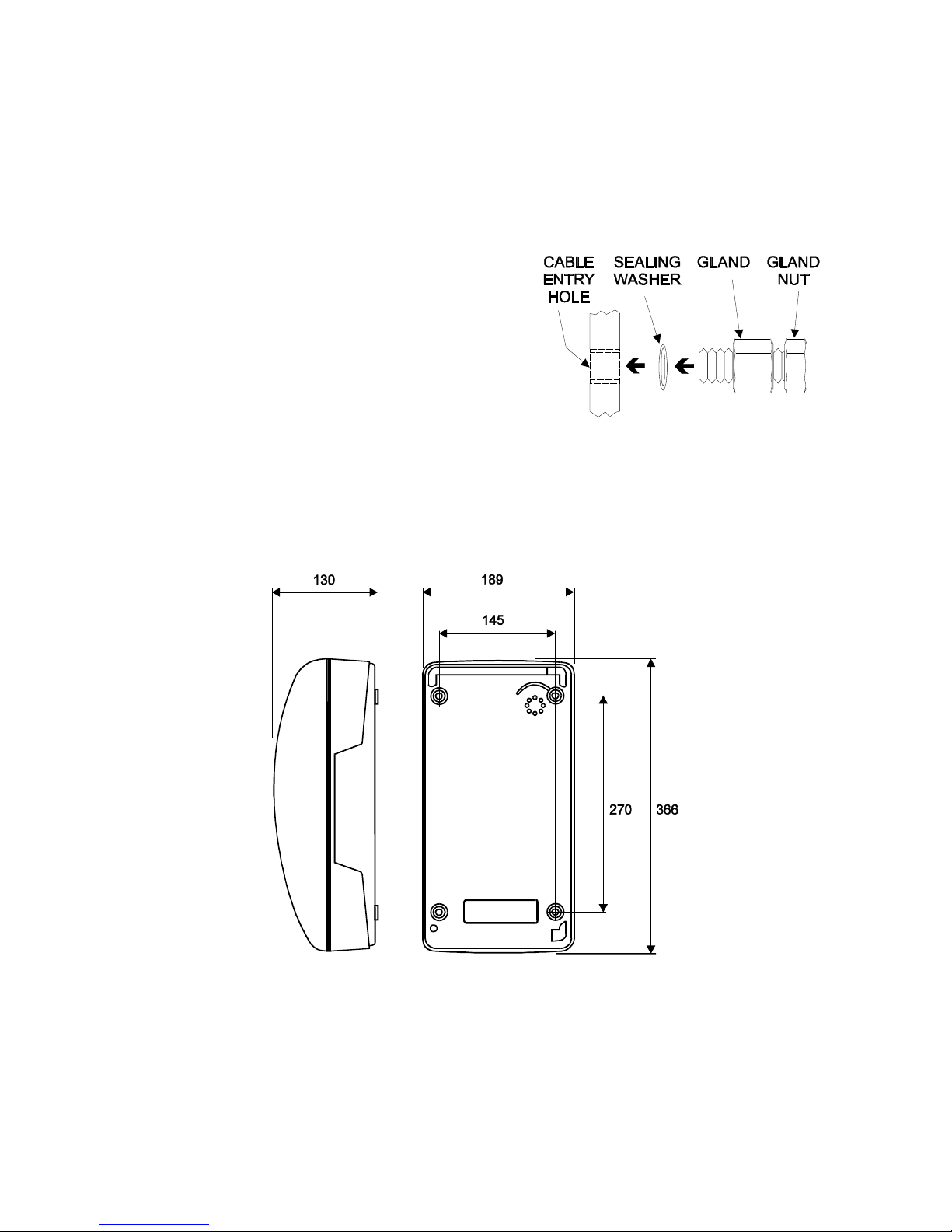

3. From the outside of the case, insert

the selected gland into the threaded

cable entry hole and tighten, so that its

sealing washer is compressed against

the enclosure surface.

4. Proceed with chosen mounting method

below

As standard, the telephone is supplied with a pole mounting kit, part number

100-02-0208-001.

6.3. Wall mounting

1. Using a suitable tool, punch out 4 holes in the rear enclosure, taking

care not to damage or dislodge the plastic bushes. Only four of the

eight holes are required - the outer ones are recommended. The

inner holes are provided to be compatible with older-style mounting

posts, and should be left intact if not used. If the inner holes are

used they must be fitted with the supplied plastic bushes.

10 KETS 1141 Titan Illuminated Crossing Telephone

WARNING:.Your warranty will be invalidated if :-

1. Any fixing hole made in the rear enclosure is left unused.

2. Any additional holes are drilled into the telephone enclosure.

3. Plastic bushes are not used on all fixing holes.

2. Mark the wall with hole centres based on the dimensions shown

(145 x 270mm). If necessary offer the rear enclosure up to the wall

to check alignment. Do not use the enclosure as a template for

drilling.

3. Drill holes in the wall on the marked positions. Select appropriate

screws, wall plugs etc., for the type of wall, bearing in mind that the

weight of the complete phone is around 5kg.

IMPORTANT:Check that screws seat properly in the plastic bushes to

ensure a watertight seal. Do not use excessive tightening force, as

this may crack the case.

4. Ensure that all four plastic flanged bushes are in place and the rear

enclosure is screwed tightly to the surface to prevent any water

ingress through the punched holes.

5. Complete the installation by making the appropriate connections

(section 7) and re-fitting the face plate.

6.4. Pole mounting

Table of contents

Other GAI-Tronics Telephone manuals

GAI-Tronics

GAI-Tronics ILD1000A Operating manual

GAI-Tronics

GAI-Tronics 226-002 User manual

GAI-Tronics

GAI-Tronics Commander SMART User manual

GAI-Tronics

GAI-Tronics 700 Series User manual

GAI-Tronics

GAI-Tronics IDR1000A Operating manual

GAI-Tronics

GAI-Tronics PHP400 User manual

GAI-Tronics

GAI-Tronics 7265-101 User manual

GAI-Tronics

GAI-Tronics Titan GSM User manual

GAI-Tronics

GAI-Tronics Commander GSM Operating instructions

GAI-Tronics

GAI-Tronics 295-001F User manual

GAI-Tronics

GAI-Tronics Titan User manual

GAI-Tronics

GAI-Tronics Auteldac 4 User manual

GAI-Tronics

GAI-Tronics 354-700 User manual

GAI-Tronics

GAI-Tronics 12576-502 User manual

GAI-Tronics

GAI-Tronics Titan Illuminated Crossing Telephone User manual

GAI-Tronics

GAI-Tronics 352-101 User manual

GAI-Tronics

GAI-Tronics 1090 User manual

GAI-Tronics

GAI-Tronics 354-001 series User manual

GAI-Tronics

GAI-Tronics 491-204 User manual

GAI-Tronics

GAI-Tronics Titan CB User manual

GAI-Tronics

GAI-Tronics 727-001 User manual

GAI-Tronics

GAI-Tronics Auteldac 4 VoIP User manual

GAI-Tronics

GAI-Tronics ILC-1117 User manual

GAI-Tronics

GAI-Tronics IPE2500A Operating manual

Popular Telephone manuals by other brands

GE 2-9480 user guide

Geemarc

Geemarc PHOTOPHONE 155 user guide

D-Link

D-Link DWR-720/PW user manual

Interquartz

Interquartz Gemini IQ333 operating instructions

SSS Siedle

SSS Siedle HT 840-0 operating instructions

Motorola

Motorola TITANIUM manual

Panasonic

Panasonic ICX Quick reference guide

LG H870DS user guide

Samsung

Samsung GT-I9500 Service manual

AT&T

AT&T Trimline 205 user manual

Selta

Selta zenyth 600 user guide

Doro

Doro AFTI 20 user guide

UNIQCELL

UNIQCELL A1 user guide

Panasonic

Panasonic KX Series User Sheet

Jabra

Jabra SP5050 - Bluetooth hands-free Speakerphone manual

BT Decor 425 user guide

NEC

NEC SV8500 Reference sheet

Teledex

Teledex PEARL user guide
