FVC TR1101B User manual
PROD
UCT I
MAGE
TR1101B
Transit Side Steps 148
Installation Guide
FLATLINE VAN CO • SUPPORT@FLATLINEVANCO.COM • 888-667-5576
All Flatline Van Co products must be properly assembled and secured before attaching to your
vehicle. Improper attachment could result in an automobile accident, and could cause serious bodily
injury or death to you or to others involved. You are responsible for assembling and securing Flatline
Van Co products to your vehicle, checking the mounting points and attachments prior to use, and
regularly inspecting the products for wear and or damage. We always recommend you use a
professional to install any aftermarket accessories to your vehicle. If you have no mechanical
experience and are not thoroughly familiar with the installation procedures, you must have the
product installed by a professional installer or other qualified persons. The responsibility is yours
and must be taken seriously for everyone's safety.
1
FLATLINE VAN CO • SUPPORT@FLATLINEVANCO.COM • 888-667-5576
thanks.
2
FLATLINE VAN CO • SUPPORT@FLATLINEVANCO.COM • 888-667-5576
THANK YOU!
ARE YOU EXCITED ABOUT YOUR NEW SIDE STEPS? HERE ARE A FEW THINGS TO DO
BEFORE BEGINNING THE INSTALLATION PROCESS--
• PLEASE INSPECT THE PRODUCT TO ENSURE THERE WAS NO
DAMAGE INCURRED DURING SHIPPING.
• IF THERE IS DAMAGE TO REPORT, PLEASE CONTACT OUR
CUSTOMER SERVICE DEPARTMENT AS SOON AS POSSIBLE.
• NEXT, USING THE “PACKAGE CONTENTS” PAGE, CHECK
INVENTORY AND FAMILIARIZE YOURSELF WITH THE PARTS
AND HARDWARE.
• GATHER ALL TOOLS REQUIRED FOR INSTALL.
-POWER DRILL
-3/16 DRILL BIT
-17/32 DRILL BIT
-7/32 ALLEN KEY
-5/32 ALLEN KEY
-RIVET NUT TOOL WITH M8X1.25 MANDREL
-13MM SOCKET
-7/16 WRENCH
-RATCHET
-BLUE LOCTITE
ESTIMATED INSTALL TIME- 2 HRS
ADDITIONAL HELP IS SUGGESTED FOR A FEW OF THE INSTALL STEPS.
TOOLS
5/32 ALLEN KEY
RATCHET
13 mm
13MM SHALLOW
SOCKET
7/16 WRENCH
PACKAGE CONTENTS
3
FLATLINE VAN CO • SUPPORT@FLATLINEVANCO.COM • 888-667-5576
DRIVER STEP - FRONT
QTY - 1
PASSENGER STEP - FRONT
QTY - 1
PASSENGER STEP - REAR
QTY - 1
REAR STEP
BRACKET
QTY - 2
BAYONET
QTY - 2
STEP BRACKET
QTY - 5
DRIVER FRONT STEP
BRACKET
QTY - 1
JOINING BRACKET
QTY - 2
BRACKET
SPACER
DOUBLE
QTY - 6
BRACKET
SPACER
SINGLE
QTY - 2
DRIVER STEP - REAR
QTY - 1
HARDWARE
4
FLATLINE VAN CO • SUPPORT@FLATLINEVANCO.COM • 888-667-5576
M8-1.25 X 0.7-3.8 THK
HEAVY DUTY RIVET
NUT
QTY - 28
M8-1.25 X 25
FLANGED HEX HEAD
SCREW
QTY - 46
M8-1.25 NYLON
INSERT LOCKNUT
QTY - 12
1/4 SCREW FLAT
WASHER
QTY - 2
1/4-20 X 0.75
FLANGED BUTTON
HEAD HEX DRIVE
SCREW
QTY - 10
1/4-20 NYLON INSERT
LOCKNUT
QTY - 2
M8-1.25 TAP
QTY - 1
M8 SCREW FLAT
WASHER
QTY - 12
FLATLINE VAN CO • SUPPORT@FLATLINEVANCO.COM • 888-667-5576
NOTES ON FACTORY MOUNT POINTS-
5
FVC Side Step Brackets are designed to work with the Ford Factory Side Step mounting locations. Your van may not have come
equipped with Side Steps from the factory, so there may be some dierences in mounting hardware required for your installation.
We have accounted for this and supplied you with enough hardware for any possible configuration. You may need to drill additional
holes for rivet nuts if your van diers. Here are the potential installation hardware situations-
1. Ford factory stud (may need clean up)
2. Ford factory threaded insert (may need clean up)
3. Ford factory unthreaded insert (tapping required)
4. Ford factory pre-existing hole with no insert (requires rivet nut)
5. No hole or stud (drilling required & rivet nut)
DRIVER SIDE
FRONT OF VAN
51
2 OR 3
4
FLATLINE VAN CO • SUPPORT@FLATLINEVANCO.COM • 888-667-5576
NOTES ON FACTORY MOUNT POINTS (CONT’D)-
6
1. Ford factory stud (may need clean up)
2. Ford factory threaded insert (may need clean up)
3. Ford factory unthreaded insert (tapping required)
4. Ford factory pre-existing hole with no insert (requires rivet nut)
5. No hole or stud (drilling required & rivet nut)
PASSENGER SIDE
5
1
FRONT OF VAN
2 OR 3
FLATLINE VAN CO • SUPPORT@FLATLINEVANCO.COM • 888-667-5576

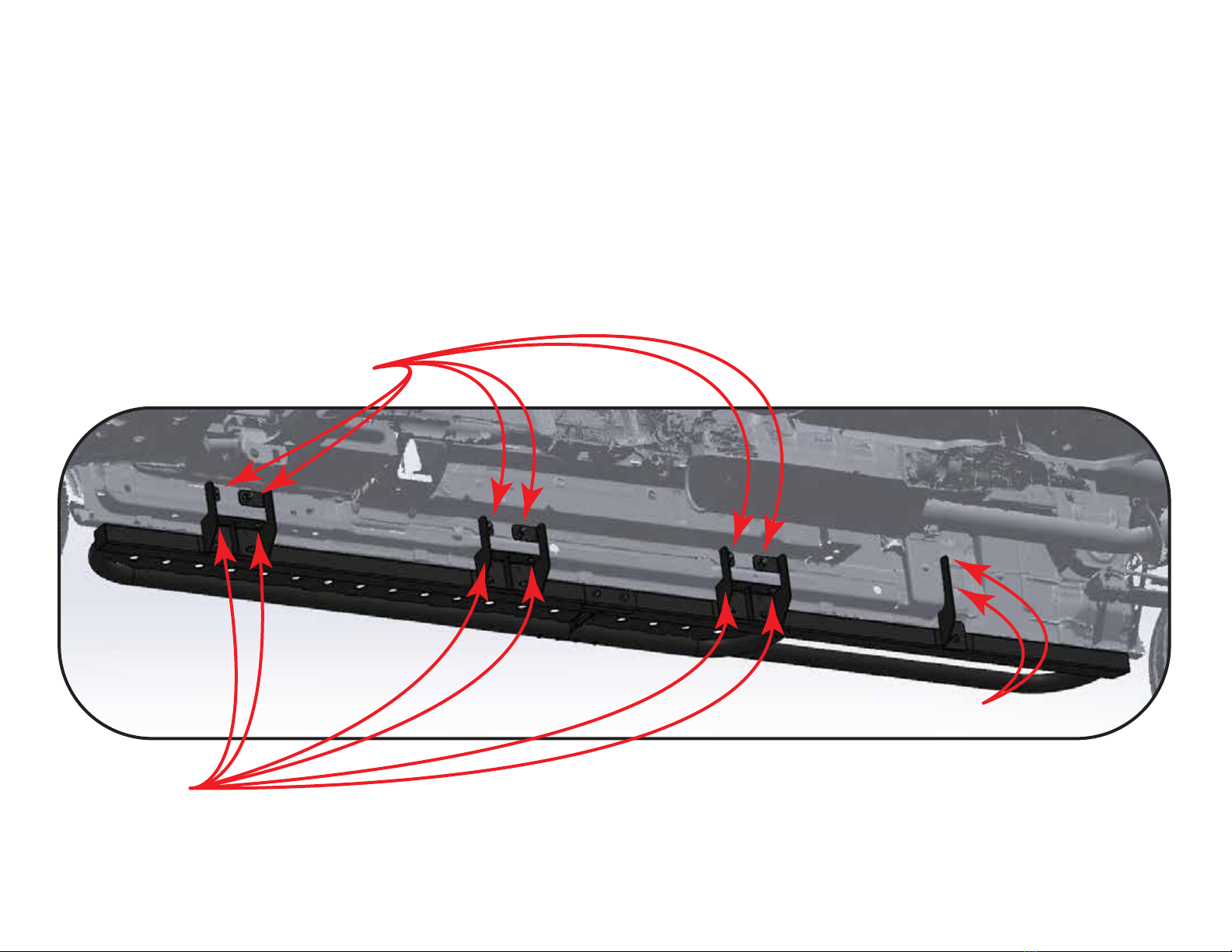

STEP 1
1. The first step is to assemble the side steps. Start with one
side, grab both ends of the step and slide a Bayonet into
the Step-Rear. Apply blue loctite and loosely thread in (2)
1/4-20 x 0.75 Button Head Hex Drive Screws to hold the
Bayonet in place, then slide the Step-Front on as shown in
the diagram. Thread the other two screws into the
Bayonet, then attach the Joining Bracket with (2)
3/8-16 x 1 Serrated
Flanged Hex Head
Screws; these
should have blue loctite applied as well. Tighten all
hardware and repeat for the other side. Once completed,
set aside for later.
NOTE-
The joining bracket is used to help with
alignment of the two weldments and can be
clamped in place while tightening to ensure
alignment.
7
3/8-16 X 1 SERRATED
FLANGED HEX HEAD
SCREW
1/4-20 X 0.75 BUTTON
HEAD HEX DRIVE
SCREW
PASSENGER SIDE
DRIVER SIDE
FLATLINE VAN CO • SUPPORT@FLATLINEVANCO.COM • 888-667-5576 8
STUDS-
Studs present on the underbody in Location 1 on the
diagrams from page 5 & 6 will likely need the undercoating
to be cleaned o before a fastener can be threaded onto
them. We recommend either using a wire brush with heat
gun (Figure 1) or an M8x1.25 Die (Figure 2) to clean the
threads and prepare them for hardware.
THREADED AND UNTHREADED HOLES-
Holes in Locations 2 & 3 on the underbody will also need
clean up. If the hole is pre-threaded; we recommend
carefully running the provided M8x1.25 Tap through to
clean the threads. Similarly, if the hole is not threaded from
the factory you will need to tap the hole.
NOTE- We highly recommend using a lubricant when
tapping holes. WD40 or motor oil works in a
pinch, but a cutting oil is recommended.
STEP 2
FIGURE 1
FIGURE 2
FIGURE 3
FLATLINE VAN CO • SUPPORT@FLATLINEVANCO.COM • 888-667-5576 9
RIVET NUTS-
The next step is to install the rivet nuts in Location 4 on
page 5. There should be holes in the underbody of your
van sized to accept the provided M8X1.25 Rivet Nuts. We
recommend using a pneumatic or electric drill adapter
rivet nut tool for this, although a manual rivet nut tool can
work if you have enough ground clearance.

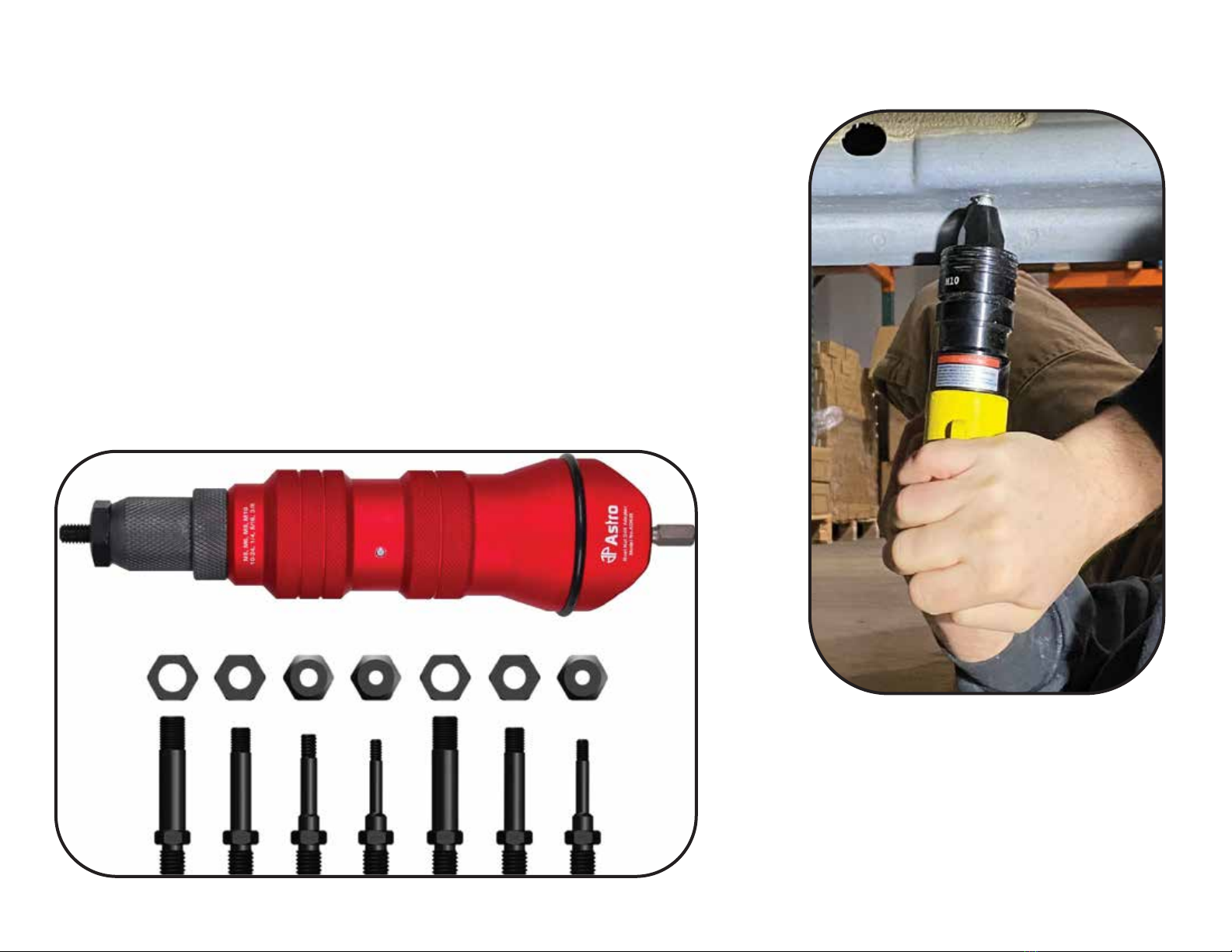

We like the Astro Tools ADN38 XL model for a drill
adapter. Pictured below for reference.
STEP 3
