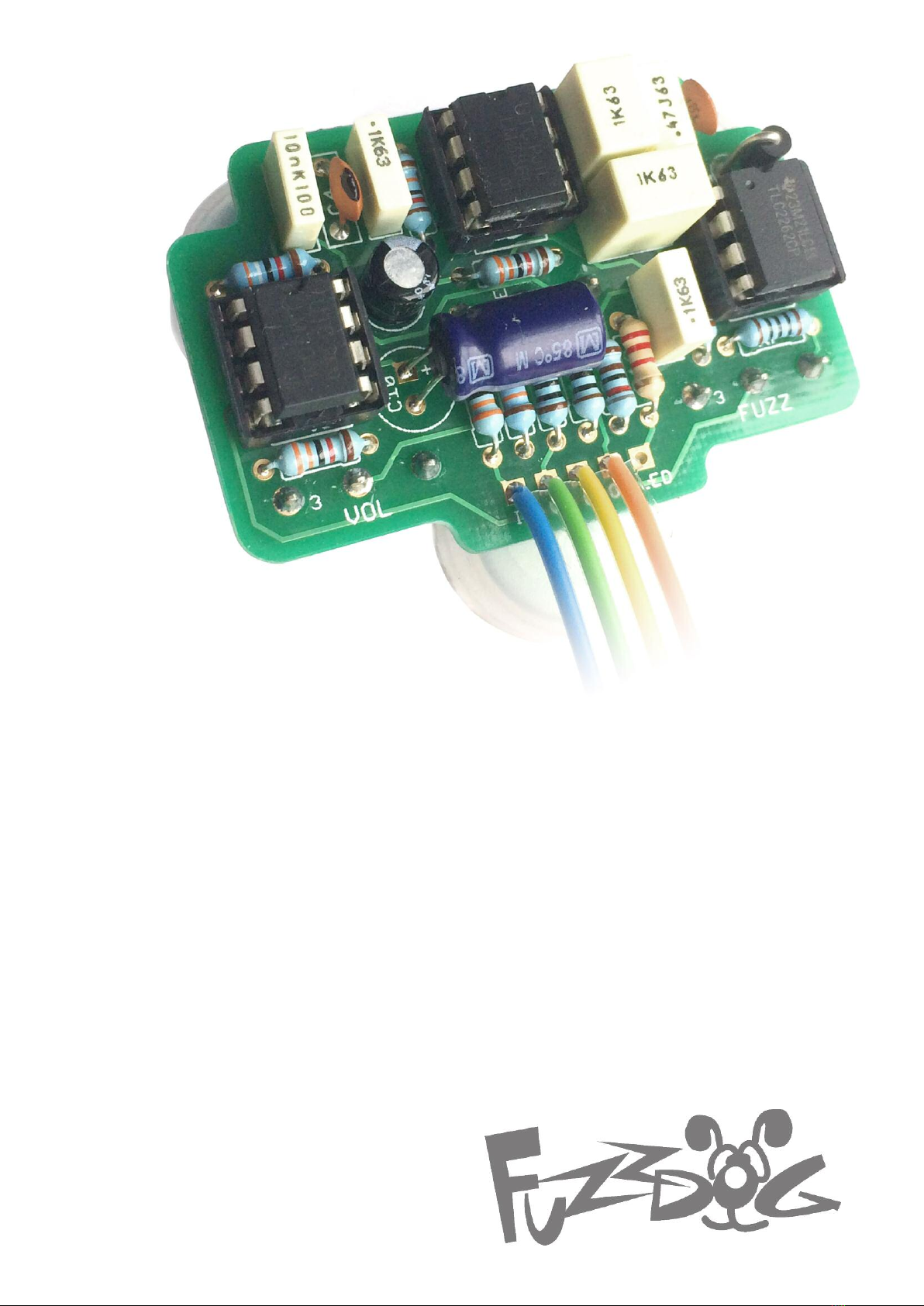

FuzzDog Peachy Fuzz User manual

Peachy Fuzz

Frantastically heavy but

smooth fuzz tones

No reproduction permitted without the express written

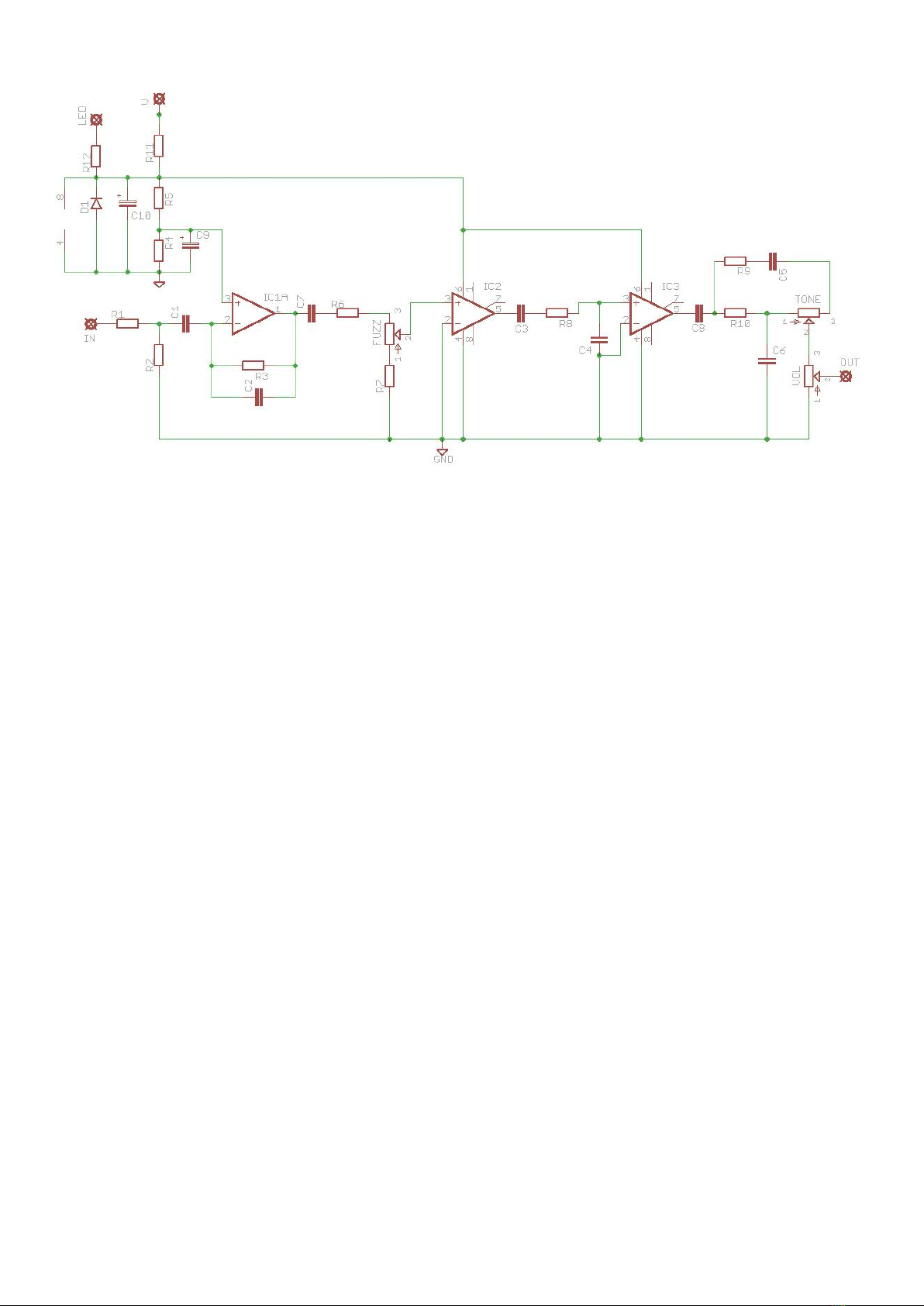

Schematic

R1 33K

R2 100K

R3 560K* (567K)

R4 33K

R5 33K

R6 8K2* (9K1)

R7 100R

R8 120K

R9 39K* (41K)

R10 10K

R11 10R

R12 2K2 (CLR)

C1 100n

C2 100p

C3 100n

C4 18p

C5 10n

C6 470n

C7 1u

C8 1u

C9 10u elec

C10 100u elec

IC1 LC2262

IC2 LM386N-1

IC3 LM386N-1

D1 1N4001

FUZZ 10KA

TONE 10KB

VOL 100KB

BOM

*Resistor values marked have been substituted for the original values marked in blue,

which may be awkward to get hold of.

You won’t get the right fuzzy goodness without the right ICs. Note the N-1 suffix on the

LM386. You want these, not the N-3 or N-4 which are higher voltage-rated devices .

he power and signal pads on the PCB conform to

the FuzzDog Direct Connection format, so can be

paired with the appropriate daughterboard for quick

and easy offboard wiring.

Snap the small metal tag off the pots so they can be

mounted flush in the box.

Pots mount on the opposite side of the board to the other components.

he board has been designed to take

vertical-mount pots, but you can wire

in normal ones or use header pins to

attach them.

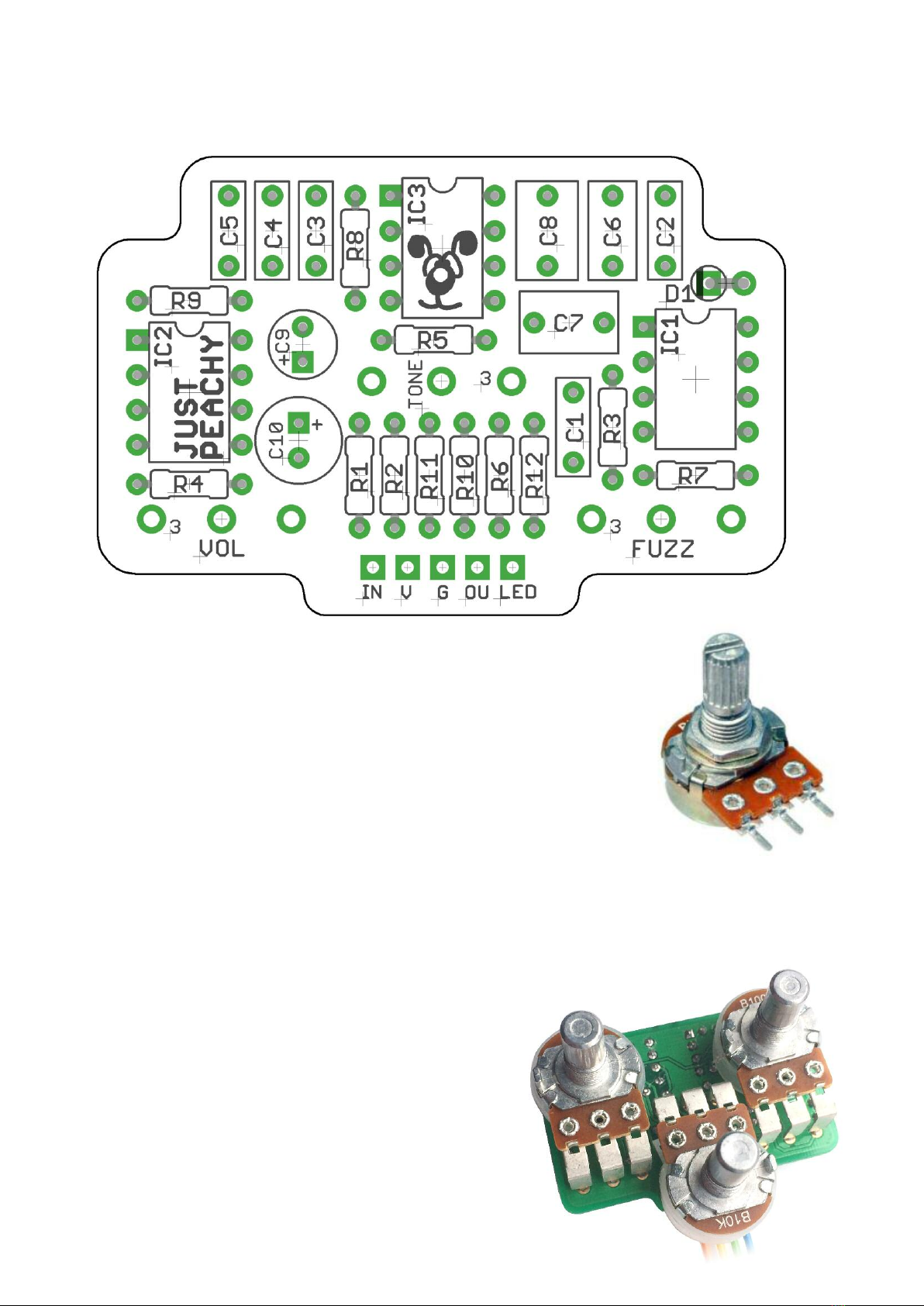

PCB Layout

1 2 3

est the board!

UNDER NO CIRCUMSTANCES will troubleshooting help

be offered if you h ve skipped this st ge. No exceptions.

Once you’ve finished the circuit it m kes sense to test is before

st rting on the switch nd LED wiring. It’ll cut down

troubleshooting time in the long run. If the circuit works t this

st ge, but it doesn’t once you wire up the switch - guess wh t?

You’ve prob bly m de mist ke with the switch.

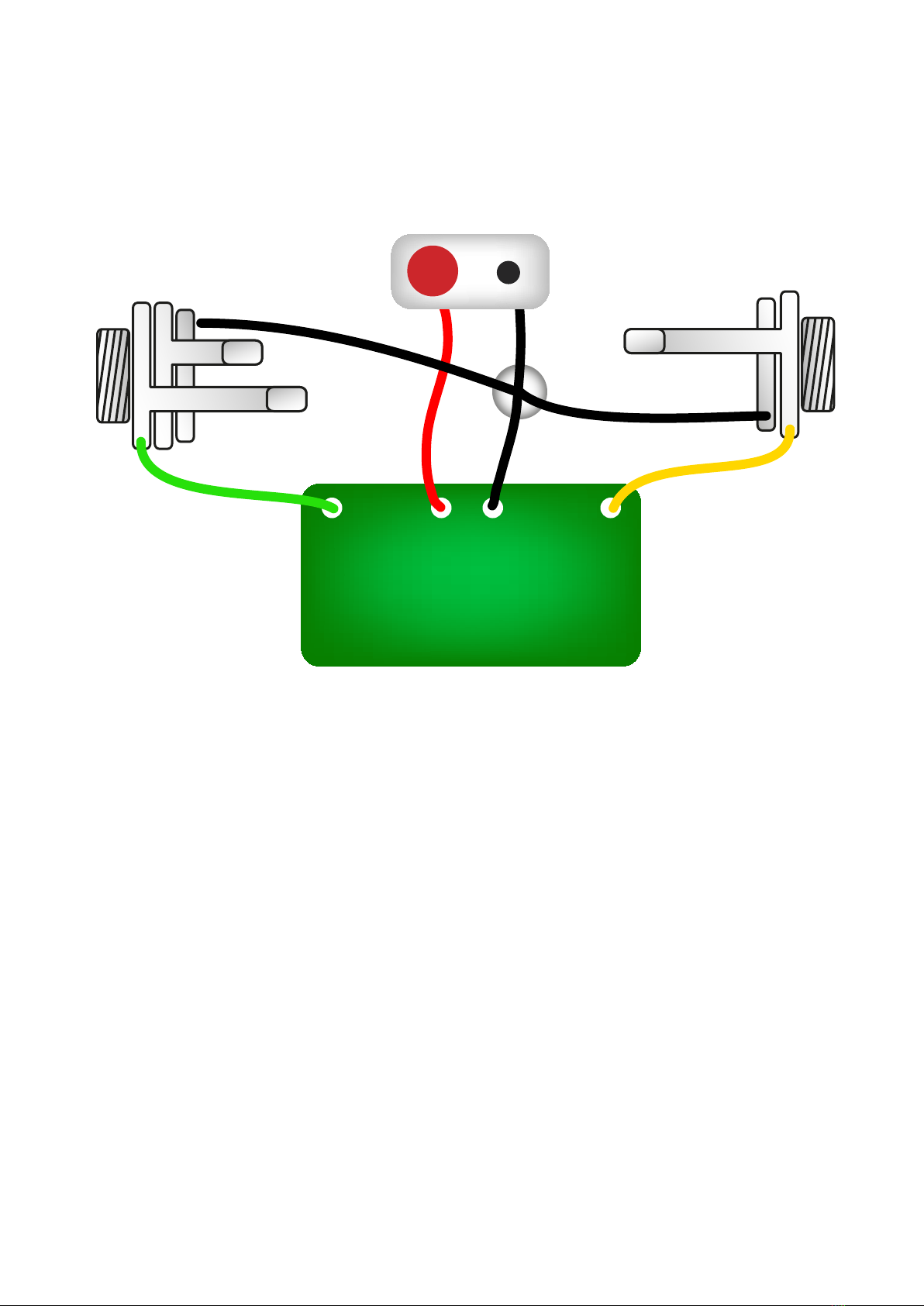

Solder some nice, long lengths of wire to the bo rd connections for

9V, GND, IN nd OUT. Connect IN nd OUT to the j cks s shown.

Connect ll the GNDs together (twist them up nd dd sm ll

mount of solder to t ck it). Connect the b ttery + le d to the 9V

wire, s me method. Plug in. Go!

If it works, cr ck on nd do your switch wiring. If not... w m n. At

le st you know the problem is with the circuit. Find out why, get it

working, THEN worry bout the switch etc.

BATTERY

IN OUT

Your nice, new circuit board

INCLUDING WIRED POTS!!!!

IN 9V GND OUT

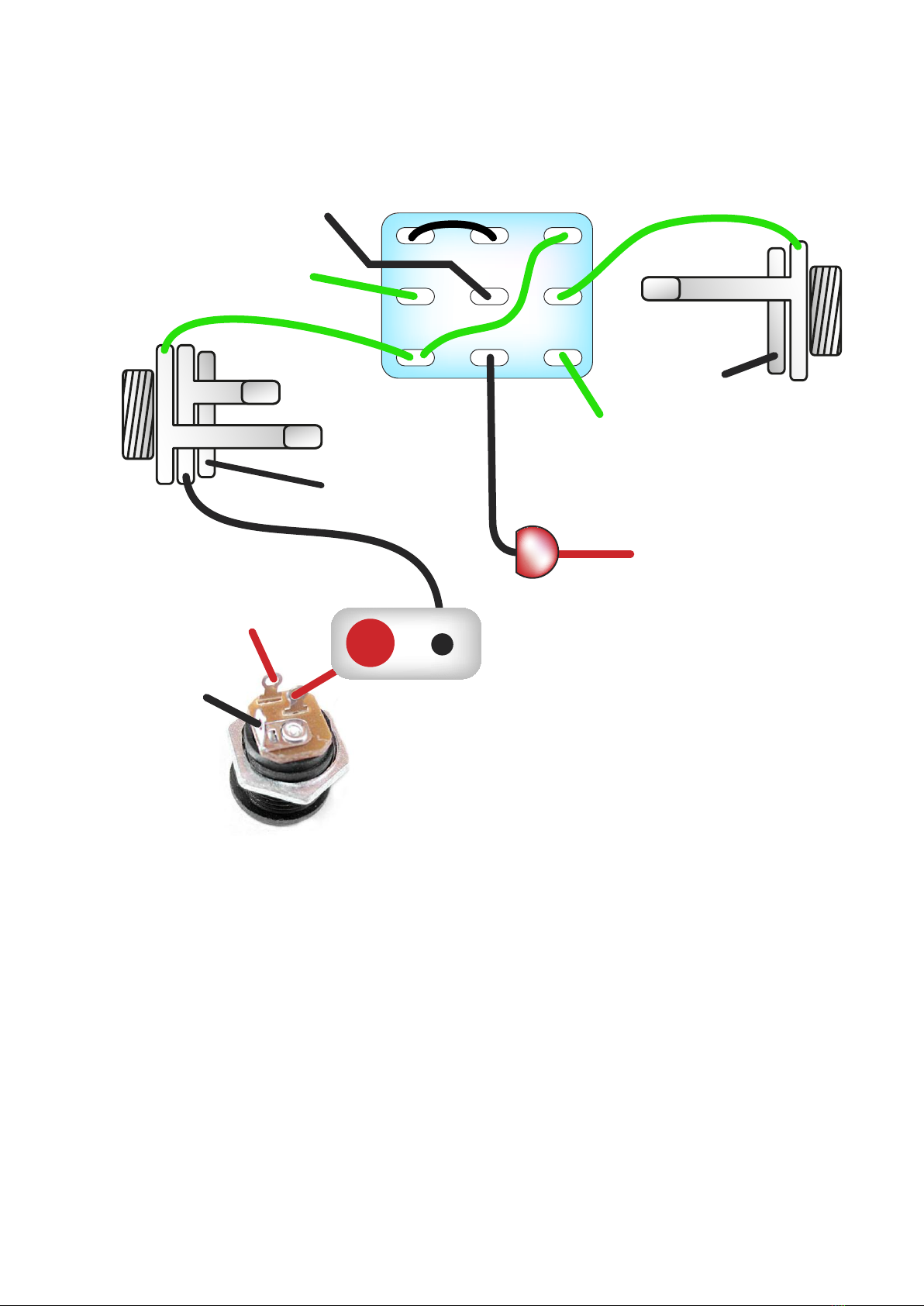

Wire it up (if using a daughterboard please refer to the relevant document)

Wiring shown bove will disconnect the b ttery when you remove the j ck

plug from the input, nd lso when DC plug is inserted.

The Bo rd GND connections don’t ll h ve to directly tt ch to the bo rd. You

c n run couple of wires from the DC connector, one to the bo rd, nother to

the IN j ck, then d isy ch in th t over to the OUT j ck.

It doesn’t m tter how they ll connect, s long s they do.

This circuit is st nd rd, Neg tive GND. Your power supply should be Tip

Neg tive / Sleeve Positive. Th t’s the s me s your st nd rd ped ls (Boss etc),

nd you c n s fely d isy-ch in your supply to this ped l.

Ped lP rts.co.uk

BOARD

OUT

BOARD

GND

BOARD

GND

BOARD

GND

BOARD

INPUT

BATTERY

OUT

BOARD

GND

BOARD

LED+
