FuzzDog SweetyPuss User manual

SweetyPuss

High-Octane Octave-Up Fuzz

PedalParts.co.uk

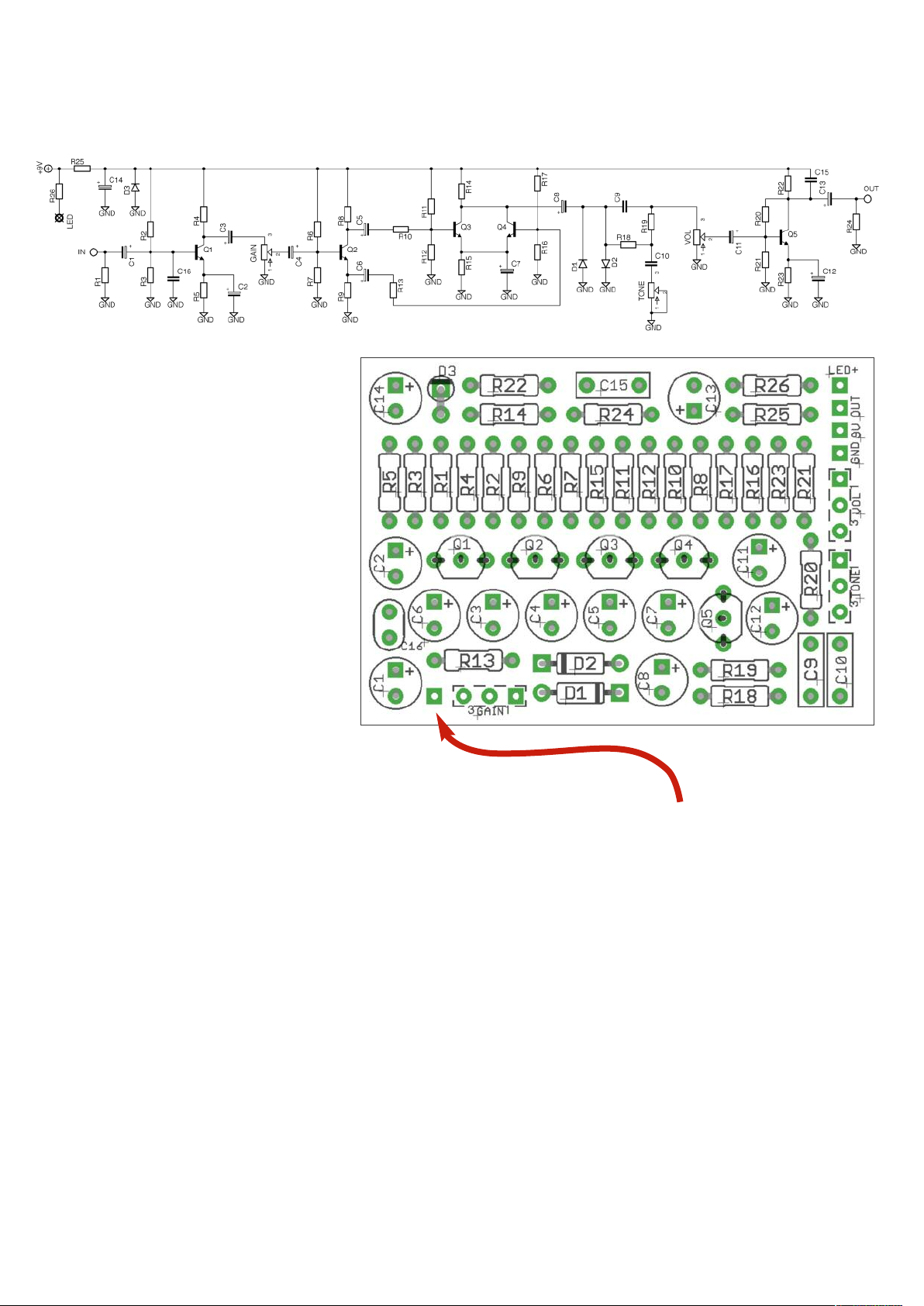

Schematic

BOM

R1 1M

R2 100K

R3 10K

R4 10K

R5 1K

R6 220K

R7 150K

R8 10K

R9 10K

R10 470R

R11 100K

R12 22K

R13 1K

R14 10K

R15 2K2

R16 22K

R17 100K

R18 10K

R19 10K

R20 100K

R21 10K

R22 10K

R23 1K

R24 100K

R25 100R

R26 2K2 (CLR)

C1 10u

C2 10u

C3 10u

C4 10u

C5 10u

C6 10u

C7 10u

C8 10u

C9 1n

C10 100n

C11 10u

C12 10u

C13 10u

C14 100u

C15 1n

C16 10p

1-5 2N3904

D1,2 1N34A

D3 1N4001

GAIN 50KB

TONE 10KB

VOL 50KB

GREMLIN ALERT!

No label on the ‘IN pad.

Very high gain circuit. You WILL

pick up radio before you box it up.

Wow, that’s a lot of 10u caps!

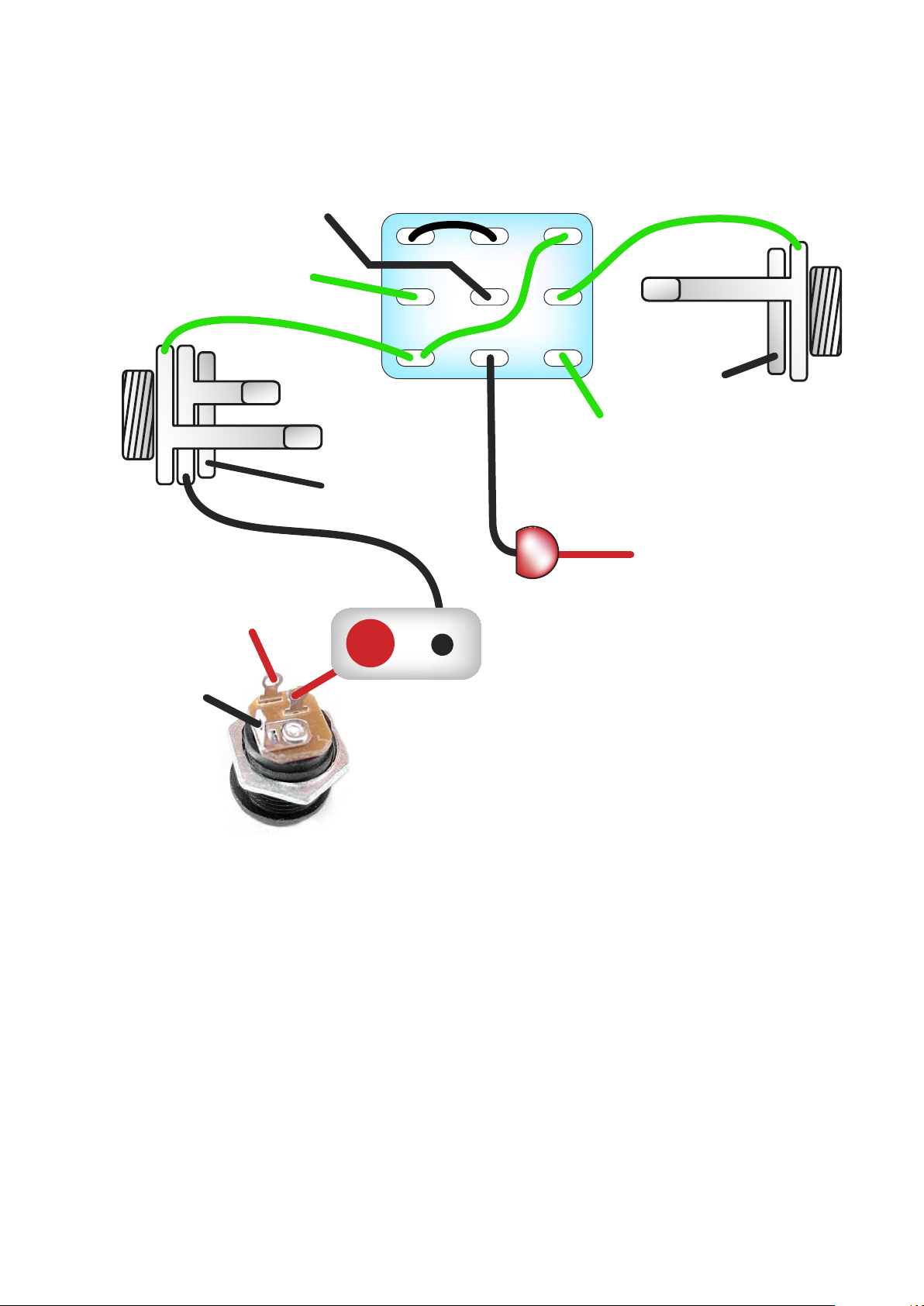

Wiring shown overleaf will disconnect the battery when you

remove the jack plug from the input, and also when a DC

plug is inserted.

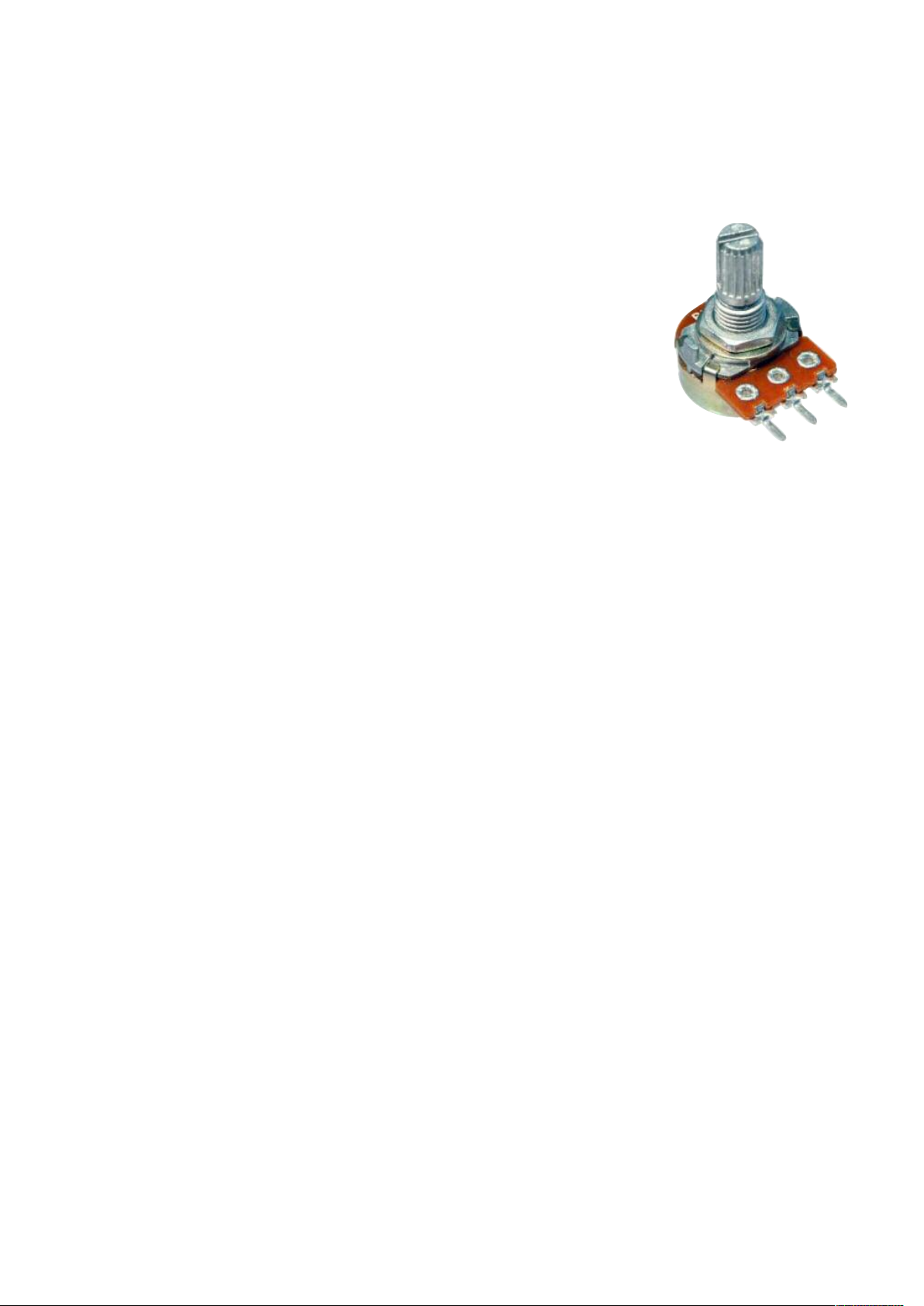

Snap the little metal tag off the pot to mount it

flush in the box.

You MUST use some kind of heat sink on the

legs of the transistors and diodes when

soldering. They aren’t keen on heat. Any more

than 3-4 seconds of iron and they’re toast.

ecommended assembly order:

esistors, Caps, Transistors, Diodes, Wires, Pots

I’ve incorporated the Current Limiting esistor for the LED

into the board for your pleasure.

Be VE Y careful when bending

the legs of the 1N34A.

The case breaks very easily. I recommend using needle-

nosed pliers pressed up against the case to grip the leg,

then bend it with your fingers so no pressure is directly

applied to where the leg enters the casing. That does mean

you’ll have to bend them past 90° to get them to fit the hole,

and have the case sitting well above the PCB (or you could

seat them vertically like the 1N4001), but better than broken

diodes.

1 2 3

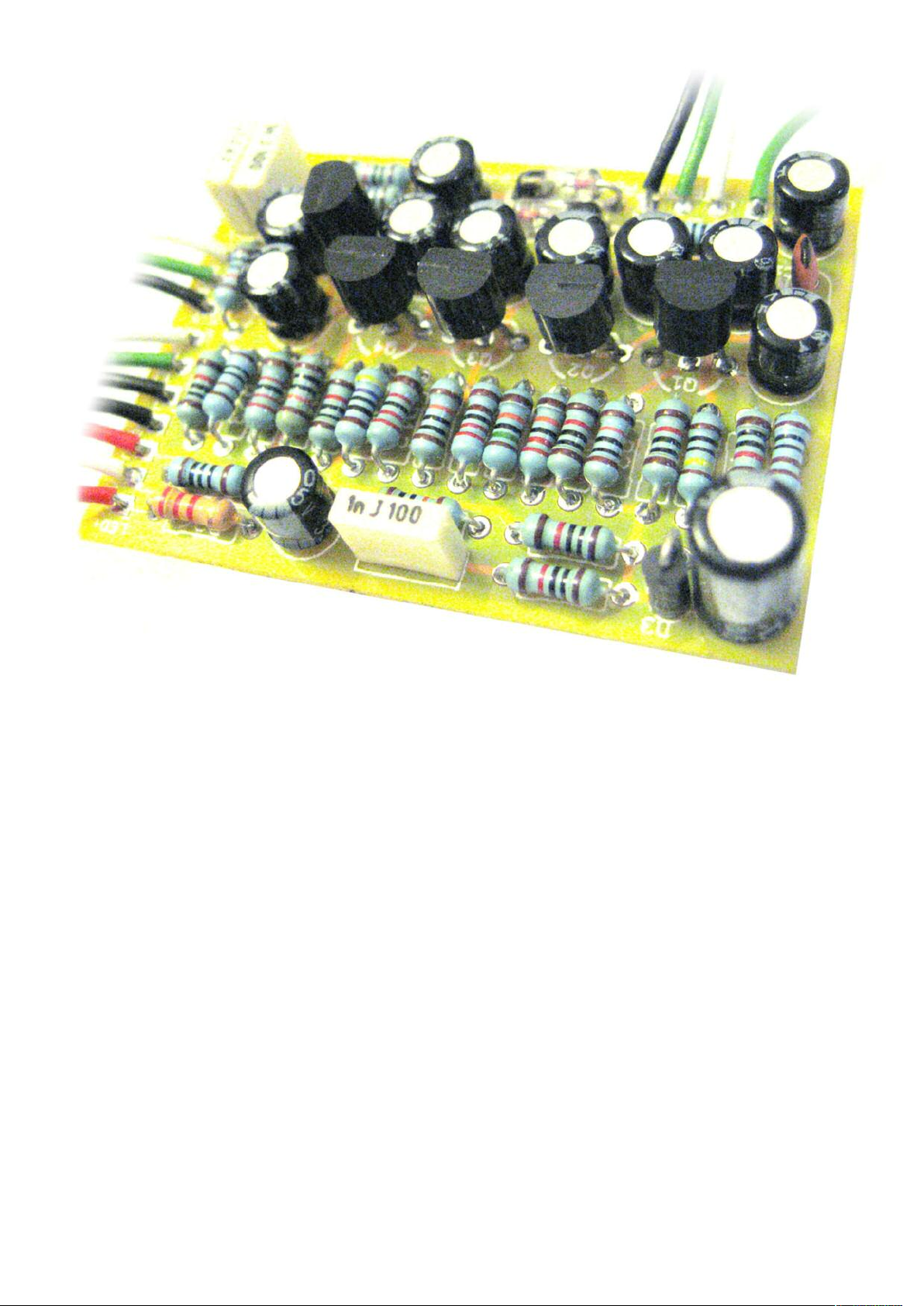

Test the board!

UNDE NO CI CUMSTANCES will troubleshooting help

be offered if you have skipped this stage. No exceptions.

Once you’ve finished the circuit it makes sense to test is before

starting on the switch and LED wiring. It’ll cut down

troubleshooting time in the long run. If the circuit works at this

stage, but it doesn’t once you wire up the switch - guess what?

You’ve probably made a mistake with the switch.

Solder some nice, long lengths of wire to the board connections for

9V, GND, IN and OUT. Connect IN and OUT to the jacks as shown.

Connect all the GNDs together (twist them up and add a small

amount of solder to tack it). Connect the battery + lead to the 9V

wire, same method. Plug in. Go!

If it works, crack on and do your switch wiring. If not... aw man. At

least you know the problem is with the circuit. Find out why, get it

working, THEN worry about the switch etc.

YRET

NI UO TU

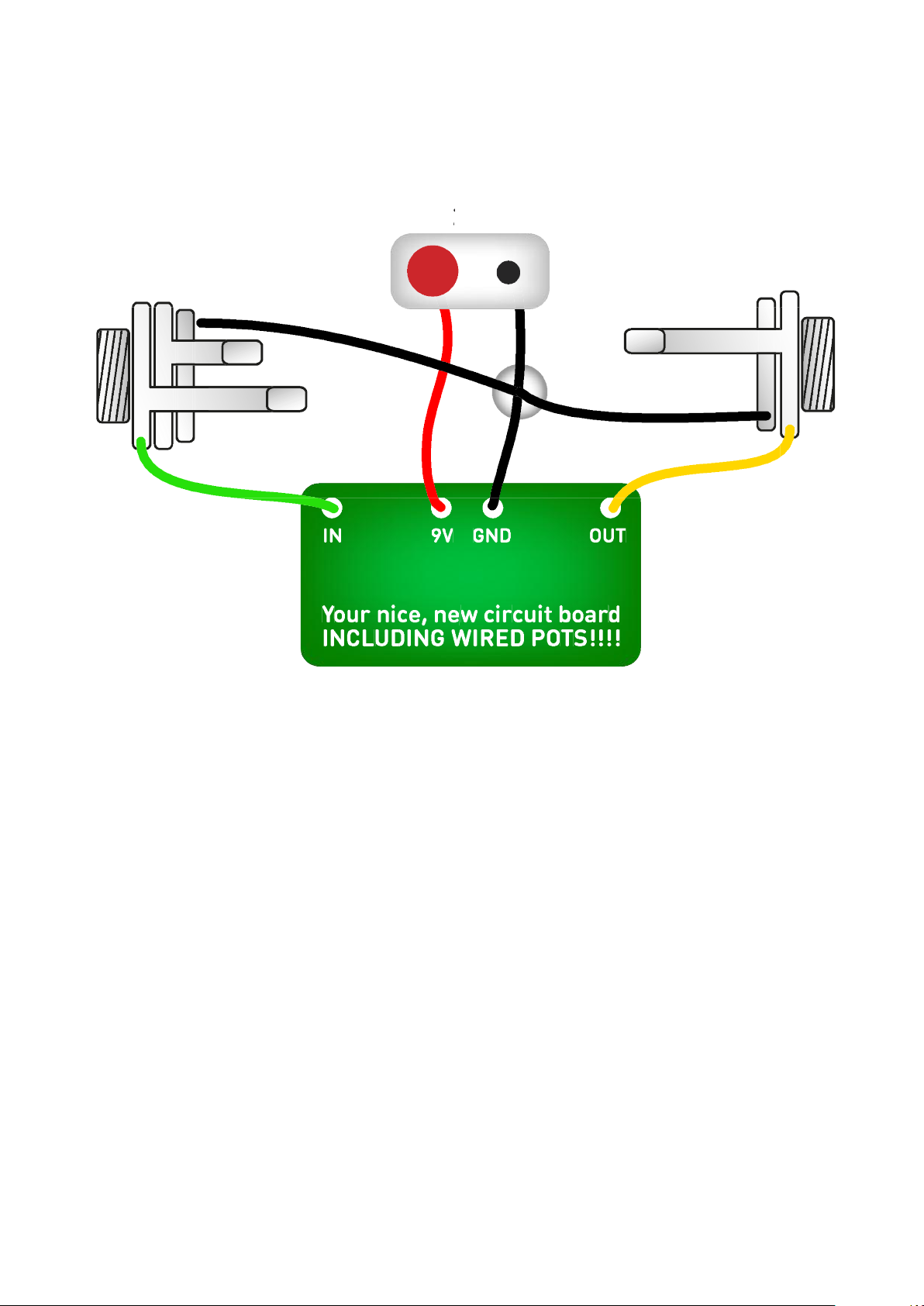

Wire it up

The Board GND connections don’t all have to directly attach to the

board. You can run a couple of wires from the DC connector, one to the

board, another to the IN jack, then daisy chain that over to the OUT jack.

It doesn’t matter how they all connect, as long as they do.

This circuit is standard, Negative GND. Your power supply should be Tip

Negative / Sleeve Positive. That’s the same as your standard pedals

(Boss etc), and you can safely daisy-chain your supply to this pedal.

Now... GO CHU N OUT THE OCTAVE-UP FUN!

PedalParts.co.uk

BOARD

OUT

BOARD

GND

BOARD

GND

BOARD

GND

BOARD

INPUT

BATTERY

OUT

BOARD

GND

BOARD

LED+
