Installation Manual

Color Scanning Sonar

Model FSV-35/FSVB-35S

SAFETY INSTRUCTIONS ................................................................................................ i

SYSTEM CONFIGURATION .......................................................................................... iii

EQUIPMENT LISTS........................................................................................................ iv

1. HOW TO INSTALL THE SYSTEM ..........................................................................1-1

1.1 Hull Unit .............................................................................................................................1-1

1.2 Processor Unit ...................................................................................................................1-7

1.3 Control Unit ........................................................................................................................1-9

1.4 Transceiver Unit...............................................................................................................1-11

1.5 Transducer Cable Extension Kit .....................................................................................1-12

1.6 IF Unit ..............................................................................................................................1-13

1.7 Grounding the Equipment ................................................................................................1-13

1.8 Attachment Flange (option)..............................................................................................1-13

1.9 Attachment Kit (option) ....................................................................................................1-14

2. WIRING....................................................................................................................2-1

2.1 How to Use the Crimping Tool, Pin Extractor ....................................................................2-1

2.2 How to Connect Units ........................................................................................................2-2

2.3 Processor Unit ...................................................................................................................2-3

2.4 IF Unit ................................................................................................................................2-6

2.5 Control Unit and Remote Controller...................................................................................2-9

2.6 Transceiver Unit...............................................................................................................2-11

2.7 Transducer Cable Extension Kit .....................................................................................2-14

2.8 Control Box of Hull Unit....................................................................................................2-15

2.9 Input Voltage and Fuses..................................................................................................2-16

3. ADJUSTMENTS AND CHECKS .............................................................................3-1

3.1 Hull Unit Check ..................................................................................................................3-1

3.2 How to Show the System Menu.........................................................................................3-3

3.3 How to Adjust the Heading ................................................................................................3-4

3.4 How to Configure the Own Ship Mark................................................................................3-6

3.5 Others Menu ......................................................................................................................3-7

APPENDIX 1 JIS CABLE GUIDE .............................................................................AP-1

The paper used in this manual

is elemental chlorine free.

・FURUNO Authorized Distributor/Dealer

9 52 Ashihara cho,

Nishinomiya, 662 8580, JAPAN

JUL

2012

Printed in Japan

MAR

24, 2015

Pub. No.

IME-13330-C2

(

ETMI

)

FSV-35 35S

0 0 0 1 7 5 7 9 1 1 2

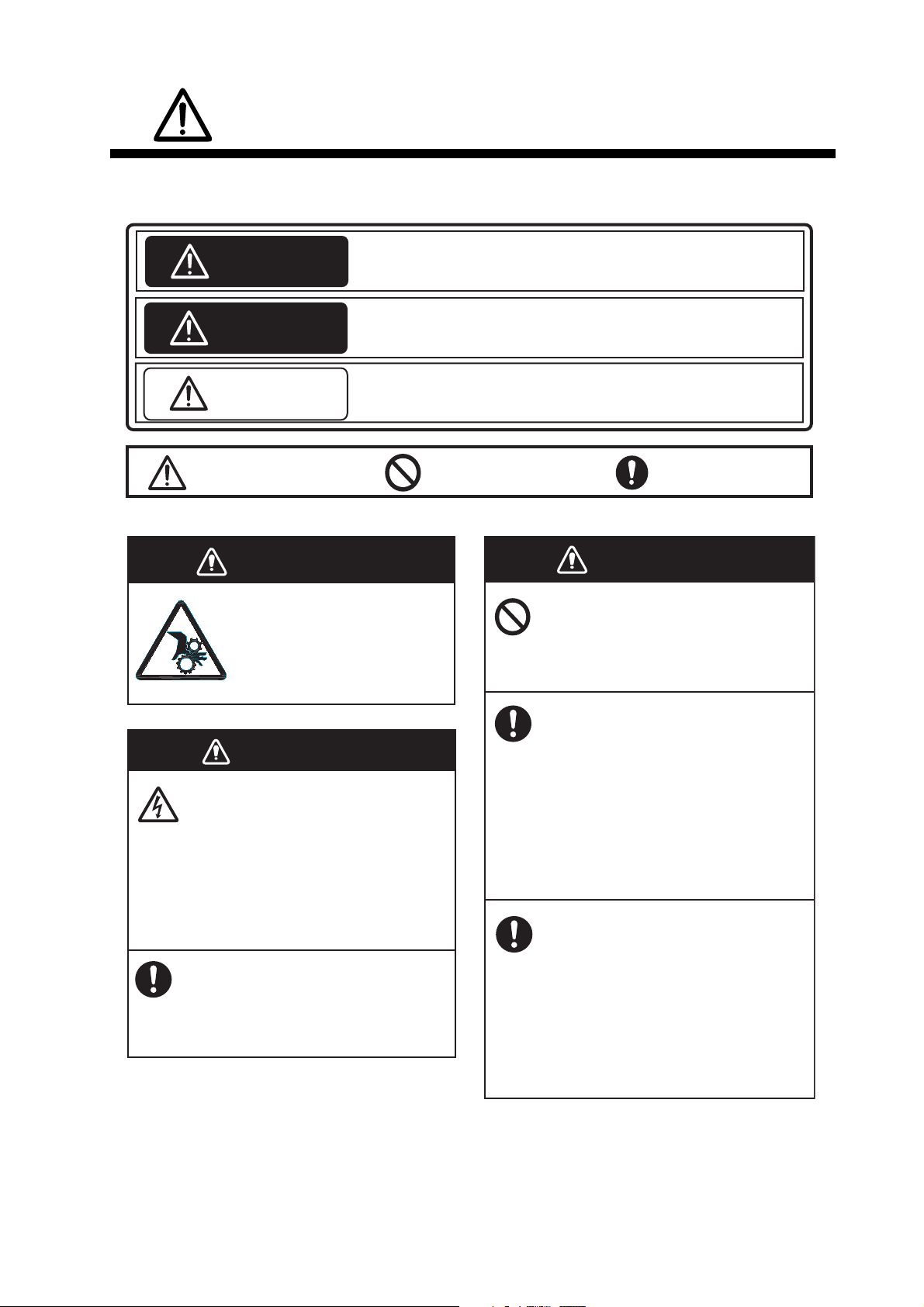

SAFETY INSTRUCTIONS

The installer must read the safety instructions before attempting to install the equipment.

Indicates a potentially hazardous situation which, if not avoided,

may result in minor or moderate injury.

Indicates a potentially hazardous situation which, if not avoided,

will result in death or serious injury.

Indicates a potentially hazardous situation which, if not avoided,

could result in death or serious injury.

DANGER

WARNING

CAUTION

Warning, Caution Prohibitive Action Mandatory Action

WARNING

DANGER

Keep away from raise/lower

shaft in hull unit when it is

moving.

Gears will cause serious injury.

WARNING

Do not open the equipment unless

totally familiar with electrical circuits

and service manual.

High voltage exists inside the equipment,

and a residual charge remains in capacitors

several minutes after the power is turned

off. Improper handling can result in

electrical shock.

Turn off power at the switchboard before

starting the installation.

Electrical shock or fire can result if the

the power is left on.

Do not install the equipment where it

may get wet from rain or water splash.

Water can cause fire or electrical shock, or

damage the equipment.

Be sure no water leaks in at the hull

unit.

Water leakage can sink the vessel. Also

confirm that the transducer will not loosen

by ship's vibration. The installer of the

equipment is solely responsible for the

proper installation of the equipment.

FURUNO will assume no responsibility for

any damage associated with improper

installation.

Install the specified transducer tank

in accordance with the installation

instructions. If a different tank is to be

installed the shipyard is solely respon-

sible for its installation, and it should

be installed so the hull will not be

damaged if an object strikes the tank.

The tank or hull may be damaged if the

tank strikes an object.

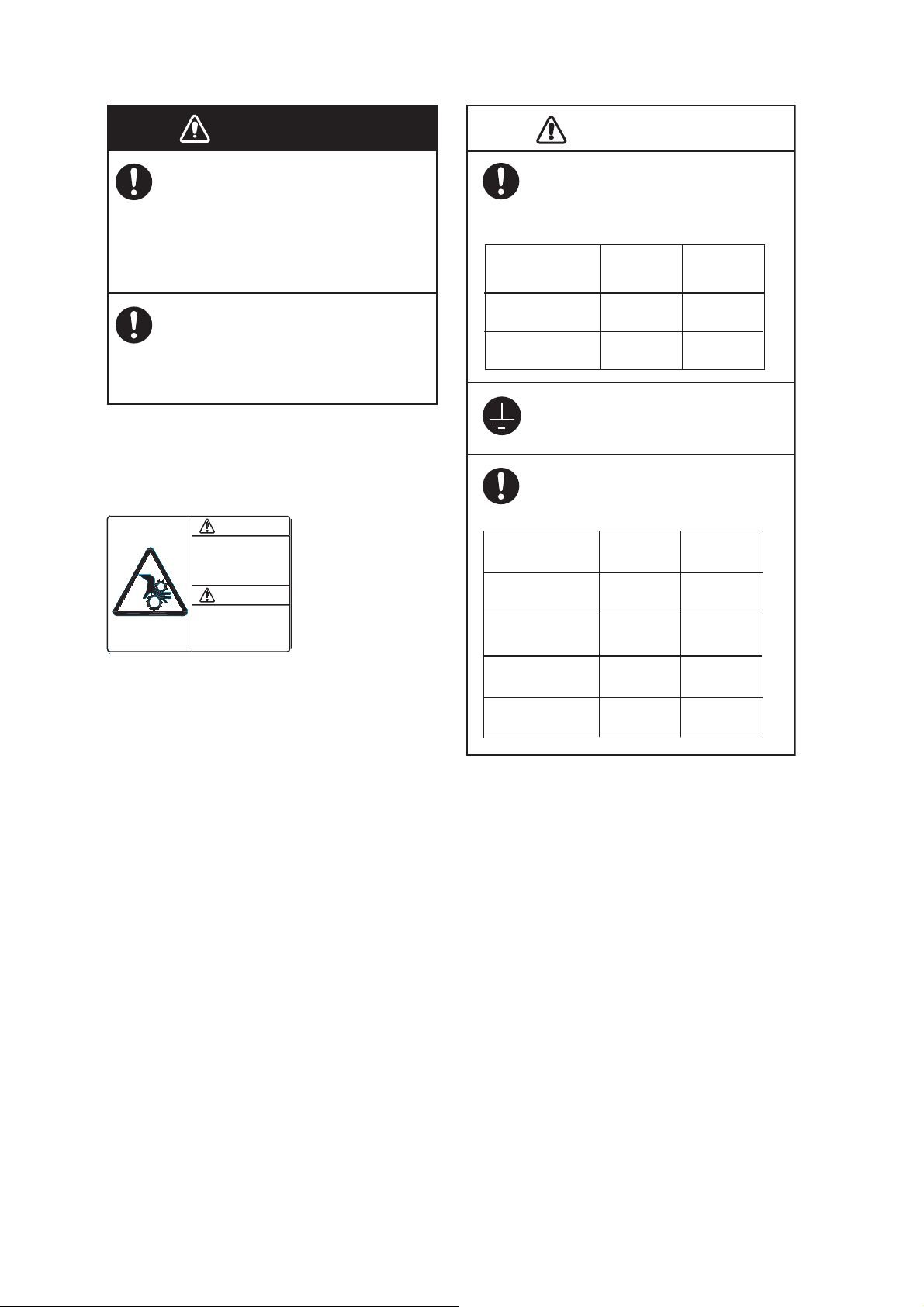

SAFETY INSTRUCTIONS

Observe the following compass safe

distances to prevent interference to a

magnetic compass:

CAUTION

WARNING

If a steel tank is installed on a wooden

or FRP vessel, take appropriate

measures to prevent electrolytic

corrosion.

Electrolytic corrosion can damage the

hull.

Be sure to power each unit with proper

voltage.

Connection of an improper power supply

can cause fire or damage the equipment.

Maximum speed while the transducer is

projected or being raised or lowered

is as below, to prevent damage to the

transducer.

Projected Raising/

Lowering

1200 mm stroke Max. 18 kn Max. 15 kn

1600 mm stroke Max. 15 kn Max. 12 kn

Ground the equipment to prevent

electrical shock and mutual

interference.

1.45 mProcessor Unit

Control Unit

FSV-8501

Standard

compass

Steering

compass

0.90 m

0.35 m 0.30 m

IF Unit

0.90 m 0.55m

Sub Control Unit

FSV-853

0.80 m 0.50 m

DANGER

ෂ

䇭

㒾

Keep fingers away

from gears.

Shaft may cause injury.

Keep away from

moving shaft.

䉩䊟䈮Ꮞㄟ䉁䉏䉎ᕟ䉏䈅䉍䇯

േ䉲䊞䊐䊃䈮䉋䉍䇮䈔䈏

䉕䈜䉎ᕟ䉏䈅䉍䇯

Ⓙേ䈲ㄭ䈨䈎䈭䈇䈖䈫䇯

Name䋺Warning Label

Type䋺10-071-5313

Code No.䋺100-291-160-10

iii

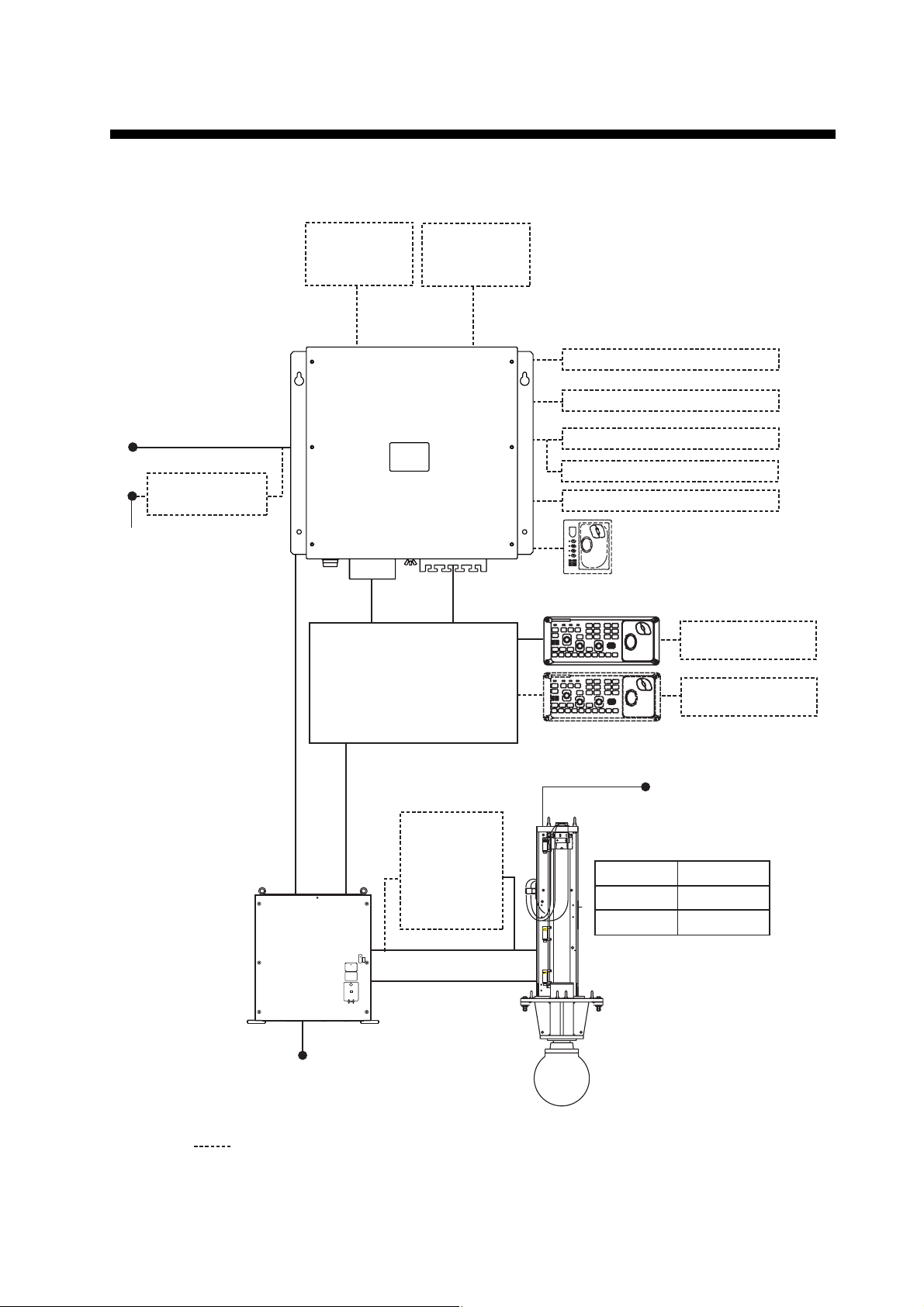

SYSTEM CONFIGURATION

Processor Unit

FSV-3503 (FSV-35)/

FSV-3503S (FSV-35S)

Monitor

12-24 VDC

Rectifier

RU-1746B-2

100/110/115/

220/230 VAC,

, 50/60 Hz

IF Unit

FSV-8502

100/110/115/

220/230 VAC

, 50/60 Hz

USB device (mouse, etc.)

Junction Box FI-5002

NMEA IEC 61162-1 device

Speaker

Sub Control Unit

FSV-853

Remote Controller

FSV-854

220 VAC

, 50/60 Hz

Hull Unit

Remote Controller

FSV-854

: Optional equipment

Control Unit

FSV-8501

Type Stroke

FSV-303 䇭1200 mm

FSV-304 䇭1600 mm

FUSE

MAINSW

CHARGE

OVERR

BVERR

Extension Kit

FSV-305-5

FSV-305-15

(Incl. Junction

Box)

Transceiver

Unit

FSV-351

Monitor

EQUIPMENT LISTS

Standard supply

Optional supply

Name Type Code No. Qty Remarks

Control Unit FSV-8501 - 1 With 5 m or 10 m cable

IF Unit FSV-8502 - 1

Processor Unit FSV-3503 - 1 For FSV-35

FSV-3503S - 1 For FSV-35S

Transceiver FSV-351 - 1

Hull Unit FSV-303 - 11200 mm stroke

FSV-304 - 1600 mm stroke

Installation Materi-

als

CP10-06000 000-067-071 1For FSV-35/35S, no Trans-

ducer Cable Extension Kit

CP10-06201 007-008-540 1 For Transceiver Unit

CP10-07200 000-117-257 1For Control Unit, w/CP10-

07201, CP03-33202

CP10-07300 000-017-123 1For IF Unit, w/CP10-07301

(incl. cables)

CP19-00600 000-011-664 1For Processor Unit, w/CP19-

00601

Spare Parts SP10-03101 007-008-530 1 For Transceiver Unit

SP19-00501 001-023-090 1 For Processor Unit

SP10-02603 006-921-360 1 For Hull Unit

Name Type Code No. Remarks

Control Unit FSV-8501 - With 5 m or 10 m cable

Sub Control Unit FSV-853 000-019-212 Inst. Mat. CP10-07501

Rectifier RU-1746B-2 000-030-439

Remote Controller FSV-854 000-017-128 Inst. Mat. CP10-07401

Junction Box FI-5002 000-010-765 For CANbus/NMEA 0183

Attachment Kit OP10-24 006-943-530 For 1600 m stroke

Attachment Flange OP10-27 000-067-050 For 1200 m stroke

Flushmount Kit FP03-09870 008-535-630

Extension Kit FSV-305-5 000-067-072 Junction Box, 5 m

FSV-305-15 000-067-073 Junction Box, 15 m

Cable VV-SB-CJ0.3SQX5P 001-112-320-10 5P, 100 m

8 Core Cable VV-S0.3X8C 000-555-043 6 m

Cable Assy. MJ-ASPF0012-050C 000-154-053-10 6P-6P, 5 m

MJ-ASPF0012-100C 000-154-057-10 6P-6P, 10 m

Installation Materials CP03-28900 000-082-658 LAN cable (10 m)

CP03-28910 000-082-659 LAN cable (20 m)

CP03-28920 000-082-660 LAN cable (30 m)

CP03-28930 000-084-368 LAN cable (50 m)

CP03-28940 000-090-429 LAN cable (100 m)

1-1

1. HOW TO INSTALL THE SYSTEM

1.1 Hull Unit

Note 1: The control box on the hull unit contains a motion sensor. Handle the hull unit

carefully.

Note 2: Handle the transducer carefully. Rough handling will damage its sensitive

components.

1.1.1 Installation considerations

Decide the location of the hull unit through consultation with the dockyard and ship

owner. When deciding the location, the following points should be taken into account.

• Select an area where propeller noise, cruising noise, air bubbles and interference

from turbulence are at a minimum. Generally, the point at 1/3 to 1/2 of the ship's

length from the bow on or near the keel is optimum. On-the-keel installation is ad-

vantageous for minimizing oil consumption in comparison with off-the-keel. If the

hull unit can not be installed on the keel, the center of the retraction tank should be

within 600 mm from the keel to prevent a rolling effect. For large ship with deep

draft, the hull unit can be installed at the bow.

• Select a place where the hull bottom is flat and the draft is sufficiently deep. Normal-

ly, the transducer should protrude at least 500 mm beyond the keel to minimize the

effect of air foam and bubbles.

• Select a place where interference from other transducers is minimal. The hull unit

should be at least 2.5 m away from the transducers of other equipment.

• No obstacle should be in the fore direction since it causes a shadow zone and aer-

ated water, resulting in poor sonar performance.

• The physical distance between the hull unit and the transceiver unit should be no

more than 5 m.

• The space shown in the figure on the next page is required around the hull unit for

wiring and maintenance.

1/2 1/3 Within 600 mm

1. HOW TO INSTALL THE SYSTEM

1-2

• If the ambient temperature around the unit will be below 0°C, provide the sonar

compartment with a heater to keep the temperature above 0°C.

Note: After you mount the hull unit, be sure to install anti-vibration stays, referring to

page 1-5.

Compartment

600

(24”)

1300

(52”)

650

(26”)

1000

(40”)

1. HOW TO INSTALL THE SYSTEM

1-3

1.1.2 Guideline for how to shorten the retraction tank

Shorten the tank as necessary so that the transducer positions well below the keel

when it is fully lowered. The following table provides guidelines for shortening the tank.

Refer also to the retraction tank installation drawing at the back of this manual.

Note 1: For the 1200 mm stroke hull unit, the transducer will not fully protrude unless

the tank is shorted by at least 280 mm from the bottom, and can not be fully retracted

if more than 290 mm.

Note 2: For the 1600 mm stroke hull unit, the transducer can not be fully retracted if

the tank is removed more than 290 mm.

Note 3: When maximum length is removed and "D" is minimum, the effect of air foam

is minimized because the transducer fully protrudes in water.

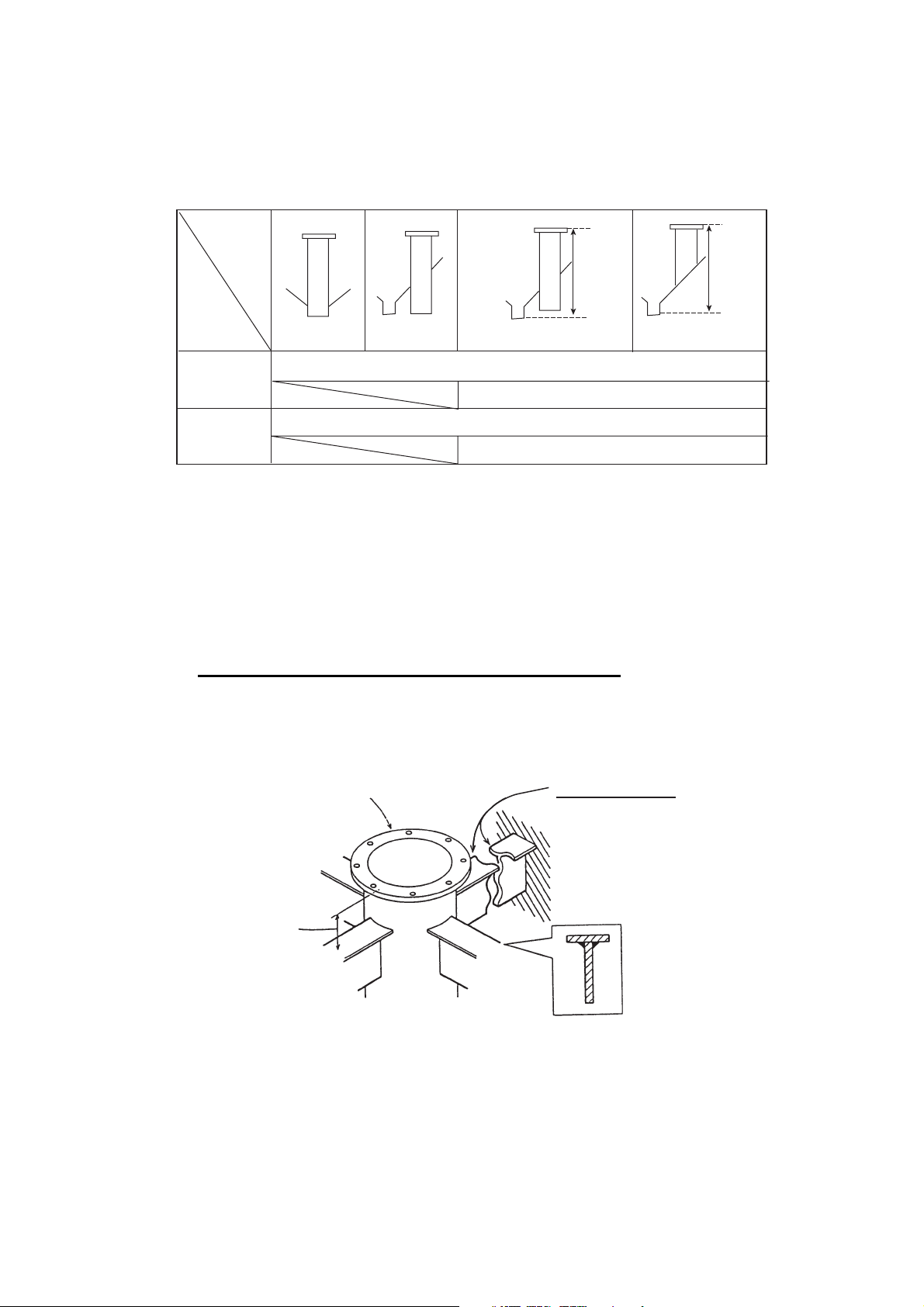

Guideline for the installation of the retraction tank

• Install, if possible, the tank on the keel where the tank can be most firmly fixed.

• Install the reinforcement ribs as near as possible to the top of the retraction tank,

allowing space for tightening of nuts and bolts.

• Fit a doubling plate (a plate added to another to give extra strength or stiffness) of

1200 mm diameter to the location where the retraction tank is welded to the hull bot-

tom. See the outline drawing at the back of this manual.

• Inscribe the bow mark on the attachment flange.

The length "D" must be less than 1170 mm.

1200 mm

stroke

Stroke

Installation

Method

1600 mm

stroke

Remove 280 -290 mm from the bottom.

Remove loss than 290 mm from the bottom.

The length "D" must be less than 1150 mm.

Retraction tank

250-300 mm

Reinforcement rib

No. of ribs: Minimum 4

Thickness: at least 12 mm

1. HOW TO INSTALL THE SYSTEM

1-4

1.1.3 How to install the Hull Unit on the retraction tank

Weld the retraction tank and allow sufficient time for cooling. Install the hull unit as fol-

lows:

Prepare the materials and tools as shown below.

1. Clean the flange and O-ring groove of the retraction tank (welded to hull) with ethyl

alcohol moistened waste cloths. Coat O-ring and O-ring groove with lithium

grease. Place the O-ring in its groove on the tank flange.

2. Orient the hull unit so that the bow mark (inscribed) on its flange points toward the

ship's bow. Note that heading adjustment is required if the bow mark is not facing

the ship's bow.

3. Confirm the following points as below and place the hull unit on the tank.

• Clean the flange platform.

• Wipe the undersurface of the hull unit flange with clean waste cloths.

• Keep O-ring in its groove.

4. Coat the threads of the bolts with a slight amount of lithium grease to prevent

scorching. Insert the bolts with washers from the retraction tank flange, and then

put the flat washers and spring washers in this order from above. Fasten bolts with

nuts.

5. Reinforce the hull unit against vibration by extending stays to the ship's hull from

the two eye-nuts at the top of the hull unit, referring to the procedure on page 1-5.

Name Remarks

Screw wrench M20 (opposite side 30 mm)

Ethyl alcohol 99.5%

Waste cloths

Lithium grease For O-ring

Common lithium grease (the equivalent of Daphne Eponex Grease #2)

Molytone grease For drive shaft

Molytone grease #2 (by SUMICO LUBRICANT CO., LTD)

Other manuals for FSV-35

This manual suits for next models

Table of contents

Popular Sonar manuals by other brands

Kongsberg

Kongsberg Simrad SP90 Series manual

Eagle

Eagle TriFinder 2 Installation and operation instructions

Lowrance

Lowrance X-70A Installation and operation instructions

Lowrance

Lowrance LMS-150 GPS Installation and operation instructions

Simrad

Simrad EQ 55 Operator's manual

Lowrance

Lowrance Traditional Installation

Teledyne

Teledyne BlueView BV3200 user manual

Reson

Reson SeaBat 7125 SV2 Operator's manual

Eagle

Eagle 101 install guide

IMAGENEX

IMAGENEX 881A-GS manual

Eagle

Eagle Z-15 installation instructions

Simrad

Simrad SH80 - REV C installation manual

Simrad

Simrad ST90 Harbour Acceptance Test

Hawk

Hawk Sultan manual

Lowrance

Lowrance 1240A Installation and operation instructions

Kongsberg

Kongsberg Flexview quick start

VEXILAR

VEXILAR 107 PRO Operation manual

Klein

Klein 5000 V2 Series Operation and maintenance manual
