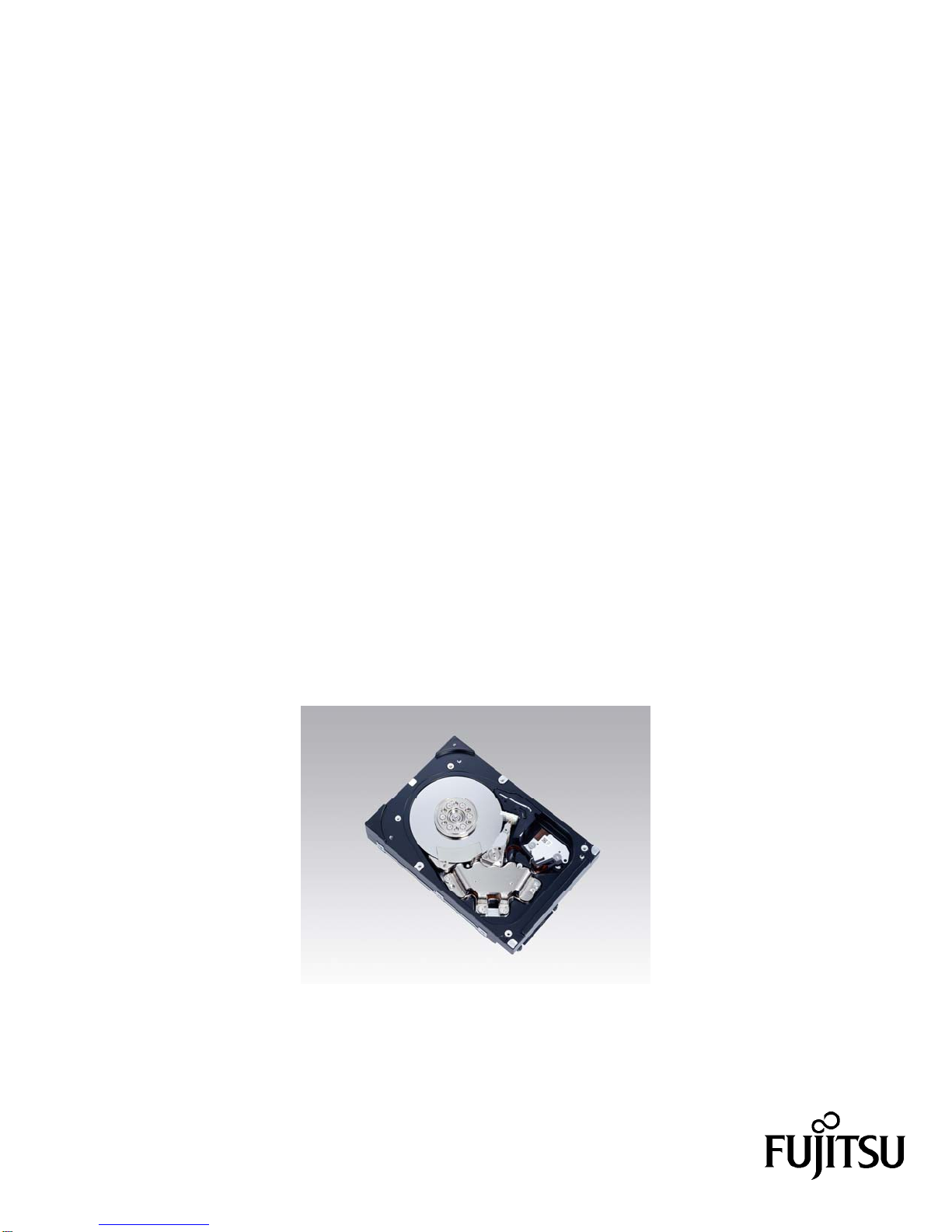

Fujitsu MBA3300 NP SERIES User manual

C141-C015-01EN

MBA3073, MBA3147, MBA3300 NP/NC

SERIES

DISK DRIVES

SCSI PHYSICAL INTERFACE SPECIFICATIONS

This Product is designed, developed and manufactured as contemplated for general use, including

without limitation, general office use, personal use and household use, but is not designed,

developed and manufactured as contemplated for use accompanying fatal risks or dangers that,

unless extremely high safety is secured, could lead directly to death, personal injury, severe physical

damage or other loss (hereinafter "High Safety Required Use"), including without limitation,

nuclear power core control, airplane control, air traffic control, mass transport operation control, life

support, weapon launching control. You shall not use this Product without securing the sufficient

safety required for the High Safety Required Use. If you wish to use this Product for High Safety

Required Use, please consult with our sale person in charge before such use

The contents of this manual is subject to change without prior notice.

FOR SAFE OPERATION

Handling of This manual

This manual contains important information for using this product. Read thoroughly before using

the product. Use this product only after thoroughly reading and understanding especially the

section "Important Alert Items" in this manual. Keep this manual handy, and keep it carefully.

FUJITSU makes every effort to prevent users and bystanders from being injured or from suffering

damage to their property. Use the product according to this manual.

(Proceed to the Copyright Page)

C141-C015

Related Standards

Specifications and functions of products covered by this manual comply with the following

standards.

Standard (Text) No. Name Enacting Organization

T10/1365D Rev 10 Working Draft

American National Standard Information

Technology --- SCSI Parallel Interface 4

American National

Standards Institute

(ANSI)

C141-C015

REVISION RECORD

Edition Date

published Revised contents

01 March, 2007 Initial release

Specification No.: C141-C015

C141-C015

This page is intentionally left blank.

PREFACE

This manual explains the MBA3073/MBA3147/MBA3300 NP/NC series 3-1/2" intelligent disk drives

each having the built-in SCSI controller.

This manual details the specifications and functions of the Small Computer System Interface (SCSI) to

connect the above listed disk drives to the user system. Also, the manual details various SCSI command

specifications and the command processing functions, and provides the information required to creation of

host system software. This manual is intended to be used by the users who have the basic knowledge of

computer system operations.

The following lists the manual configuration and the contents of each chapter. The caution labels and

markings are also explained.

Manual Configuration and Contents

This manual consists of the following three chapters, and the terminologies and abbreviations sections.

Chapter 1 SCSI Bus

This chapter describes the configuration, physical and electrical requirements, interface protocol, and other

operations of the Small Computer System Interface (SCSI) which connects the

MBA3073/MBA3147/MBA3300 NP/NC series intelligent disk drives to the user system.

Chapter 2 SCSI Messages

This chapter describes the type and explanation of messages defined for SCSI bus operations.

Chapter 3 ERROR Recovery

This chapter describes error recovery processing executed by the MBA3073/MBA3147/MBA3300 NP/NC

series intelligent disk drives in response to various errors on the SCSI bus.

Glossary

This section explains the terminologies the reader must understand to read this manual.

Abbreviations

This section lists the abbreviated terms and their full words used in this manual.

C141-C015 1

CONVENTIONS

This manual uses the following conventions:

NOTE: NOTE indicates the information useful for the user to operate the system.

Important information

The important information is provided with the "Important" title. The important information text is

centered so that the reader can distinguish it from other manual texts. The following gives an example:

IMPORTANT

The HDD operates as a target (TARG) on the SCSI bus. The HDD is

called "TARG" in this chapter except when clear identification is

required.

Notations

A decimal value is indicated as it is in this manual.

A hexadecimal value is indicated in the X'17B9' or 17B9h or 17B9H notation.

A binary value is indicated in the notation similar to "010."

The disk drive model name has a different suffix depending on its SCSI electrical characteristics, capacity,

data format used during shipment and others. The following typical model name is used except when the

model needs to be distinguished. Also, the disk unit may be referred to as the "HDD" or "unit" in this

manual.

2 C141-C015

Note 1: Model name

M BA 3 300 NC

Interface type NP: Low-Voltage Differential, 16-bit SCSI Ultra-320,

68-pin connector

NC: Low-Voltage Differential, 16-bit SCSI Ultra-320,

SCA-2 connector

Formatted capacity (1,000 MB units) *

Disk size

Type BA: 1-inch height (15,000 rpm)

Note 2: Typical model name

Type model name Model name

MBA3300 MBA3300NP, MBA3300NC

MBA3147 MBA3147NP, MBA3147NC

MBA3073 MBA3073NP, MBA3073NC

*: One gigabyte (GB) = one billion bytes; accessible capacity will be less and actual capacity depends on

the operating environment and formatting.

Requesting for User's Comments

Please use the User's Comment Form attached to the end of this manual to identify user comments

including error, inaccurate and misleading information of this manual. Contact to your Fujitsu

representative for additional comment forms if required.

C141-C015 3

MANUAL ORGANIZATION

Product/

Maintenance

Manual

•General Description

•Specifications

•Data Format

•Installation Requirements

•Installation

•Diagnostics and Maintenance

•Error Analysis

•Principle of Operation

SCSI Physical

Interface

Specifications

•SCSI Bus

•SCSI Message

•Error Recovery

SCSI Logical

Interface

Specifications

•Command Processing

•Data Buffer Management

•Command Specifications

•Parameter Data Formats

•Sense Data and Error Recovery Methods

•Disk Media Management

4 C141-C015
