Fujitsu fi-6800 Configuration guide
1
fi-6800 CONSUMABLE REPLACEMENT AND CLEANING INSTRUCTIONS
fi-6800 CONSUMABLE REPLACEMENT
AND CLEANING INSTRUCTIONS
CG00002-020901C
fi-6800 CONSUMABLE REPLACEMENT AND CLEANING INSTRUCTIONS
2
CONSUMABLES LIST
Description Qty Life Fujitsu P/N
Pick Rollers 1 Set 600,000 PA03575-K011
Separator Roller 1 600,000 PA03575-K012
Brake Roller 1 600,000 PA03575-K013
Note:
To insure the longest possible consumable life, it is strongly
recommended that all the consumables listed above be replaced at
the same time. Not replacing all the consumables at the same
time will decrease the life of the consumables.
NCR or Carbonless paper has chemical composition which damages
the consumables listed above. Cleaning of these items will be
needed more frequently to avoid feed problems. Also their life will be
reduced if this paper is scanned.
Pick Rollers
Brake Roller Separator Roller
3
fi-6800 CONSUMABLE REPLACEMENT AND CLEANING INSTRUCTIONS
REPLACING THE PICK ROLLERS
Worn, defective, or improperly installed Pick Rollers will cause misfeeds
and paper jams. The Pick Rollers have an approximate life of 600,000
pages. If NCR or carbonless paper is used the life span of the Pick
Rollers may be decreased by half.
Tab Roller Cover
Pick Roller
• Make sure there is no paper
in the stacker.
• Grab the ADF Release Tab
and lift it up to open the ADF.
Note:
When you stop pushing up on the ADF it stays at that location.
• Open the Roller Cover by
grabbing the tabs on the left
and right sides with your
fingers and pull down.
• Pull out on the tab that locks
the Pick Roller in place in
the direction of the arrow and
slide the Pick Roller off the
shaft.
• Repeat the procedure above
to remove the second Pick
Roller.
Note:
The roller shaft and the hole in the Pick Rollers are keyed and will only
slide on in one orientation.
• Install the new Pick Rollers
by aligning the hole in the
rollers with the roller shaft.
fi-6800 CONSUMABLE REPLACEMENT AND CLEANING INSTRUCTIONS
4
REPLACING THE PICK ROLLERS (CONT.)
• Install the new Pick Rollers
by aligning the hole in the
rollers with the roller shaft.
• Close the Roller Cover.
• Close the ADF Cover.
• Reset the Pick Roller
Counter in the Software
Operation Panel or on the
Scanner Operator Panel.
5
fi-6800 CONSUMABLE REPLACEMENT AND CLEANING INSTRUCTIONS
REPLACING THE SEPARATOR ROLLER
A worn or improperly installed Separator Roller will cause multiple feeds
and paper jams. Separator Roller has an approximate life of 600,000
pages. If NCR or carbonless paper is used the life span of the these
rollers may be decreased by half.
Tab Roller Cover
Lever
Separator Roller
Lever
Separator Roller
• Make sure there is no paper
in the stacker.
• Grab the ADF Release Tab
and lift it up to open the ADF.
Note:
When you stop pushing up on the ADF it stays at that location.
• Open the Roller Cover by
grabbing the tabs on the left
and right sides with your
fingers and pull down.
• Pull down the lever which is
located on the right side of
the Separator Roller.
• Pull down the lever which is
located on the left side of the
Separator Roller.
fi-6800 CONSUMABLE REPLACEMENT AND CLEANING INSTRUCTIONS
6
• Pull the lever on the left side
of the Separator Roller
towards you and remove it
along with the shaft.
• Install the new Separator
Roller by inserting the right
side of the shaft first, then
the left side so that the tab
fits in the groove.
• Push up the lever which is
located on the left side of the
Separator Roller.
• Push up the lever which is
located on the right side of
the Separator Roller.
Tab
Separator Roller
Separator Roller
Separator Roller
Lever
REPLACING THE SEPARATOR ROLLER (CONT.)
Separator Roller
Lever
7
fi-6800 CONSUMABLE REPLACEMENT AND CLEANING INSTRUCTIONS
REPLACING THE SEPARATOR ROLLER (CONT.)
• Close the Roller Cover.
Note:
Make sure that both ends of the cover are locked firmly.
• Close the ADF Cover.
• Reset the Separator Roller
Counter in the Software
Operation Panel or on the
Scanner Operator Panel.
Roller Cover
Separator
Roller
fi-6800 CONSUMABLE REPLACEMENT AND CLEANING INSTRUCTIONS
8
REPLACING THE BRAKE ROLLER
A worn or improperly installed Brake Roller will cause multiple feeds and
paper jams. The Brake Roller has an approximate life of 600,000 pages.
If NCR or carbonless paper is used the life span of the Brake Roller may
be decreased by half.
• Make sure there is no paper
in the stacker.
• Grab the ADF Release Tab
and lift it up to open the ADF.
Note:
When you stop pushing up on the ADF it stays at that location.
• Grab the Roller Cover by the
lower middle and lift to open.
• Lift the left side of the Brake
Roller and then pull the shaft
out from left to right.
• Install the new Brake Roller
by inserting the right end of
the shaft into the mounting
hole, then place the left end
into the mounting bracket.
• Close the Roller Cover.
Roller Cover
Brake
Roller
Brake
Roller
9
fi-6800 CONSUMABLE REPLACEMENT AND CLEANING INSTRUCTIONS
REPLACING THE BRAKE ROLLER (CONT.)
• Close the ADF Cover.
• Reset the Brake Roller Counter in the Software Operation Panel or on
the Scanner Operator Panel.
fi-6800 CONSUMABLE REPLACEMENT AND CLEANING INSTRUCTIONS
10
CHECKING AND RESETTING THE CONSUMABLE & CLEANING COUNTERS
The following instructions show you how to check the life count of each
consumable and also how to reset the counter after the consumables
have been replaced. To insure accurate consumable life tracking, it
is very important to reset the consumable counters every time
consumables are replaced.

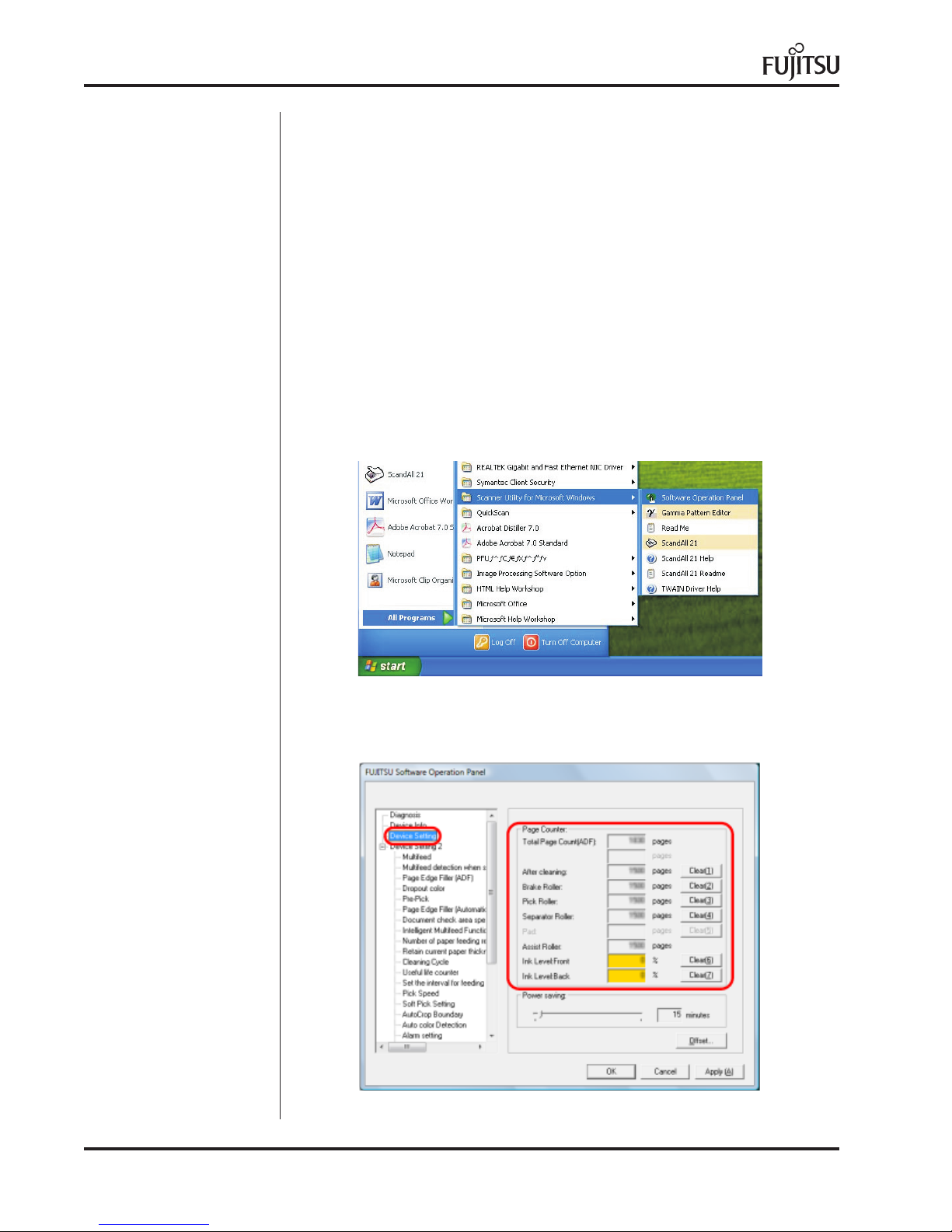

CHECKING CONSUMABLE COUNTS
• Turn on the scanner and confirm it is communicating properly to your
PC.
• From the START MENU, select ALL PROGRAMS/SCANNER UTILITY FOR
MICROSOFT WINDOWS/SOFTWARE OPERATION PANEL.
• The SOFTWARE OPERATION PANEL opens.
• From the listing on the left, select Device Setting
