Fujitsu LifeBook P1500 Installation instructions

LifeBook P1500

Disassembly

ESD Precautions are required when working on this LifeBook computer.

Make sure the LifeBook is turned off before beginning this disassembly

procedure.

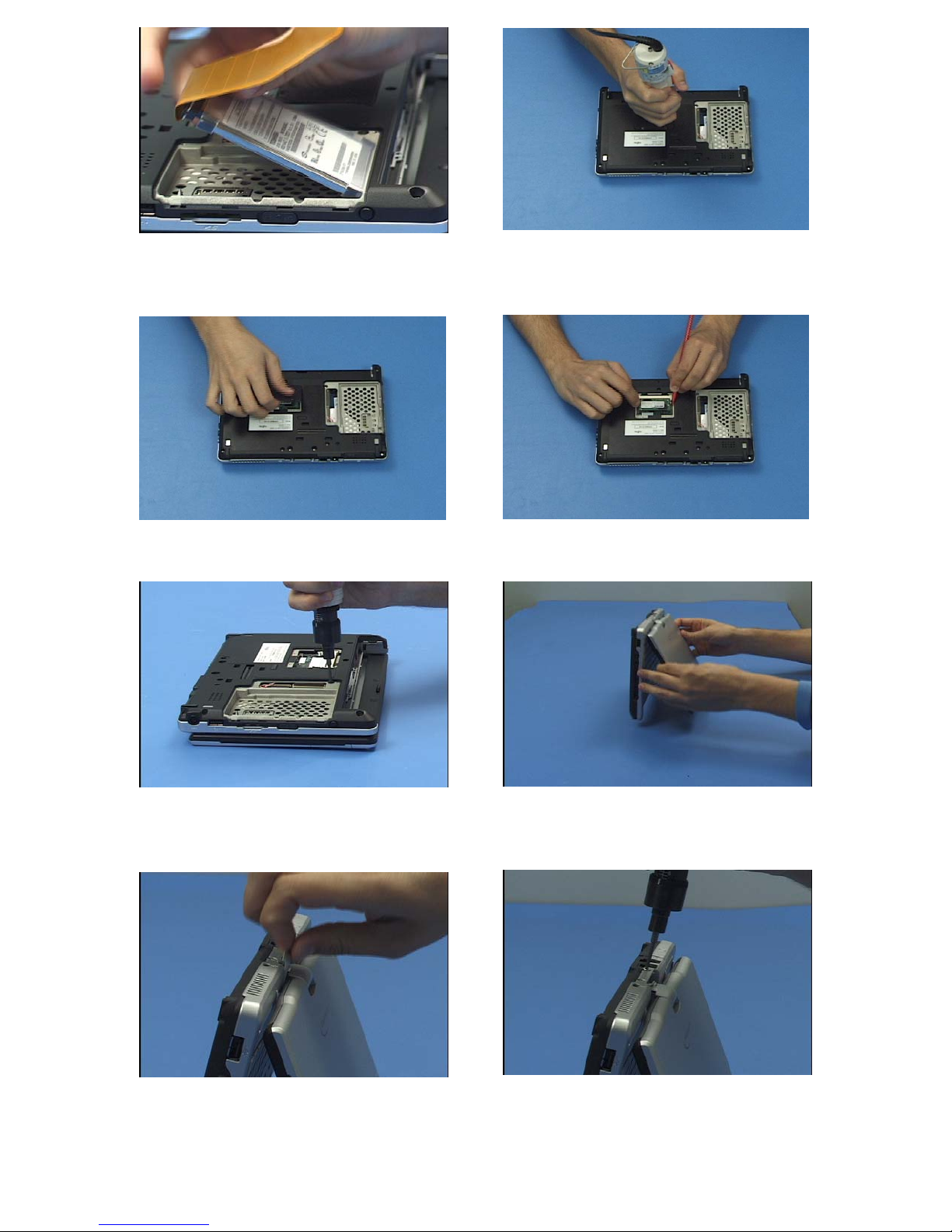

1. Turn the LifeBook over and

remove the battery.

3. Remove the cover.

2. Extract 3 screws from the Hard

Disk Drive cover.

4. Disconnect the drive cable.

5. Lift out the drive.

7. Remove the cover.

9. Extract 11 lower case screws.

11. Remove the rear hinge cover.

6. Extract 2 screws from the RAM

cover.

8. Press out on the locking clips to

release the RAM and lift it out.

10. Turn the LifeBook over, open it

slightly and stand it on its front.

12. Extract the 2 hinge screws from

the rear of the case.

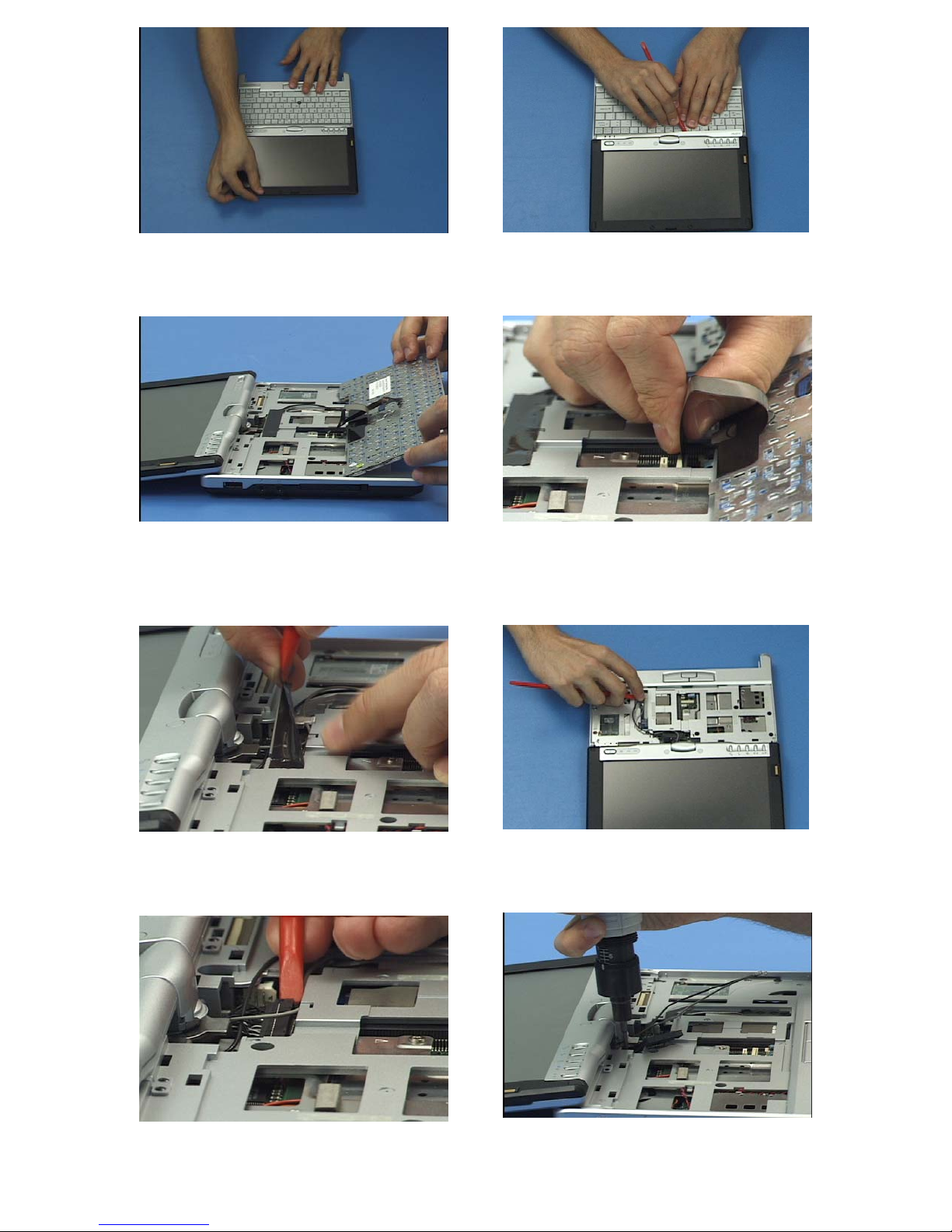

13. Open the LifeBook and lay it flat.

15. Lift up the keyboard.

17. Remove the tape and metal

bracket over the antenna cables.

19. Disconnect the Display cable

from the system board.

14. Use a plastic screwdriver to pry

up the keyboard upper cover and

lift it out.

16. Disconnect the keyboard cable

and the TouchPoint cable and lift

the keyboard out.

18. Disconnect the antenna cables

from the WLAN card.

20. Extract 2 hinge screws.

21. Lift the display off of the lower

assembly.

23. Disconnect the TouchPoint

Buttons ribbon cable from the system

board.

25. Disconnect the microphone

cable and turn the upper case over.

27. Extract 2 screws from it.

22. Extract 6 upper case screws.

24. Lift up the upper case.

26. Peal the adhesive guide off of

the TouchPoint Button assembly.

28. Lift the assembly out.

29. Lift out the microphone and its

cable.

31. Disconnect the ribbon cable

from the Daughterboard.

33. Lift out the External VGA

connector cover.

35. Lift out the daughterboard and

disconnect the RJ11 connector

cable from the modem.

30. Press out on the locking clips to

release the WLAN card and remove

it.

32. Extract 4 screws from the

Daughterboard.

34. Remove 2 hex screws from the

connector.

36. Turn the daughterboard over

and extract 2 screws from the

modem.

37. Lift it off.

39. Disconnect the fan cable and lift

the shield out.

41. Remove it from the metal shield.

43. Disconnect the speaker cable

from the system board.

38. Extract 1 screw from the metal

shield.

40. Extract 2 screws from the fan.

42. Disconnect the external DC

cable from the system board.

44. Extract 1 screw from the system

board.

45. Lift it out, and disconnect the

RJ45 connector’s cable from it.

47. Lift out the RJ11 connector.

49. Extract 2 screws securing the

speaker bracket.

51. Extract 1 screw from the

grounding strip and lift it out.

46. Lift out the RJ45 connector.

48. Lift out the external DC

connector.

50. Lift out the speaker bracket and

speaker.

52. Remove the stylus.

53. Extract 1 screw from the stylus

holder and lift it out.

55. Extract the 8 screws underneath.

57. Extract 2 screws from the

fingerprint scanner PCB.

59. Extract 1 screw from the left

antenna.

54. Remove 8 screw covers from the

front of the display.

56. Pry around the perimeter of the

display to release the front cover

from the rear and lift it off.

58. Lift it out and disconnect its

cable.

60. Disconnect its cable and

remove it.

61. Extract 1 screw from the right

antenna.

63. Extract 2 screws from the

suspend switch PCB.

65. Disconnect the backlight cable

from the inverter.

67. Remove the tape from its cable.

62. Disconnect its cable and

remove it.

64. Disconnect its cables and

remove it.

66. Extract 1 screw from the corner

of the LCD and tilt it up.

68. Disconnect the cable and lift out

the LCD.

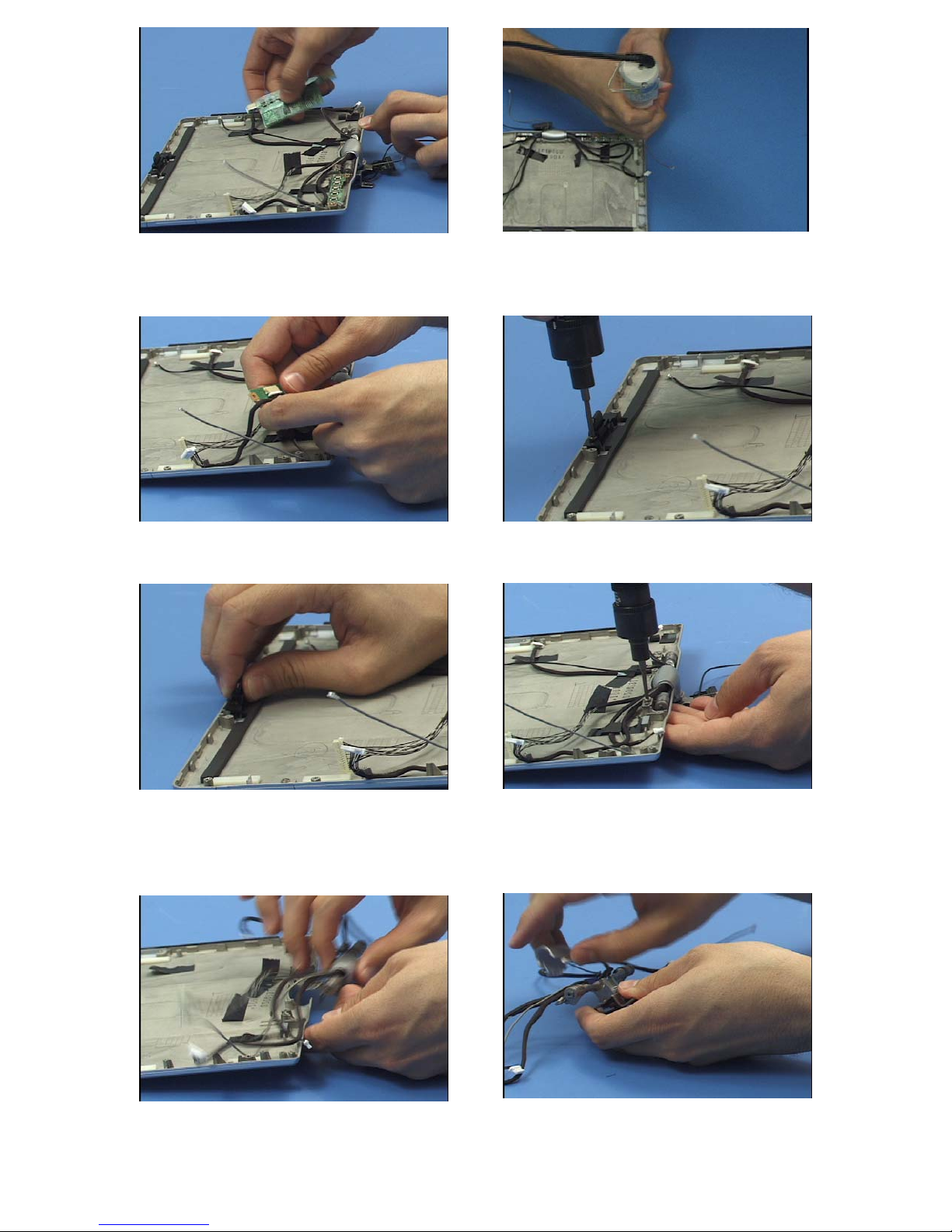

69. Lift out the inverter and

disconnect its power cable.

71. Disconnect its cable and

remove it.

73. Remove the latch.

75. Lift the hinge assembly out.

70. Extract 2 screws from the

application panel PCB.

72. Extract 2 screws from the display

latch.

74. Extract 4 screws from the hinge.

76. Lift the hinge cover off of the

hinge assembly.
