Fujitsu CELSIUS H7613 User manual

Page 1 of 48

System Upgrades and Repairs 3

Information on the installation and removal of components 4

Screws 5

Tools 6

Remove the service door 7

Remove the battery 8

Insert the battery 9

Remove the 3rd and 4th memory 10

Insert the 3rd and 4th memory 12

Remove the 3rd M.2 module 14

Insert the 3rd M.2 module 15

Mandatory Support Bulletins 16

Remove the lower assy 17

Remove the WWAN module 18

Remove the fan 19

Remove the USB sub board 20

Remove the SD card/SmartCard reader sub board 21

Remove the Bio Secure fingerprint sensor 22

Remove the fingerprint sensor 23

Remove the palm vein sensor 24

Remove the touchpad button sub board 25

Remove the keyboard 26

Remove the 1st and 2nd memory 28

Remove the 1st and 2nd M.2 module 29

Remove the mainboard/WLAN 30

Remove the speaker 31

Remove the sub board switch 32

Remove the CMOS battery 33

Remove the DC-in connector 34

Remove the LCD assy 35

Remove the upper assy 36

Remove the LCD cover 37

Remove the hinges 38

Remove the LCD panel 39

Remove the webcam 41

System Upgrades and Repairs

CELSIUS H7613

Version date

14.06.2023

Category

System Upgrades and Repairs

Version number

1.0

Classification

Non-classified - public

Contents

Page 2 of 48

Remove LCD back cover 42

Spare parts CELSIUS H7613 43

Additional information CELSIUS H7613 45

Disposal information for recycling companies 46

Version history 48

Page 3 of 48

System Upgrades and Repairs

We recommend printing out the relevant sections of this chapter prior to

installation as the device for installing/removing hardware components needs

to be switched off.

The following illustrations may differ from your device, depending on its configuration and features.

If you have received any further documents with your device, you should read these through carefully.

Please note the following instructions before installing/removing system components:

■The device must be switched off when installing/removing components and it must not be in

power-saving mode.

■Disconnect the mains plug before opening the device.

■Press on the power button for approx. 5-10 seconds in order to discharge the remaining power.

■Remove all externally connected cables.

■Take care not to pinch any cables when installing/removing components.

■Please ensure that the installed components that might heat up intensely during operation do not

exceed the permitted operating temperature.

Please take note of the target audience addressed in these instructions. Damage to the device incurred as a result of

unqualified methods used during repair work as well as the use of unsuitable spare parts or assemblies during the repair

work or upgrades of the device may void your warranty claim.

During a system expansion or a hardware upgrade, it is possible that the BIOS

must be updated. You can find more information in the technical information

provided for your device.

Page 4 of 48

Information on the installation and removal of components

These instructions provide information on disassembling the device in addition to upgrading or exchanging components.

The steps in these instructions describe the removal of a component. Installation is carried out in the reverse order.

Specifics are separately described after the removal.

Please pay attention to the locking mechanism (indentations and centring pins) when installing hardware components.

Note that some components on the mainboard may be very hot if the device was in use shortly before the case was removed.

Utmost care is required during installation and removal to avoid damaging components.

Use a non-slip base.

Never use items with sharp edges (screwdrivers) to lever them out.

Parts with Electrostatic Sensitive Devices (ESD) can be identified by a corresponding label.

When dealing with boards with ESDs, the following points must always be observed:

■

Always ensure there is a static discharge (e.g. by touching a grounded object) prior to

commencing with the work.

■

The devices and tools being used must not be statically charged.

■

Only touch the components along the edges or on the areas marked in green (contact

points).

■

Contacts and electronic components must not touch when handling components

equipped with ESD protection.

Page 5 of 48

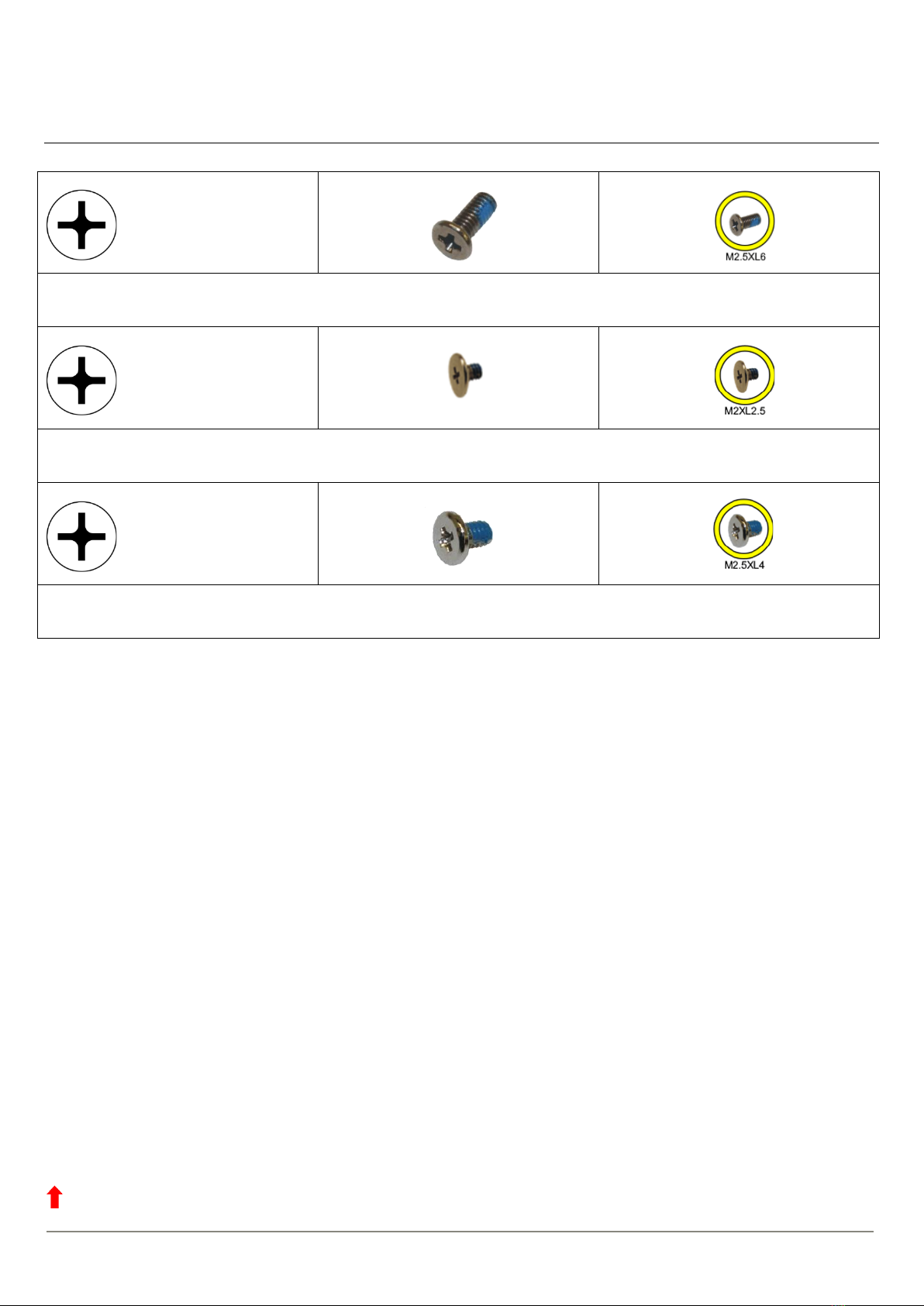

Screws

Screw: M2.5XL6 (D4.5)

Screwdriver: Phillips PH00 (ISO 8764)

Screw: M2.0XL2.5

Screwdriver: Phillips PH00 (ISO 8764)

Screw: M2.5XL4

Screwdriver: Phillips PH00 (ISO 8764)

Return to Table of Contents

Page 6 of 48

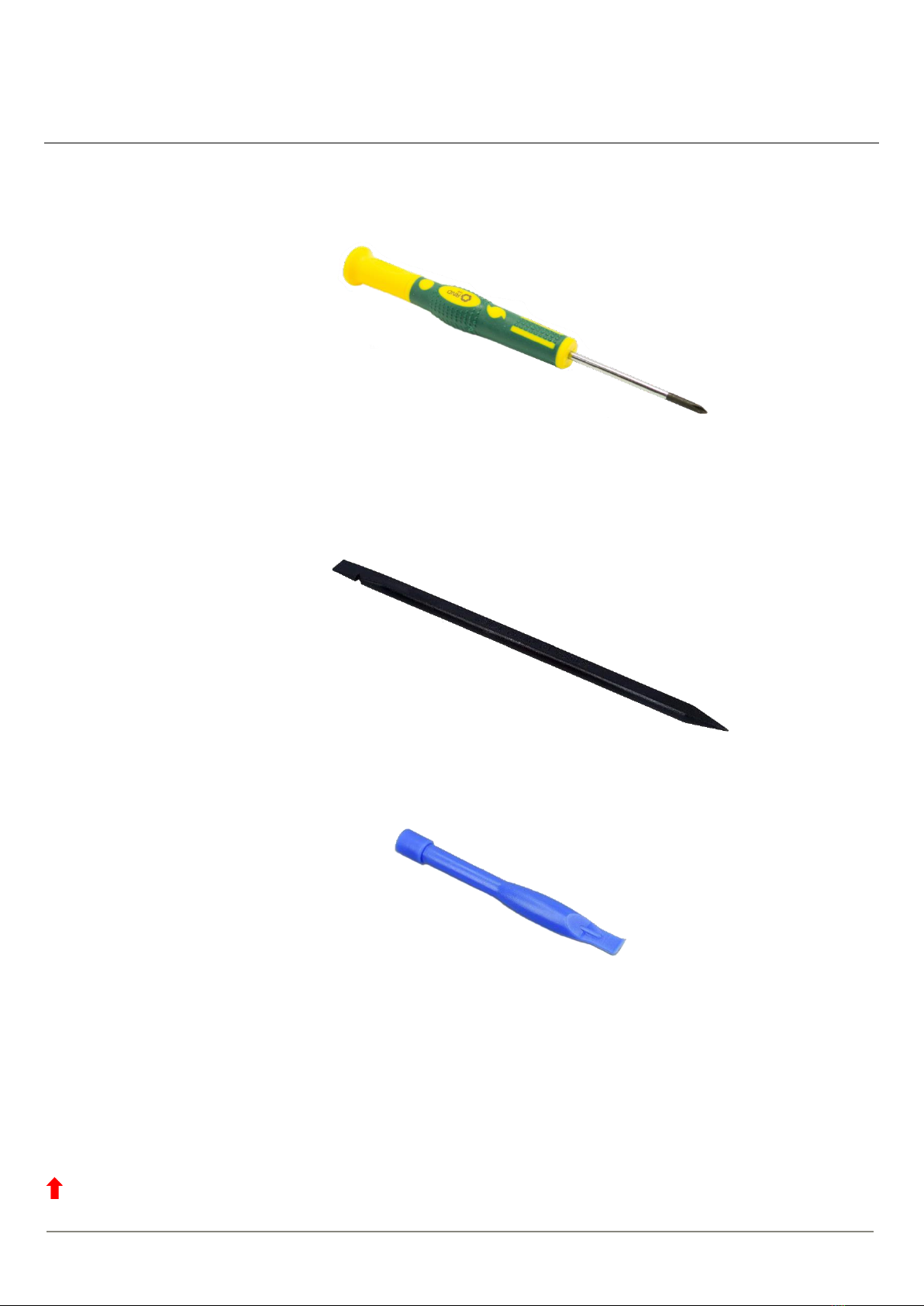

Tools

Screwdriver: Phillips PH00 (ISO 8764)

Plastic tool (from iFixit: Part # 922-5065)

Plastic tool (from iFixit: Part # SKU: EU145335-1)

Return to Table of Contents

Page 7 of 48

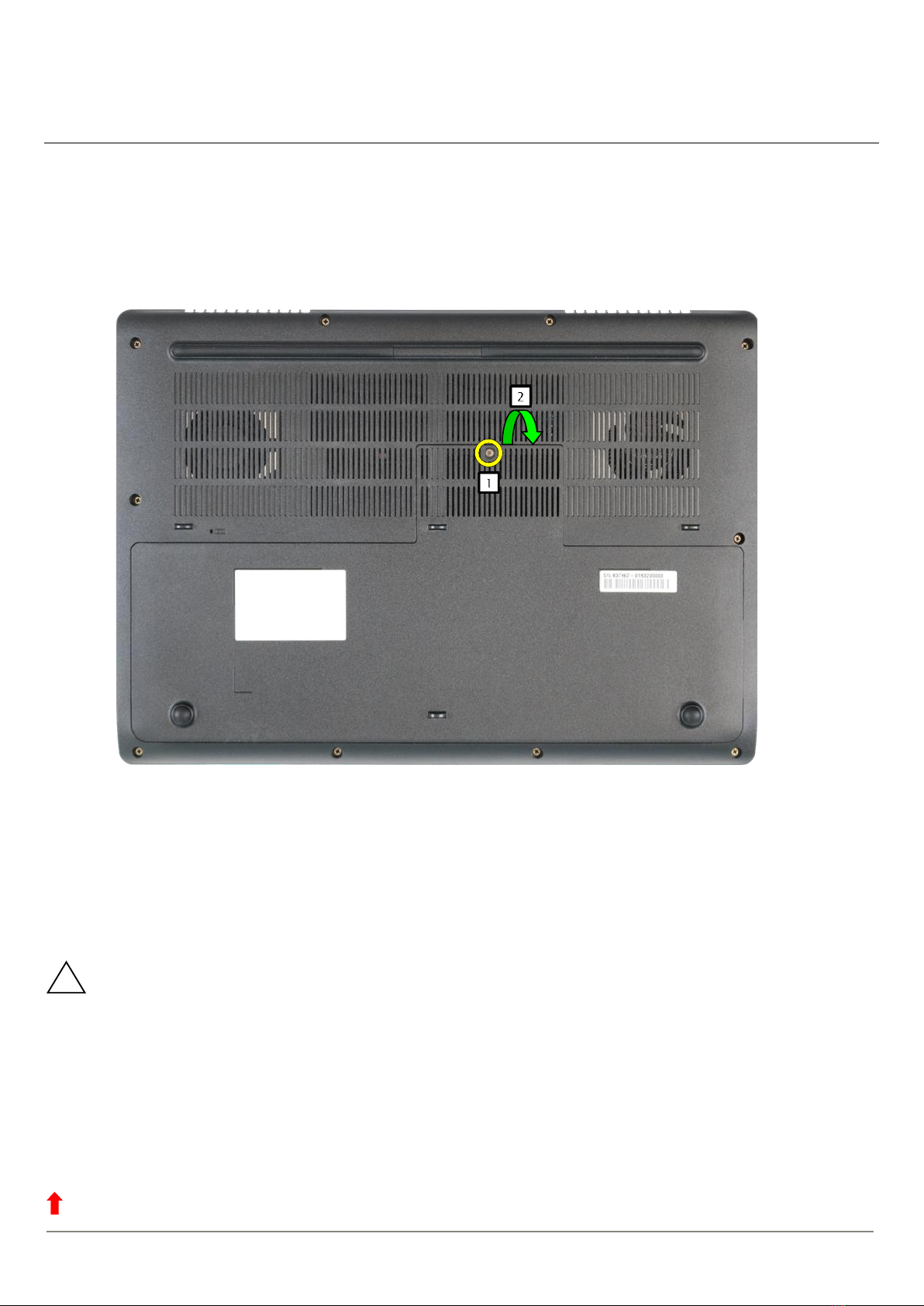

Remove the service door

Required work steps:

■Close the notebook

■Remove cables and components

Required tools:

■Screwdriver: Phillips PH00

►Undo the screw (1).

►Remove the service door (2).

Please note that the screw is firmly anchored and cannot be removed.

Return to Table of Contents

Page 8 of 48

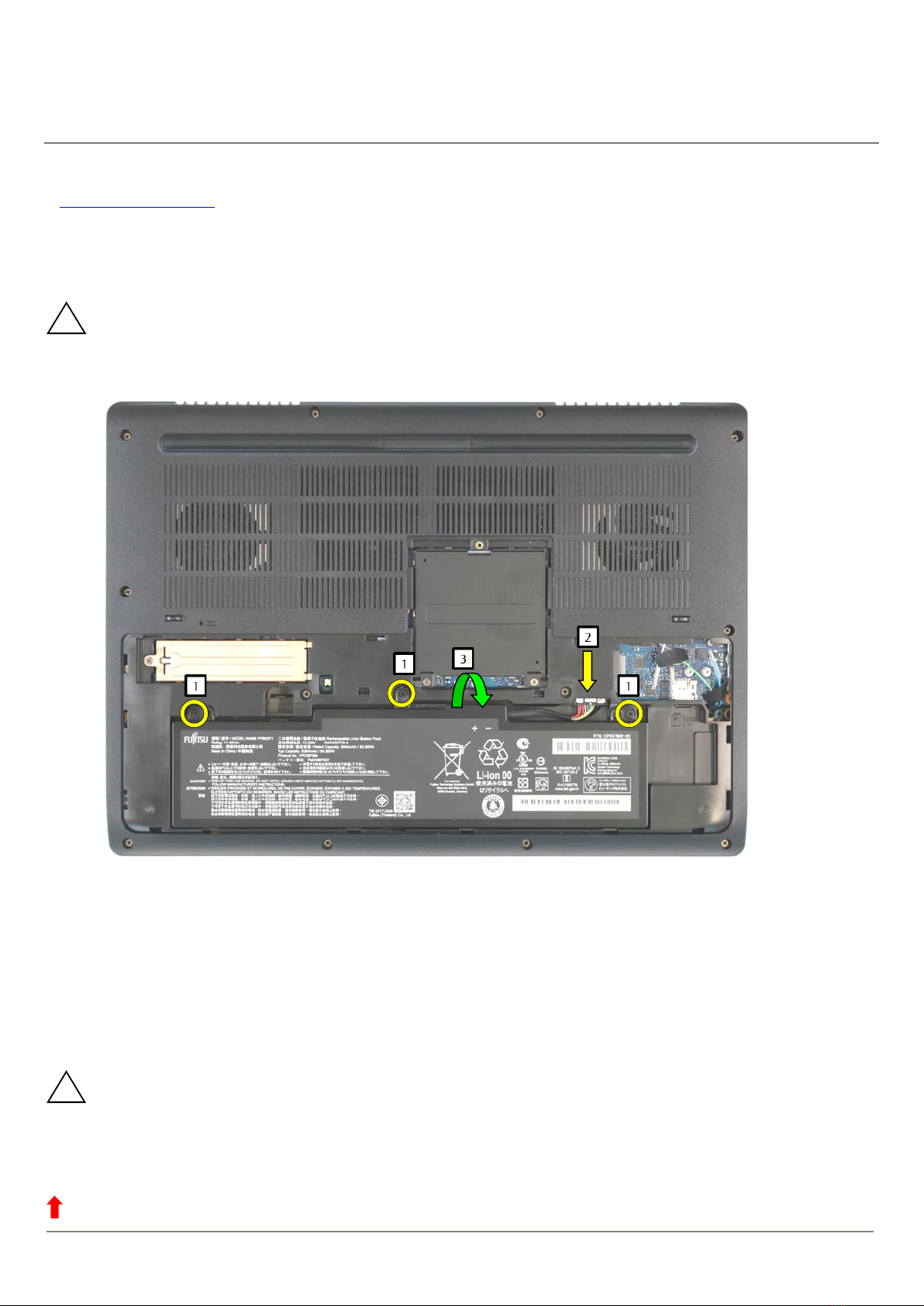

Remove the battery

Required work steps:

■Remove the service door

Required tools:

■Screwdriver: Phillips PH00

The improper exchanging of the lithium battery can result in a danger of explosions!

The lithium battery may be replaced only by a battery recommended by the manufacturer.

Do not dispose of lithium batteries in the household waste. They must be disposed of in accordance with the local

regulations (as hazardous waste).

►Undo the screws (1).

►Remove the cable (2).

►Remove the battery (3).

Make sure the screws are tightly fastened and cannot be removed.

Return to Table of Contents

Page 9 of 48

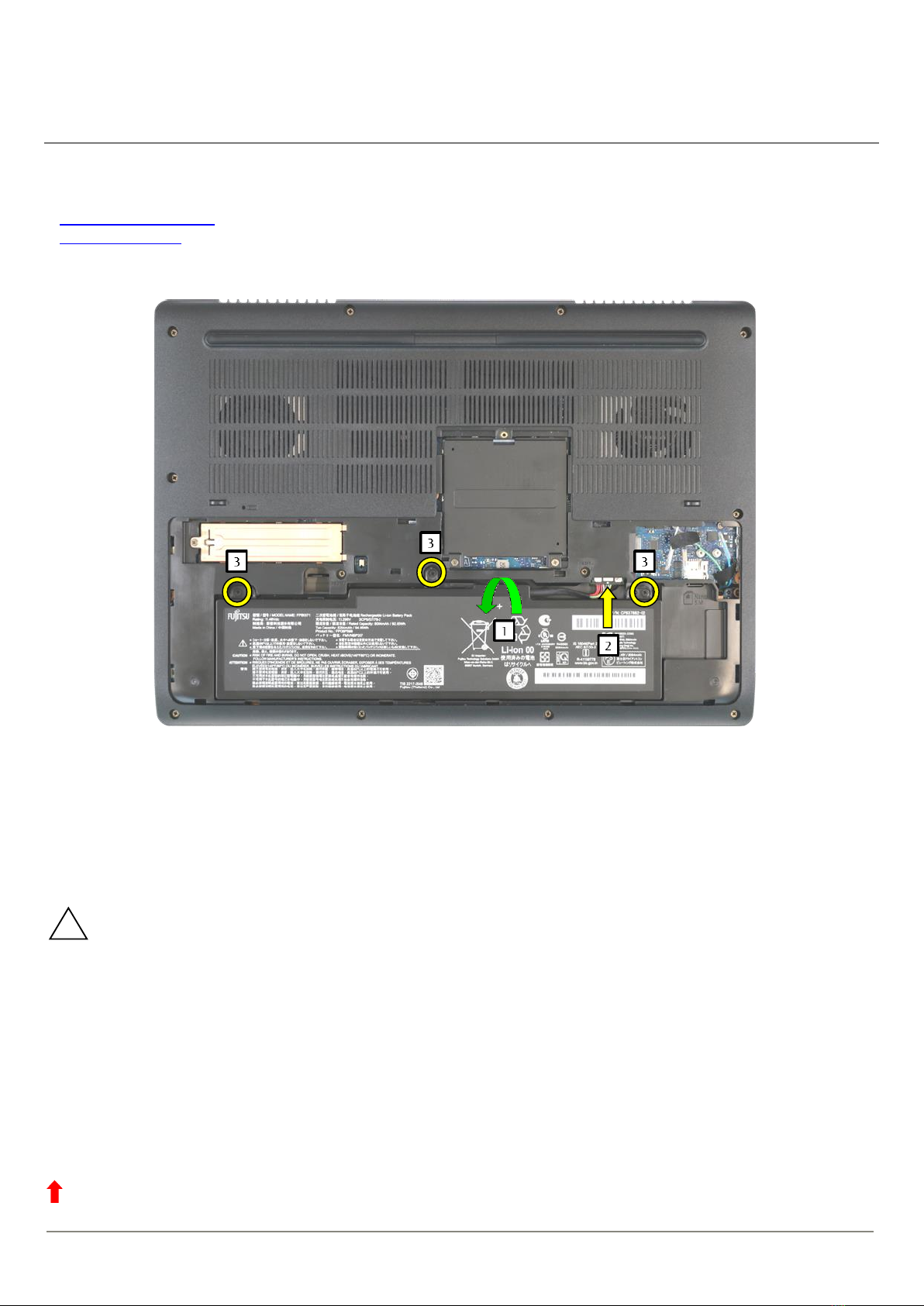

Insert the battery

Required work steps:

■Remove the service door

■Remove the battery

Required tools:

■Screwdriver: Phillips PH00

►Insert the battery (1).

►Plug in the cable (2).

►Tighten the screws (3).

Once the battery has been replaced, the AC adapter needs to be connected to the device so the battery is once again

ready for use.

Return to Table of Contents

Page 10 of 48

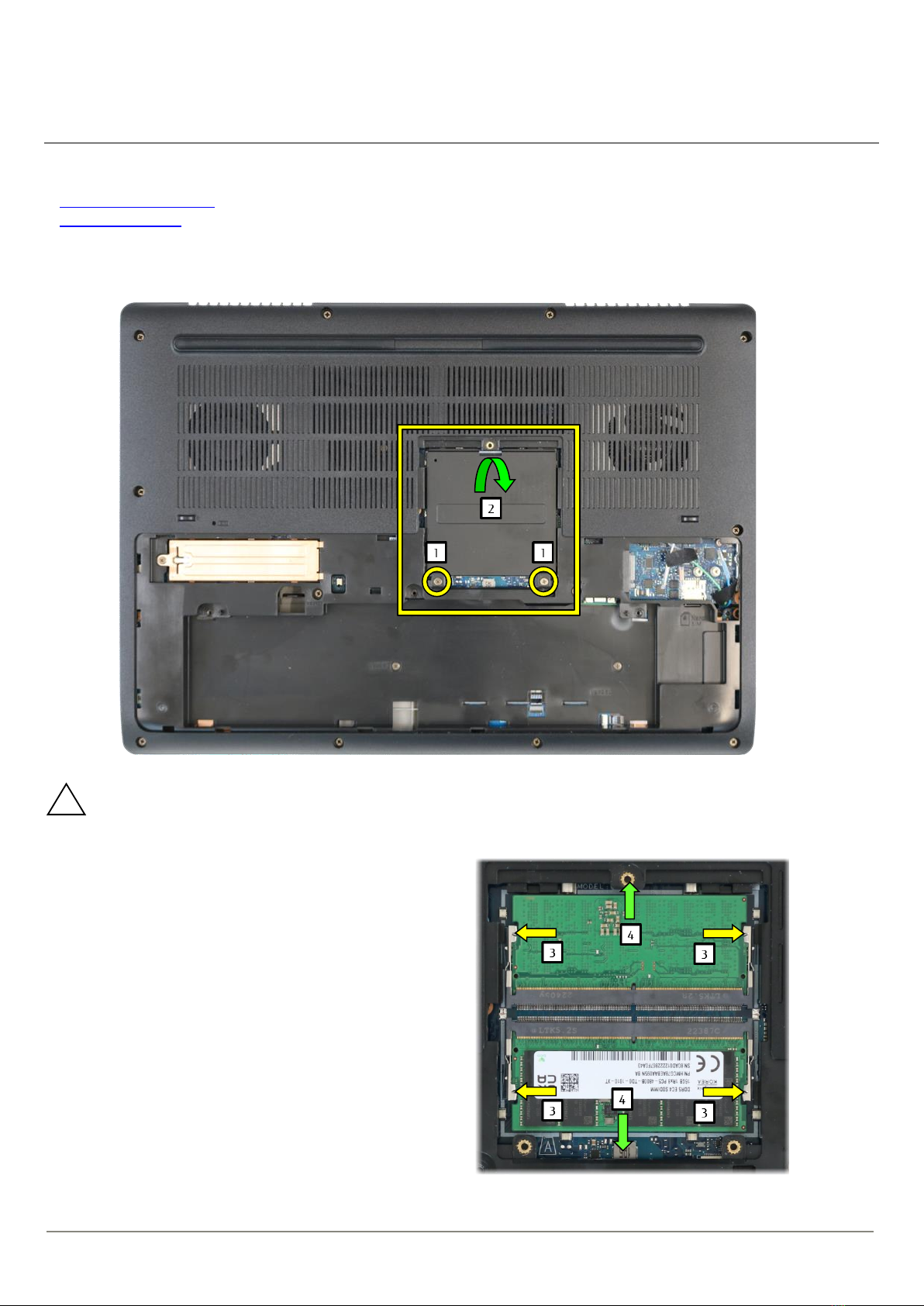

Remove the 3rd and 4th memory

Required work steps:

■Remove the service door

■Remove the battery

Required tools:

■Screwdriver: Phillips PH00

Make sure the screws are tightly fastened and cannot be removed.

►Undo the screws (1).

►Remove the cover (2).

►Press the latch in the direction of the arrow (3).

►Remove the memory (4).
