Fujitsu Siemens Computers 19T2 User manual

19T2

19T219T2

19T2

Bildschirm / Moniteur / Monitor / Skärm / Beeldscherm

BETRIEBSANLEITUNG

BETRIEBSANLEITUNGBETRIEBSANLEITUNG

BETRIEBSANLEITUNG

OPERATING MANUAL

OPERATING MANUALOPERATING MANUAL

OPERATING MANUAL

Sie haben ...

... technische Fragen oder Probleme?

Wenden Sie sich bitte an:

• unsere Hotline:

Mo-Fr: 9 - 18 Uh

Sa: 9 - 14 Uh

Tel.: ++49 (0) 180 3777 000

• einen unserer Servicepartne

• Ihren zuständigen Vertriebspartne

• Ihre Verkaufsstelle

Die Adressen Ihrer Servicepartner finden Sie im Garantieheft oder im Service-Adressenheft.

Aktuelle Informationen zu unseren Produkten, Tipps, Updates usw. finden Sie im Internet:

http://www.fujitsu-siemens.com

Is there ...

... any technical problem or other

question you need clarified?

Please contact:

• one of our service partners

• your sales partne

• your sales outlet

The addresses of your service partners are contained in the guarantee booklet or in the service

address booklet.

The latest information on our products, tips, updates, etc., can be found on the Internet under:

http://www.fujitsu-siemens.com

Dieses Handbuch wurde auf Recycling-Papier gedruckt.

This manual has been printed on recycled paper.

Ce manuel est imprimé sur du papier recyclé.

Este manual ha sido impreso sobre papel reciclado.

Questo manuale è stato stampato su carta da riciclaggio.

Denna handbok är tryckt på recyclingpapper.

Dit handboek werd op recycling-papier gedrukt.

Herausgegeben von/Published by

Fujitsu Siemens Computers GmbH

Bestell-Nr./Order No.: A26361-K616-Z100-1-5E19

A26361-K616-Z100-1-5E19A26361-K616-Z100-1-5E19

A26361-K616-Z100-1-5E19

Printed in United Kingdom

AG 0700 07/00

A26361-K616-Z100-1-5E19

19T2 BETRIEBSANLEITUNG

OPERATING MANUAL

19T2

Farbbildschirm

Color monitor

Moniteur couleur

Monitor de color

Monitor a colori

Färgskärm

Kleurenbeeldscherm

Betriebsanleitung

Operating Manual

Deutsch

lish

Fran

ais

Español

Italiano

Svenska

Nederlands

TCO'99

Ausgabe Juli 2000

July 2000 edition

VESA, DDC und DPMS sind eingetragene Warenzeichen der Video Electronics Standards

Association.

Nachdrucks, der Wiedergabe durch Kopieren oder ähnliche Verfahren.

Zuwiderhandlungen verpflichten zu Schadenersatz.

Liefermöglichkeiten und technische Änderungen vorbehalten.

VESA, DDC and DPMS are registered trademarks of Video Electronics Standards

Association.

All rights, including rights of translation, reproduction by printing, copying or similar methods,

even of parts are reserved.

Offenders will be liable for damages.

All rights, including rights created by patent grant or registration of a utility model or design,

are reserved.

Delivery subject to availability. Right of technical modification reserved.

A26361-K616-Z100-2-5E19 English

Contents

Introduction........................................................................................................................................1

Notational conventions ..............................................................................................................1

Important notes .................................................................................................................................2

Safety........................................................................................................................................2

Manufacturer’s notes.................................................................................................................3

Note on X-ray radiation..............................................................................................................4

Important note on power cable ..................................................................................................4

Disposal and recycling...............................................................................................................5

Checking the contents of the consignment ........................................................................................5

Installing an ergonomic video workstation .........................................................................................6

Connecting the monitor......................................................................................................................6

Operation of the monitor....................................................................................................................8

Switching the monitor on ...........................................................................................................8

Switching the monitor off ...........................................................................................................8

Notes on power management....................................................................................................8

Changing the monitor settings...................................................................................................9

Activating the factory settings..................................................................................................14

Notes on ergonomic color adjustment......................................................................................15

Technical data.................................................................................................................................16

VESA-DDC-compatible VGA interface.....................................................................................17

Preset operating modes...........................................................................................................17

Pin assignment D-SUB (15-pin)...............................................................................................18

Tilting and turning area............................................................................................................18

Error handling..................................................................................................................................19

Self-diagnosis..........................................................................................................................19

Possible malfunctions..............................................................................................................19

Error messages on the screen.................................................................................................21

A26361-K616-Z100-2-5E19 English - 1

Introduction

Your new 19T2 monitor supplies you with a high-quality color image with high resolution and

ergonomic refresh rates. It possesses a whole range of useful features and functions, e. g.:

• 19" (46 cm) high-resolution Trinitron CRT (0.24 - 0.25 mm dot pitch of the slot mask)

• automatic scanning of all horizontal frequencies from 30 to 107 kHz and all refresh rates

(vertical frequencies) from 48 to 120 Hz

• digital screen controller with microprocessor for storing 25 different display modes

• freely adjustable color alignment for matching the screen colors to the colors of various input

and output devices

• VESA-DDC compatibility

• power management for reducing power consumption by up to 95 % when the PC system is not

in use

• compliance with the latest ergonomic standards (ISO 9241-3)

• compliance with the recommendations in accordance with TCO '99

This Operating Manual contains important information you require to start up and run your monitor.

The monitor interacts closely with the screen controller (graphics card) of your PC. It processes the

data supplied to it by the screen controller. The screen controller/the associated driver software is

responsible for setting the modes (resolution and refresh rate).

Target group

You don't need to be an "expert" to perform the operations described here. Do, however, read the

chapter "Important notes" in the Operating Manual of your PC and in this Operating Manual.

In the event of any problems occurring, please contact your sales outlet or our customer service

center.

Further information

Details of how you set the resolution and refresh rate are provided in the documentation on your

screen controller/the associated driver software.

Notational conventions

The meanings of the symbols and fonts used in this manual are as follows:

!Pay particular attention to texts marked with this symbol. Failure to observe this warning

endangers your life, destroys the system, or may lead to loss of data.

Supplementary information, remarks and tips follow this symbol.

Ê Texts which follow this symbol describe activities that must be performed in the order shown.

"Quotation marks" indicate names of chapters and terms that are being emphasized.

Color monitor 19T2

2 - English A26361-K616-Z100-2-5E19

Important notes

!In this chapter you will find information regarding safety which is essential to take note of

with your monitor.

The chapter also contains information on the licenses issued for your equipment.

Safety

This device complies with the relevant safety regulations for data processing equipment, including

electronic office machines for use in an office environment. If you have any questions, contact your

sales outlet or our customer service center.

• If the device is brought into the installation site from a cold environment, condensation can

form. Before operating the device, wait until it is absolutely dry and has reached approximately

the same temperature as the installation site.

• During installation and before operating the device, please observe the instructions on

environmental conditions in the chapter entitled "Technical data" as well as the instructions in

the chapter "Installing an ergonomic video workstation".

• To ensure adequate ventilation the monitor may only be operated with the monitor foot

installed.

• The color monitor must not be exposed to strong magnetic fields (e. g. caused by magnetic

paper clip holders or loudspeakers). Strong magnetic fields could result in a permanent blotchy

image.

• The monitor is automatically degaussed when switched on. This results in a magnetic field

around the metal edge of the picture tube, which may damage the data on data carriers nearby.

Therefore, never keep magnetic data carriers near the monitor.

• The device is designed for a mains voltage in the range from 220 V to 240 V. Ensure that the

local mains voltage lies within these limits.

• The device must be installed in such a way that the user has good access to the appliance

socket.

• The ON/OFF switch does not disconnect the device from the line voltage. To disconnect the

line voltage completely, remove the power plug from the socket.

• Lay all cables so that nobody can stand on them or trip over them. When attaching the device,

observe the relevant notes in the chapter "Connecting the monitor".

• No data transmission cable should be connected or disconnected during a thunderstorm.

• Please ensure that no objects (e. g. necklaces, paperclips etc.) or liquids can get into the

interior of the device (this may cause an electrical shock or short circuit).

• In emergencies (e. g. damaged casing, elements or cables, penetration of liquids or foreign

matter), switch off the unit, disconnect the power plug and contact your sales outlet or our

customer service center.

• Only qualified technicians should repair the device. Unauthorized opening and incorrect repair

may greatly endanger the user (electric shock, fire risk).

• Tampering with the device, in particular adjusting the high voltage or installing a different type

of CRT tube, may result in a large amount of X-ray radiation being emitted. Devices modified in

this way no longer comply with their license and may not be used.

Table of contents

Other Fujitsu Siemens Computers Monitor manuals

Fujitsu Siemens Computers

Fujitsu Siemens Computers SCENICVIEW B17-5 User manual

Fujitsu Siemens Computers

Fujitsu Siemens Computers SCENICVIEW A17-2 User manual

Fujitsu Siemens Computers

Fujitsu Siemens Computers SCALEOVIEW L17-6 User manual

Fujitsu Siemens Computers

Fujitsu Siemens Computers SCALEOVIEW Q22W-1 User manual

Fujitsu Siemens Computers

Fujitsu Siemens Computers Fujitsu Siemens SCENICVIEW P17-2 User manual

Fujitsu Siemens Computers

Fujitsu Siemens Computers AMILO SL 3260W User manual

Fujitsu Siemens Computers

Fujitsu Siemens Computers SCENICVIEW A20W-3 User manual

Fujitsu Siemens Computers

Fujitsu Siemens Computers SCENICVIEW A17-3A User manual

Fujitsu Siemens Computers

Fujitsu Siemens Computers Fujitsu Siemens SCENICVIEW P17-2 User manual

Fujitsu Siemens Computers

Fujitsu Siemens Computers 23" User manual

Fujitsu Siemens Computers

Fujitsu Siemens Computers C551 User manual

Fujitsu Siemens Computers

Fujitsu Siemens Computers x178 User manual

Fujitsu Siemens Computers

Fujitsu Siemens Computers SCENICVIEW B15-1A User manual

Fujitsu Siemens Computers

Fujitsu Siemens Computers SP716 User manual

Fujitsu Siemens Computers

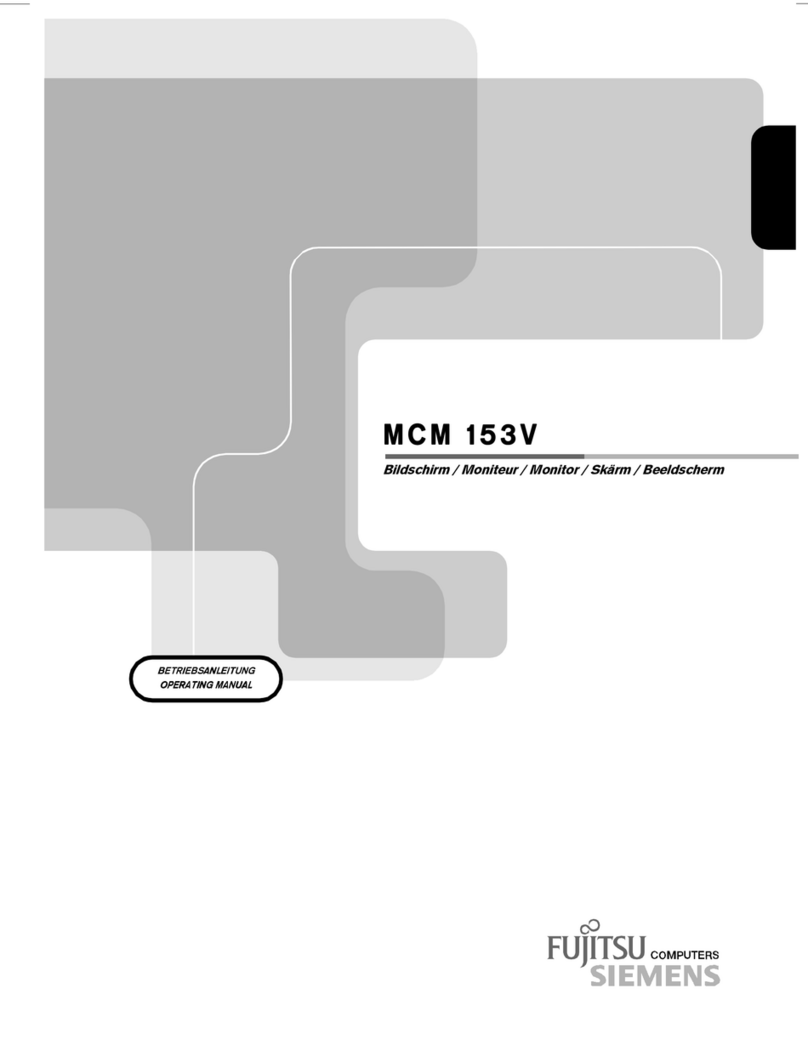

Fujitsu Siemens Computers MCM 153V User manual

Fujitsu Siemens Computers

Fujitsu Siemens Computers 4612 FA User manual

Fujitsu Siemens Computers

Fujitsu Siemens Computers 172E User manual

Fujitsu Siemens Computers

Fujitsu Siemens Computers C384FA-M User manual

Fujitsu Siemens Computers

Fujitsu Siemens Computers 21P4 User manual

Fujitsu Siemens Computers

Fujitsu Siemens Computers 461V FA User manual

Fujitsu Siemens Computers

Fujitsu Siemens Computers L22W-6SA User manual

Fujitsu Siemens Computers

Fujitsu Siemens Computers L17-8 User manual

Fujitsu Siemens Computers

Fujitsu Siemens Computers SCALEOVIEW H17-1 User manual

Fujitsu Siemens Computers

Fujitsu Siemens Computers 4312 FA User manual

Popular Monitor manuals by other brands

Linear Acoustic

Linear Acoustic LQ-1000 user guide

AOC

AOC I2579V user manual

Gateway

Gateway FPD1520 user guide

Furuno

Furuno Mu 120c Operator's manual

Asus

Asus VB171D - 17" LCD Monitor Service manual

Dell

Dell S2230MX Setting up

Philips

Philips 107C64 user manual

Dell

Dell S2409WFP user guide

EverFocus

EverFocus EN-7517E instruction manual

Panasonic

Panasonic TH152UX1 - 152" PLASMA TV Service manual

Dell

Dell Precision 7680 Connection guide

LG 50PM1M - - 50" Plasma Panel Service manual

Bosch

Bosch DDU 9 manual

Acer

Acer A231HL user manual

Philips

Philips 86BDL4152T user manual

NEC

NEC AccuSync LCD5V user manual

Emay

Emay SleepO2 user manual

IBM

IBM 6360 Product support manual
