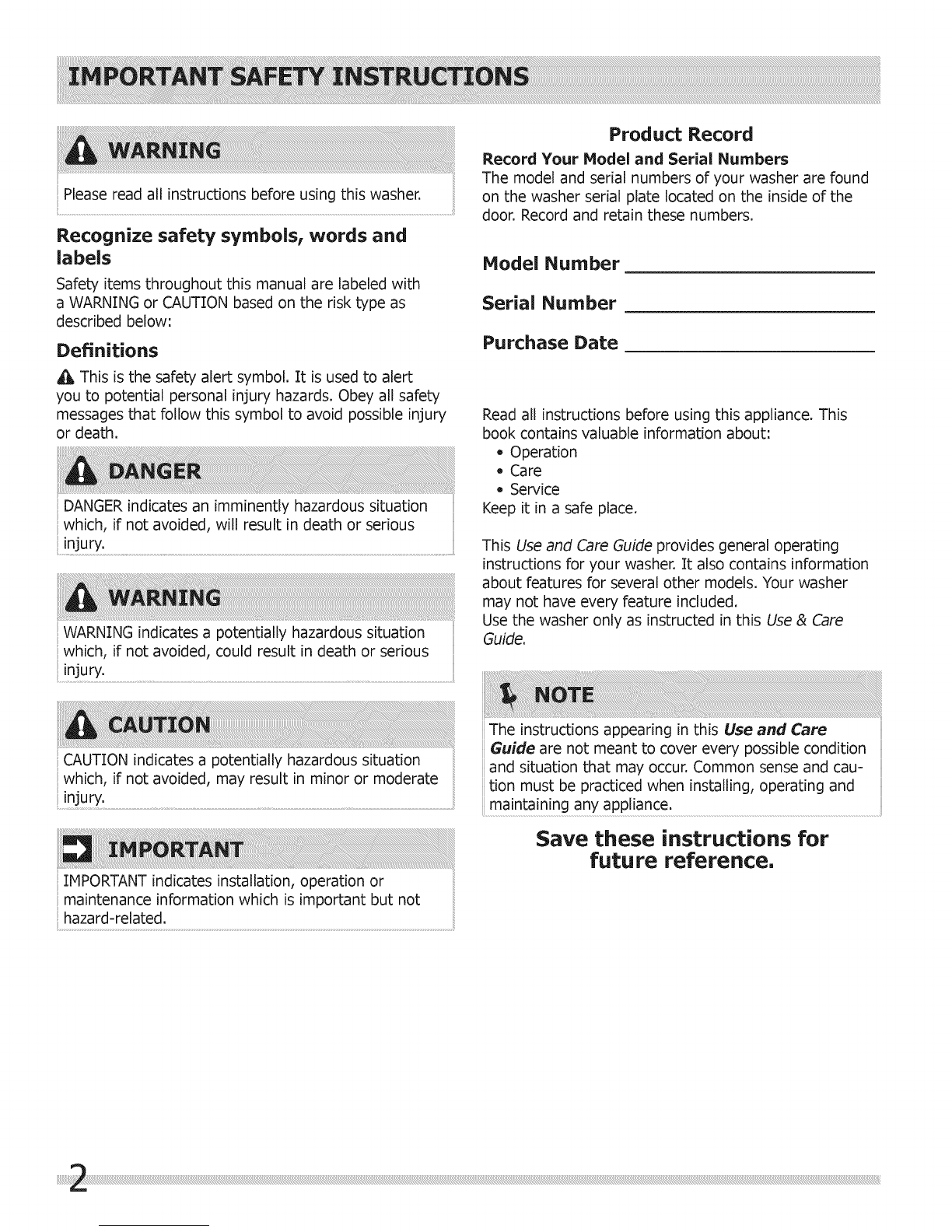

Please read all instructions before using this washer.

Recognize safety symbols, words and

labels

Safety items throughout this manual are labeled with

a WARNING or CAUTION based on the risk type as

described below:

Definitions

This is the safety alert symbol. It is used to alert

you to potential personal injury hazards. Obey al! safety

messages that follow this symbol to avoid possible injury

or death.

DANGER indicates an imminently hazardous situation

which, if not avoided, will result in death or serious

WARNING indicates a potentially hazardous situation

which, if not avoided, could result in death or serious

CAUTION indicates a potentially hazardous situation

which, if not avoided, may result in minor or moderate

Product Record

Record Your Model and Serial Numbers

The model and serial numbers of your washer are found

on the washer serial plate located on the inside of the

door. Record and retain these numbers.

Model Number

Serial Number

Purchase Date

Read all instructions before using this appliance. This

book contains valuable information about:

-Operation

o Care

-Service

Keep it in a safe place.

This Use and Care Guide provides general operating

instructions for your washer. It also contains information

about features for several other models. Your washer

may not have every feature included.

Use the washer only as instructed in this Use &Care

Guide.

IMPORTANT indicates installation, operation or

maintenance information which is important but not

hazard-related.

The instructions appearing in this Use and Care

Guide are not meant to cover every possible condition

and situation that may occur. Common sense and cau-

tion must be practiced when installing, operating and

maintaining any appliance.

Save these instructions for

futu re reference.

To reduce the risk of fire, electrical shock, or injury to persons when using this washer, comply with the basic

warnings listed below. Failure to comply with these warnings could result in serious personal injuries.

You can be killed or seriously injured if you don't follow these Important Safety Instructions:

PREVENT FIRE

o Do not wash items that have been previously cleaned

in, soaked in, or spotted with gasoline, cleaning sol-

vents, kerosene, cooking oils, waxes, etc. Do not store

these items on or near the washer. These substances

give off vapors or chemical reactions that could ignite

or explode.

Do not put oily or greasy rags or clothing on top of the

washer. These substances give off vapors that could

ignite the materials.

Do not add gasoline, cleaning solvents, or other flam-

mable or explosive substances to the wash water.

These substances give off vapors that could ignite or

explode.

Under certain conditions, hydrogen gas may be pro-

duced in a hot water system that has not been used

for 2 weeks or more. HYDROGEN GAS IS EXPLOSIVE.

If the hot water system has not been used for such a

period, before using the washer, turn on all hot water

faucets and let the water flow from each for several

minutes. This will release any accumulated hydrogen

gas. Hydrogen gas is flammable; do not smoke or use

an open flame during this time.

Do not store or use gasoline or other flammable vapors

or liquids in the vicinity of this or any other appliance.

Failure to comply with these warnings could result in

fire, explosion, serious bodily injury and/or damage to

the rubber or plastic parts of the washer.

PROTECT CHILDREN

o Do not allow children to play on or in the washer. Close

supervision of children is necessary when the washer

is used near children. As children grow, teach them the

proper, safe use of all appliances.

Destroy the carton, plastic bag and other packing ma-

terials after the washer is unpacked. Children might use

them for play. Cartons covered with rugs, bedspreads

or plastic sheets can become airtight chambers.

Keep laundry products out of children's reach. To pre-

vent personal injury, observe all warnings on product

labels.

Before the washer is removed from service or dis-

carded, remove the washer door to prevent accidental

entrapment.

Failure to comply with these warnings could result in

serious personal injuries.

PREVENT INJURY

-To prevent shock hazard and assure stability during

operation, the washer must be installed and electrically

grounded by a qualified service person in accordance

with local codes. Installation instructions are packed in

the washer for installer's reference. Refer to INSTAL=

LATION INSTRUCTIONS for detailed grounding

procedures. If the washer is moved to a new location,

have it checked and reinstalled by a qualified service

person.

o To prevent personal injury or damage to the washer,

the electrical power cord of the washer must be

plugged into a properly grounded and polarized

3-prong outlet. The third grounding prong must never

be removed. Never ground the washer to a gas pipe.

Do not use an extension cord or an adaptor plug.

Follow package directions when using laundry products.

Incorrect usage can produce poisonous gas - resulting

in serious injury or death.

Do not combine laundry products for use in 1 load un-

less specified on the label.

Do not mix chlorine bleach with ammonia or acids such

as vinegar.

FIRE/ELECTRICAL SHOCK HAZARD

Avoid fire hazard or electrical shock. Do not use an

adaptor plug or extension cord or remove grounding

prong from electrical power cord. Failure to follow this

warning can cause serious injury, fire or death.

PREVENT INJURY AND DAHAGE TO THE WASHER

To prevent serious personal injury and damage to the

washer:

All repairs and servicing must be performed by an

authorized servicer unless specifically recommended

in this Use & Care Guide. Use only authorized factory

parts.

Do not tamper with controls.

Do not install or store the washer where it will be ex-

posed to the weather.

Do not install on carpet. Install washer on a solid floor.

It may be necessary to reinforce the floor to prevent

vibration or movement.

Do not sit on, step on or stand on the washer. Do not

rest heavy loads on top. The washer is not meant to

support weight.

To reduce the risk of electric shock, disconnect this

appliance from the power supply before attempting

any user maintenance. Turning the controls to the OFF

position does not disconnect this appliance from the

power supply.

To prevent injury, do not reach into the washer while

parts are moving. Before loading, unloading or add-

ing items, push in the cycle selector knob and allow

the drum to coast to a complete stop before reaching

inside.

This washer is equipped with an electrical overload pro-

tector. The motor will stop if it becomes overheated.

Failure to comply with these warnings could result in

serious personal injuries.

Grounding type

wall receptacle

Do not, under

any circumstances,

cut, remove,

or bypassthe

grounding prong.

Powercord with

3-prong grounded plug

HARHFUL VAPOR HAZARD

Do not use or mix liquid chlorine bleach with other

household chemicals such as toilet cleaners, rust

removers, acid or products containing ammonia. These

mixtures can produce dangerous fumes which can

cause serious injury or death.

Cycle Selector Control Lock

Laundry Product _k

Dispenser Drawer

Door Striker

o oo

LED Display

Door Latch with

Safety Lock

Inner glass with small

article redistribution ramp

Stainless Steel

Wash Drum

Adjustable

Leveling Legs

Vent Latch

Cascading

Wash Vanes

As an ENERGY STAR<_Partner, Electrolux

Major Appliances has determined that this

product meets the ENERGY STAR_ guidelines

for energy efficiency.

Normal Operating Sounds

You may or may not hear the following sounds from your

new washer:

A. DRAIN HOSE The washer has a flexible drain hose

to carry water from the washer to the stand pipe of

your home. You will hear water flowing into your stand

pipe. This is a normal part of the operation of the

washer.

B. WATER VALVES/DISPENSER As water enters

the dispenser system, it is common to hear a water

flowing sound. This normal sound will vary slightly

based on the water pressure in your home.

C. DRAIN PUMP Your washer is equipped with a high

velocity drain pump. It is normal to hear humming and

gurgling sounds as water is pumped from the washer.

Both of these sounds are normal and indicate that

your pump is functioning correctly.

D. HIGH SPEED MOTOR A powerful motor is used to

drive the drum to high spin speeds to extract water

from your load. You will hear a sound associated with

these higher spin speeds. This sound is normal and

will vary slightly as the spin speed varies with load size

and cycle selected.

Abnormal, on-going sounds may be an indication of a

pending washer failure and should be investigated by a

qualified technic!an: ......................................................................................................................................................................................................................................

Operating Your Washer

To reduce the risk of fire, electric shock or injuryto

persons, read the IMPORTANTSAFETYINSTRUCTIONS in

this Use and Care Guide before operating your washer.

1Sort laundry into loads that can

be washed together. /ii_iilPi_ _iilY¸_

- Place delicate and small items such as bras, hosiery

and baby socks in a mesh bag.

Sort items ..... .....................................

by recom- _,_,

mended cycle

and water temperature.

Separate white, light and colorfast items from dark

and non-colorfast items.

Separate items that shed lint from items that at-

tract lint. Casual, synthetic, knit, and corduroy

items will pick up lint from towels, rugs, and che-

nille bedspreads.

Separate heavily soiled items from lightly soiled

items.

Separate lacy, sheer, loosely knit, or delicate items

from durable items.

Do not machine wash items containing fiberglass.

Small particles of fiberglass left in the drum may

transfer to fabrics in other loads and cause skin

irritation.

Prepare items for washing,

Empty pockets.

Brush off lint and dirt. Shake out rugs and beach

towels.

Close zippers, fasten hooks, tie strings and sashes,

and remove non-washable trims and ornaments.

Mend rips and tears to prevent further damage dur-

ing washing.

Turn knit items inside out to prevent pilling.

(Mesh bag not included.)

Pretreat stains and heavy soil,

-See Stain Removal Guide in this guide

for safe, success-

ful stain removal

instructions.

4 Add laundry load to washer,

-Combine large and small items in a load.

-Load large items first. Large items should not be

more than half the total wash load.

Washing single items such as a sweater, towel or

jeans is inefficient and may cause an out-of-bal-

ance load. Add 1 or 2 similar items to help balance

the load.

-Wash a single heavy item such as a king-sized

comforter, bedspread or sleeping bag separately.

- The washer can be fully loaded, but the items

should not be tightly packed. The door should close

easily.

Operating Your Washer, continued

5 Add laundry products to the dispenser.

For best results

Use a low-sudsing, high efficiency

detergent to prevent oversudsing in

front load washers. Look for this symbol

on the detergent label:

Detergent, liquid chlorine bleach and liquid fabric soft-

ener will be dispensed at the proper times in the cycle.

From time to time you may see water in the "LIQUID

BLEACH" and "FABRIC SOFTENER"chambers. This is

part of the normal operation of the washer.

Liquid Chlorine Bleach z_

o If desired, add liquid chlorine bleach to the cham-

ber labeled "LIQUID BLEACH" and marked with this

symbol z_.

,Fillto the MIN line for small loads or the MAX line

for large loads.

DO NOT fill above the maximum fill line.

Open and close the dispenser drawer slowly. Closing

the drawer too quickly could result in early dispensing

of the bleach or fabric softener.

To prevent fabric damage, do not overfill the "LIQUID

BLEACH" chamber or pour liquid chlorine bleach

directly onto the load.

Add color-safe bleach with the detergent.

Liquid Fabric Softener

If desired, pour the recommended amount of liquid

fabric softener into the chamber labeled "FABRIC

SOFTENER"and marked with this symbol _.

Fill to the MIN line for small loads or the MAX line

for large loads.

DO NOT fill above the maximum fill line.

Liquid or Powder Detergent

Use the cap or scoop provided by the detergent

manufacturer to measure the amount recommended.

Detergent dosage may need to be adjusted for

water temperature, water hardness, load size and

soil level.

Other Wash Products

Color-safe bleach, water conditioner, detergent booster

and enzyme products may be added with the deter-

gent. Put liquid products with liquid detergent in the

"DETERGENT WASH" chamber or powder products with

powder detergent in the DETERGENT WASH" chamber.

Do not mix liquids and powders.

Use of multi-product (detergent plus softener) sheets

or color-absorbing sheets NOT recommended. They

could disable your machine and result in unwarranted

repair costs.

To prevent staining, do not overfill the "FABRIC

SOFTENER" chamber or pour liquid fabric softener

directly on the wash load.

Use of a fabric softener-dispensing ball is not rec-

ommended in tumble action washers.

Select the appropriate cycle and settings for

the load.

*Turn the cycle selector knob in either direction to

select the cycle desired.

The estimated cycle time, suitable wash and rinse

water temperatures, final spin speed, soil level, and

options for each cycle will be indicated for the cycle

selected. See the "Washer Settings Chart" for more

details.

To change the settings, press the auto temp,

spin speed and soil level buttons to scroll to the

desired settings.

Operating Your Washer, continued

*To select or delete an option, press options; then,

while the indicator is blinking, press select. The

indicator will light when the option has been se-

lected. It will no longer be lighted when the option

has been deleted.

To provide the best care for your laundry, not every

setting or option is available with every cycle. If a

setting or option is not available for the cycle selected,

the indicator will not light. .................................

*Adjustments to a cycle will be remembered and re-

called each time that cycle is selected in the future.

::::9:1::/_ To return to factory

settings, press these

° two buttons at the

: _ same time and

0 hold until the signal

_, sounds.

7Start the washer,

-Close the door and press START. The washer will

not operate with the door open. "PRU" will be

displayed as a reminder to close the door.

*Select delay start to delay the beginning of the

cycle, if desired.

*As a safety measure, the door will automatically

lock during the entire wash cycle and the Door

Lock indicator will be lighted.

*"Touch Pause to Add a Garment"

To add a forgotten item to the wash drum, press

Pause and open the door. "PRU" will be displayed

alternately with the estimated remaining cycle time.

Add the item, close the door and press START to

resume the cycle.

*If changes to the settings or options are attempted

after the cycle starts, you will hear several beeps

when the buttons are pressed. To change the set-

tings or options, press pause, make the new selec-

tions and press START again.

*To change the cycle once the cycle has begun,

press cancel, select a new cycle, and press Start

again. Just turning the cycle selector knob will not

change the cycle.

o To stop the cycle, press cancel,

If the cycle is interrupted during spin, it will take

approximately 2-3 minutes for the door lock to release.

DONOT force open the door..........................................................................................................................................................................

*A signal will sound at the end of the cycle if the

chime option has been selected.

*Remove items from the washer when the cycle

ends and place in dryer, line dry or dry fiat as di-

rected on the fabric care label.

For best results

Follow the fabric care label instructions

on items to be washed.

*Excess wrinkling, color transfer or odors may de-

velop in items left in the washer after the cycle has

ended, if not removed promptly.

ENTRAPMENT and TIP=OVER HAZARD

Do not leave the door open if there are small children

or pets present. An open door could entice children to

hang on the door or crawl inside the washer. If there

are no small children present, you may leave the door

ajar to prevent odor build up.

<:asual

norma de tales

bL ky rnse&spn @ hot @ max

@ warn @ hgt

@ coo @ medtm

@ cod @ ow

@ <od Nab @ _oq: _

deay

stat

@ chine

@ sta_ cea_ @teavy

@ extesdedsps@ soma

@ /es_ /vat( @

rnse

@ door lock

@ se_s }g

@ was_

@ t:o%h pa_se

to addagamer/

seec

a sto s p _ opt o_ s so i_A :/

t< p s}((c ................................ eve pa !e

This manual covers many models and not all cycles, options, or features listed are available on every model, Console shown above

for reference only, Your model may differ,

Cycle Selection

Turn the cycle selector in either direction to the cycle

desired.

For best results

Follow the fabric care label instructions

on items to be washed.

[]

To change the cycle once it has begun, press the cancel

button before selecting a new cycle, lust turning the

cycle selector knob to another selection will not change

the cycle.

bulky

This cycle is designed for bulky items such as

comforters, blankets, mattress pads, sleeping bags and

Popular Washer manuals by other brands

Tricity Bendix

Tricity Bendix AW 1000 W Operating & installation instructions

Panasonic

Panasonic NA-F60L5WRB operating instructions

GE WSLP1500 Dimensions and installation information

Electrolux

Electrolux EWF1284EDW Service manual

Bosch

Bosch WAN2829BSN User manual and installation instructions

LG TV2516DV3B owner's manual

LG TH2517DSAV owner's manual

VESTEL

VESTEL CMH-XL 7510 TE user manual

AEG

AEG 74335 User information

Johnson

Johnson JWF721A user manual

Beko

Beko WTE7604XLW0 owner's manual

Danby

Danby DTT100A1WDB Owner's use and care guide

Amica

Amica WA 14 Ex operating instructions

Daewoo

Daewoo DWD-F1222 instruction manual

Bosch

Bosch WAS28461AU instruction manual

Miele

Miele PW 6080 Vario manual

Finlux

Finlux FLX108CF220 user manual

Whirlpool

Whirlpool 3LBR5132AN0 Use and care guide
