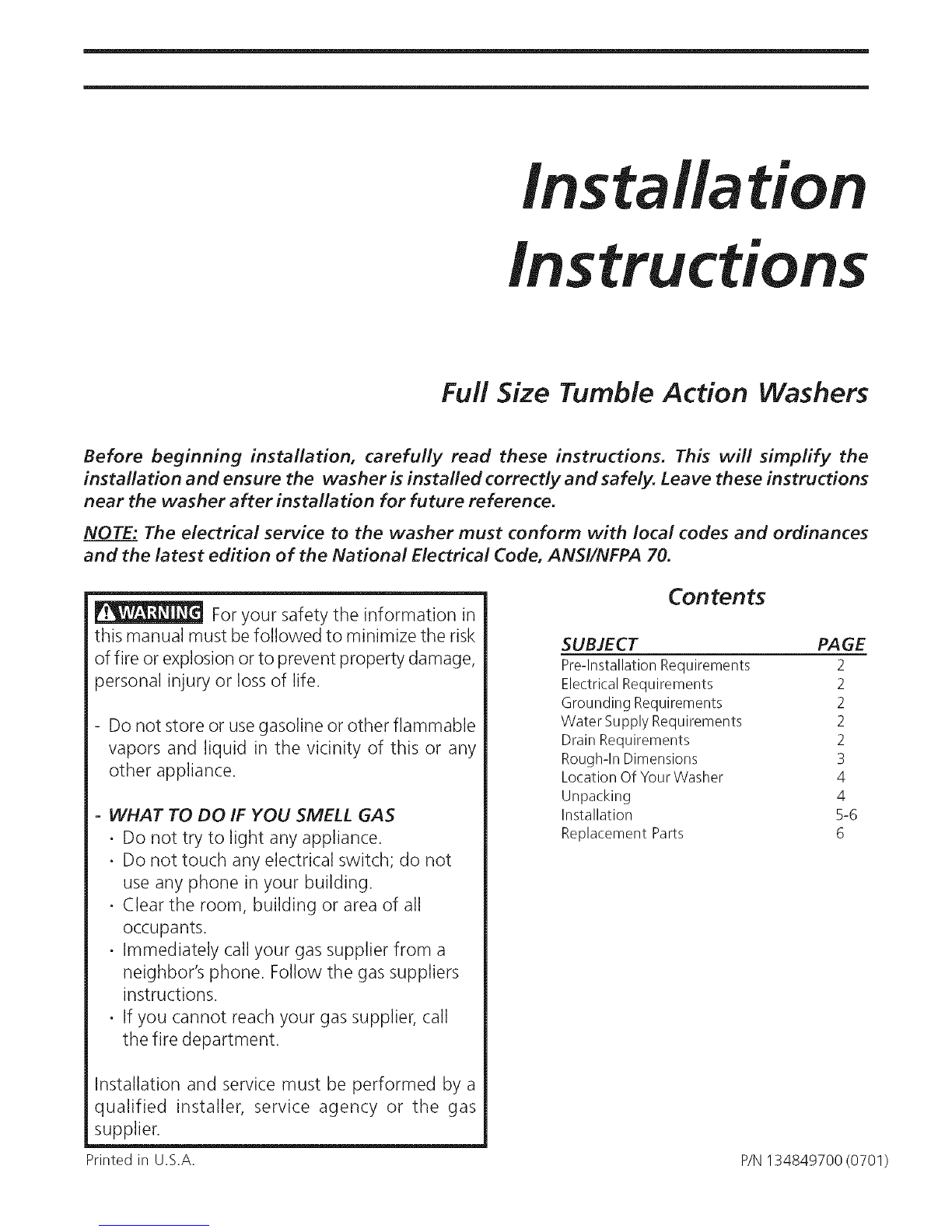

Frigidaire ATF8000FE0 User manual

installation

instructions

Ful! Size Tumble Action Washers

Before beginning installation, carefully read these instructions. This will simpfify the

installation and ensure the washer is installed correctly and safely. Leave these instructions

near the washer after installation for future reference.

NOTE: The electrical service to the washer must conform with local codes and ordinances

and the latest edition of the National Electrical Code, ANS!/NFPA 70.

For your safety the information in

this manual must be followed to minimize the risk

of fire or explosion or to prevent property damage,

personal injury or loss of life.

- Do not store or use gasoline or other flammable

vapors and liquid in the vicinity of this or any

other appliance.

-WHAT TO DO IF YOU SMELL GAS

•Do not try to light any appliance.

•Do not touch any electrical switch; do not

use any phone in your building.

•Clear the room, building or area of all

occupants.

•Immediately call your gas supplier from a

neighbor's phone. Follow the gas suppliers

instructions.

•If you cannot reach your gas supplier, call

the fire department.

Installation and service must be performed by a

qualified installer, service agency or the gas

supplier.

Printed in U.S.A.

Contents

SUBJECT PAGE

Pre-lnstallation Requirements 2

Electrical Requirements 2

Grounding Requirements 2

Water Supply Requirements 2

Drain Requirements 2

Rough-In Dimensions 3

Location Of Your Washer 4

Unpacking 4

Installation 5-6

Replacement Parts 6

P/N 134849700 (0701)

PRE-INSTALLATION REQUIREMENTS

Tools Required for Installation:

I. Phillips screwdriver

2. 10 mm socketwith ratchet.

3. Channel-lock adjustable pliers.

4. Carpenter's level.

ELECTRICAL REQUIREMENTS

CIRCUIT-Individual, properly polarized and grounded 15

amp. branch circuit fused with 15 amp. time delay fuse or

circuit breaker.

POWER SUPPLY - 2 wire, with ground, 120 volt, single

phase, 60 Hz, Alternating Current. NOTE: Because of

potential inconsistent voltage capabilities, the use of this

washer with power created by gaspowered generators, solar

powered generators, wind powered generators or any other

generator other than the local utility company is not

recommended.

OUTLET RECEPTACLE - Properly grounded 3-prong

receptacle to be located so the power supply cord is

absence of local codes, with the National

Electrical Codes, ANSI/NFPA 70 (latest edition).

If in doubt, call a licensed electrician. DO NOT

cut off or alter the grounding prong on the power

supply cord. In situations where a two-slot

receptacle is present, it is the owner's

responsibility to have a licensed electrician

replace it with a properly grounded three prong

grounding type receptacle.

WATER SUPPLY REQUIREMENTS

Hot and cold water faucets MUST be installed within

42 inches (107 cm) of your washer's water inlet. The

faucets MUST be 3/4 inch (1.9 cm) garden hose type

so inlet hoses can be connected. Water pressure

MUST be between 30 and 120 pounds per square

inch (maximum unbalance pressure, hot vs. cold, 10

psi.) Your water department can advise you of your

water pressure.

DRAIN REQUIREMENTS

Drain capable of eliminating 7gals(64.3 L) per

minute.

A standpipe diameter of I-1/4 in. (3.18 cm)

minimum.

The standpipe height above the floor should be:

Minimum height: 24 in. (61 cm)

Maximum height: 96 in. (244cm)

accessible when the washer is in an installed position.

NOTE: GFI (Ground Fault Interrupter) receptacle is not

required.

GROUNDING REQUIREMENTS

Improper connection of the equipment

grounding conductor can result in a risk of electrical shock.

Check with a licensed electrician if you are in doubt as to

whether the appliance is properly grounded.

.The washer MUST be grounded. In the event of

malfunction or breakdown, grounding will reduce the

risk of electrical shock by a path of least resistance

for electrical current.

.Since your washer is equipped with a power supply

cord having an equipment-grounding conductor and a

grounding plug, the plug MUST be plugged into an

appropriate, copper wired receptacle that is properly

installed and grounded in accordance with all local

codes and ordinances or in the

o OO

BACK II

96 in.

(244 cm)

Max.

24 in.

(61 cm)

Min.

NOTE:

Drain hose attached to the washer can reach a 90

in. (229 cm) high standpipe. For higher standpipe,

use hose P/N 134359410, available from an

authorized parts distributor.

23¾"

(60.33)

ROUGH=IN DIMENSIONS

24"

(60.96)

4 ID

25/8"

(6.67)

inches(cm)

mmm

iii

- SLOE- -

22"

(55.88)

p_9 255/8"

(65.09)

281/4"

q (71.76)

35/8"

(9.21)

33½"

(85.09)

inches (cm)

-- 2½"

(6.35)

27"

___ (68.58)

8½"

I(21.59)

0 O0

BACK

23"

(58.42)

27"

(68.58)

--6¾"

(17.15)

NOTE: For pedestal installations, see additional installation instructions included with the pedestal.

For stacking installations, see additional installtion instructions included with the stacking kit.

For under counter installations, no special top is required.

LOCATION OF YOUR WASHER

DO NOTINSTALL YOUR WASHER:

1. In an area exposed to dripping water or outside weather 4.

conditions. The ambient temperature should never be below

60 ° F(15.6 ° C) for proper washer (detergent breakdown) 5.

operation.

2. In an area where it will come in contact with curtains or

drapes. 6.

3. Inan area (garage or garage-type building) where gasoline

of other flammables are kept or stored (including

automobiles).

4. On carpet. Floor MUST be solid with a maximum slope of

1/2 in. per foot (I .27 cm per 30.5 cm). Toensure vibration 7.

or movement does not occur, reinforcement of the floor

may be necessary.

IMPORTANT

MINIMUM INSTALLATION CLEARANCES

When installed in alcove or closet:

Sides, Rear = 0 in. (0 cm)

Top = 0 in. (0 cm)

When installed in closet: Front = I in. (2.54 cm)

Closet door ventilation required: 2 Iouvered openings each 60

in2(387 cm2),3 in. (7.6 cm) from top and bottom of door.

UNPACKING

1. Cut the shipping carton along the dotted line along the

bottom. Remove the carton.

2. Using a rug, blanket or piece of cardboard to protect the

floor, lay the washer on it's back.

3. Remove and savethe styrofoam base and shipping plug.

Shoping

Base Plug

Carefully return the washer to an upright position.

Carefully move the washer to within 4 feet (122cm) of the

final location.

Remove the following from the back panel of the washer:

4 shipping bolts,

4 spacers,

1 metal "P" clamp.

Remove the 4 plugs from the literature pack located in the

drum and install them in the holesvacated bythe packaging

spacers.

NOTE: If the washer isto be transported at a later date,

the shipping support hardware must be reinstalled

to prevent shipping damage.

Remove:

metal "P" damp, _i

4 shipping

4 spacers.

Drain Hose Installation

The drain hose isfield installed to allow hose orientation to the

left or right, up or down depending on location of the house

drain. The hose is shipped in the washer tub with the spring

clamp on the coupler elbow and drain hose hanger installed on

the end of the hose.

1. Remove the drain hose from the tub of the washer.

2. Pushthe hose onto the drain coupler at the upper left of the

washer back panel until the hose contacts the STOPRIB.

STOP RIB- HOSE TABS

SPRING

CLAMP

PROVIDED

ON HOSE

PUSH HOSE ONTO

COUPLER TO STOP RIB

.Using pliers, squeeze the ears of the spring clamp

and position the clamp so the clamp ears @ with

and contact the tabs on the drain hose. This assures

proper location of the clamp to prevent leaks.

ALIGN SPRING

CLAMP EARS WITH

TABS ON HOSE

INSTALLATION

Leve/ing the Washer

Excessive noise and vibration can be prevented by properly

leveling the washer.

Forfree standina installation and with the washer in it's final

position, place a level on top of the washer. Adjust the

leveling legssothe washer islevel front-to-rear and side-to-

side, and stable corner-to-corner.

Pressdown on alternate corners and sides and feel for the

slightest movement. Adjust the appropriate leg so the

washer is SOLID on the floor on ALL four legs. Keep the

leveling leg extension at a minimum for best performance

of the washer.

2. For pedestal installations See additional installation

instructions included with the pedestal.

Washer Connections

I. Run sornewater frorn tile hot and cold

faucets to flush the water lines and

remove particles that might clog up the

water valve screens.

Remove the inlet hoses and rubber

washers from the plastic bag located in the drum of the

washer and install the rubber washers in each end of the

inlet hoses.

Carefully connect the inlet hosemarked "HOT" to the outside

"H" outlet of the water valve. Tighten by hand, then

tighten another 2/3 turn with pliers. Carefully connect the

other inlet hose to the inside "C" outlet of the water valve.

Tighten by hand, then tighten another 2/3 turn with pliers.

Do not crossthread or over-tighten these connections.

.Connect the inlet hose ends to the HOT and COLD water

faucets tightly by hand, then tighten another 2/3 turn with

pliers. Turn the water on and check for leaks.

NOTE: Use only new hoses.

Cable Tie

\Cable Tie

Cable Tie

INSTALLATION (CON'T)

Placethe hook end of the drain hose in the drain opening.

Secure the drain hose with the cable tie (provided in the

enclosure package) to the standpipe, inlet hose, laundry

tub, etc. so the hose does not pull out from the force of

the water.

.Plug the power cord into a grounded outlet.

NOTE: Check to ensure the power is off at a circuit

breakedfuse box before plugging the power cord

into an outlet.

7. Turn on the power at a circuit breaker/fuse box.

8. Read the Operating Instructions and Owner's Guide

provided with the washer. They contain valuable and helpful

information that will save you time and money.

9. Runthewasherthrough a complete cycle. Checkforwater

leaks and proper operation.

I 0. If you r washer does not operate, please review the "Avoid

Service Checklist" in your Owner's Guide before calling

for service.

11. Placethese instructions in a location near the washer for

future reference.

NOTE: A wiring diagram and technical data sheetsare located

on top of the dispenser on the inside of the washer.

Pedestal

A pedestal accessory, Model No. APWD15W (White),

APWD15GB (Glacier Blue), APWDlSP (Platinum) and

APWD15E (Black), specifically designed for this washer

may be used when elevating the washer for ease of use.

Failure to use accessories certified by the manufacturer

could result in personal injury, property damage or damage to

the washer.

REPLACEMENT PARTS

If replacements parts are needed for your washer, contact the

sourcewhere you purchased your washer, call 1-800-944-9044,

or visit our website, www.frigidaire.com, for the Frigidaire

Company Authorized Parts Distributor nearest you.

Destroy the carton and plastic bags after the

washer isunpacked. Children might usethem for play. Cartons

covered with rugs, bedspreads, or plastic sheets can become

airtight chambers causing suffocation. Place all materials in

a garbage container or make materials inaccessible to

children. The instructions in this manual and all other

literature included with this washer are not meant to cover

every possible condition and situation that may occur. Good

safe practice and caution MUST be applied when installing,

operating and maintaining any appliance.

Maximum benefits and enjoyment are achieved when all

the Safety and Operating instructions are understood and

practiced as a routine with your laundering tasks.

This manual suits for next models

Table of contents

Other Frigidaire Washer manuals

Frigidaire

Frigidaire FWS545NB User manual

Frigidaire

Frigidaire GLWS1233A User manual

Frigidaire

Frigidaire GLWY1343A User manual

Frigidaire

Frigidaire GLTF2940ES3 User manual

Frigidaire

Frigidaire 134851000C (0712) User manual

Frigidaire

Frigidaire FTF2140ES1 User manual

Frigidaire

Frigidaire FAFW3001LW1 User manual

Frigidaire

Frigidaire ATFB6000ES1 Administrator guide

Frigidaire

Frigidaire NMWS336F Instruction Manual

Frigidaire

Frigidaire GLTF2940E User manual

Frigidaire

Frigidaire BTF2140FS1 User manual

Frigidaire

Frigidaire ATFB7000EG0 User manual

Frigidaire

Frigidaire FFTW1001P User manual

Frigidaire

Frigidaire FLBY15GGAWFD User manual

Frigidaire

Frigidaire CRWS1879AS0 User manual

Frigidaire

Frigidaire Gallery FWT449GFS2 User manual

Frigidaire

Frigidaire FAFW3577KR - Affinity Front Load Washer User manual

Frigidaire

Frigidaire GLTF1570FS3 User manual

Frigidaire

Frigidaire ATFB6000ES1 User manual

Frigidaire

Frigidaire FTFB4000FS1 Instruction Manual

Frigidaire

Frigidaire WAL User manual

Frigidaire

Frigidaire MWX223RE User manual

Frigidaire

Frigidaire GLWS1749AS4 User manual

Frigidaire

Frigidaire 137168300B Owner's manual

Popular Washer manuals by other brands

Tricity Bendix

Tricity Bendix AW 1000 W Operating & installation instructions

Panasonic

Panasonic NA-F60L5WRB operating instructions

GE WSLP1500 Dimensions and installation information

Electrolux

Electrolux EWF1284EDW Service manual

Bosch

Bosch WAN2829BSN User manual and installation instructions

LG TV2516DV3B owner's manual

LG TH2517DSAV owner's manual

VESTEL

VESTEL CMH-XL 7510 TE user manual

AEG

AEG 74335 User information

Johnson

Johnson JWF721A user manual

Beko

Beko WTE7604XLW0 owner's manual

Danby

Danby DTT100A1WDB Owner's use and care guide

Amica

Amica WA 14 Ex operating instructions

Daewoo

Daewoo DWD-F1222 instruction manual

Bosch

Bosch WAS28461AU instruction manual

Miele

Miele PW 6080 Vario manual

Finlux

Finlux FLX108CF220 user manual

Whirlpool

Whirlpool 3LBR5132AN0 Use and care guide
