Frigidaire PLHS37EG User manual

N58L00002.eps N58FFCBBC1.eps N58RFDAAB1.eps N58BAAAAB3.eps

N58SKDEBD11.eps N58TCAAAB3.eps N58CAAAAA10.eps N58XEAAAA0.eps

N58YAAAAA2.eps N58I1151.eps W241689601.eps S241689601.eps

Product No. PLHS37EGSB0 PLHS37EGSB1

Series R134a R134a

Color stain/blk stain/blk

Volts 115 115

Wiring Diagram 241689600 241689600

Owner's Guide 241695101 241695101

Market North America North America

Energy Guide 241649273 241649273

Service Data Sheet 240389631 240389631

Electrolux Major Appliances

North & Latin America

P.O. BOX 212378

AUGUSTA, GA 30917

Publication No.

5995474466

06/09/19

(EN/SERVICE/KHB)

137

SIDE-BY-SIDE

REFRIGERATOR

Model No.

PLHS37EG

Publication No: 5995474466 PLHS37EG

09/06 2

FREEZER DOOR

PLHS37EG Publication No: 5995474466

# Functional Parts 3 09/06

* Non-Illustrated Parts

FREEZER DOOR

Model Index: APLHS37EG (PLHS37EGSB0)

BPLHS37EG (PLHS37EGSB1)

POS. NO PART NO. DESCRIPTION

1 # 241674808 A B Gasket-frzr door, black, magnetic

4A 240367301 A B Bin-door, frzr-upper

4B 240359001 A B Bin-door

4C 240358401 A B Bin-door, frzr-dispenser

11 241668192 A B Door-frzr, stainless, complete assy

13A 240581906 A B Door Stop, black, frzr

18 240536818 A B Handle-door, stainless steel, with insert, & set screw

21A 240598402 A B Screw, 10-32 x 1/2

22A 240328204 A B Bearing-hinge(frz), black, closer

22C 240328404 A B Bearing-hinge, black, upper

68 241525101 A B Chute-ice

79 218755402 A B Screw-set, 10-32 x 0.375

80 218755504 A B Screw-shoulder, #10 AB, handle mounting

* 240352102 A B Connector-water, straight

* 240552102 A B Harness-wiring, door

* 5303918256 A B Dispenser heater kit

Publication No: 5995474466 PLHS37EG

09/06 4

REFRIGERATOR DOOR

PLHS37EG Publication No: 5995474466

# Functional Parts 5 09/06

* Non-Illustrated Parts

REFRIGERATOR DOOR

Model Index: APLHS37EG (PLHS37EGSB0)

BPLHS37EG (PLHS37EGSB1)

POS. NO PART NO. DESCRIPTION

2 # 241674807 A B Gasket-refr door, black, magnetic

4 240363702 A B Bin-door, 2-liter

7 240338303 A B Door, dairy, clear

12 240558802 A B Label-nameplate

13 240581905 A B Door Stop, black, ref

15 241534542 A B Door-refr, stainless, complete assy

18 240536818 A B Handle-door, stainless steel, with insert, & set screw

21A 240598402 A B Screw, 10-32 x 1/2

22 240328203 A B Bearing-hinge, black, closer

22B 240328404 A B Bearing-hinge, black, upper

27A 240396102 A B Retainer, tall bottle

49 240430313 A B Bin-door, gallon

79 218755402 A B Screw-set, 10-32 x 0.375

80 218755504 A B Screw-shoulder, #10 AB, handle mounting

Publication No: 5995474466 PLHS37EG

09/06 6

CABINET

40 66

14A

100

21C

30A

10A

N58BAAAAB3

PLHS37EG Publication No: 5995474466

# Functional Parts 7 09/06

* Non-Illustrated Parts

CABINET

Model Index: APLHS37EG (PLHS37EGSB0)

BPLHS37EG (PLHS37EGSB1)

POS. NO PART NO. DESCRIPTION

10 240435911 A B Cover-air duct

10A 240475910 A B Cover-evap coil, lower

11 5303208309 A B Plug-hole, factory test

14 240505801 A B Switch, light/lamp

14A 241547901 A B Switch-light/lamp, frzr door

21C 218252200 A B Screw, #8 truss hd, 10-32CA x 0.500

22 240457702 A B Plate-door closer

22* 218252201 A B Screw, #8 truss hd, 10-32CA x 0.500

23 240402702 A B Screw-#10-32 x 1/4 flat hd

28 240335502 A B Bolt-roller adj, hex washer head, 1/4-20 x 4.020, (2), special

30 241603703 A B Bracket-lower hinge, ref

30A 241603704 A B Bracket-lower hinge

37 240337603 A B Trim-cabinet corner, black, (2)

38 240327207 A B Bracket-upper hinge

40 240327007 A B Cover-upper hinge, black

41 241550801 A B Grommet-shelf mtg, 1.40" long

41* 241550701 A B Grommet-shelf mtg, .96" long

42 240578902 A B Screw-hinge mtg, hex head, 1/4-20 x 5/8

43 240335005 A B Roller Assy, adjustable, front, (2)

45 241500303 A B Screw, hex washer head, 8-18AB x 0.500

47 240349402 A B Channel-shelf mtg, side, (2)

58 218781101 A B Screw, pan head, 8-18 x 0.625

66 5304424968 A B Damper Cover Assy

66* 240518802 A B Pin-push, push-in, plastic

72 240324405 A B Grille/Kickplate, black

81 5304455650 A B Screw, hex washer head, 8-15A x 0.625, low profile

82 5304418225 A B Roller, compressor base, rear, (2)

83 5304455655 A B Rivet, flat head, 1/4 OD x 1-3/4, roller pin

89 241733901 A B Cover-access, w/label

90 218249807 A B Seal-coil cover

91 240380101 A B Duct-ice maker

92 241710601 A B Screw, hex washer hd, 1/4 x 7/8, hinge mtg

100 240423701 A B Support, crisper cover, front, (4)

100* 240350802 A B Support, crisper cover, rear, (4)

* 240396801 A B Clamp, tube/wiring, nylon, black/natural

* 240479601 A B Plug, button, cab liner holes

* 5303321321 A B Paint, touch-up, black

Publication No: 5995474466 PLHS37EG

09/06 8

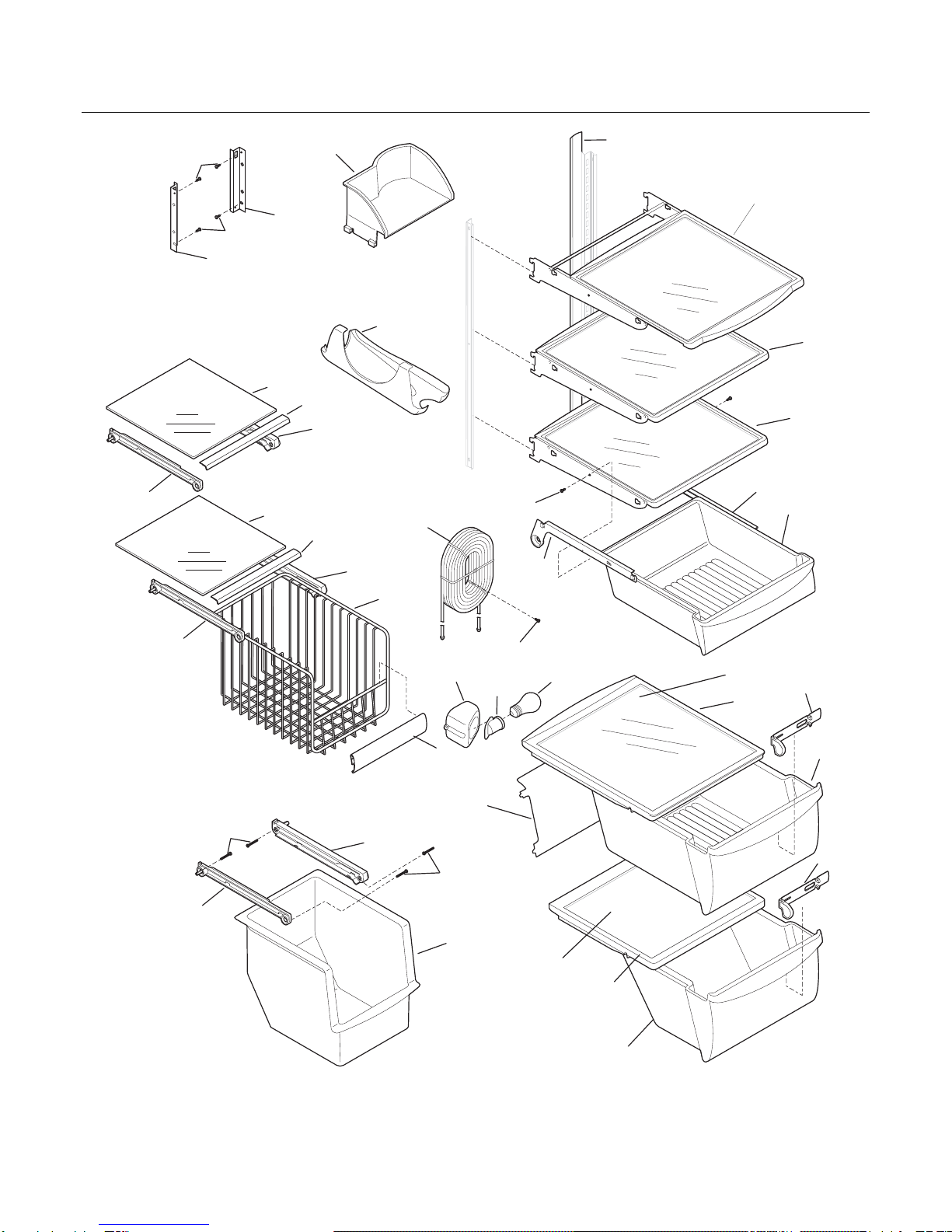

SHELVES

11A

126

52A

109

51A

49B

101

N58SKDEBD11

100

25A

47A

15A

16A

26A

42A

123

24A

140

120

24B

136

PLHS37EG Publication No: 5995474466

# Functional Parts 9 09/06

* Non-Illustrated Parts

SHELVES

Model Index: APLHS37EG (PLHS37EGSB0)

BPLHS37EG (PLHS37EGSB1)

POS. NO PART NO. DESCRIPTION

2 241510603 A B Trim-basket

11 240350648 A B Shelf-freezer, glass, lower

11A 240350647 A B Shelf-freezer, glass, upper

15A 241555401 A B Light Bulb

16A 241513901 A B Socket-light

16A* 241537602 A B Harness-wiring

24 240355201 A B Shelf-"Spill-Safe", fixed, (1)

24A 240355204 A B Shelf-"Spill-Safe", fixed, (3)

24B 240350103 A B Shelf-"Spill-Safe", sliding, (2)

25 240354502 A B Cover-crisper pan, upper

25* 240362101 A B Clip-slide, cover-crisper

25A 240354602 A B Cover-crisper pan, lower

26 240354705 A B Pan-crisper, upper

26* 240349801 A B Clip-slide, pan-crisper

26A 240351101 A B Control-humidity

27 240354805 A B Pan-crisper, lower

39 240367601 A B Trim-shelf, front

42 240356501 A B Track, meat pan hanger, RH

42A 240349701 A B Hanger-meat pan, LH

42A* 240349901 A B Block-meat pan rail, LH

42A* 240350001 A B Spring-meat pan rail

47 240350613 A B Insert-pan cover, glass

47A 240350614 A B Insert-pan cover, glass

49 240564301 A B Basket-sliding

49B 240530503 A B Basket-sliding, upper, full

51 240343002 A B Hanger-basket, RH

51A 240395502 A B Hanger-basket, RH

52 240343102 A B Hanger-basket, LH

52A 240395602 A B Hanger-basket, LH

62 240355505 A B Pan-meat

81 5304455650 A B Screw, hex washer head, 8-15A x 0.625, low profile

97 240545303 A B Water Tank Assy, coiled tubing, front filter

100 240326301 A B Cover-water tank

101 218493101 A B Screw, hex washer head, 8-18AB x 1-3/4

109 240351301 A B Base-crisper light socket

120 240342901 A B Shelf-ice cream

123 215005100 A B Screw, hanger/rlr mtg, 8-10 x 0.438

126 241674401 A B Channel, auger mtg, LH

126 241674402 A B Channel, auger mtg, RH

136 241657701 A B Dispenser-can, white

140 240430501 A B Channel, wtr tube cover

* 241649273 A B Energy Guide

Publication No: 5995474466 PLHS37EG

09/06 10

CONTROLS

149

139

138

198

199

137

200

151

150

21A 23

115

101

N58TCAAAB3
