Frigidaire PLRS267ZA User manual

PRODUCT NO. BASE MODEL NO. SERIES COLOR VOLTS

PLRS267ZAB0 PLRS267ZA R134a Professional black 115

PLRS267ZAB1 PLRS267ZA R134a Professional black 115

MARKET

North America

Publication No.

5995354486

010609

-EN/SERVICE/KHB

357

SIDE BY SIDE

REFRIGERATOR

Model No.

PLRS267ZA

WIRING DIAGRAM - # 240443001

OWNER’S GUIDE - # 240389301

SERVICE DATA SHEET - #240389604

ELECTROLUX HOME PRODUCTS NORTH AMERICA

P.O. BOX 212378, Augusta, GA 30917

FACTORY

PARTS CATALOG

06/01 2

Publication No. PLRS267ZA

5995354486

FREEZER DOOR

# = Fast-moving Parts 3 06/01

* = Non-Illustrated Parts

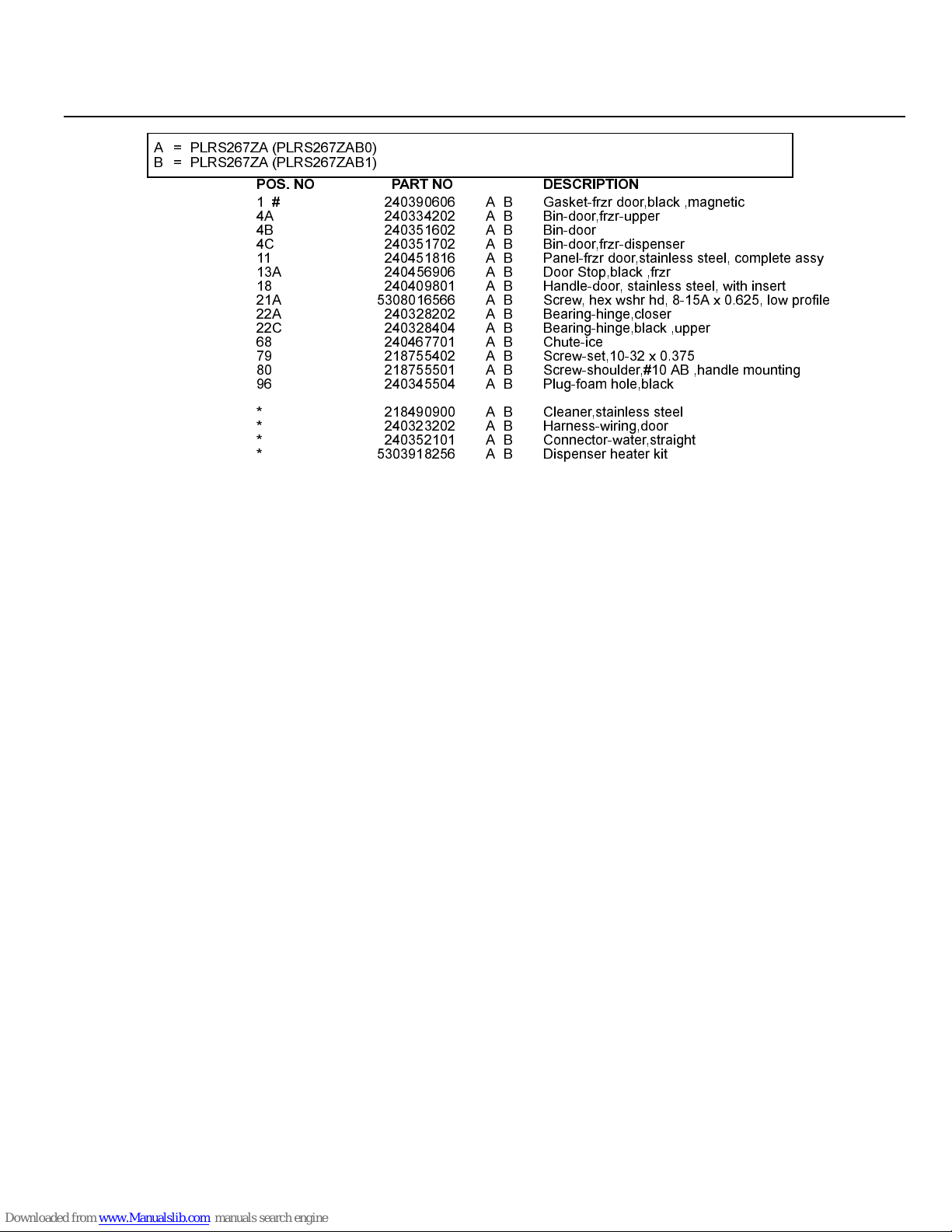

PLRS267ZA Publication No.

5995354486

FREEZER DOOR

A = PLRS267ZA (PLRS267ZAB0)

B = PLRS267ZA (PLRS267ZAB1)

POS. NO PART NO DESCRIPTION

1 # 240390606 A B Gasket-frzr door,black ,magnetic

4A 240334202 A B Bin-door,frzr-upper

4B 240351602 A B Bin-door

4C 240351702 A B Bin-door,frzr-dispenser

11 240451816 A B Panel-frzr door,stainless steel, complete assy

13A 240456906 A B Door Stop,black ,frzr

18 240409801 A B Handle-door, stainless steel, with insert

21A 5308016566 A B Screw, hex wshr hd, 8-15A x 0.625, low profile

22A 240328202 A B Bearing-hinge,closer

22C 240328404 A B Bearing-hinge,black ,upper

68 240467701 A B Chute-ice

79 218755402 A B Screw-set,10-32 x 0.375

80 218755501 A B Screw-shoulder,#10 AB ,handle mounting

96 240345504 A B Plug-foam hole,black

* 218490900 A B Cleaner,stainless steel

* 240323202 A B Harness-wiring,door

* 240352101 A B Connector-water,straight

* 5303918256 A B Dispenser heater kit

06/01 4

Publication No. PLRS267ZA

5995354486

REFRIGERATOR DOOR

# = Fast-moving Parts 5 06/01

* = Non-Illustrated Parts

PLRS267ZA Publication No.

5995354486

A = PLRS267ZA (PLRS267ZAB0)

B = PLRS267ZA (PLRS267ZAB1)

POS. NO PART NO DESCRIPTION

2 # 240390605 A B Gasket-refr door,black ,magnetic

4 240323002 A B Bin-door,Pseudo ,bottom

7 240326203 A B Door-dairy

12 240449704 A B Nameplate,black

13 240456905 A B Door Stop,black ,ref

15 240451909 A B Panel-refr door, stainless steel, complete assy

18 240409801 A B Handle-door, stainless steel, with insert

21A 5308016566 A B Screw, hex wshr hd, 8-15A x 0.625, low profile

22 240328201 A B Bearing-hinge,closer

22B 240328403 A B Bearing-hinge,upper

27A 240396102 A B Retainer,tall bottle

49 240430305 A B Bin-door,gallon

79 218755402 A B Screw-set,10-32 x 0.375

80 218755501 A B Screw-shoulder,#10 AB ,handle mounting

96 240345504 A B Plug-foam hole,black

* 218490900 A B Cleaner,stainless steel

REFRIGERATOR DOOR

06/01 6

Publication No. PLRS267ZA

5995354486

CABINET

# = Fast-moving Parts 7 06/01

* = Non-Illustrated Parts

PLRS267ZA Publication No.

5995354486

A = PLRS267ZA (PLRS267ZAB0)

B = PLRS267ZA (PLRS267ZAB1)

POS. NO PART NO DESCRIPTION

10 240435902 A B Cover-air duct

10A 240475902 A B Cover-evap coil,lower

11 5303208309 A B Plug-hole,factory test

14 # 240413601 A B Switch-light/lamp

14A# 215486600 A B Switch-light/lamp

21C 218252200 A B Screw,#8 truss hd ,10-32CA x 0.500

22 240457701 A B Plate-door closer

23 240402701 A B Screw-#10-32 x 1/4 flat hd

28 240335501 A B Bolt-roller adj,hex wshr hd, 1/4-20 x 4.020,(2),special

30 240419101 A B Bracket-lower hinge, ref

30A 240419102 A B Bracket-lower hinge

37 240337603 A B Trim-cabinet corner,black

38 240327201 A B Bracket-upper hinge

40 240327003 A B Cover-upper hinge,black

41 240358701 A B Grommet-shelf mtg,1.40" long

41* 240358801 A B Grommet-shelf mtg,.875" long

42 240315301 A B Screw-hinge mtg,hex head ,1/4-20 x 0.75

43 240335003 A B Roller Assy,front ,(2)

45 5303001343 A B Screw,hex washer head ,8-15A x 0.500

47 240349401 A B Channel-shelf mtg,side ,(2)

58 218749600 A B Screw,#10 pan hd ,8-18 x .5

66 240470201 A B Cover-damper

66A 240470301 A B Damper-meat keeper

66B 240355901 A B Insulation-damper

72 240324406 A B Grille/Kickplate, black

81 5308016566 A B Screw, hex wshr hd, 8-15A x 0.625, low profile

82 5304418225 A B Roller,comp base ,rear ,(2)

83 215164200 A B Pin-roller,(2)

89 240326104 A B Cover-access,w/ label

89* 241500301 A B Screw,#8 18 x .500 ,(3)

90 218249805 A B Seal-coil cover

91 240380101 A B Duct-ice maker

92 5303001479 A B Screw-hinge mtg,hex hd ,1/4-20 x 0.875

100 240423701 A B Support-crspr cover,(4)

100* 240350802 A B Support-crspr cover,(4)

150 240368701 A B Guide-control bulb

* 240396801 A B Clamp,tube/wiring ,nylon ,black/natural

* 5303305345 A B Paint,touch-up ,black

CABINET

06/01 8

Publication No. PLRS267ZA

5995354486

SHELVES

# = Fast-moving Parts 9 06/01

* = Non-Illustrated Parts

PLRS267ZA Publication No.

5995354486

A = PLRS267ZA (PLRS267ZAB0)

B = PLRS267ZA (PLRS267ZAB1)

POS. NO PART NO DESCRIPTION

2 240434602 A B Trim-basket

11 240350668 A B Shelf-freezer,glass ,lower

11A 240350667 A B Shelf-freezer,glass ,upper

11C 240324101 A B Shelf-pizza

15A 215812200 A B Light Bulb/Lamp,25W

16A 218906801 A B Socket-light/lamp

24 240355203 A B Shelf-"Spill-Safe",fixed

24B 240350106 A B Shelf-"Spill-Safe",cantilever ,sliding

25 240350701 A B Cover-crisper pan,upper

25* 240362101 A B Clip-slide,cover-crisper

25A 240350901 A B Cover-crisper pan,lower

26 240351005 A B Pan-crisper,upper

26* 240349801 A B Clip-slide,pan-crisper

26A 240362201 A B Control-humidity

27 240351205 A B Pan-crisper,lower

39 240367602 A B Trim-shelf,front

42 240356501 A B Hanger-meat pan,RH

42A 240349701 A B Hanger-meat pan,LH

42A* 240349901 A B Block-meat pan

42A* 240350001 A B Spring-meat pan rail

47 240350602 A B Insert-pan cover,glass

47A 240350603 A B Insert-pan cover,glass

49 240338402 A B Basket-sliding

49A 240338502 A B Basket-sliding,upper ,half

49B 240338504 A B Basket-sliding,upper ,full

51 240343001 A B Hanger-basket,RH

51A 240395501 A B Hanger-basket,RH

52 240343101 A B Hanger-basket,LH

52A 240395601 A B Hanger-basket,LH

54 240351901 A B Plug-hanger,right hand

55 240352001 A B Plug-hanger,left hand

62 240342805 A B Pan-meat

66 5303295947 A B Rack-wine

81 5308016566 A B Screw, hex wshr hd, 8-15A x 0.625, low profile

97 240453003 A B Water Tank Assy,with tubes

100 240326302 A B Cover-water tank

101 218493100 A B Screw,hex washer head ,8-18AB x 1-3/4

101* 215005000 A B Screw, hex wshr hd, 8-18AB x 0.750, gusset/hanger

109 240351301 A B Base-crisper light socket

120 240342902 A B Shelf-ice cream

123 215005100 A B Screw-roller/hanger,8-10 x 0.438

126 218867401 A B Channel,auger mtg ,LH

126 218867402 A B Channel,auger mtg ,RH

SHELVES

06/01 10

Publication No. PLRS267ZA

5995354486

CONTROLS
