Frigidaire FRT18KG3C User manual
PRODUCT NO. BASE MODEL NO. SERIES COLOR VOLTS
FRT18KG3CW2 FRT18KG3C R134a white 115
MARKET
North America
Publication No.
5995398194
031103
-EN/SERVICE /DCS
390
TOP MOUNT
REFRIGERATOR
Model No.
FRT18KG3C
©2003 Electrolux Home Products, Inc.
All rights reserved
FACTORY
PARTS CATALOG
ELECTROLUX HOME PRODUCTS,INC.
P.O. Box 212378, Augusta, GA 30917
ENERGY GUIDE - 240572160
OWNER’S GUIDE - 240400110
SERVICE DATA SHEET - 240379011
11/03 2
Publication No. FRT18KG3CW2
5995398194

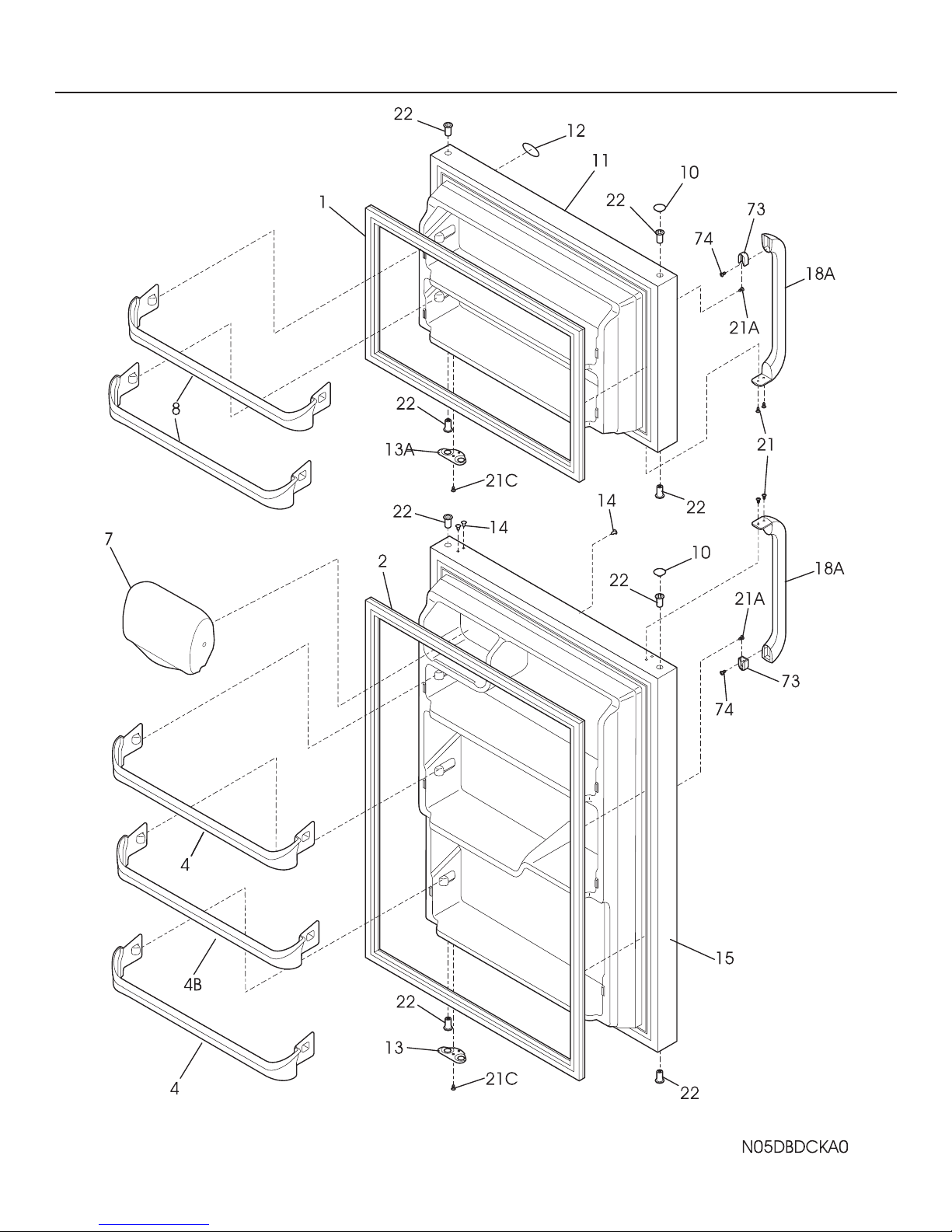

DOOR
# = Fast-moving Parts 3 11/03
* = Non-Illustrated Parts
FRT18KG3CW2 Publication No.
5995398194
POS. NO PART NO DESCRIPTION
1 240542103 Gasket-frzr door,white ,magnetic
2 240542106 Gasket-refr door,white ,magnetic
4 240534901 Rack-door
4B 240534701 Rack-door,4B
7 240337703 Door-dairy,w/o graphics ,clear
8 240534801 Rack-door
10 240381301 Plug-button,white ,hinge brg hole ,(2)
11 240412501 Door,frzr ,white ,complete assy
12 240415201 Label-nameplate,white
13 240312403 Door Stop,white ,ref
13A 240312404 Door Stop,white ,frzr
14 240494001 Plug-button,white
15 240412601 Door,refr ,white ,complete assy
18A 218428101 Handle-door,white ,w/block & screw
21 240383401 Screw,truss hd quad ,#10-16 x .500
21A 240521301 Screw,#10-16 x 1/2
21C 218252200 Screw,#8 truss hd ,10-32CA x 0.500
22 240527101 Bearing-hinge,natural color
73 218396700 Block-handle mtg,dovetail
74 215503200 Screw,cr pan hd ,10-16 x 0.500
DOOR
11/03 4
Publication No. FRT18KG3CW2
5995398194

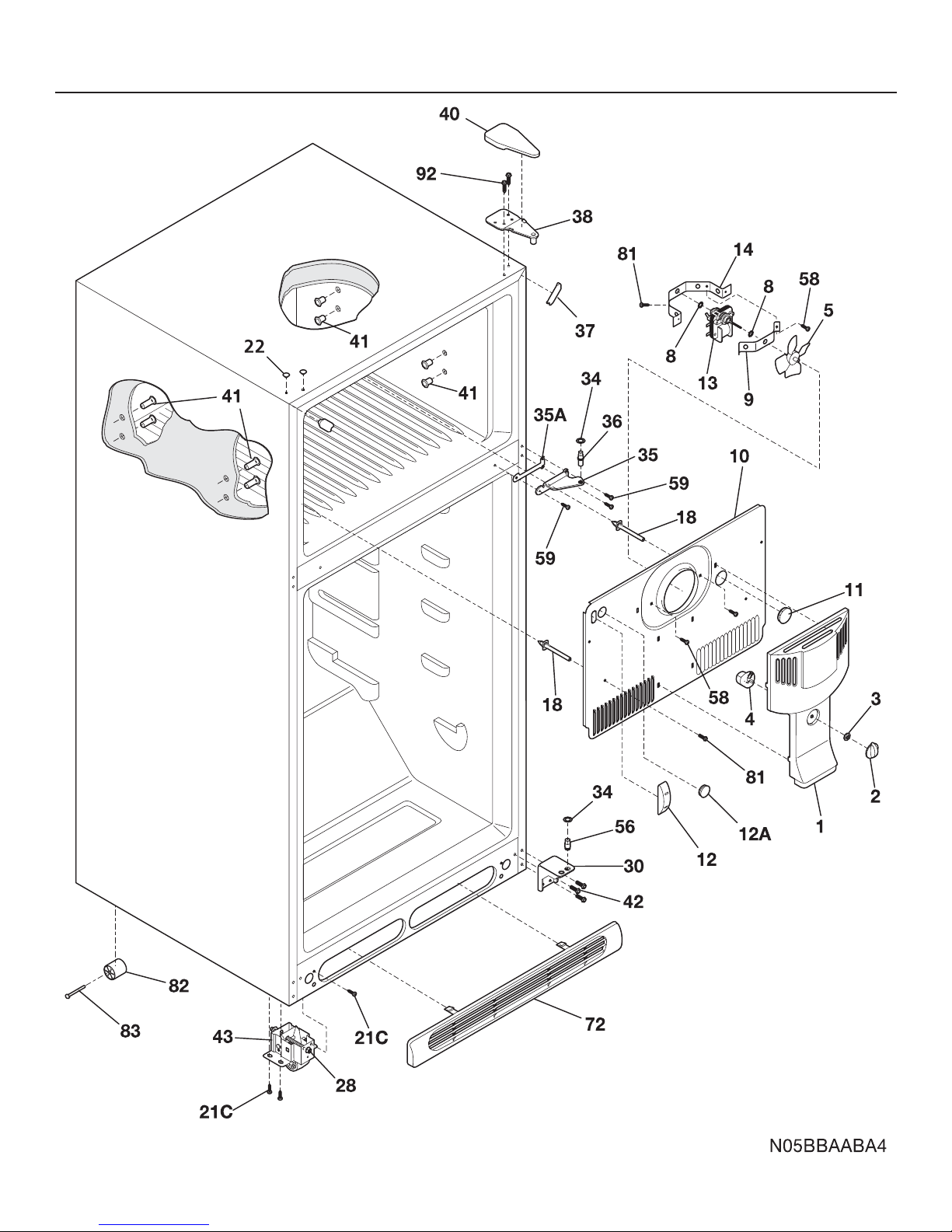

CABINET
# = Fast-moving Parts 5 11/03
* = Non-Illustrated Parts
FRT18KG3CW2 Publication No.
5995398194
POS. NO PART NO DESCRIPTION
1 240355401 Cover-fan
2 240367001 Knob-damper control
3 5303001028 Nut,push-on
4 240367401 Damper-fan cover
5 # 5308000010 Fan Blade,red ,evaporator fan
8 5300157666 Bushing-motor mtg,(2)
9 5303292396 Bracket-motor mtg,front
10 240462010 Cover-evap coil
10* 240568601 Seal-coil cover
10* 241520701 Harness-wiring
11 5303208309 Plug-hole,factory test
12 240366801 Plug-ice maker harness,rectangular
12* 218843800 Screw,hex wshr hd ,8-15A x 0.500
12A 240374401 Plug-wtr inlet tube,round ,1"
13 # 240369701 Motor-evap fan
13* 215474201 Washer,"slinger" ,nylon ,evap fan shaft
13* 218931001 Clamp-motor wiring,nylon ,w/adhesive tape
14 5303292397 Bracket-motor mtg,rear
14* 240433201 Screw,hex washer head ,8-18 x 0.375
18 240411901 Support-evap cover,(2)
21C 218252200 Screw,#8 truss hd ,10-32CA x 0.500
22 215774901 Plug-button,white ,upr hinge holes
28 240335501 Bolt-roller adj,hex washer head ,1/4-20 x 4.020,(2) ,special
30 240314002 Bracket-lower hinge,white
34 240311303 Washer,hinge ,nylon ,(2)
35 240313802 Bracket-ctr hinge,white
35A 240336802 Spacer-hinge,center
36 240516401 Pin-center hinge
37 240337601 Trim-cabinet corner,white ,(2)
38 240313701 Bracket-upper hinge
40 240354401 Cover-upper hinge,white
41 5303001609 Grommet,shelf mtg ,0.69" ,RH
41* 5308009759 Grommet,shelf mtg ,1.25" ,LH
42 240578901 Screw-hinge mtg,hex head ,1/4-20 x 5/8
43 240335003 Roller Assy,front ,(2)
56 240516501 Pin-lower hinge
58 5303001343 Screw,hex washer head ,8-15A x 0.500
59 240442702 Screw-#10-32 X 3/4,white
72 240368205 Grille/Kickplate,white
81 5308016566 Screw,hex washer head ,8-15A x 0.625 ,low profile
82 5304418225 Roller,compressor base ,rear ,(2)
83 5303316859 Rivet,flat head ,1/4 OD x 1-3/4 ,roller pin
92 5303001479 Screw-hinge mtg,hex hd ,1/4-20 x 0.875
* 240479601 Plug,button ,cab liner holes ,(2)
* 5303305324 Paint,touch-up ,white
CABINET
11/03 6
Publication No. FRT18KG3CW2
5995398194

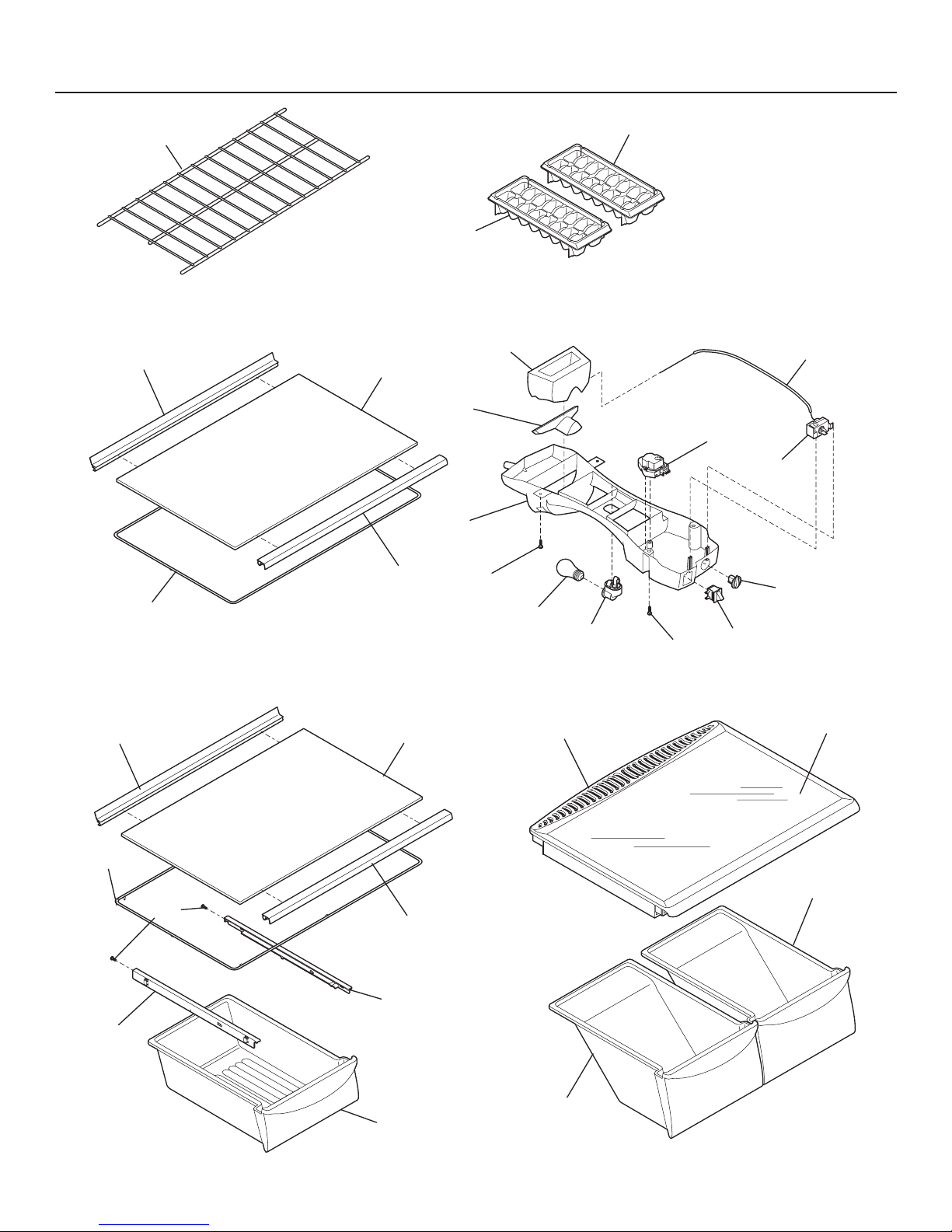

SHELVES
25 47
26
26
N05SAAADF11
23
21
22A
13
12
14
18
17
15
16
81
81
41
29
40
24A
42
31
42
123
41
29
40
24
10
10
11
# = Fast-moving Parts 7 11/03
* = Non-Illustrated Parts
FRT18KG3CW2 Publication No.
5995398194
POS. NO PART NO DESCRIPTION
10 215667501 Tray,ice cube ,plastic
11 240358002 Shelf-freezer,full width
12 240545001 Diffuser,air ,top
13 240362601 Diffuser,air ,bottom
14 # 240505801 Switch,light/lamp
15 240436702 Light Bulb/Lamp,A-15 ,clear ,40 W ,120 V,miniature
16 241500701 Socket-light/lamp
17 240352701 Control Box
17*# 240388701 Wiring Harness,control box
18 240360801 Knob,temp control
21 # 5304421256 Control,temperature
22A 240468201 Tube,sensor sleeve ,31 inch ,plastic ,white
23 # 215846606 Timer,defrost ,60 Hz ,0.25 W ,120 V ,10 hour/30 min
23* 5303001259 Screw-timer mtg,pan hd ,6-20 x 0.438 ,(2)
24 240372409 Frame,sliding shelf ,full width
24A 240372410 Frame,sliding shelf ,full width ,w/hanger tabs
25 240364701 Cover-crisper pan,w/ beam ,less insert
26 240337103 Pan-crisper,clear ,(2) ,no graphics
29 240357704 Trim-shelf,front
31 240530803 Pan-meat,w/o graphics ,clear
40 240350620 Glass-shelf,23.78" x 16.34"
41 240561502 Trim-shelf,rear
42 240530601 Track,meat pan hanger ,LH
42* 240530701 Track,meat pan hanger ,RH
47 240350608 Insert-pan cover,23.82" x 15.50" ,glass
81 5308016566 Screw,hex washer head ,8-15A x 0.625 ,low profile
123 215005100 Screw,hanger/rlr mtg ,8-10 x 0.438
* 240572160 Label-energy
SHELVES
11/03 8
Publication No. FRT18KG3CW2
5995398194

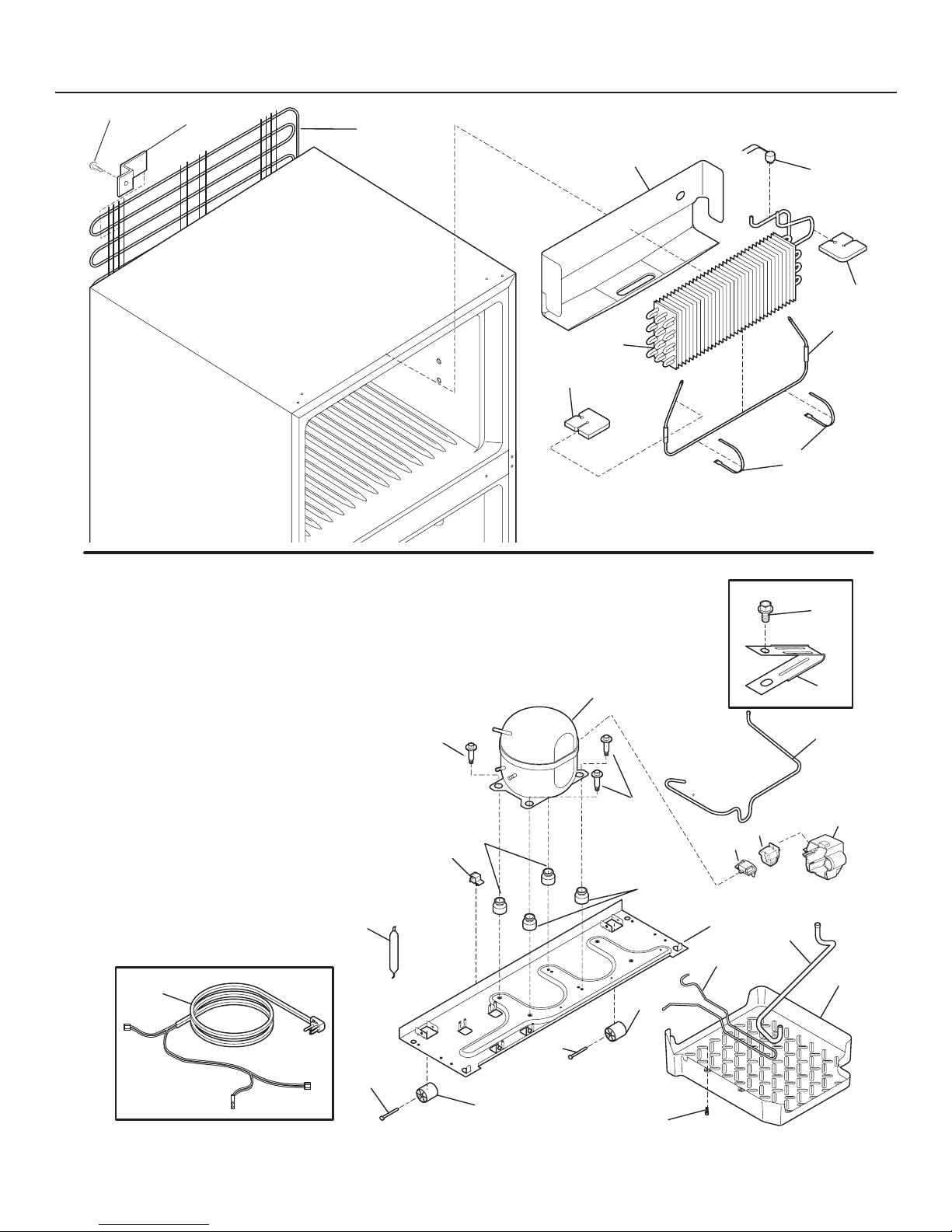

SYSTEM
20
20
17
45
1
2
21
15
14
16
83
83
44
41
82
82
87
N05CBBBAB0
22
23
23
85
4
6
29
57
25
25
26
84
45
30 56
31
# = Fast-moving Parts 9 11/03
* = Non-Illustrated Parts
FRT18KG3CW2 Publication No.
5995398194
POS. NO PART NO DESCRIPTION
1 # 240406406 Condenser,static
1* 240405201 Grommet,rubber ,black ,cond tube/wire
1* 5303208866 Spacer,condenser tube ,black
2 5308000296 Bracket,condenser mtg ,(4)
4 # 218944001 Drier-filter,R134a System
6 # 240581601 Harness-wiring,machine compt
6* 241520701 Harness-wiring
6* # 240388701 Wiring Harness,control box
6* # 240581801 Harness-wiring,compressor
14 # 5303918208 Defrost Heater Kit
15 # 5303918274 Evaporator Kit
16 5308000110 Strap-evap/heater,aluminum ,(2)
17 240434004 Trough-drain
20 240518402 Insulation,evap block ,foam ,LH/RH
21 # 5303918202 Thermostat-defrost,kit
22 240330001 Plate-compr mtg
22* 218252200 Screw,#8 truss hd ,10-32CA x 0.500
23 218513300 Grommet-compr mtg,(4)
25 240491501 Screw-compressor mtg,1/4-28 x 1.16 ,shoulder,typ CF
26 240332605 Pan-defrost drain
29 # 5303918297 Compressor,w/electricals
30 # 5304433579 Relay
31 # 5304433578 Overload Protector
41 240433202 Screw,hex washer head ,8-18 x 5/16
44 5303001199 Clamp-wiring harness,strain relief ,galv steel
45 5308016566 Screw,hex washer head ,8-15A x 0.625 ,low profile
56 240582001 Cover-terminal
57 240542601 Clip-wiring harness
82 5304418225 Roller,compressor base ,rear ,(2)
83 5303316859 Rivet,flat head ,1/4 OD x 1-3/4 ,roller pin
84 240500801 Tube-drain,rubber ,lower
85 241504201 Tube-connector,suction
87 240533004 Tube-Condensate,87
* 5303918263 Heat Exchanger Kit,suction line
* # 5303918234 Hot Tube Repair Kit,Service
SYSTEM
11/03 10
Publication No. FRT18KG3CW2
5995398194
WIRING SCHEMATIC
