Frigidaire PLRU1778ES User manual

P08F0080.eps P08D0457.eps P08C1068.eps P08S0461.eps

Product No. PLRU1778ES1

Series Twins

Color S/S-Black

Volts 115

Wiring Diagram 297005300

Owner's Guide 297081600

Market North America

Energy Guide 216697904

P.O. BOX 212378

AUGUSTA, GA 30917

Publication No.

5995505202

08/01/11

(EN/SERVICE/MLR)

365

REFRIGERATOR

Model No.

PLRU1778ES

Publication No: 5995505202 PLRU1778ES1

01/08 2

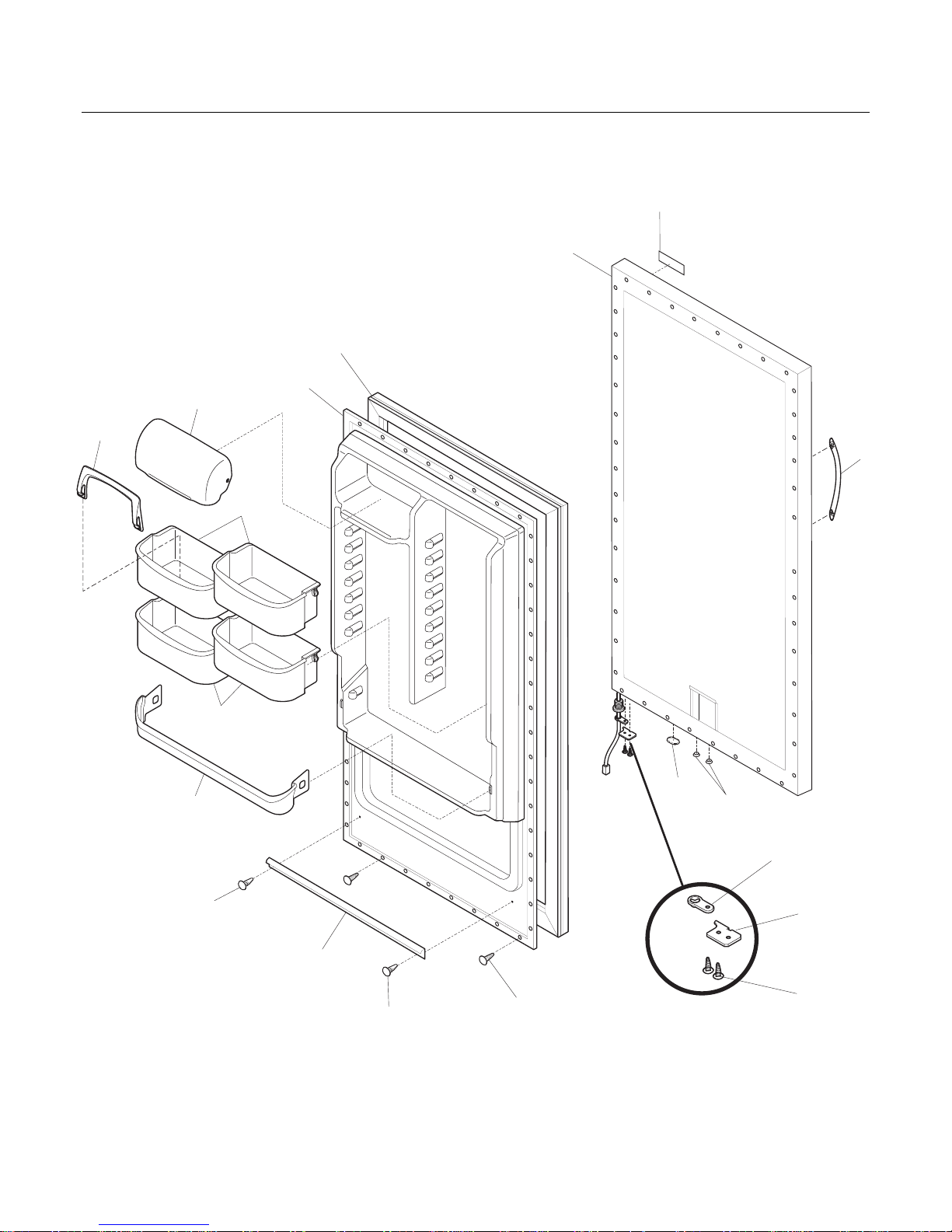

DOOR

21A

48B

P08D0457

27A

PLRU1778ES1 Publication No: 5995505202

# Functional Parts 3 01/08

* Non-Illustrated Parts

DOOR

POS. NO PART NO. DESCRIPTION

1 216522311 Gasket-door, black

7 240338313 Door, dairy, clear

9 216953600 Panel-inner door, refr

11 216526560 Panel-outer door, stainless

12 240558802 Label-nameplate

13 5303271076 Door Stop

18 240536818 Handle-door, stainless steel, with insert, & set screw

* 218755504 Screw-shoulder, #10 AB, handle mounting

* 240537301 Nut-anchor, door hdl screw

* 218755402 Screw-set, 10-32 x 0.375

21A 5304460608 Screw, flat head, #1/4-20, door stop/hng

26 216524200 Gasket, secondary

27 5303212828 Clip, panel mtg

27* 5304406520 Clip, panel mtg kit, (40)

27A 240396102 Retainer, tall bottle

32 5309950074 Valve, breather

48B 240338001 Bin-door, pseudo, gallon, refr

49 216959802 Bin-door, 2-liter, (4)

59 216974500 Bearing, door closer

64 216403700 Plug-button, hole filler, door base

93 5304460605 Screw, ph truss head, 8-18AB x 0.500

Publication No: 5995505202 PLRU1778ES1

01/08 4

CABINET

PLRU1778ES1 Publication No: 5995505202

# Functional Parts 5 01/08

* Non-Illustrated Parts

CABINET

POS. NO PART NO. DESCRIPTION

3 216503100 Screen-drain

5 # 216325600 Fan Blade

6 297200600 Breaker Kit w/corners, no lock slot

9 297200100 Breaker Kit w/corners, 32", top and bottom

13 # 216934100 Motor, fan, 115 V

14 216998100 Switch, light/lamp, black, ramp

15 216988100 Light Bulb/Lamp, long, blue tint, 40 W, 120V

15A 297048600 Light Bulb/Lamp, short

16 241507803 Socket-light

16* 297109500 Washer, vinyl

16A 216817600 Socket, light/lamp, 25 W

18 216707200 Knob, temp control

19 216204902 Gasket-evap cover

20 216967200 Cover, temp control

21 # 216715500 Control temperature

22 216823500 Clamp, cap tube, cold control

22A 297058500 Tube, 10", plastic

24 5304460604 Screw, type A, 10-24 x 3/8

25 297099203 Cover-evaporator

26 216959900 Pan-crisper, (2)

28 297179300 Hinge, bottom/RH

29 216313501 Hose-drain

31A 240530811 Pan-meat, w/o graphics, clear

32 5308005500 Drain

34 216979500 Shield-light

34A 297053100 Shield-light

34B 297053200 Lens, light

35 216273000 Clip, drain hose

37 241611303 Trim-cabinet corner, black, (2)

38 297164300 Hinge-upper

40 297164401 Cover-upper hinge, black

41 240578902 Screw-hinge mtg, hex head, 1/4-20 x 5/8

42 216983101 Glass-shelf, full shelf

47 216661601 Baffle-plate

47A 240350650 Insert-pan cover, glass

50 216394050 Bracket, fan motor mount

63 216396900 Screw, leveling foot, plastic, adjustable

66 5303295947 Rack-wine

71A 297146800 Screw, 8-18AB x 0.470, EVAP PANEL

72 297036901 Grille/Kickplate, 32", black

80 06594601 Bracket, control

93 5304460605 Screw, ph truss head, 8-18AB x 0.500

93A 216629601 Screw, hex washer head, 10-16 x 0.500, tapping

93B 216036601 Screw, RWHD, 8-32A x 0.500, GX-CA

131 241513001 Channel-shelf mtg, side, (2)

132 5304460601 Screw, 6-20AB x 3/8

137 297050600 Frame-shelf, cantilever

137A 297050601 Frame-shelf, cantilever

138 297050700 Trim-shelf, front

138A 216983601 Trim-shelf, side

138B 297050701 Trim-shelf, front

Publication No: 5995505202 PLRU1778ES1

01/08 6

CABINET

PLRU1778ES1 Publication No: 5995505202

# Functional Parts 7 01/08

* Non-Illustrated Parts

CABINET

POS. NO PART NO. DESCRIPTION

139 297050800 Trim-shelf, rear

139A 297050801 Trim-shelf, rear

148 216979401 Cover-crisper pan, w/dampers&knobs

149 240361301 Damper, humidity cont.

150 240361202 Knob, humidity cont.

151 216988200 Support-crspr cover, RH

151 216988201 Support-crspr cover, LH

152 216974600 Bearing, hinge closer

154 297053000 Wire, jumper

155 5303313703 Clip, (2)

169 216912401 Screw, hex washer head, 8-32 x 0.500, bracket fan mtr, (2)

* 216697904 Energy Guide

* 297001704 Insulation, 24", drain tube

Publication No: 5995505202 PLRU1778ES1

01/08 8

SYSTEM

PLRU1778ES1 Publication No: 5995505202

# Functional Parts 9 01/08

* Non-Illustrated Parts

SYSTEM

POS. NO PART NO. DESCRIPTION

1 # 297152200 Condenser, dynamic

2 5308000110 Strap-evap/heater, aluminum, (2)

4 # 216938600 Drier-filter

5 # 297171800 Harness-main

* 297048400 Clip

14 216730700 Heater-defrost

15 # 216997300 Evaporator

15A 216751100 Heat Exchanger

18 297078700 Insulator-evap, styrofoam

19 297078800 Insulator-evap, styrofoam

20 216731001 Thermostat, defrost

23 # 216744500 Timer-defrost

24 216968501 Bracket-timer

24A 297207900 Guard, timer

27 5308002681 Grommet, compressor

29 # 216966300 Compressor, w/o electricals

30 216954200 Controller, compressor, 5 speed

31 297165800 Pan-drain

32 216954300 Clip, controller

34 5306594529 Sleeve-compressor

35 5304460607 Screw, Ind hex sems, 1/4-28 unfx, compressor

55 216985000 Capacitor, run, 10MF

60 241584301 Motor-condenser fan

61 241639501 Blade-condenser fan

86 216036601 Screw, RWHD, 8-32A x 0.500, GX-CA

87 5304463290 Screw, hi-lo blunt, #8-18X1/2, timer bracket

107 297165400 Shield, compressor, Compartment

* 5304460605 Screw, ph truss head, 8-18AB x 0.500

130 216486800 Support, evaporator mtg

136 240405201 Grommet, rubber, black, cond tube/wire

141 297164200 Divider, air flow

141A 297194700 Divider, small, air flow

146 297164000 Shroud-fan orfice

* 216502500 Sleeve, suction line

* # 297169901 Cord-power, flat
