Frigidaire FKC17F7QT? Installation and operation manual
frigidaire.com
More Easy-To-Use Features
Signature Features
Product Dimensions
Frost Free 17 Cu. Ft.
FKC17F7QT
2-in-1 Convertible Freezer / Refrigerator
Bright Lighting
Our bright lighting makes it easy to see
what’s inside.
Frost-Free Operation
Never defrost your freezer again.
Built with American Pride
Appliances that are high-performing,
more accessible, and more innovative
than ever — designed, built, and
engineered in the U.S.A.
Convertible Freezer to
Refrigerator
Select the option to use as an all freezer
or all refrigerator when it’s best for
your needs.
Store-More™ Adjustable Door Bins
Flexible storage options, with door bins
designed to reposition with ease to fit
your needs.
Adjustable Temperature Control
Select the correct temperature for your
needs.
Color-Coordinated Handle
Reversible Door Swing Option
2 Clear Crispers w/ Humidity
Controls
3 Full-Width Glass Shelves
Gallon Door Storage
Clear Dairy Door
Available in:
Height (Including Hinges) 65-7/8"
Width 32"
Depth (Including Door) 26-5/8"
Classic Slate
(T)
Specifications
subject to change.
Accessories information available
on the web at frigidaire.com
USA
•
10200 David Taylor Drive
•
Charlotte, NC 28262
•
1-800-FRIGIDAIRE
•
frigidaire.com
CANADA
•
5855 Terry Fox Way
•
Mississauga, ON L5V 3E4
•
1-800-265-8352
•
frigidaire.ca
FKC17F7Q 01/14 © 2014 Electrolux Home Products, Inc.
Convertible Freezer / Refrigerator
FKC17F7QT 17 Cu. Ft.
Features
Door Handle Design
Reversible Door
Automatic Door Closer
Leveling Legs
Defrost
Adjustable Temperature Control
Interior Lighting
Full-Width Adjustable Shelves
Full-Width Fixed Shelves
Crisper Drawer
Humidity Controls
Store-More™ Adjustable Door Bins
Full-Width Door Bins
Convertible
Certifications
CSA Rating
Specifications
Total Capacity (Cu. Ft.)
Shelf Area (Sq. Ft.)
Annual Energy (kWH)
Annual Energy Cost (.1065 / kWH)
Power Supply Connection Location
Voltage Rating
Connected Load (kW rating) @ 120 Volts1
Amps @ 120 Volts
Minimum Circuit Required (Amps)
Shipping Weight (Approx.)
Reach-Through
Yes
Yes
Yes
Frost Free
Yes
Bright
2 Glass
1 Glass
2 Clear
2
4 Clear
1 White
Yes
Household
16.7
17.6
615
$65
Lower Right Rear
120V / 60Hz / 15A
.6
5
15
205 Lbs.
1An electrical supply with grounded three-prong receptacle is required. The
power supply circuit must be installed in accordance with current edition
of National Electrical Code (NFPA 70) and local codes & ordinances.
NOTE: For planning purposes only. Always consult local and national
electric and plumbing codes. Refer to Product Installation Guide for
detailed installation instructions on the web at frigidaire.com.

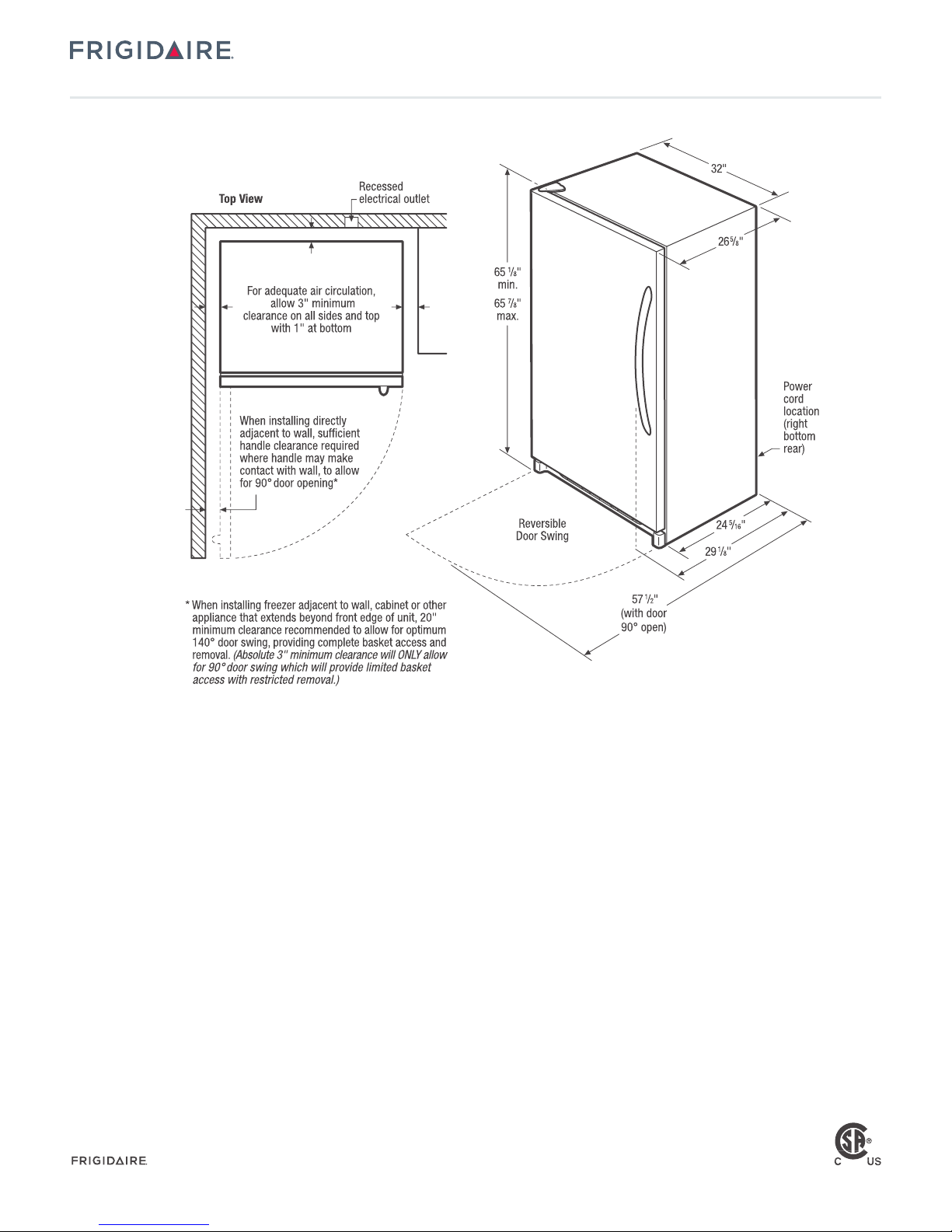

Product Dimensions
A - Height (Including Hinges)
B - Width
C - Depth (Including Door)
D - Depth with Door Open 90˚
65-7/8"
32"
26-5/8"
57-1/2"
Upright Freezers_w/reach-through arc
handle_Right Hand Swing_Frigidaire Baseline
C
A
B
* When installing freezer adjacent
to wall, cabinet or other appliance
that extends beyond front edge of
unit, 20" minimum clearance
recommended to allow for
optimum 140°door swing,
providing complete basket access
and removal. (Absolute 3"
minimum clearance will ONLY
allow for 90°
door swing which
will provide limited basket access
with restricted removal.)
When installing directly
adjacent to wall, sufficient
handle clearance required
where handle may make
contact with wall, to allow
for 90°door opening*
For adequate air circulation,
allow 3" minimum
clearance on all sides and top
with 1" at bottom
Top View
Recessed
electrical outlet
Specifications
subject to change.
USA
•
10200 David Taylor Drive
•
Charlotte, NC 28262
•
1-800-FRIGIDAIRE
•
frigidaire.com
CANADA
•
5855 Terry Fox Way
•
Mississauga, ON L5V 3E4
•
1-800-265-8352
•
frigidaire.ca
FKC17F7Q 01/14 © 2014 Electrolux Home Products, Inc.
FKC17F7QT 17 Cu. Ft.
Convertible Freezer / Refrigerator
Convertible Freezer / Refrigerator Specifications
• Product Shipping Weight (approx.) – 205 Lbs.
• An electrical supply with grounded three-prong receptacle is
required. The power supply circuit must be installed in accordance
with current edition of National Electrical Code (NFPA 70) and
local codes & ordinances.
• Voltage Rating – 120V
• Connected Load (kW Rating) @ 120 Volts = 0.6 kW
• Amps @ 120 Volts = 5 Amps
• Always consult local and national electric codes.
• For adequate air circulation, allow 3" minimum clearance on all
sides and top with 1" at bottom.
• When installing freezer adjacent to wall, cabinet or other
appliance that extends beyond front edge of unit, 20" minimum
clearance recommended to allow for optimum 140° door swing,
providing complete basket access and removal. (Absolute 3"
minimum clearance will ONLY allow for 90° door swing which
will provide limited basket access with restricted removal.)
• Locate where surrounding air temperature will not exceed 110° F,
to ensure optimum performance. (Temperatures 32° F and below
will NOT affect operation.)
• All bottom corners of unit MUST rest firmly on solid level surface
of hard material, same height as flooring. Surface must be strong
and stable enough to support unit when fully loaded.
• Equipped with adjustable leveling legs to ensure unit is level,
which is required in order to function properly.
Note: For planning purposes only. Refer to Product Installation Guide
on the web at frigidaire.com for detailed instructions.
17 Cu. Ft. Convertible Freezer/Refrigerator_
Reversible Door Swing_Baseline
