Frigidaire GLHS36EES User manual

Product No. GLHS36EESB7

Series R134a

Color stain/blk

Volts 115

Wiring Diagram 241660401

Owner's Guide 241660600

Market North America

Energy Guide 241607568

Service Data Sheet 240389624

N58L00001.eps N58FCCBBC3.eps N58RCCBBB9.eps N58BAAAAB3.eps

N58SKBBBB1.eps N58TCAAAB0.eps N58CAAAAA8.eps N58XBAAAB0.eps

N58YAAAAA0.eps N58I115.eps W241660401.eps S241660401.eps

Electrolux Major Appliances

North & Latin America

P.O. BOX 212378

AUGUSTA, GA 30917

Publication No.

5995450797

05/10/06

(EN/SERVICE/WC)

357

SIDE-BY-SIDE

REFRIGERATOR

Model No.

GLHS36EES

Publication No: 5995450797 GLHS36EESB7

10/05 2

FREEZER DOOR

GLHS36EESB7 Publication No: 5995450797

# Functional Parts 3 10/05

* Non-Illustrated Parts

FREEZER DOOR

POS. NO PART NO. DESCRIPTION

1 # 241569808 Gasket-frzr door, black, magnetic

4A 240367301 Bin-door, frzr-upper

4B 240359001 Bin-door

11 241668186 Door-frzr, stainless, complete assy

13A 240581906 Door Stop, black, frzr

18 240359108 Handle-door, black, LH

21 218781100 Screw, pan head, 8-18 x 0.625

21A 240598401 Screw, 10-32 x 1/2

21C 240521302 Screw, #8-18 x 3/4

22A 240328204 Bearing-hinge(frz), black, closer

22C 240328404 Bearing-hinge, black, upper

37 240359203 Trim-handle, 30.13", black, lower

68 241525101 Chute-ice

72 240421701 Button-handle mtg, dovetail

73 218396700 Block-handle mtg, dovetail

74 215503200 Screw, cr pan hd, 10-16 x 0.500

* 218490901 Cleaner, stainless steel

* 240352102 Connector-water, straight

* 240552102 Harness-wiring, door

* 5303918256 Dispenser heater kit

Publication No: 5995450797 GLHS36EESB7

10/05 4

REFRIGERATOR DOOR

GLHS36EESB7 Publication No: 5995450797

# Functional Parts 5 10/05

* Non-Illustrated Parts

REFRIGERATOR DOOR

POS. NO PART NO. DESCRIPTION

2 # 241569807 Gasket, refr door seal, black, magnetic

4 240363702 Bin-door, 2-liter

7 240338303 Door, dairy, clear

12 240449710 Nameplate

13 240581905 Door Stop, black, ref

15 241534529 Door-refr, stainless, complete assy

18 240359103 Handle-door, black, RH

21 218781100 Screw, pan head, 8-18 x 0.625

21A 240598401 Screw, 10-32 x 1/2

21A 5308016566 Screw, hex washer head, 8-15A x 0.625, low profile

21C 240521302 Screw, #8-18 x 3/4

22 240328201 Bearing-hinge(ref), closer

22 240328203 Bearing-hinge, black, closer

22B 240328403 Bearing-hinge, black, upper

22B 240328404 Bearing-hinge, black, upper

37 240359203 Trim-handle, 30.13", black, lower

49 240430303 Bin-door, gallon

72 240421701 Button-handle mtg, dovetail

73 218396700 Block-handle mtg, dovetail

74 215503200 Screw, cr pan hd, 10-16 x 0.500

* 218490901 Cleaner, stainless steel

Publication No: 5995450797 GLHS36EESB7

10/05 6

CABINET

40 66

14A

100

21C

30A

10A

N58BAAAAB3

GLHS36EESB7 Publication No: 5995450797

# Functional Parts 7 10/05

* Non-Illustrated Parts

CABINET

POS. NO PART NO. DESCRIPTION

10 240435905 Cover-air duct

10A 240475906 Cover-evap coil, lower

11 5303208309 Plug-hole, factory test

14 # 240505801 Switch, light/lamp

14A# 241547901 Switch-light/lamp, frzr door

21C 218252200 Screw, #8 truss hd, 10-32CA x 0.500

22 240457702 Plate-door closer

23 240402701 Screw-#10-32 x 1/4 flat hd

28 240335501 Bolt-roller adj, hex washer head, 1/4-20 x 4.020, (2), special

30 241603701 Bracket-lower hinge, ref

30A 241603702 Bracket-lower hinge

37 240337603 Trim-cabinet corner, black, (2)

38 240327201 Bracket-upper hinge

40 240327007 Cover-upper hinge, black

41 241550801 Grommet-shelf mtg, 1.40" long

41* 241550701 Grommet-shelf mtg, .96" long

42 240578901 Screw-hinge mtg, hex head, 1/4-20 x 5/8

43 240335003 Roller Assy, adjustable, front, (2)

45 241500301 Screw, hex washer head, 8-18AB x 0.500

47 240349402 Channel-shelf mtg, side, (2)

58 218781100 Screw, pan head, 8-18 x 0.625

66 5304424968 Damper Cover Assy

66* 240518802 Pin-push, push-in, plastic

72 240324405 Grille/Kickplate, black

81 5308016566 Screw, hex washer head, 8-15A x 0.625, low profile

82 5304418225 Roller, compressor base, rear, (2)

83 5303316859 Rivet, flat head, 1/4 OD x 1-3/4, roller pin

89 241574601 Cover access

90 218249807 Seal-coil cover

91 240380101 Duct-ice maker

92 216850900 Screw, hex washer hd, 1/4 x 7/8, hinge mtg

100 240423701 Support, crisper cover, front, (4)

100* 240350802 Support, crisper cover, rear, (4)

* 240396801 Clamp, tube/wiring, nylon, black/natural

* 240479601 Plug, button, cab liner holes, (2)

* 240481601 Shim-lower hinge

* 5303305345 Paint, touch-up, black

Publication No: 5995450797 GLHS36EESB7

10/05 8

SHELVES

24A

126

52 109

49B

101

N58SKBBBB1

100

25A

47A

15A

16A

26A

42A

123

24A

140

120

11A

39A

GLHS36EESB7 Publication No: 5995450797

# Functional Parts 9 10/05

* Non-Illustrated Parts

SHELVES

POS. NO PART NO. DESCRIPTION

2 241510603 Trim-basket

11 240338801 Shelf-freezer, flip-up

11 241657601 Shelf, flip up, wire

11A 240338703 Shelf-freezer, fixed wire

11A 241657503 Shelf, fixed upper, freezer

15A 241555401 Light Bulb

16A 241513901 Socket-light

16A* 241537602 Harness-wiring

24 240355201 Shelf-"Spill-Safe", fixed, (1)

24A 240355204 Shelf-"Spill-Safe", fixed, (3)

25 240354502 Cover-crisper pan, upper

25* 240362101 Clip-slide, cover-crisper

25A 240354602 Cover-crisper pan, lower

26 240354705 Pan-crisper, upper

26* 240349801 Clip-slide, pan-crisper

26A 240351101 Control-humidity

27 240354805 Pan-crisper, lower

39 240430705 Trim-shelf, front

39A 240430701 Trim-shelf, front

42 240356501 Track, meat pan hanger, RH

42A 240349701 Hanger-meat pan, LH

42A* 240349901 Block-meat pan rail, LH

42A* 240350001 Spring-meat pan rail

47 240350613 Insert-pan cover, glass

47A 240350614 Insert-pan cover, glass

49 240564301 Basket-sliding

49B 240530503 Basket-sliding, upper, full

51 240343002 Hanger-basket, RH

52 240343102 Hanger-basket, LH

62 240355505 Pan-meat

81 5308016566 Screw, hex washer head, 8-15A x 0.625, low profile

97 240545303 Water Tank Assy, coiled tubing, front filter

100 240326301 Cover-water tank

101 218493100 Screw, hex washer head, 8-18AB x 1-3/4

109 240351301 Base-crisper light socket

120 240342901 Shelf-ice cream

123 215005100 Screw, hanger/rlr mtg, 8-10 x 0.438

126 241630701 Channel, auger mtg, LH

126 241630702 Channel, auger mtg, RH

140 240430501 Channel, wtr tube cover

Publication No: 5995450797 GLHS36EESB7

10/05 10

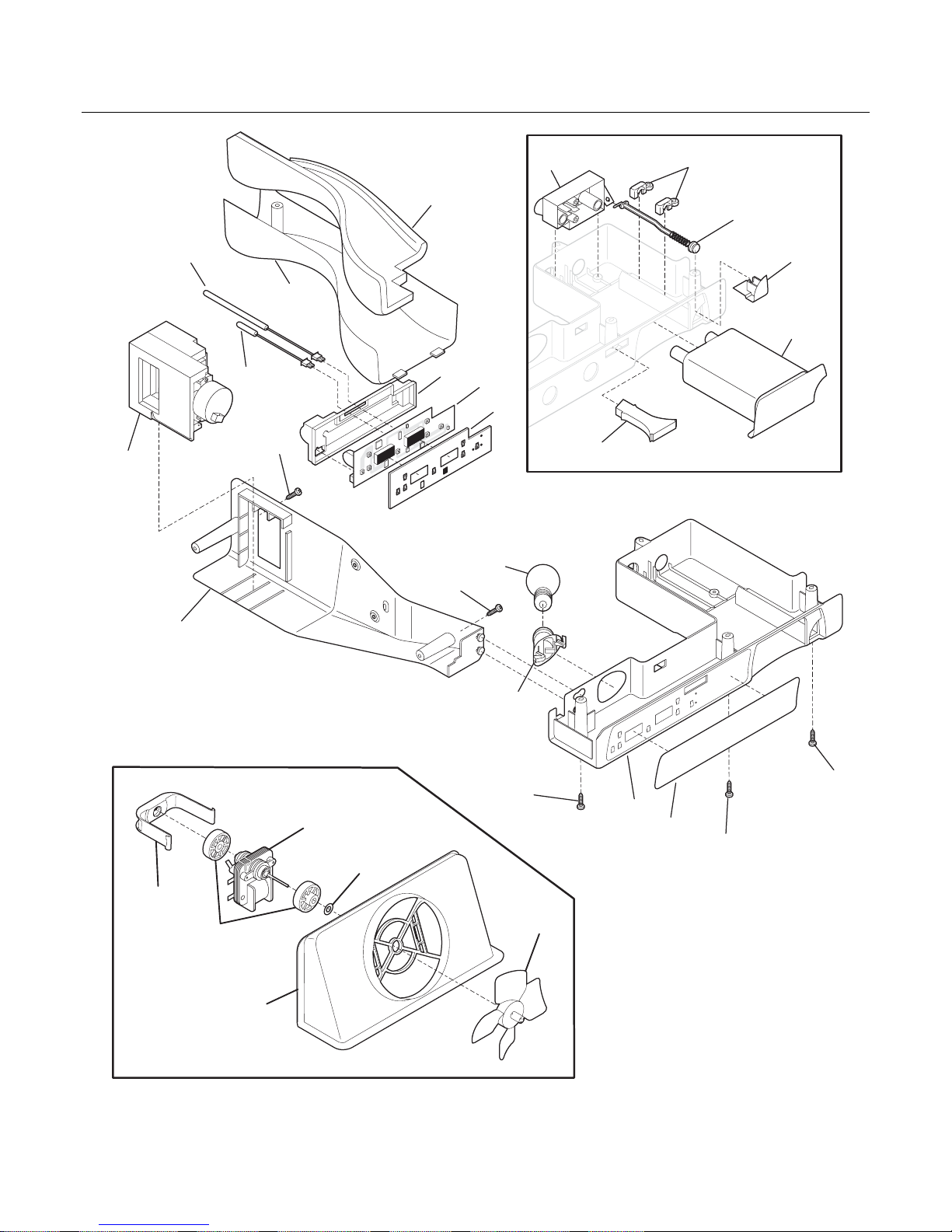

CONTROLS

149

139

138

198

199

137

200

151

150

21A 23

115

101

N58TCAAAB0
