Frigidaire FGB24L2E C User manual

FGB24L2EC.eps LA9822G019A.eps P22b0008.eps BFGB24L2EC.eps

DFGB24L2ECB.eps 318046309.eps

Product No. FGB24L2ECB

37454413C50S2

Series 24" single

Color stainless

Market North America

Wiring Diagram 318046309

Owner's Guide 318200956

Installation Instructions 318201554

Service Data Sheet 318047420

Timer Guide 318200144

Electrolux Major Appliances

North & Latin America

P.O. BOX 212378

AUGUSTA, GA 30917

Publication No.

5995475133

06/09/27

(EN/SERVICE/BJH)

377

SINGLE 24” GAS WALL

OVEN

Model No.

FGB24L2E

Publication No: 5995475133 FGB24L2ECB

09/06 2

CONTROL PANEL

FGB24L2ECB Publication No: 5995475133

# Functional Parts 3 09/06

* Non-Illustrated Parts

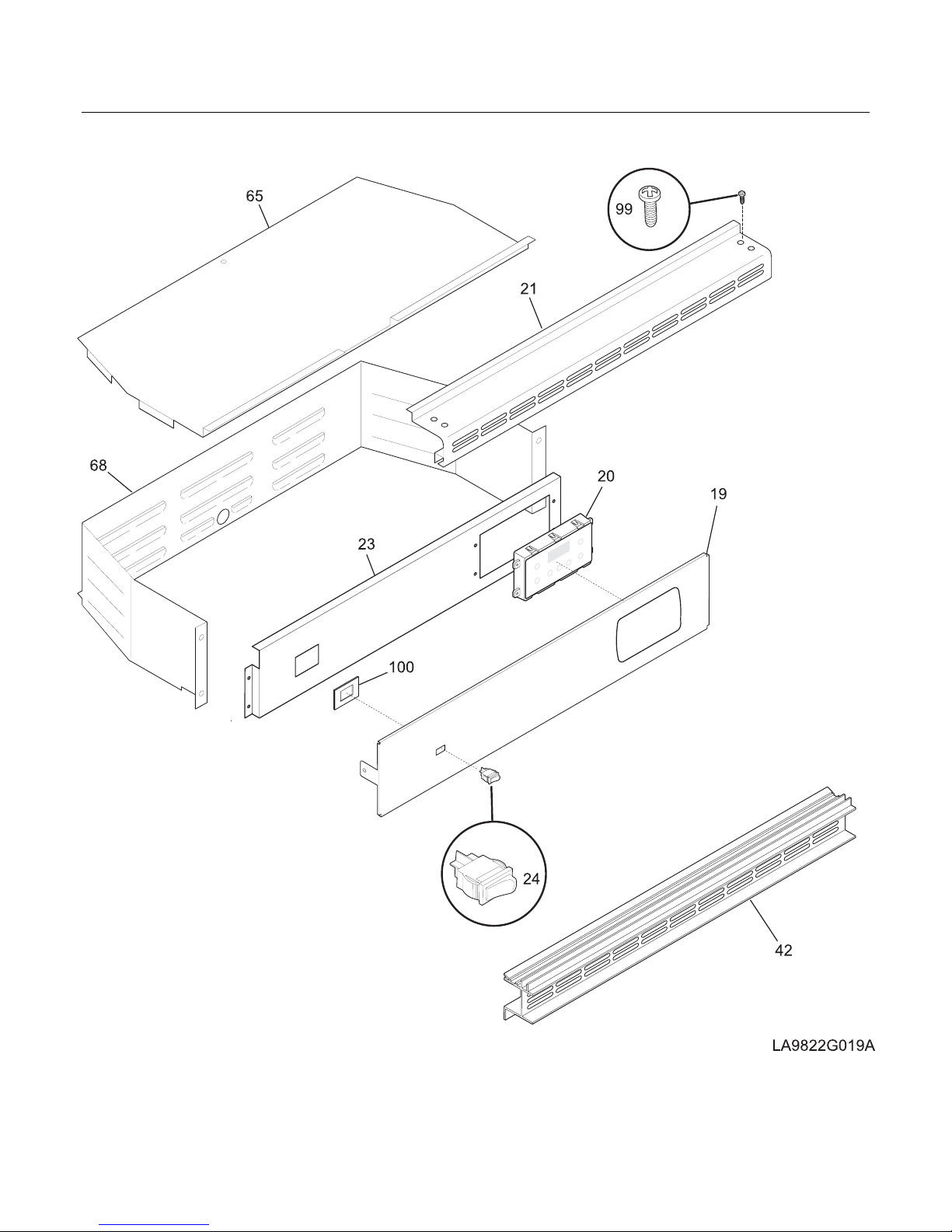

CONTROL PANEL

POS. NO PART NO. DESCRIPTION

19 318234106 Panel, control, black

20 # 318185337 Clock/Timer, EOC, black, ES100

20* 318214401 Overlay, clock, black

21 318176500 Trim, top, black

23 318015037 Bracket, clock/timer mtg

24 # 316005602 Switch, rocker, black

42 318027101 Trim, center vent, black

65 318038804 Cover, control housing

68 5303302397 Housing, control

99 5303307406 Screw, 6-32 x 3/8, black, (2)

100 318112200 Plate, mounting, rocker switch

* 5303211311 Screw, 8 x 0.500

* 5303308458 Screw, 10-24, (4)

Publication No: 5995475133 FGB24L2ECB

09/06 4

BURNER

FGB24L2ECB Publication No: 5995475133

# Functional Parts 5 09/06

* Non-Illustrated Parts

BURNER

POS. NO PART NO. DESCRIPTION

14 # 5303210167 Regulator, pressure

14* 5303311306 Screw, 8-18 x 0.375, (8)

17 # 3203702 Valve, safety

18 # 5303210787 Burner, oven

19 # 318177710 Ignitor, oven burner

* 5303300195 Screw, 10-32 x 0.375, terminal block, (2)

20 3203676 Baffle, oven burner

21 3201885 Nut, Keps, 10-24

28 # 5303295305 Valve, shut off

49 5303308469 Bracket, safety valve

* 08002868 Screw, 10-24 x 0.500, probe, thrm brkt, shield, drwr, box

Publication No: 5995475133 FGB24L2ECB

09/06 6

BODY

FGB24L2ECB Publication No: 5995475133

# Functional Parts 7 09/06

* Non-Illustrated Parts

BODY

POS. NO PART NO. DESCRIPTION

2 318101903 Wrapper, top

2A 5303305035 Shield, insulation

4 318161500 Box, oven burner

6 318345203 Rack, oven, (2)

8 318121400 Panel, oven bottom

14 318224000 Receptacle, oven light

15 5303013071 Bulb/Lamp, light

25 318179000 Shield, insulation, base

36 318176001 Flue

37 # 316217002 Probe, oven temp

39 318144007 Cord, service

41 5303310526 Cover, hinge cutout

54 318222400 Housing, oven light

57 318071130 Shield, rear wall

58 318285032 Insulation, oven bottom

58B 318285003 Insulation, oven back

58C 318285015 Insulation, top & sides, oven wrapper

76 318056122 Front-oven

80 318192400 Spring, oven

81 5303323710 Bracket, oven

83 318089403 Liner, oven assy

86 5303310524 Receptacle, hinge

87 5303308475 Bracket, safety valve

97 318066804 Wrapper, back & sides

98 318176812 Trim, side, black, inner, RH

98A 318176813 Trim, side, black, inner, LH

99 318284201 Panel, adjustable, side, (2)

101 5303308474 Shield, vent

102 3203688 Support, oven front

103 5303316735 Trim, base, black, lower

104 318170200 Flue

121 318145005 Wrapper, base

132 3201437 Strain relief

227 5303323958 Retainer, oven bottom

232 318147412 Bumper, base

233 318166800 Plug, button, black

* 318232517 Wiring Harness, main

* 08002868 Screw, 10-24 x 0.500, probe, thrm brkt, shield, drwr, box

* 08011955 Screw, 10-24 x 0.375, square drive

* 08016432 Screw, truss head, 8-18 x 0.375

* 5303211311 Screw, 8 x 0.500

* 5303323136 Screw ground

* 5303323277 Screw, 8-18 X 13/32

* 5303325980 Screw, 10-32 x 0.437

Publication No: 5995475133 FGB24L2ECB

09/06 8

DOOR/DRAWER

FGB24L2ECB Publication No: 5995475133

# Functional Parts 9 09/06

* Non-Illustrated Parts

DOOR/DRAWER

POS. NO PART NO. DESCRIPTION

3 318051521 Glass, oven door, black, outer

4 318280007 Panel, exterior door, stainless

6 318073600 Shield, air wash

7 318362110 Insulation, door, top & bottom, (2)

7A 318362111 Insulation, door, sides, (2)

8 5303323828 Glass-oven door

9 318156604 Liner, oven door

10 5303310510 Screw, 10-24 x 0.625

12 # 5303316768 Seal, oven door, lower oven

15 318091102 Bracket, glass, (3)

17 318162601 Support, glass

18 318053204 Seal, rope, lower oven

23 318024702 Hinge, oven door, lower oven

34 318328200 Panel, drawer, stainless, front

35 318107000 Drawer, broiler

36 5303935079 Roller

37 3203722 Rail, drawer, RH

37A 3203723 Rail, drawer, LH

39 318362802 Handle Assembly, door, black, w/spacer

43 318107800 Liner, broiler door

44 318088300 Spring, broiler

45 318024400 Hinge, broiler, RH

45A 318024401 Hinge, broiler, LH

46 318126200 Pan, broiler

47 318126300 Insert, broiler pan

54 5303300265 Screw, 8-18 X 1/2, (2)

59 3202113 Plug, button

60 5303316982 Foam seal, (2)

* 318163602 Cleaner, stainless steel

* 5304445498 Plug, button

* 08002868 Screw, 10-24 x 0.500, probe, thrm brkt, shield, drwr, box

* 5303211311 Screw, 8 x 0.500

* 5303308458 Screw, 10-24, (4)

* 5303323277 Screw, 8-18 X 13/32

Publication No: 5995475133 FGB24L2ECB

09/06 10

WIRING DIAGRAM
