Frigidaire GLMV168C User manual

PRODUCT NO. BASE MODEL NO. COLOR OWNERS GUIDE-EN

GLMV168CB1 GLMV168C black 316137207

GLMV168CQ1 GLMV168C bisque 316137207

GLMV168CS1 GLMV168C white 316137207

PLMV168CC1 PLMV168C stainless/black 316137207

MARKET

North America

Publication No.

5995392460

030703

EN/SERVICE /KC

937

MICROWAVE

OVEN

Model No.

GLMV168C

PLMV168C

FACTORY

PARTS CATALOG

ELECTROLUX HOME PRODUCTS, INC.

P.O. Box 212378, Augusta, GA 30917

MINI SERVICE MANUAL - # 316137215

WIRING DIAGRAM - # 316137215

OWNER’S GUIDE - # 316137207

INSTALLATION INSTRUCTIONS -# 316137222

07/03 2

Publication No. GLMV168C & PLMV168C

5995392460

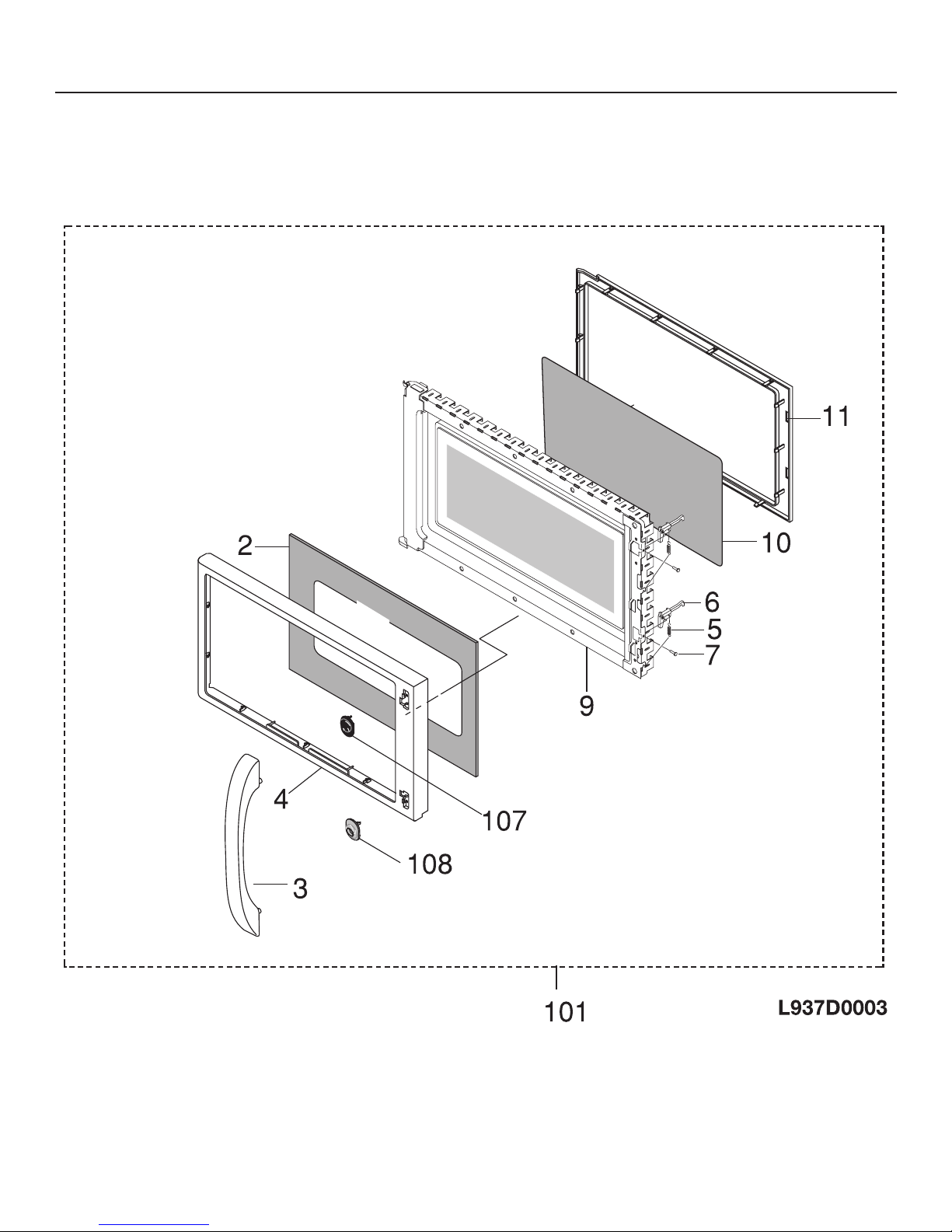

DOOR

# = Fast-moving Parts 3 07/03

* = Non-Illustrated Parts

GLMV168C & PLMV168C Publication No.

5995392460

A = GLMV168C (GLMV168CB1)

B = GLMV168C (GLMV168CS1)

C = GLMV168C (GLMV168CQ1)

D = PLMV168C (PLMV168CC1)

POS. NO PART NO DESCRIPTION

2 5304434311 A - - - Screen,door ,glass ,black

2 5304434312 - B - - Screen,door ,glass ,white

2 5304434313 - - C - Screen,door ,glass ,bisque

2 5304434314 ---D Screen,door ,glass ,clear

3 5304408525 A - - - Handle,door ,black

3 5304408527 - B - - Handle,door ,white

3 5304423437 - - C - Handle,door ,bisque

3 5304423438 ---D Handle,door ,stainless steel

4 5304429402 A - - D Frame,outer door ,black

4 5304429403 - B - - Frame,outer door ,white

4 5304429404 - - C - Frame,outer door ,bisque

5 5304429405 A B C D Spring,door latch

6 5304429406 A - - D Pawl,door latch

6 5304429484 - B C - Pawl,door latch

7 5304429407 A B C D Pin,hinge

9 5304429408 A - - D Panel,inner door assy ,black

9 5304429409 - B - - Panel,inner door assy ,white

9 5304429410 - - C - Panel,inner door assy ,bisque

10 5304409136 A B C D Seal,door ,film

11 5304429411 A - - D Frame,choke cover ,black ,inner door

11 5304429412 - B - - Frame,choke cover ,white ,inner door

11 5304429413 - - C - Frame,choke cover ,bisque ,inner door

101 5304434315 A - - - Door,black ,complete assy

101 5304434316 - B - - Door,white ,complete assy

101 5304434135 - - C - Door,bisque ,complete assy

101 5304434307 ---D Door,stnls stl/black ,complete assy

107 5304423460 ---D EndCap,handle mt “U”

108 5304423461 ---D EndCap,handle mt “L”

DOOR

07/03 4

Publication No. GLMV168C & PLMV168C

5995392460

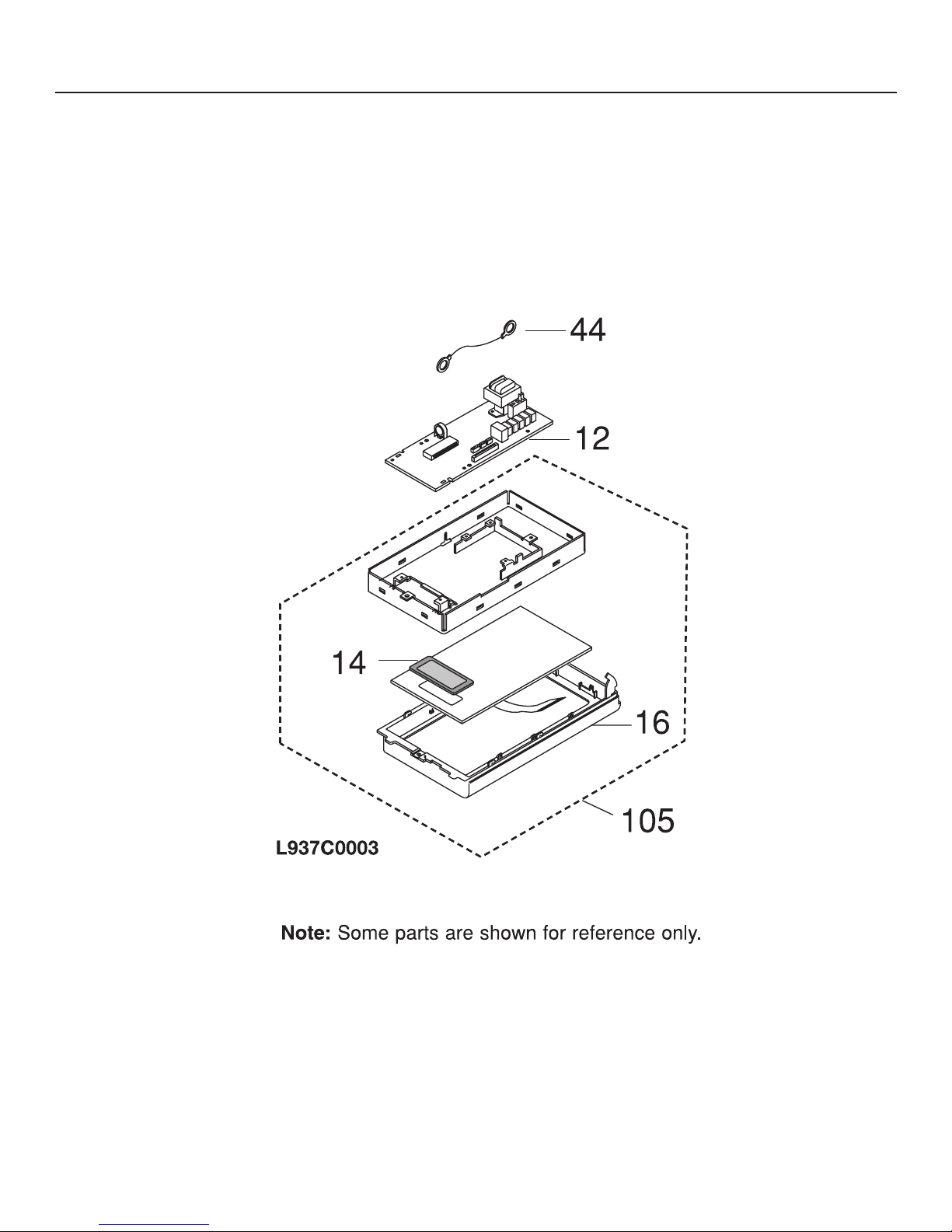

CONTROL PANEL

# = Fast-moving Parts 5 07/03

* = Non-Illustrated Parts

GLMV168C & PLMV168C Publication No.

5995392460

A = GLMV168C (GLMV168CB1)

B = GLMV168C (GLMV168CS1)

C = GLMV168C (GLMV168CQ1)

D = PLMV168C (PLMV168CC1)

POS. NO PART NO DESCRIPTION

12 # 5304424537 A B C D Control Board,printed circuit

14 5304429418 A B C D Window,control display

16 5304429419 A - - D Frame,control panel ,black

16 5304429420 - B - - Frame,control panel ,white

16 5304429421 - - C - Frame,control panel ,bisque

44 5304429422 A B C D Wire,PCB ground

105 5304429447 A - - - Control Panel Assy,black ,less PCB

105 5304429448 - B - - Control Panel Assy,white ,less PCB

105 5304429449 - - C - Control Panel Assy,bisque ,less PCB

105 5304429450 ---D Control Panel Assy,stainless/black, less PCB

CONTROL PANEL

07/03 6

Publication No. GLMV168C & PLMV168C

5995392460

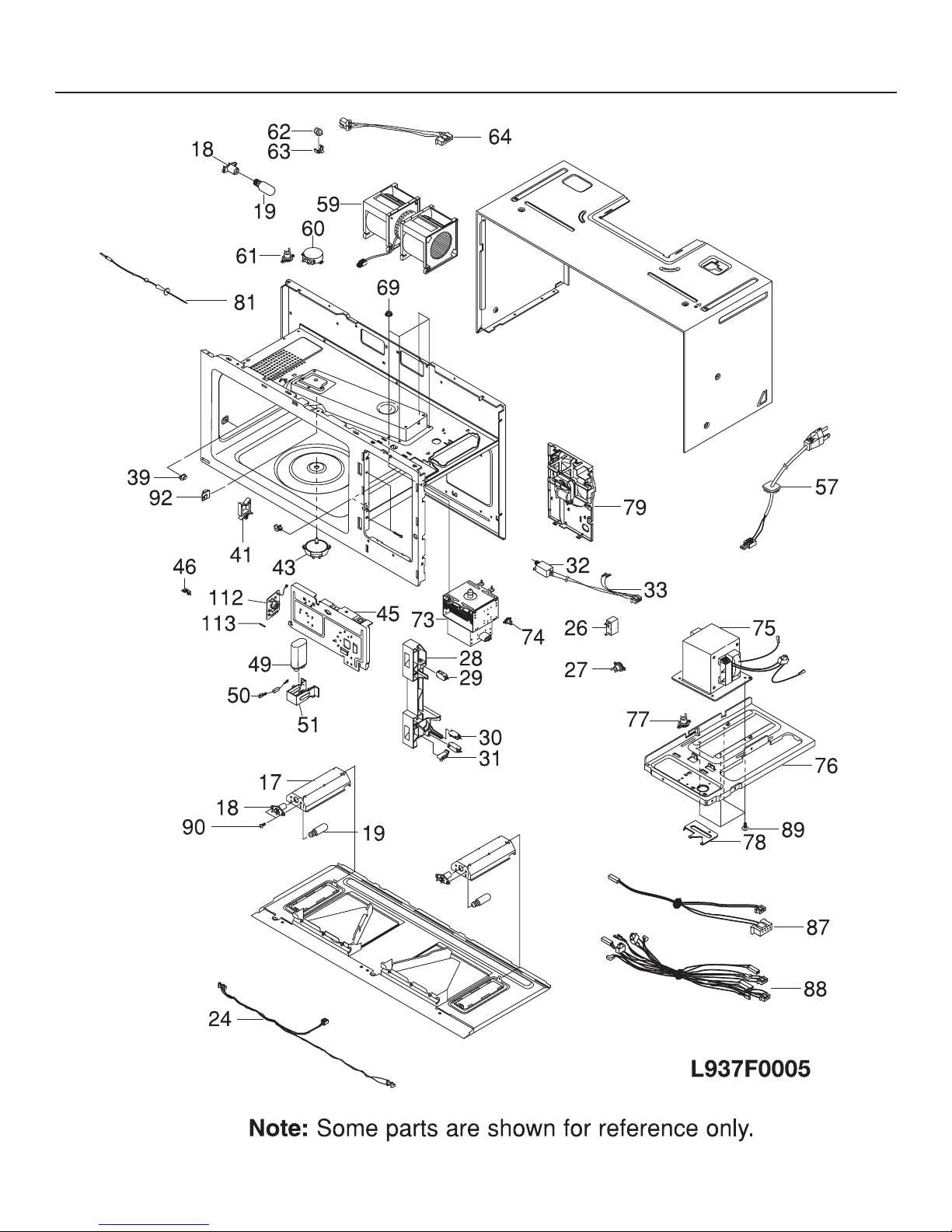

FUNCTIONAL PARTS

# = Fast-moving Parts 7 07/03

* = Non-Illustrated Parts

GLMV168C & PLMV168C Publication No.

5995392460

A = GLMV168C (GLMV168CB1)

B = GLMV168C (GLMV168CS1)

C = GLMV168C (GLMV168CQ1)

D = PLMV168C (PLMV168CC1)

POS. NO PART NO DESCRIPTION

17 5304429455 A B C D Bracket,lamp mtg ,bottom

18 # 5304424251 A B C D Receptacle,lamp

19 5304408949 A B C D Lamp,incandescent

24 # 5304429456 A B C D Wiring Harness,D

26 # 5304408941 A B C D Capacitor,motor

27 # 5304417433 A B C D Thermostat,thermal cutout ,hood, 40/70 deg C

28 5304429457 A B C D Latch Body,switch Housing

29 # 5304408938 A B C D Switch,interlock ,door/primary

30 # 5304408937 A B C D Switch,interlock ,monitor

31 5304408963 A B C D Lever,switch ,bottom

32 5304408959 A B C D Receptacle,cook temp probe

33 # 5304423379 A B C D Wiring Harness

39 5304423381 A B C D Support,rack-A

41 5304408515 A B C D Wire Saddle

43 # 5304408980 A B C D Motor,turntable

45 5304408961 A B C D Bracket,air guide

46 5304429458 A B C D Receptacle,fuse holder

49 # 5304423521 A B C D Capacitor,high voltage

50 # 5304417430 A B C D Diode,high voltage

51 5304408946 A B C D Bracket,capacitor mtg

57 # 5304408947 A B C D Power Cord,electric

59 # 5304408943 A B C D Fan Assy,ventilator ,with motor

60 # 5304408944 A B C D Motor,stirrer fan

61 # 5304423690 A B C D Thermostat,thermal cutout ,oven cavity

62 # 5304408945 A B C D Sensor,cooking gas

63 5304408957 A B C D Receptacle,gas sensor

64 # 5304408956 A B C D Wiring Harness,S

69 5304408962 A B C D Nut,flange

73 # 5304423374 A B C D Magnetron

74 # 5304408936 A B C D Thermostat,thermal cutout ,magnetron

75 # 5304408933 A B C D Transformer,high voltage

76 5304423377 A B C D Plate,xfmr base

77 # 5304408935 A B C D Thermostat,thermal cutout ,bottom, 120/0 deg C

78 5304423384 A B C D End Cap,xfmr base ,bottom

79 # 5304423385 A B C D Fan Assy,cooling ,with motor

81 # 5304408955 A B C D Probe,temp sensor

87 # 5304423386 A B C D Wiring Harness,C

88 # 5304429459 A B C D Wiring Harness,A

89 5304423389 A B C D Screw,washer head

90 5304408964 A B C D Screw,special

92 5304423390 A B C D Holder,rack-B

113# 5304423383 A B C D Fuse,cartridge ,20 Amp

FUNCTIONAL PARTS

07/03 8

Publication No. GLMV168C & PLMV168C

5995392460

BODY

# = Fast-moving Parts 9 07/03

* = Non-Illustrated Parts

GLMV168C & PLMV168C Publication No.

5995392460

BODY

A = GLMV168C (GLMV168CB1)

B = GLMV168C (GLMV168CS1)

C = GLMV168C (GLMV168CQ1)

D = PLMV168C (PLMV168CC1)

POS. NO PART NO DESCRIPTION

20 5304429460 A - - D Panel,base plate ,black ,bottom

20 5304429461 - B C - Panel,base plate ,white ,bottom

21 5304408977 A B C D Filter,air ,(2)

22 5304430287 A B C D Lens,cooktop lamp ,glass ,(2)

23 5304429462 A - - D Frame,lens holder ,black

23 5304429463 - B C - Frame,lens holder ,white

37 5304408986 A B C D Cover,stirrer/antenna

38 5304408979 A B C D Rivet,push mount ,plastic, stirrer cover

40 5304429464 A B C D Coupler,shaft bushing ,turntable/motor

42 5304408990 A B C D Cover,front

54 5304417437 A B C D Bracket,motor mtg ,turntable/vent, wrpr top plate

55 5304423504 A B C D Holder Nut,assy

58 5304429465 A - - D Casing,wrapper ,black ,outer panel

58 5304429466 - B - - Casing,wrapper ,white ,outer panel

58 5304429467 - - C - Casing,wrapper ,bisque ,outer panel

65 5304429468 A B C D Duct,exhaust vent ,upper

68 5304408982 A B C D Bracket,duct assy ,upper

70 5304429469 A - - D Grille Assy,black

70 5304429470 - B - - Grille Assy,white

70 5304429471 - - C - Grille Assy,bisque

71 5304408994 A B C D Screw,grille mtg ,black ,(2)

80 5304409641 A B C D Filter,air ,charcoal

82 5304423519 A B C D Rack,microwave oven ,wire

84 5304417414 A B C D Support,turntable tray ,with rollers

85 5304423399 A B C D Tray,turntable ,glass

91 5304429472 A B C D Bracket-barrier,filter

93 5304423524 A B C D Label,cooking guide

100 5304429473 A B C D Stirrer Assembly

109 5304429474 A B C D Bracket,grille

110 5304429475 A B C D Bracket,grille ,left side

111 5304429476 A - - D Grille,exhaust ,black

111 5304429477 - B - - Grille,exhaust ,white

111 5304429478 - - C - Grille,exhaust ,bisque

9999 316137215 A B C D Technical Guide,mini-manual, w/wiring dia.

07/03 10

Publication No. GLMV168C & PLMV168C

5995392460

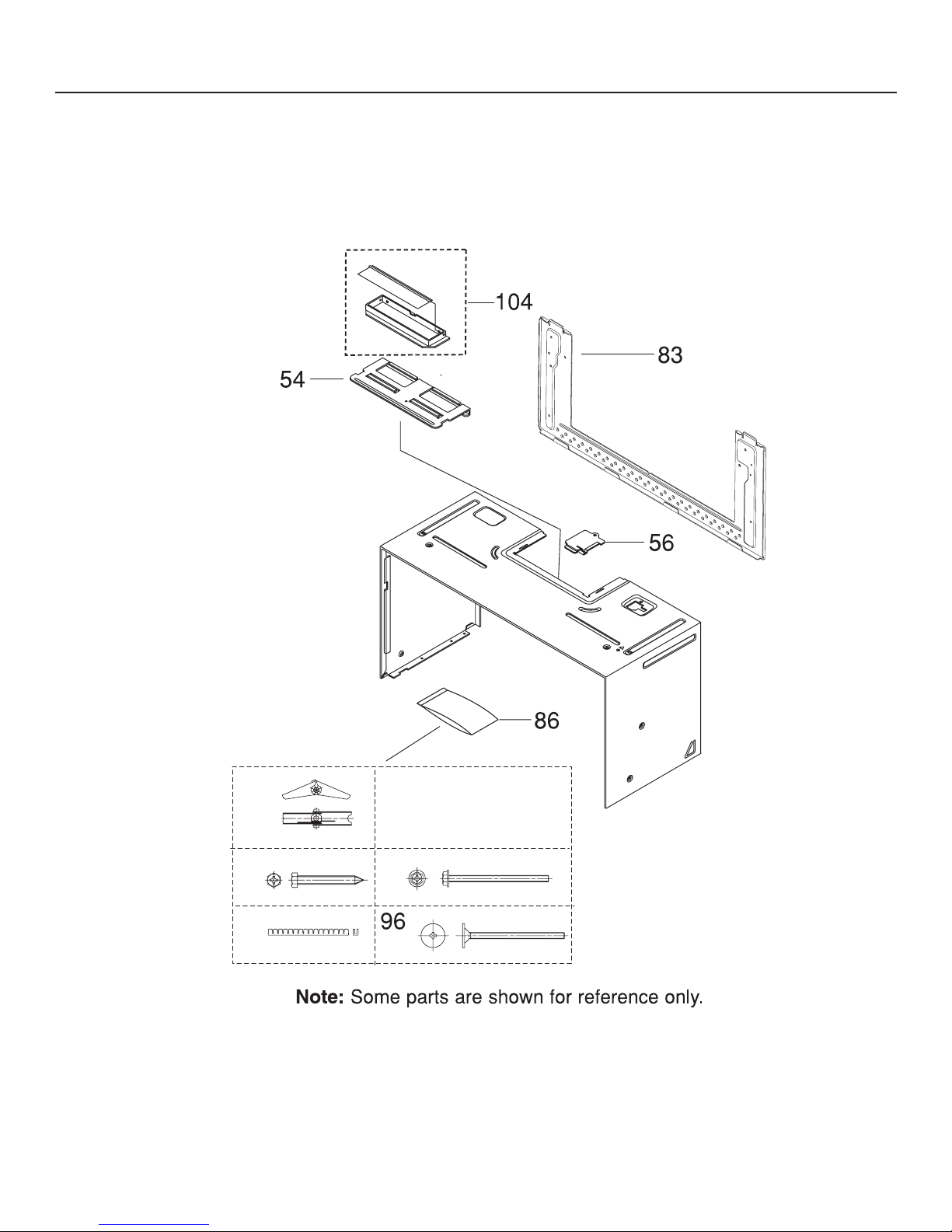

INSTALLATION

L937I0002
