Frigidaire GLMB186C User manual

PRODUCT NO. BASE MODEL NO. COLOR MARKET

GLMB186CB1 GLMB186C black North America

GLMB186CS1 GLMB186C white North America

PLMB186CC1 PLMB186C stainless steel North America

Publication No.

5995397436

031015

-EN/SERVICE /KC

099

MICROWAVE

OVEN

Model No.

GLMB186C

PLMB186C

FACTORY

PARTS CATALOG

ELECTROLUX HOME PRODUCTS NORTH AMERICA

P.O. Box 212378, Augusta, GA 30917

MINI SERVICE MANUAL - # 316137224

WIRING DIAGRAM - # 316137224

OWNER’S GUIDE - # 5304423503

INSTALLATION INSTRUCTIONS -# 5304423400

10/03 2

Publication No. GLMB186C & PLMB186C

5995397436

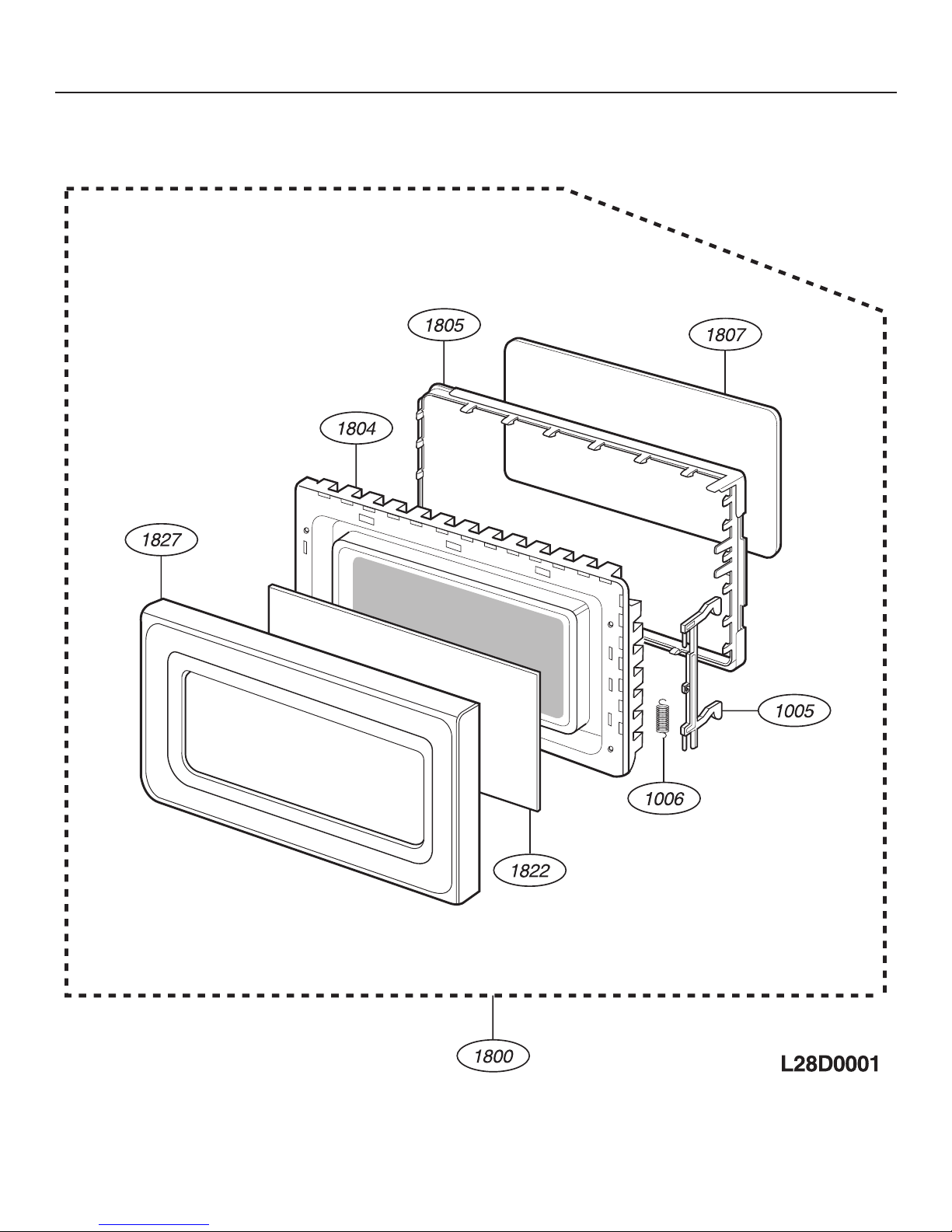

DOOR

# = Fast-moving Parts 3 10/03

* = Non-Illustrated Parts

GLMB186C & PLMB186C Publication No.

5995397436

A = GLMB186C (GLMB186CB1)

B = GLMB186C (GLMB186CS1)

C = PLMB186C (PLMB186CC1)

POS. NO PART NO DESCRIPTION

1005 5304423406 A B C Latch,door

1006 5304423407 A B C Spring,door latch

1800 5304435975 A - - Door,black ,complete assy

1800 5304435976 - B - Door,white ,complete assy

1800 5304435977 - - C Door,stainless steel ,complete assy

1804 5304423411 A - C Panel,door ,black ,inner

1804 5304423412 - B - Panel,door ,white ,inner

1805 5304423413 A B C Frame,choke cover ,inner door

1807 5304423415 A B C Seal,door ,film

1822 5304423417 A B - Screen,door ,glass ,front

1822 5304423418 - - C Screen,door ,glass ,front

1827 5304435979 A - - Frame,outer door ,black

1827 5304435980 - B - Frame,outer door ,white

1827 5304435981 - - C Frame,outer door ,stainless steel

DOOR

10/03 4

Publication No. GLMB186C & PLMB186C

5995397436

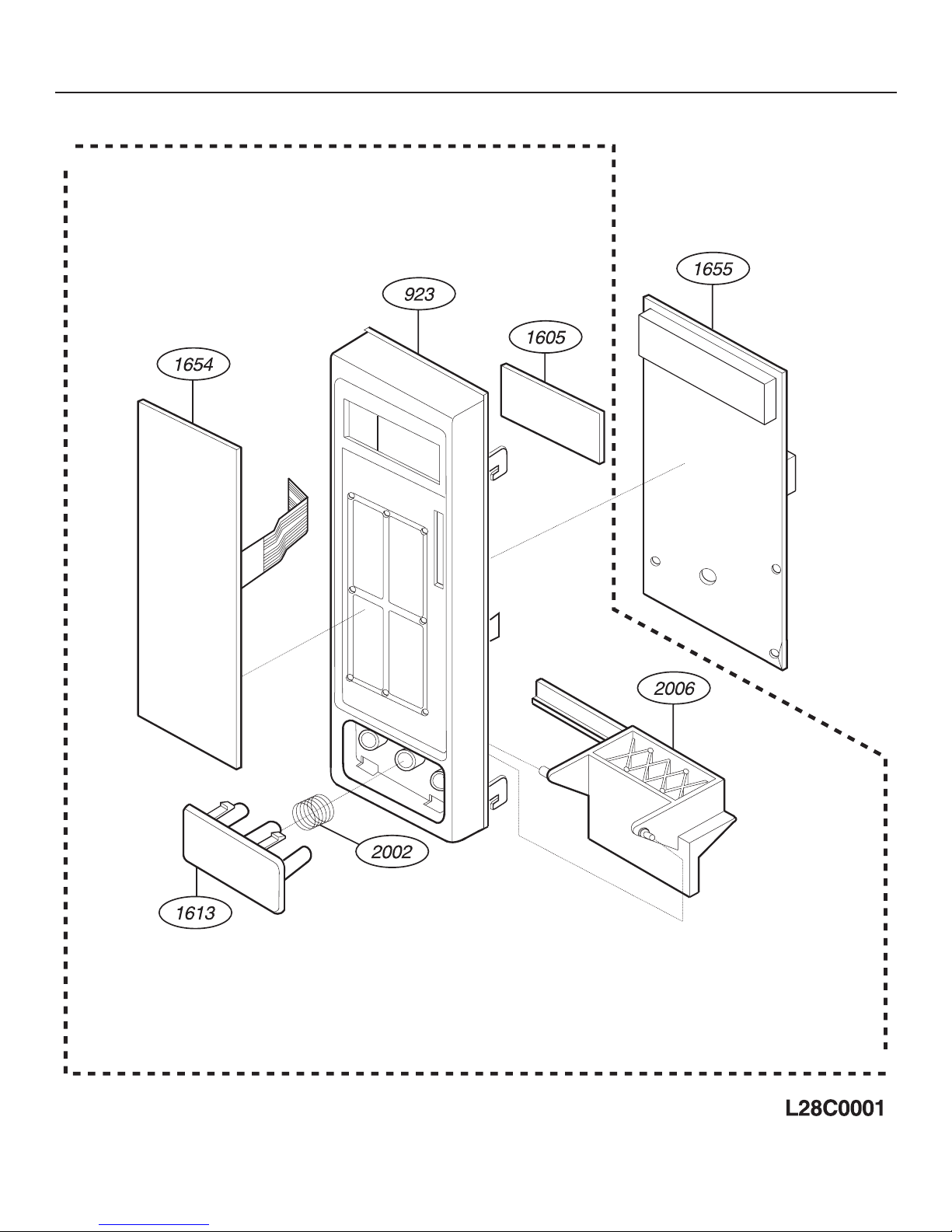

CONTROL PANEL

# = Fast-moving Parts 5 10/03

* = Non-Illustrated Parts

GLMB186C & PLMB186C Publication No.

5995397436

A = GLMB186C (GLMB186CB1)

B = GLMB186C (GLMB186CS1)

C = PLMB186C (PLMB186CC1)

POS. NO PART NO DESCRIPTION

923 5304423422 A - - Housing,control panel ,black

923 5304423423 - B - Housing,control panel ,white

923 5304423424 - - C Housing,control panel ,stainless steel

1605 5304423425 A B C Window,control display

1613 5304423426 A - - Button,door release ,black

1613 5304423427 - B - Button,door release ,white

1613 5304423428 - - C Button,door release ,stainless steel

1654 5304423429 A - C Switch,touch control ,membrane ,black

1654 5304423430 - B - Switch,touch control ,membrane ,white

1655 5304423361 A B C Control Board,printed circuit

2002 5304423431 A B C Spring,door button

2006 5304423432 A B C Lever,door release

CONTROL PANEL

10/03 6

Publication No. GLMB186C & PLMB186C

5995397436

OVEN CAVITY

# = Fast-moving Parts 7 10/03

* = Non-Illustrated Parts

GLMB186C & PLMB186C Publication No.

5995397436

A = GLMB186C (GLMB186CB1)

B = GLMB186C (GLMB186CS1)

C = PLMB186C (PLMB186CC1)

POS. NO PART NO DESCRIPTION

1196 5304423442 A B C Screw

1198 5304423443 A - C Screw,tapping ,black

1198 5304423444 - B - Screw,tapping ,white

1200 5304423445 A - C Casing,wrapper ,black ,outer panel

1200 5304423446 - B - Casing,wrapper ,white ,outer panel

1417 5304423447 A B C Motor,turntable

1418 5304423448 A B C Seal,water

1474 5304423449 A B C Rivet,wave guide mtg ,assy

1475 5304423450 A B C Wave Guide

1508 5304423451 A B C Tray,turntable ,glass

1509 5304423452 A B C Support,turntable tray ,with rollers

1520 5304423453 A B C Cover,stirrer fan

1521 5304423454 A B C Fan Blade,stirrer

1522 5304423455 A B C Collar,motor shaft ,stirrer fan

1523 5304423456 A B C Motor,stirrer fan

OVEN CAVITY

10/03 8

Publication No. GLMB186C & PLMB186C

5995397436

LATCH BOARD

# = Fast-moving Parts 9 10/03

* = Non-Illustrated Parts

GLMB186C & PLMB186C Publication No.

5995397436

LATCH BOARD

A = GLMB186C (GLMB186CB1)

B = GLMB186C (GLMB186CS1)

C = PLMB186C (PLMB186CC1)

POS. NO PART NO DESCRIPTION

601 5304423462 A B C Switch,interlock ,monitor

604 5304423463 A B C Switch,interlock ,door/secondary

4001 5304423464 A B C Latch Hook

10/03 10

Publication No. GLMB186C & PLMB186C

5995397436

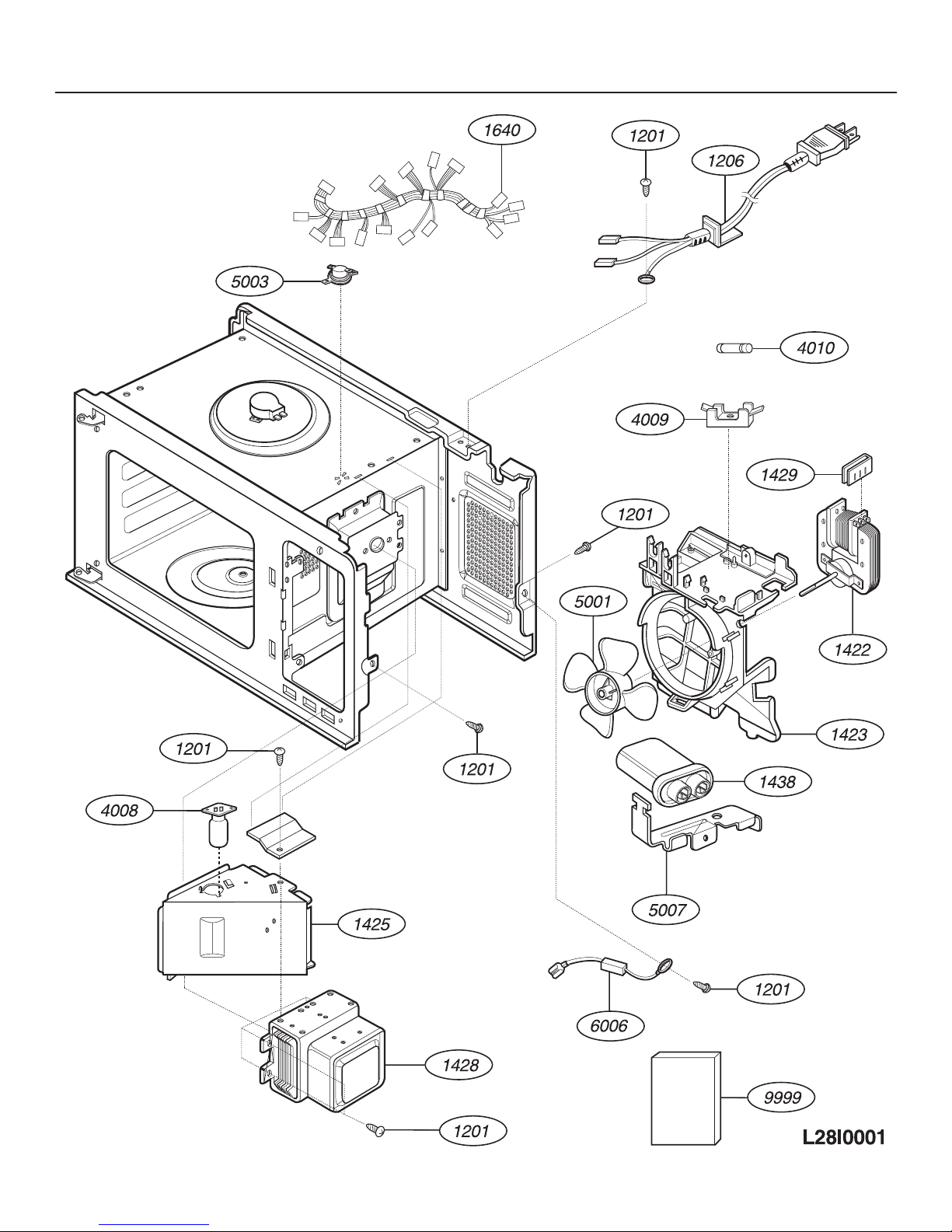

INTERIOR
