Frigidaire AFFU2068DW User manual

Product No. AFFU2068DW0

Series 134A

Color white

Volts 115

Wiring Diagram 216917400

Owner's Guide 216960000

Market North America

Energy Guide 216795509

P08F0078.eps P08D0366.eps P08C0759.eps P08S0362.eps P08ICE01.eps

ELECTROLUX HOME PRODUCTS, INC.

P.O. Box 212378, Augusta, GA 30917

Publication No.

5995416525

04/09/17

(EN/SERVICE/MLR)

365

UPRIGHT FREEZER

W/ICE MAKER

Model No.

AFFU2068DW

Publication No: 5995416525 AFFU2068DW0

09/04 2

DOOR

73 59

21A

133

77 57

133

P08D0366

AFFU2068DW0 Publication No: 5995416525

# Functional Parts 3 09/04

* Non-Illustrated Parts

DOOR

POS. NO PART NO. DESCRIPTION

1 216522312 Gasket-door, white

2 5303925107 Lock Assy

5 # 216702900 Key, lock

9 216528113 Panel-inner door, frzr

11 216531230 Panel-outer door, white

13 5303271076 Door Stop

14 5303313518 Washer, sealing

18 216921200 Handle, white

* 216932500 Nut, flange locking, handle

21A 5303271077 Screw, flat head, #1/4-20, door stop/hng

22 5303925197 Bearing, hinge, top

26 216524200 Gasket, secondary

27 5303212828 Clip, panel mtg

28 216806100 Rack-door, contour, (4)

32 5309950074 Valve, breather, door base

57 216899602 Overlay

59 5303271072 Bearing-door, closer ramp

64 216403700 Plug-button, hole filler, door base

72 216514100 Shelf, tilt out, wire

73 216513900 End Cap, shelf, LH, tilt-out

74 216514000 End Cap, shelf, RH, tilt-out

77 216897700 Bezel

79 # 216898700 Control Board, electronic

93 5303161215 Screw, ph truss head, 8-18AB x 0.500

133 216905300 Screw, control board, #3-24 x .25, (3)

Publication No: 5995416525 AFFU2068DW0

09/04 4

CABINET

AFFU2068DW0 Publication No: 5995416525

# Functional Parts 5 09/04

* Non-Illustrated Parts

CABINET

POS. NO PART NO. DESCRIPTION

3 216503100 Screen-drain

5 # 216325600 Fan Blade

6 216604100 Breaker Kit w/corners

7 216603600 Breaker Kit w/corners, lock catch

9 216603300 Breaker Kit w/corners, 32", top or bottom

13 # 216934100 Motor, fan, 115 V

14 # 216822900 Switch, light/lamp, ramp

15 216846400 Light Bulb/Lamp

16 # 216817600 Socket, light/lamp, 25 W

18 216707200 Knob, temp control

19 216204901 Gasket-cover evap

20 216230300 Cover, temp control

21 # 216844500 Control-temperature

25 216820300 Cover-evaporator

29 216313500 Hose-drain

* 09948773 Insulation, drain tube

32 5308005500 Drain

34 216816212 Shield-light

35 216629700 Clip

38 216939100 Hinge-upper

40 216809000 Cover-hinge

41 216954400 Screw, 12-24 x.700 hwh, hinge mtg.

47 216661600 Plate, baffle, snap fit

50 216394000 Bracket, fan motor mount

59 216880100 Basket

59A 216486500 Stop-basket

59B 216826500 Basket

60 5303212693 Slide-basket, (2)

62 131420300 Screw, cr truss head, 8-18AB x 0.750

63 216396900 Screw, leveling foot, plastic, adjustable

68 08009560 Glide-basket, (4)

69 5305878546 Bumper-basket, (4)

71A 5304416289 Screw, ph truss head, 8-18AB x 0.47, EVAP PANEL

72 216946600 Grille/Kickplate, 32", white

79 3017666 Nut-insert

93 5303161215 Screw, ph truss head, 8-18AB x 0.500

93A 216629600 Screw, hex washer head, 10-16 x 0.500, tapping

93D 216912400 Screw, hex washer head, #8-32 x .500, bracket fan mtr, (2)

132 5303283898 Screw, 6-20AB x 3/8

143 216922302 Shelf-assy, fixed, glass, (3), complete

144 216922300 Shelf-assy, fixed, glass, complete

* 216502400 Grommet-shelf mtg

* 5303305324 Paint, touch-up, white

* 216795509 Energy Guide

* 216893600 Plug, ICE MAKER, internal

Publication No: 5995416525 AFFU2068DW0

09/04 6

SYSTEM

FRONT

BACK

105

43A

130

15A

P08S0362

AFFU2068DW0 Publication No: 5995416525

# Functional Parts 7 09/04

* Non-Illustrated Parts

SYSTEM

POS. NO PART NO. DESCRIPTION

1 # 5300083897 Condenser

2 5308000110 Strap-evap/heater, aluminum, (2)

4 # 216938600 Drier-filter

5 # 216888700 Harness-main

14 # 216730700 Heater-defrost

15 # 216737300 Evaporator

15A# 216783200 Heat Exchanger, suct/cap tube

18 216727600 Insulator-evap, styrofoam

19 216727700 Insulator-evap, styrofoam

20 216731000 Thermostat, defrost

27 5308002681 Grommet, compressor

29 # 216966700 Compressor, w/o electricals

30 216649315 Controller

32 216649100 Clamp, elec cont mtg, compressor

34 5306594529 Sleeve-compressor, (3)

35 5303272328 Screw, Ind hex sems, 1/4-28 unfx, compressor, (3)

43A 216629700 Clip

54 # 216833800 Electronics, high voltage, w/o battery

55 218909913 Capacitor-run, 220 VAC, 15 microfarad

86 5303161215 Screw, ph truss head, 8-18AB x 0.500

93 216036600 Screw, ph washer head, 8-32CA x 0.500, thread forming

105 216854000 Cup-drain

130 216486800 Support, evaporator mtg

* 216502500 Sleeve, suction line

* 5303298960 Spacer-tube, 0.237" ID

Publication No: 5995416525 AFFU2068DW0

09/04 8

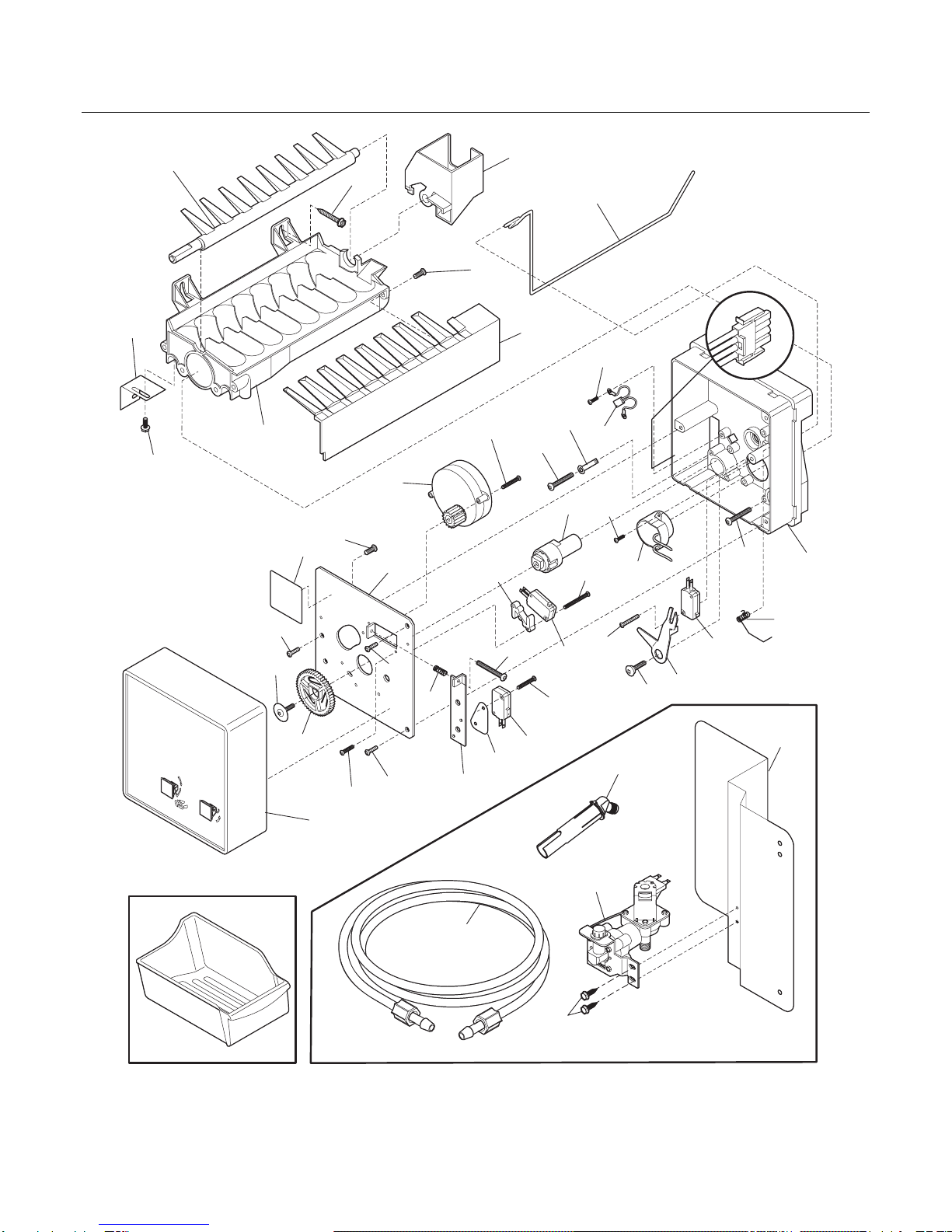

ICE MAKER

ON OFF

MOVE ARM UP UNTIL

LOCKED INTO PLACE

MOVE ARM UP UNTIL

LOCKED INTOPLACE

27 13

15 15

INSTALLATION PARTS

P08ICE01

AFFU2068DW0 Publication No: 5995416525

# Functional Parts 9 09/04

* Non-Illustrated Parts

ICE MAKER

POS. NO PART NO. DESCRIPTION

1 218976901 Tube-water inlet, inlet valve, to ice maker

1* 240561701 Seal-water inlet, inlet valve, to ice maker

2 5304420650 Spring, shut-off arm

3 3206299 Label, ID plate

4 3206301 Gear

5 3206303 Plate-mounting

6 3206305 Screw-ground wire, 8-32 x 0.250

7 # 3206306 Motor-ice maker

8 3206312 Spacer-hold switch

9 3206313 Cam

10 3206315 Clamp

11 # 3206319 Thermal Cutoff, ICE MAKER, complete assy

12 # 5304420651 Wiring Harness, ICE MAKER, internal, with plug

13 # 3206322 Thermostat Assy, ICE MAKER

14 5304420652 Screw, 4 x 0.750, switch mtg.

15 # 3206324 Switch, (3)

16 5304420653 Support, phenolic

17 # 5303320545 Mold-ice maker, Radius Cube, with heater

18 3206328 Ejector-ice

19 3206330 Bearing & Inlet

20 5304408581 Screw, 8-32 x 0.375

21 3206332 Ice Stripper

22 3206333 Shut-off Arm

23 5304408582 Screw, 8-32 x 0.875, mold-to-support, (3)

24 3206335 Lever Arm

25 3206336 Screw, 8-18 x 0.562, lever arm/sprt

26 5304420654 Screw-thermo/sprt, 4-24 x 0.375, (4)

27 3206338 Screw, 4-40 x 1.000, hold switch mtg, (2)

28 3206339 Screw-timing stop, 4-40 x 0.375

29 3206323 Screw, 4-24 x 0.750, (6)

30 3206341 Screw-timing adj, 8-32 x 1.000

31 3206342 Insulator

32 3206343 Plate-valve switch

33 5304408583 Spring-timing adj

34 5304420655 Screw, plazscrew, 8-10, (3)

35 5304408585 Screw

36 3206347 Cover-ice maker

45 5303161215 Screw, ph truss head, 8-18AB x 0.500

51 216887500 Tube, water, ICE MAKER

55 # 240519601 Valve-water, single solenoid, 60 Hz, 105/120 V

60 218362500 Screw, hex washer head, 8-18AB x 1.250, spacer, (2)

61 218721500 Bracket-leveling, ICE MAKER

62 218737900 Screw-IM brkt mtg, hex washer head, 8-32D x 0.375

64 216944400 Bracket, water valve

65 240385201 Container, ice bin

* 218888001 Adapter-water supply, nut & sleeve, compression ftg

* 240352409 Ice Maker, Radius Cube, 115 V, no instl parts
