Frigidaire GLDB653ABO User manual

PRODUCT NO. BASE MODEL NO. COLOR

GLDB653AB0 GLDB653A black

GLDB653AQ0 GLDB653A bisque

GLDB653AS0 GLDB653A white

MARKET

North America

24" Built-In

DISHWASHER

Model No.

GLDB653ABO

GLDB653AQ0

GLDB653AS0

FACTORY PARTS CATALOG

DISHWASHER

SERVICE DATA SHEET # - 154410001

OWNER’S GUIDE # - 154409901

INSTALLATION INSTRUCTIONS # - 154373601

ELECTROLUX HOME PRODUCTS NORTH AMERICA

P.O. Box 212378, Augusta, GA 30917

Publication No.

5995359394

011005

-EN/SERVICE /ECL

821

10/01 2

Publication No. GLDB653ABO/AQ0/AS0

5995359394

CONTROL PANEL

# = Fast Moving Part 3 10/01

* = Non-Illustrated Part

GLDB653ABO/AQ0/AS0 Publication No.

5995359394

CONTROL PANEL

A = GLDB653A (GLDB653AS0)

B = GLDB653A (GLDB653AB0)

C = GLDB653A (GLDB653AQ0)

POS. NO PART NO DESCRIPTION

1 154368204 A - - Panel,control ,white

1 154368206 - B - Panel,control ,black

1 154368207 - - C Panel,control ,bisque

2 154401301 A - - Insert,control panel ,white

2 154401303 - B - Insert,control panel ,black

2 154401304 - - C Insert,control panel ,bisque

3 # 154295701 A B C Timer

3* 154095701 A B C Screw,thread rolling ,(2) ,timer

3* 154131203 A B C Shield,timer

8 # 154368601 A B C Switch,selector ,6 button

8* 154248601 A B C Shield,switch

8* 5303318719 A B C Screw,mtg.

13 154239504 A - - Knob,timer ,white

13 154239509 - B - Knob,timer ,black

13 154239508 - - C Knob,timer ,bisque

20 154345102 A B C Vapor Chamber Assy,w/ vent gasket

25 154229201 A B C Seal,chamber

* # 154402001 A B C Wiring Harness,main

* 154283901 A B C Screw,#8-10 ,3/8 phillips

10/01 4

Publication No. GLDB653ABO/AQ0/AS0

5995359394

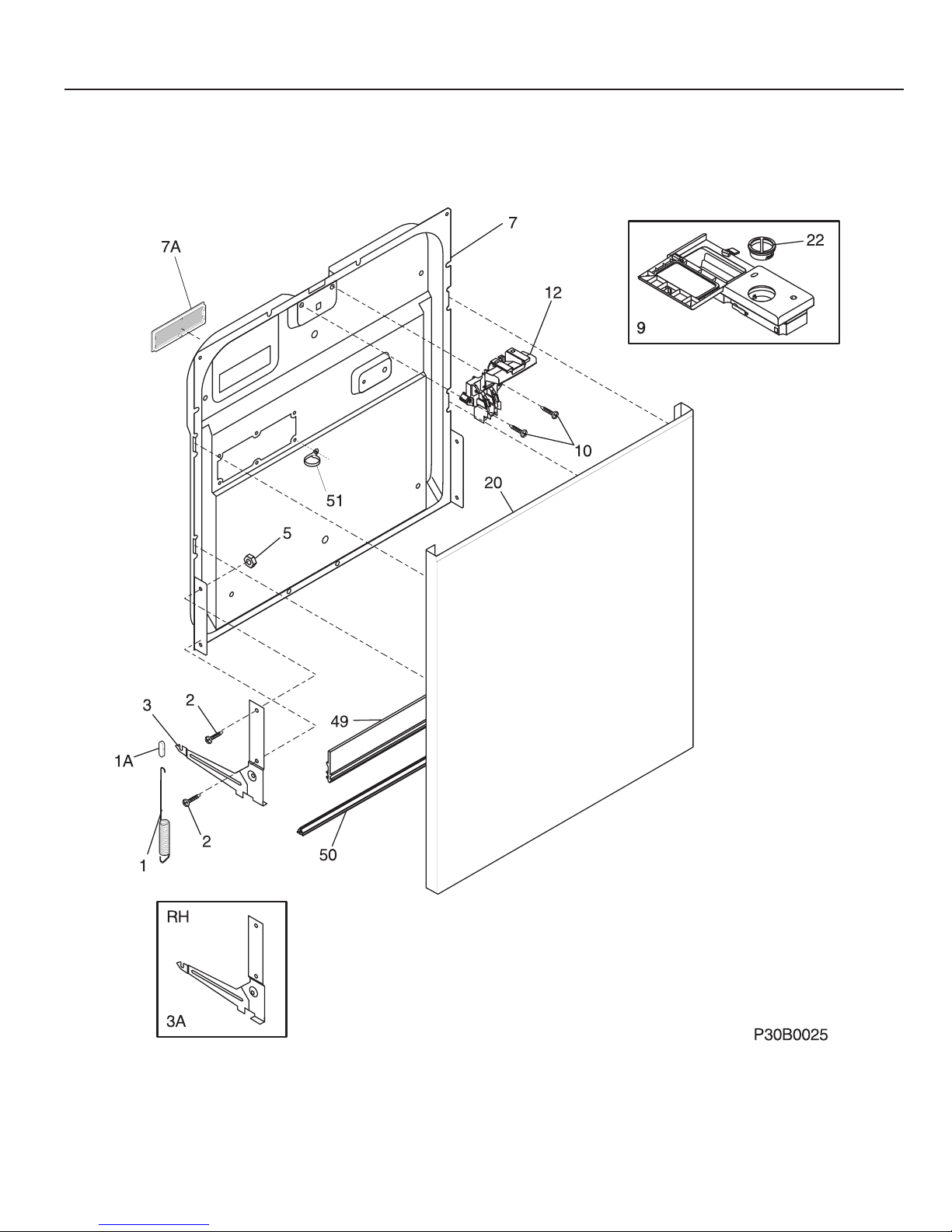

DOOR

# = Fast Moving Part 5 10/01

* = Non-Illustrated Part

GLDB653ABO/AQ0/AS0 Publication No.

5995359394

A = GLDB653A (GLDB653AS0)

B = GLDB653A (GLDB653AB0)

C = GLDB653A (GLDB653AQ0)

POS. NO PART NO DESCRIPTION

1 154365701 A B C Spring,door ,(2)

1A 154325201 A B C Linkage,door spring ,(2)

2 154093301 A B C Screw,arm assy ,(4)

3 154325304 A B C Arm Assy,LH

3A 154325303 A B C Arm Assy,RH

* 154211501 A B C Pin,arm

5 154079601 A B C Nut,arm assy ,(4)

7 154299002 A B C Door,inner assy

7A 154332701 A B C Grate,liner

9 154230101 A B C Dispenser,det/rinse aid ,includes #22

9* 154294701 A B C Screw,#7 plas .375 ,(6) ,disp. assy.

10 154103702 A B C Screw,latch mtg ,(2)

12 # 154361201 A - - Latch assy,white

12 # 154361203 - B - Latch assy,black

12 # 154361204 - - C Latch assy,bisque

20 154359105 A - - Door,white

20 154359107 - B - Door,black

20 154359110 - - C Door,bisque

22 154388801 A B C Cap,Rinse aid

49 154297602 A B C Gasket,door ,bottom

50 154211401 A B C Support,door hinge

51 154320301 A B C Clamp,drip loop ,wire

* # 154227805 A B C Thermostat,temp assure

* # 154227808 A B C Thermostat,temp boost

* 154200601 A B C Screw,#10-16 x 3/8

DOOR

10/01 6

Publication No. GLDB653ABO/AQ0/AS0

5995359394

TUB

# = Fast Moving Part 7 10/01

* = Non-Illustrated Part

GLDB653ABO/AQ0/AS0 Publication No.

5995359394

A = GLDB653A (GLDB653AS0)

B = GLDB653A (GLDB653AB0)

C = GLDB653A (GLDB653AQ0)

POS. NO PART NO DESCRIPTION

1 # 154209301 A B C Tub assy,w/frame parts

2 154211601 A B C Strike,door

3 # 154211801 A B C Gasket,tub

4 154200602 A B C Screw,10-16 x 3/8 ,hex

5 154333901 A B C Roller,tub

6 5303943103 A B C Screw,w/washer ,(8)

22 154239801 A B C Tubing,water inlet

23 5303318539 A B C Clamp,tubing ,(2)

24 # 154225602 A B C Hose,drain

25 # 154209701 A B C Float

28 # 154225501 A B C Switch,float

28A 154386601 A B C Bracket,float switch

28A* 154333301 A B C Screw,bracket mtg ,ph truss head

29 # 154290204 A B C Thermostat,re-settable

30 154241101 A B C Retainer,thermostat

30* 154297701 A B C Screw,retainer-thermo

* 154238304 A B C Insulation,tub

* 5300807270 A B C Screw,(2) ,countertop mtg.

TUB

10/01 8

Publication No. GLDB653ABO/AQ0/AS0

5995359394

MOTOR & PUMP

# = Fast Moving Part 9 10/01

* = Non-Illustrated Part

GLDB653ABO/AQ0/AS0 Publication No.

5995359394

A = GLDB653A (GLDB653AS0)

B = GLDB653A (GLDB653AB0)

C = GLDB653A (GLDB653AQ0)

POS. NO PART NO DESCRIPTION

1 # 154247601 A B C Heater

1* 154106201 A B C Nut,heater ,(2)

1* 154289801 A B C Shield,heater terminal

2 154359701 A B C Bracket,heater ,(2)

10 154245501 A B C Cover,volute

13 154246801 A B C Gasket,sump

14 154365902 A B C Housing,sump

16 154246502 A B C Retainer,sump

24 154250801 A B C Spray arm,lower

24A 154313601 A B C Spray arm,center

24A* 154252001 A B C Nut,spray arm ,center

32 154251701 A B C Tube,delivery

32A 154358901 A B C Gasket,delivery tube

40 154348401 A B C Clamp,red ,pump

40 154348501 A B C Clamp,silver ,pump

40* 154106801 A B C Clamp,hose ,(2)

54 154234401 A B C Hose,connector

55 154362301 A B C Bracket,motor ,askoll

55* 5303316032 A B C Screw,truss ss ,8 .625

58 154246402 A B C Check ball

59 154246901 A B C O-ring,rear

59A 154247001 A B C O-ring,front

60 154247502 A B C Drain Pump Assy

60* 154234501 A B C Bracket,motor ,drain

61 154359601 A B C Nozzle,3rd level ,spray arm

62 154294101 A B C Support,spray arm ,lower

63 154252201 A B C Base,soil director

64 154252301 A B C Filter,soil director

65 154252401 A B C Filter-polypro

66 154252701 A B C Trap,glass

70 # 154395402 A B C Motor assembly,circulation ,w/o o’rings

* 154338601 A B C Clamp-P,nylon

* 154200601 A B C Screw,#10-16 x 3/8

MOTOR & PUMP

10/01 10

Publication No. GLDB653ABO/AQ0/AS0

5995359394

FRAME
