Frigidaire FGBD2431NW Owner's manual
frigidaire.com
Signature Features
24" Built-In
Product Dimensions
Height (Adjustable) 33-1/2"– 35"
Width 24"
Depth (Including Door) 25"
More Easy-To-Use Features
Smudge-Proof Stainless Steel1
Real Stainless Steel with a protective
coating reduces fingerprints and
smudges so it’s easy to clean.
NSF® Certified
Sanitize cycle removes 99.9% of
common household bacteria.
Express-Select® Controls
Easily select options with the touch
of a button.
Multiple-Cycle Options
Features easy-to-use cleaning cycle
options including Top Rack, Rinse Only
and Heavy Wash.
Stay-Put Door
The door that stays put at whatever
angle you open it.
ENERGY STAR®
NSF® International
Certification
Available in:
1 Select model only.
Dishwashers
FGBD2431N F/ W/ B / Q
Stainless
(F)
White
(W)
Black
(B)
Bisque
(Q)
Quiet Dishwasher
A quiet performance every time so it
won’t interrupt your time at home.
Eortless™ Dry
Get outstanding drying performance
with Effortless™ Dry.
Delay Start
2-4-6-hour delay start option. Set
your dishwasher to run on your
schedule.
Built With American Pride
Appliances that are high-performing,
more accessible, and more innovative
than ever — designed, built and
engineered in the U.S.A.
Disclaimer (approved for print) -
Applies to select freestanding
ranges, dishwashers, top mount
refrigerators and freezers that are
designed, assembled and engi-
neered in the U.S.A. See
frigidaire.com for additional model
details.
Use the below disclaimer only
when the "built with American
Pride" logo is used with a group of
products. If this logo is used in
direct relation to a qualified prod-
uct - then the disclaimer does not
need to be used.
Specifications
subject to change.
Accessories information available
on the web at frigidaire.com
Features
Control Design
Digital Display
Door Latch / Stay-Put Door Hinge Design
Low Rinse-Aid Indicator Light
Interior Design / Interior Color
Wash System
Wash Levels / Wash Speeds
DishSense™ Technology
AquaSurge™ Technology
Sound Package
Filter / Filter Trap
Soft Food Disposer
dB Level
Drying System
Cycles
Number of Cycles
Heavy
Normal
Light
Quick
Favorite
China Crystal
Rinse Only
Energy Saver Plus
Upper Rack Wash Only
Cycle Indicator Light / Control Lock
Options
Heat / No Heat Dry
Hi-Temp Wash
NSF® Certified Sanitize Rinse
Delay Start
Rack System
Rack Design
Rack Coating
Upper Rack –
Rack Handles
Stemware / Champagne Glass Holders
Fold-Down Tines
Cup Shelves
Versa-Tray™
Adjustable Rack
Lower Rack –
SpaceWise® Silverware Basket
Fold-Down Tines
Small Items Cover
Certifications
ENERGY STAR®
NSF® International Certification
Specifications
Water Inlet Location
Water Usage (Gallons)
Water Pressure (PSI)
Integral Air Gap on Supply
Leveling Legs
Power Supply Connection Location
Voltage Rating
Connected Load (kW Rating) @ 120 Volts 1
Amps @ 120 Volts
Shipping Weight (Approx.)
Slimline Express-Select®
Yes / Yes
Tall Tub / White
Direct
5 / 1
UltraQuiet™ 3
S. Steel / Removable
Yes
55
Eortless™ Dry
5
Yes
Yes
Yes
Yes
No / Yes
Yes
Yes
Yes
2–4–6 Hour
Deluxe
PVC
Yes
Yes
2
Ultra 1
Yes
Yes
Left Bottom Front
4.9 – 8.5
20 – 120
Yes
4
Right Bottom Front
120V / 60 Hz / 15A
1.44
10
72

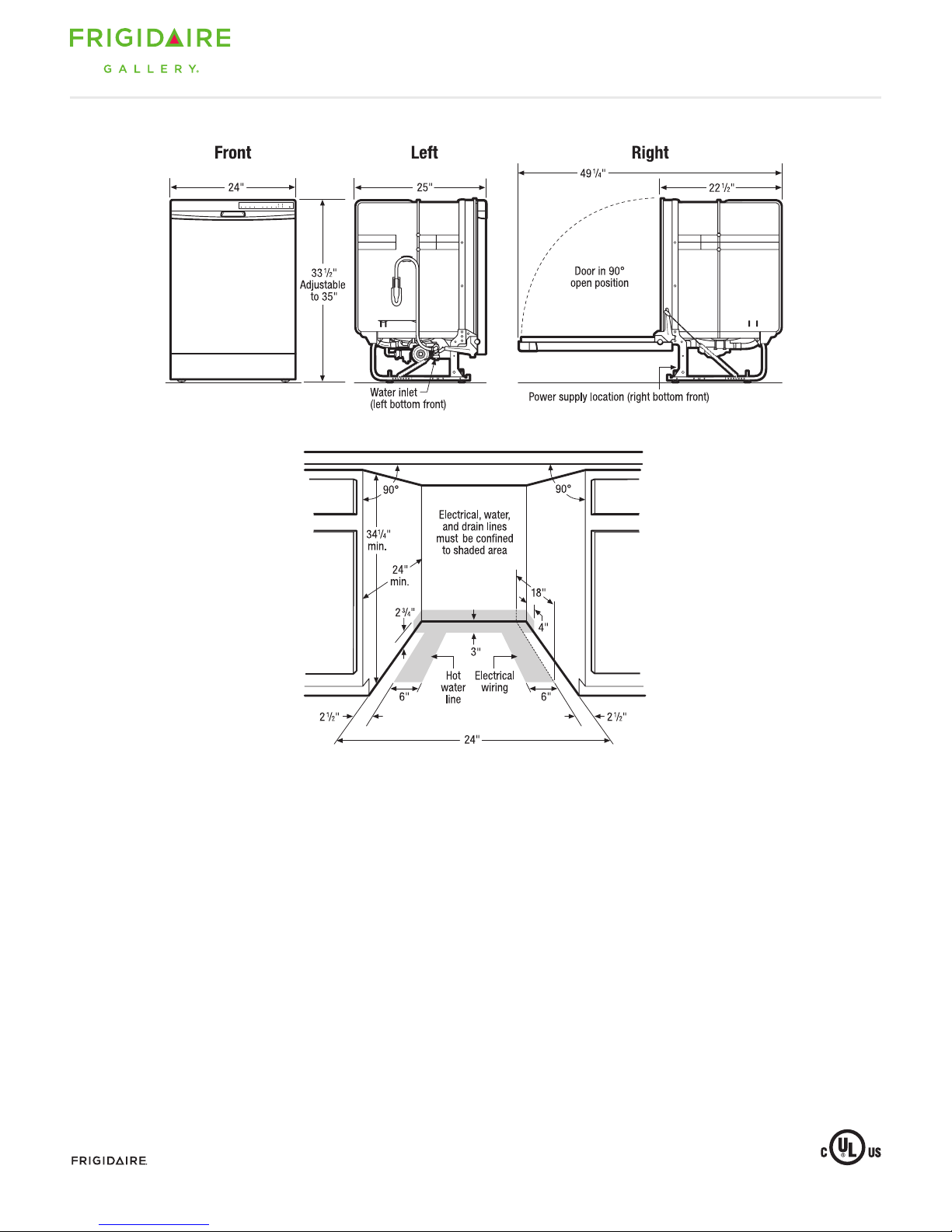

Product Dimensions
A - Height (Adjustable)
B - Width
C - Depth (Including Door)
D - Depth (To Tub Flange)
Depth with Door Open 90˚
33-1/2" – 35"
24"
25"
22-1/2"
49-1/4"
Cutout Dimensions
Height (Min.)
Height (Max.)
Width (Min.)
Depth (Min.)
34-1/4"
35-1/4"
24"
24"
NOTE: For planning purposes only. Always consult local and national electric and plumbing codes.
Refer to Product Installation Guide for detailed installation instructions on the web at frigidaire.com.
Meets requirements
of ASSE 1006
1 For use on adequately wired 120V, dedicated circuit having 2-wire service
with a separate ground wire. Appliance must be grounded for safe operation.
USA
•
10200 David Taylor Drive
•
Charlotte, NC 28262
•
1-800-FRIGIDAIRE
•
frigidaire.com
CANADA
•
5855 Terry Fox Way
•
Mississauga, ON L5V 3E4
•
1-800-265-8352
•
frigidaire.ca
FGBD2431N 03/12 © 2012 Electrolux Home Products, Inc.
Dishwashers
FGBD2431N F/ W/ B / Q 24" Built-In
24" Built-In Dishwasher
w/Slimline Controls (SC) and no vent
Frigidaire Gallery
Specifications
subject to change.
Meets
requirements of
ASSE 1006
Dishwashers
FGBD2431N F/ W/ B / Q 24" Built-In
USA
•
10200 David Taylor Drive
•
Charlotte, NC 28262
•
1-800-FRIGIDAIRE
•
frigidaire.com
CANADA
•
5855 Terry Fox Way
•
Mississauga, ON L5V 3E4
•
1-800-265-8352
•
frigidaire.ca
FGBD2431N 03/12 © 2012 Electrolux Home Products, Inc.
Dishwasher Specifications
•Product Shipping Weight (approx.) – 72 Lbs.
•Voltage Rating – 120V / 60 Hz / 15 Amps (maximum 20 Amps if
connected with disposer)
•Connected Load (kW Rating) @ 120 Volts = 1.44 kW
(For use on adequately wired 120V, dedicated circuit having 2-wire
service with a separate ground wire. Appliance must be grounded
for safe operation.)
•Amps @ 120V = 10 Amps
•Always consult local and national electric & plumbing codes.
Meets requirements of ASSE 1006 — integral air gap on supply.
•Water Pressure – Hot water line to dishwasher must provide
between 20 and 120 pounds per square inch (psi).
•Make sure location has right drain, water and electrical outlets
to make connections.
•Keep back free of drain, water & electrical supply.
•Electrical and water supplies should enter cabinet opening on floor,
or through back or side walls, as shown in shaded areas.
•Connections preferably located toward left side of dishwasher. Do not
cross drain, water or electrical lines in front of motor, blower or frame.
•When installing adjacent to wall, cabinet or other obstruction that
extends beyond front edge of unit, allow 2" minimum clearance
between opened door and obstruction.
•When installing at end of cabinet line, sides must be fully enclosed.
•Do not install unit under a cooktop, damage will occur.
Note: For planning purposes only. Refer to Product Installation Guide
on the web at frigidaire.com for detailed instructions.
24" Built-In Dishwasher w/Slimline Controls (SC)
Gallery (FGBD2431N)
Specifications
subject to change.
USA
•
10200 David Taylor Drive
•
Charlotte, NC 28262
•
1-800-FRIGIDAIRE
•
frigidaire.com
CANADA
•
5855 Terry Fox Way
•
Mississauga, ON L5V 3E4
•
1-800-265-8352
•
frigidaire.ca
INSTGDLNS_SSR FR 02/12 © 2012 Electrolux Home Products, Inc.
General Installation Guidelines
with Side-by-Side Refrigerator
Top
Use these dimensions and clearance instructions for planning purposes only. For detailed installation
instructions, refer to installation guide, packed with product, or on the web at frigidaire.com.
Front
Top
Front
Specifications
subject to change.
USA
•
10200 David Taylor Drive
•
Charlotte, NC 28262
•
1-800-FRIGIDAIRE
•
frigidaire.com
CANADA
•
5855 Terry Fox Way
•
Mississauga, ON L5V 3E4
•
1-800-265-8352
•
frigidaire.ca
INSTGDLNS_TMR FR 02/12 © 2012 Electrolux Home Products, Inc.
Use these dimensions and clearance instructions for planning purposes only. For detailed installation
instructions, refer to installation guide, packed with product, or on the web at frigidaire.com.
Front
Top
Front
Top

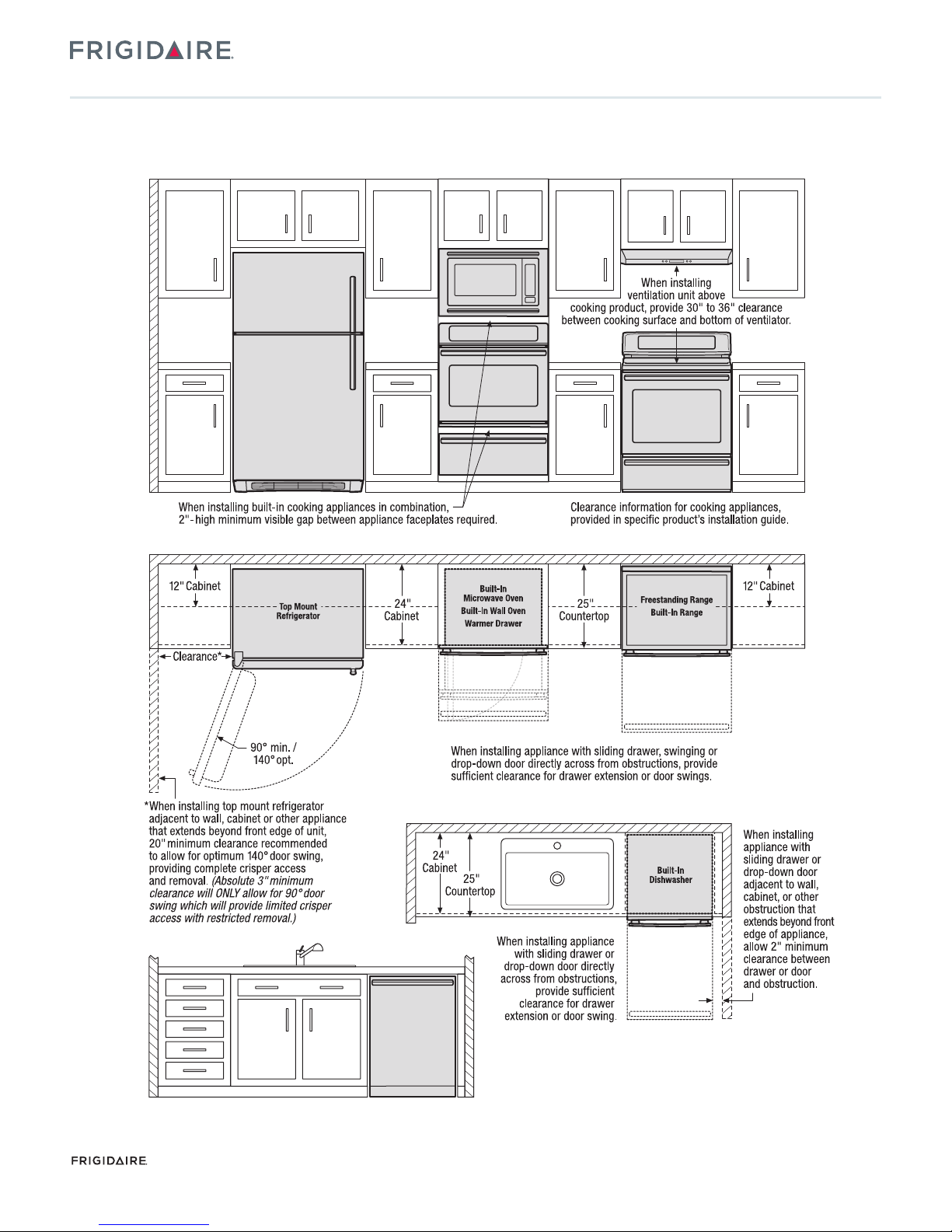

General Installation Guidelines
with Top Mount Refrigerator
Specifications
subject to change.
USA
•
10200 David Taylor Drive
•
Charlotte, NC 28262
•
1-800-FRIGIDAIRE
•
frigidaire.com
CANADA
•
5855 Terry Fox Way
•
Mississauga, ON L5V 3E4
•
1-800-265-8352
•
frigidaire.ca
INSTGDLNS_FDR FR 02/12 © 2012 Electrolux Home Products, Inc.
Top
Use these dimensions and clearance instructions for planning purposes only. For detailed installation
instructions, refer to installation guide, packed with product, or on the web at frigidaire.com.
Front
Top
Front

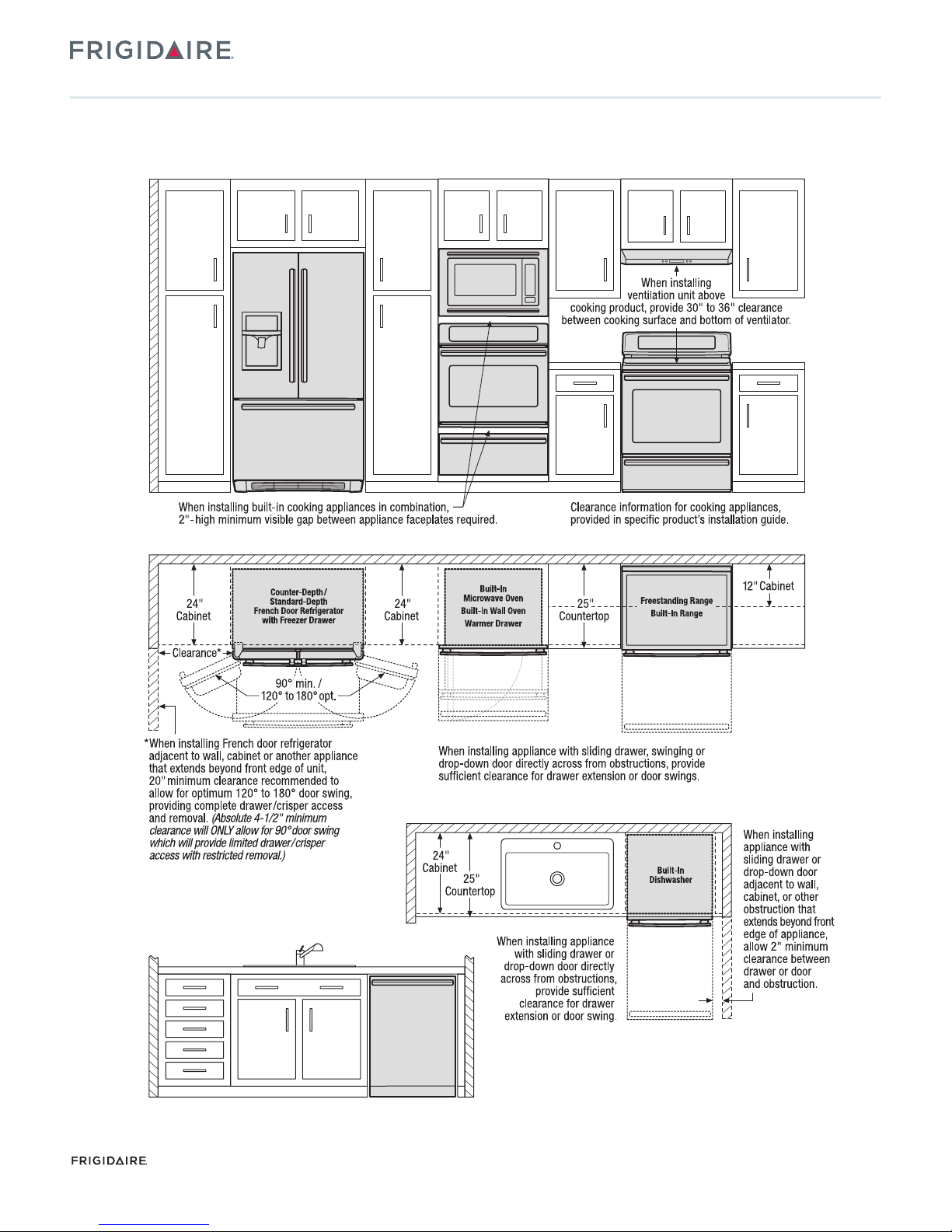

General Installation Guidelines
with French Door Refrigerator
