Frigidaire FDBB2455F User manual

P30L0058.eps P30C0143.eps P30B0037.eps P30U0021.eps P30M0036.eps P30F0022.eps

P30R0082.eps

Product No. FDBB2455FB0 FDBB2455FS0

Series Built-in 24" Built-in 24"

Color black white

Owner's Guide English 154575701 154575701

Owner's Guide Spanish 154575703 154575703

Owner's Guide French 154575702 154575702

Service Data Sheet 154493101 154493101

Energy Guide 154540035 154540035

Installation Instructions 154427301 154427301

Market North America North America

Electrolux Major Appliances

North & Latin America

P.O. BOX 212378

AUGUSTA, GA 30917

Publication No.

5995474458

06/09/18

(EN/SERVICE/ECL)

821

24-INCH BUILT-IN

DISHWASHER

Model No.

FDBB2455F

Publication No: 5995474458 FDBB2455F

09/06 2

CONTROL PANEL

P30C0143

FDBB2455F Publication No: 5995474458

# Functional Parts 3 09/06

* Non-Illustrated Parts

CONTROL PANEL

Model Index: AFDBB2455F (FDBB2455FS0)

BFDBB2455F (FDBB2455FB0)

POS. NO PART NO. DESCRIPTION

1 154486001 A - Panel, control, white

1 154486003 - B Panel, control, black

2 154525501 A - Insert, control panel, white

2 154525503 - B Insert, control panel, black

3 154555004 A B Board, control

3* 154200401 A B Screw, 6-10 x 3/8, pan plask

4 154554601 A B Cover, control

4* 154478901 A B Gasket, cover

8 # 154474601 A B Switch, selector, 10 pad

8* 5303318719 A B Screw, mtg.

8A 154486201 A B Shield, tactile switch

20 154423601 A B Vent assy, active dry, w/actuator

20* 154436201 A B Screw, dry duct, (3)

27 154433501 A B Actuator, active dry vent

28 154474401 A B Adapter, vent

* 154546801 A B Wiring Harness, main

* 154540035 A B Energy guide label

Publication No: 5995474458 FDBB2455F

09/06 4

DOOR

FDBB2455F Publication No: 5995474458

# Functional Parts 5 09/06

* Non-Illustrated Parts

DOOR

Model Index: AFDBB2455F (FDBB2455FS0)

BFDBB2455F (FDBB2455FB0)

POS. NO PART NO. DESCRIPTION

1 154430501 A B Spring, door, (2)

1A 154325201 A B Linkage, door spring, (2)

2 154093301 A B Screw, arm assy, (4)

3 154558103 A B Arm Assy, LH

3A 154558503 A B Arm Assy, RH

* 154529101 A B Pin, arm assy

5 154079601 A B Nut, arm assy, and handle mtg.

7 154494603 A B Liner, door assy., grey

9 154542104 A B Dispenser, det/rinse aid, w/read

9* 154294701 A B Screw, #7 plas .375, (6), disp. assy.

10 154103702 A B Screw, latch mtg, (2)

12 154529401 A - Latch assy, white

12 154529403 - B Latch assy, black

20 154436801 A - Door Assy, white, outer

20 154436803 - B Door Assy, black, outer

20* 154253201 A B Insulation, door

20* 5304428306 A B Screw, door mtg., (2)

49 154576501 A B Gasket, door, bottom

50 154211401 A B Support, door hinge

51 154320301 A B Clamp, drip loop, wire

* 154200601 A B Screw, #10-16 x 3/8

Publication No: 5995474458 FDBB2455F

09/06 6

TUB

FDBB2455F Publication No: 5995474458

# Functional Parts 7 09/06

* Non-Illustrated Parts

TUB

Model Index: AFDBB2455F (FDBB2455FS0)

BFDBB2455F (FDBB2455FB0)

POS. NO PART NO. DESCRIPTION

1 # 154594101 A B Tub assy, w/frame parts

2 154429101 A B Strike, door

3 # 154561001 A B Gasket, tub

4 154200602 A B Screw, 10-16 x 3/8, hex

5 5304456938 A B Roller, tub, grey, (8), w/screw+washer

6 5303943103 A B Screw, w/washer, (8)

22 154446002 A B Tubing, water inlet

23 5303318539 A B Clamp, tubing, (2)

24 # 154525301 A B Hose, drain

25 # 154209702 A B Float, grey

28 154408701 A B Switch Assy, float

29 # 154290204 A B Thermostat, re-settable

30 154241101 A B Retainer, thermostat

30* 154297701 A B Screw, retainer-thermo

* 154447102 A B Insulation, blanket

* 154447301 A B Insulation, tub back

* 154041001 A B Screw, plask #1, 10-10 x 9/16

* 5300807270 A B Screw, (2), countertop mtg.

Publication No: 5995474458 FDBB2455F

09/06 8

MOTOR & PUMP

FDBB2455F Publication No: 5995474458

# Functional Parts 9 09/06

* Non-Illustrated Parts

MOTOR & PUMP

Model Index: AFDBB2455F (FDBB2455FS0)

BFDBB2455F (FDBB2455FB0)

POS. NO PART NO. DESCRIPTION

1 # 154482901 A B Heater, round

1* 154106201 A B Nut, heater, (2)

1* 154289801 A B Shield, heater terminal

2 154465101 A B Bracket, heater, (2)

10 154245501 A B Cover, volute

13 154246801 A B Gasket, sump

14 154461902 A B Housing, sump

16 154246502 A B Retainer, sump

24 154467702 A B Spray arm, grey, lower

24A 154468502 A B Spray arm, grey, center

24B 154478202 A B Spray arm, 3rd level, grey

32 154464101 A B Tube, delivery

32* 154491101 A B Screw, delivery tube

32A 154406401 A B Gasket, delivery tube

40 154106801 A B Clamp, hose, worm/drain

40* 154380601 A B Clamp, hose, worm/gear

54 154234401 A B Hose, connector

55 154362301 A B Bracket, motor

55* 5303316032 A B Screw, truss ss, 8 .625

58 154246402 A B Check ball

59 154246901 A B O-ring, rear

59A 154247001 A B O-ring, front

60 154491301 A B Pump, drain

60* 5303318719 A B Screw, mtg.

61 154463402 A B Grommet, delivery tube

62 154294102 A B Support, spray arm, grey, lower

63 154252201 A B Base, soil director

64 154252302 A B Filter, soil director, grey

65 154283005 A B Filter Assy, grey

66 154252702 A B Trap, glass, grey

70 # 154574701 A B Motor & Pump Assy

71 # 154473901 A B Sensor, turbidity

71* 154376001 A B O-ring, turbidity

* 154200601 A B Screw, #10-16 x 3/8

Publication No: 5995474458 FDBB2455F

09/06 10

FRAME

This manual suits for next models

Table of contents

Other Frigidaire Dishwasher manuals

Frigidaire

Frigidaire FGHD2455 User manual

Frigidaire

Frigidaire GLDB957JB User manual

Frigidaire

Frigidaire LFID2422RF4B Owner's manual

Frigidaire

Frigidaire FMB330RGS0 User manual

Frigidaire

Frigidaire FDB1500LFS0 User manual

Frigidaire

Frigidaire GDP635RHR2 User manual

Frigidaire

Frigidaire FDB125RHS0 User guide

Frigidaire

Frigidaire FDB2410HIB0 User manual

Frigidaire

Frigidaire FDB435RFS2 User manual

Frigidaire

Frigidaire 650 Series User manual

Frigidaire

Frigidaire GLD2162RDC0 User guide

Frigidaire

Frigidaire FPID2497RF Owner's manual

Frigidaire

Frigidaire FDB989GFW2 User manual

Frigidaire

Frigidaire FFBD2406NB User manual

Frigidaire

Frigidaire FDB421RF User manual

Frigidaire

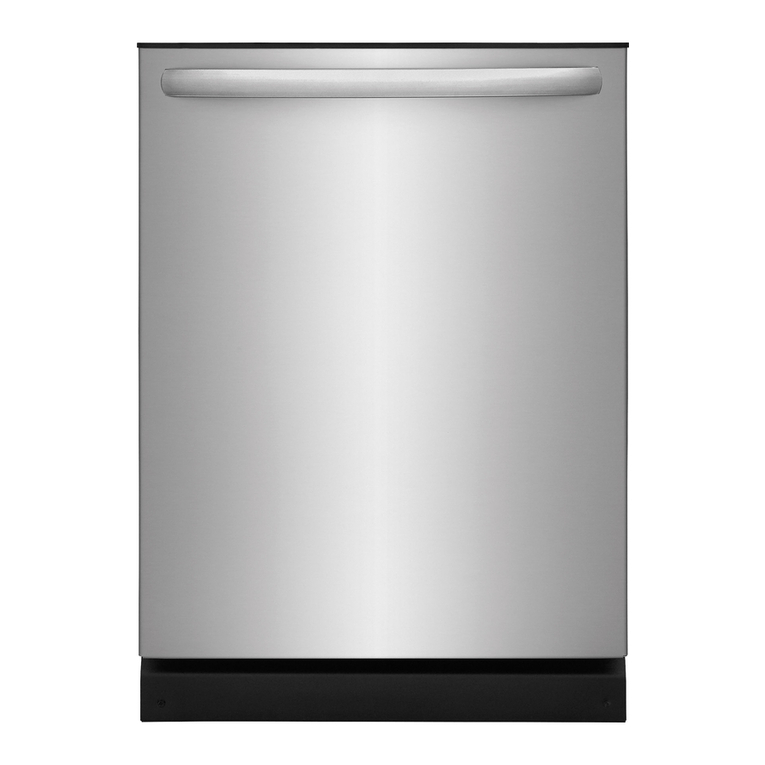

Frigidaire FFID2426TS User manual
