Frigidaire FDB857RJ User manual

PRODUCT NO. BASE MODEL NO. SERIES COLOR

FDB857RJB0 FDB857RJ 24" Built-in black

FDB857RJS0 FDB857RJ 24" Built-in white

MARKET

North America

Publication No.

5995342739

000828

-EN/SERVICE /ECL

821

24" BUILT IN

DISHWASHER

Model No.

FDB857RJ

FACTORY PARTS CATALOG

DISHWASHER

SERVICE DATA SHEET # - 154371501

OWNER’S GUIDE # - 154375301

WIRING DIAGRAM # - 154371501

101 Masters Blvd.

Anderson, SC 29624

08/00 2

Publication No. FDB857RJ

5995342739

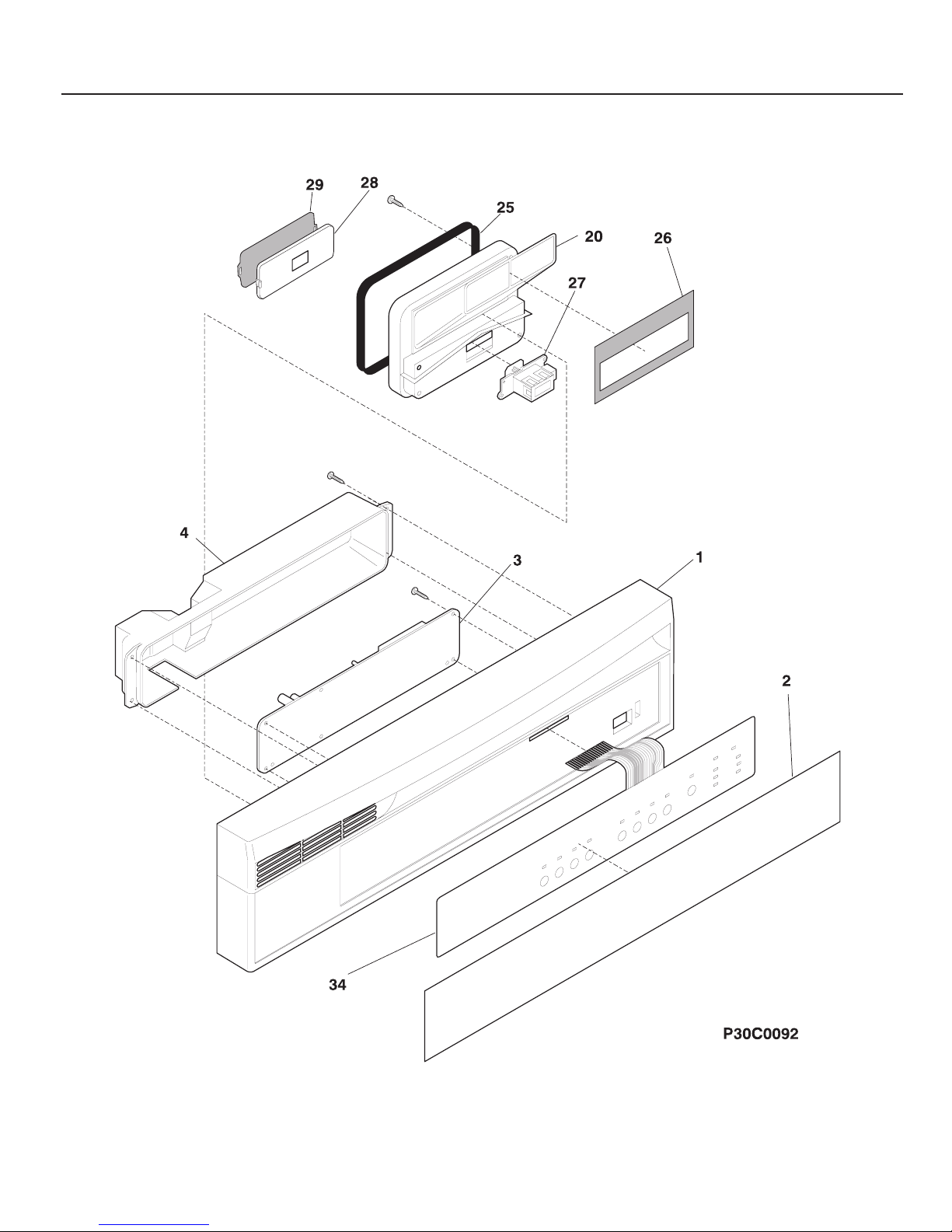

CONTROL PANEL

# = Fast Moving Part 3 08/00

* = Non-Illustrated Part

FDB857RJ Publication No.

5995342739

CONTROL PANEL

A = FDB857RJ (FDB857RJB0)

B = FDB857RJ (FDB857RJS0)

POS. NO PART NO DESCRIPTION

1 154378403 A - Panel-control,black

1 154378401 - B Panel-control,white

2 154378503 A - Insert-control pnl,black

2 154378501 - B Insert-control pnl,white

3 # 154362807 A B Control

3* 154200401 A B Screw,6-10 x 3/8 ,pan plask

4 154287802 A B Cover-control

20 154283701 A B Vapor Weldment Assy

25 154229201 A B Seal-chamber

26 154303901 A B Gasket-vent

27 154226701 A B Actuator-wax

28 154226901 A B Valve-vent

29 154226403 A B Gasket-valve

34 # 154378601 A B Keypad,9pad

* 154227501 A B Thermister

* 154283901 A B Screw,#8-10 ,3/8 phillips

* # 154371001 A B Wiring Harness

08/00 4

Publication No. FDB857RJ

5995342739

DOOR

# = Fast Moving Part 5 08/00

* = Non-Illustrated Part

FDB857RJ Publication No.

5995342739

A = FDB857RJ (FDB857RJB0)

B = FDB857RJ (FDB857RJS0)

POS. NO PART NO DESCRIPTION

1 154365701 A B Spring-door,(2)

1A 154325201 A B Spring linkage,(2)

2 154093301 A B Screw-arm assy,(4)

3 154325304 A B Arm Assy,LH

3A 154325303 A B Arm Assy,RH

* 154211501 A B Pin-arm

5 154079601 A B Nut-arm assy,(4)

7 154299002 A B Door-inner assy

7A 154226601 A B Liner grate

9 154230101 A B Dispenser-det/rinse aid

9* 154294701 A B Screw,#7 plas .375 ,(6) ,disp. assy.

10 154103702 A B Screw-latch mtg,(2)

12 # 154361203 A - Latch assy,black

12 # 154361201 - B Latch assy,white

20 154359103 A - Door,black

20 154359101 - B Door,white

49 154297602 A B Gasket-door,bottom

50 154211401 A B Support-door hinge

* 154320301 A B Clamp-wire,drip loop

* 154253201 A B Insulation,door

DOOR

08/00 6

Publication No. FDB857RJ

5995342739

TUB

# = Fast Moving Part 7 08/00

* = Non-Illustrated Part

FDB857RJ Publication No.

5995342739

A = FDB857RJ (FDB857RJB0)

B = FDB857RJ (FDB857RJS0)

POS. NO PART NO DESCRIPTION

1 # 154209301 A B Tub assy,w/frame parts

2 154211601 A B Strike-door

3 # 154211801 A B Gasket-tub

4 154200602 A B Screw,10-16 x 3/8 ,hex

5 154333901 A B Roller-tub

6 5303943103 A B Screw w/washer,(8)

22 154239801 A B Tubing-water inlet

23 5303318539 A B Clamp-tubing,(2)

24 # 154225602 A B Hose-drain

25 # 154209701 A B Float

28 # 154225501 A B Switch-float

28A 154209801 A B Bracket-float switch

28A* 154333301 A B Screw,bracket mtg ,ph truss head

29 # 154290204 A B Thermostat,re-settable

30 154241101 A B Retainer-thermostat

30* 154297701 A B Screw,retainer-thermo

* 154238304 A B Insulation,tub

* 154360201 A B Insulation,blanket ,back

* 5300807270 A B Screw,(2) ,countertop mtg.

* 154041001 A B Screw,plask #1 ,10-10 x 9/16

TUB

08/00 8

Publication No. FDB857RJ

5995342739

MOTOR & PUMP

# = Fast Moving Part 9 08/00

* = Non-Illustrated Part

FDB857RJ Publication No.

5995342739

A = FDB857RJ (FDB857RJB0)

B = FDB857RJ (FDB857RJS0)

POS. NO PART NO DESCRIPTION

1 # 154247601 A B Heater

1* 154106201 A B Nut-heater,(2)

1* 154289801 A B Shield-heater terminal

2 154359701 A B Bracket-heater,(2)

7 154245901 A B Macerator

10 154245501 A B Cover-volute

12 154245801 A B Impeller

12* 154282701 A B Screw,ss impeller

13 154246801 A B Gasket-sump

14 154365902 A B Housing-sump

15 # 154246701 A B Check valve

16 154246502 A B Retainer,sump

24 154250801 A B Spray arm-lower

24A 154313601 A B Spray arm-center

24A* 154252001 A B Nut-spray arm

32 154251701 A B Tube-delivery

32A 154358901 A B Gasket-delivery tube

34 154064901 A B Washer-insulating

40 154348401 A B Clamp,red ,pump

40 154348501 A B Clamp,silver ,pump

40* 154106801 A B Clamp-hose,(2)

54 154234401 A B Hose-connector

55 154325701 A B Bracket-motor

55* 5303316032 A B Screw,truss ss ,8 .625

55A 154246201 A B Bracket-motor,front

57 154246001 A B Barrel,front

57* 154246101 A B Barrel,rear

58 154246402 A B Check ball

59 154246901 A B O-ring,rear

59A 154247001 A B O-ring,front

60 154247502 A B Drain Pump Assy

60* 154234501 A B Bracket-motor,drain

61 154359601 A B Nozzle,3rd level ,spray arm

62 154294101 A B Support-spray arm

63 154252201 A B Base-soil director

64 154252301 A B Filter-soil director

65 154252401 A B Filter-polypro

66 154252701 A B Trap-glass

67 154246601 A B Hose-drain,shunt

70 # 154291504 A B Motor & Pump Assy,includes#7,#12 ,

#55A,#57,#59,,#59A

70* 154287201 A B Screw,motor mounting

* 154200601 A B Screw-#10-16 x 3/8

* 154329001 A B Cover-fan

* 154338601 A B Clamp-P,nylon

MOTOR & PUMP

08/00 10

Publication No. FDB857RJ

5995342739

FRAME
