Frigidaire FDB641RJ User manual
PRODUCT NO. BASE MODEL NO. SERIES COLOR
FDB641RJB1 FDB641RJ Built-in 24" black
FDB641RJS1 FDB641RJ Built-in 24" white
MARKET
North America
Publication No.
5995353926
010523
-EN/SERVICE /ECL
821
24" Built-In
DISHWASHER
Model No.
FDB641RJ
©2001 White Consolidated Industries, Inc.
All rights reserved
FACTORY PARTS CATALOG
DISHWASHER
SERVICE DATA SHEET # - 154403001
OWNER’S GUIDE # - 154403601
INSTALLATION INSTRUCTIONS # - 154373601
ELECTROLUX HOME PRODUCTS NORTH AMERICA
P.O. Box 212378, Augusta, GA 30917
05/01 2
Publication No. FDB641RJ
5995353926
CONTROL PANEL
# = Fast Moving Part 3 05/01
* = Non-Illustrated Part
FDB641RJ Publication No.
5995353926
CONTROL PANEL
A = FDB641RJ (FDB641RJB1)
B = FDB641RJ (FDB641RJS1)
POS. NO PART NO DESCRIPTION
1 154368203 A - Panel-control,black
1 154368201 - B Panel-control,white
2 154372103 A - Insert-control pnl,black
2 154372101 - B Insert-control pnl,white
3 # 154351102 A B Timer
3* 5303318719 A B Screw,mtg.
8 # 154373701 A B Switch-selector,6 button
8* 154248601 A B Shield-switch
13 154239503 A - Knob-timer,black
13 154239501 - B Knob-timer,white
20 154345101 A B Vapor Chamber Assy,w/ vent gasket
25 154229201 A B Seal-chamber
26 154303901 A B Gasket-vent
27 154226701 A B Actuator-wax
28 154226901 A B Valve-vent
29 154226403 A B Gasket-valve
* # 154394201 A B Wiring Harness,main
* 154283901 A B Screw,#8-10 ,3/8 phillips
05/01 4
Publication No. FDB641RJ
5995353926

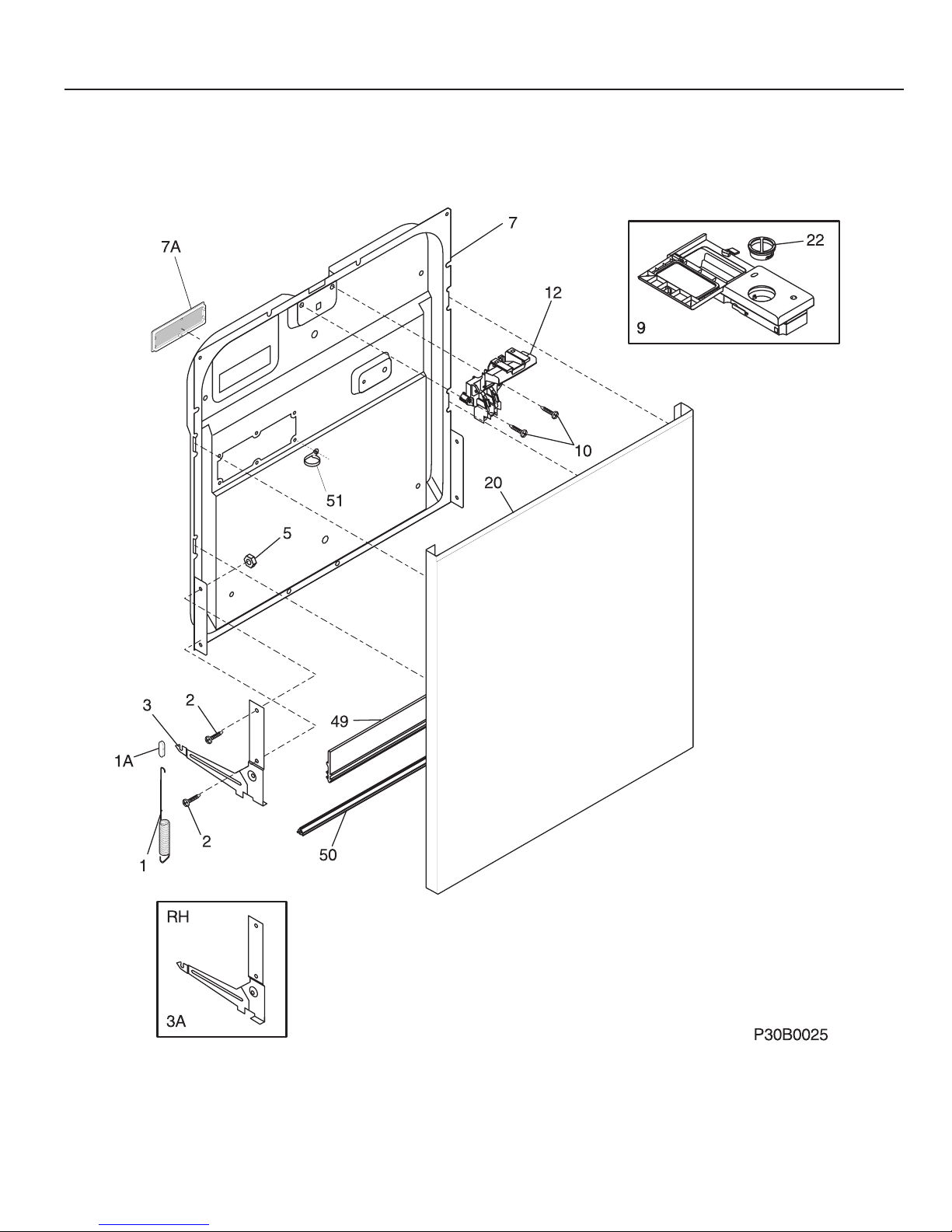

DOOR
# = Fast Moving Part 5 05/01
* = Non-Illustrated Part
FDB641RJ Publication No.
5995353926
A = FDB641RJ (FDB641RJB1)
B = FDB641RJ (FDB641RJS1)
POS. NO PART NO DESCRIPTION
1 154345902 A B Spring-door,(2)
1A 154325201 A B Spring linkage,(2)
2 154093301 A B Screw-arm assy,(4)
3 154325304 A B Arm Assy,LH
3A 154325303 A B Arm Assy,RH
* 154211501 A B Pin-arm
5 154079601 A B Nut-arm assy,(4)
7 154299002 A B Door-inner assy
7A 154226601 A B Liner grate
9 154230101 A B Dispenser-det/rinse aid,includes #22
9* 154294701 A B Screw,#7 plas .375 ,(6) ,disp. assy.
10 154103702 A B Screw-latch mtg,(2)
12 # 154361203 A - Latch assy,black
12 # 154361201 - B Latch assy,white
20 154359107 A - Door,black
20 154359105 - B Door,white
22 154388801 A B Cap-rinse aid
49 154297602 A B Gasket-door,bottom
50 154211401 A B Support-door hinge
51 154320301 A B Clamp-wire,drip loop
* # 154227808 A B Thermostat-temp boost
* 154200601 A B Screw-#10-16 x 3/8
DOOR
05/01 6
Publication No. FDB641RJ
5995353926
TUB
# = Fast Moving Part 7 05/01
* = Non-Illustrated Part
FDB641RJ Publication No.
5995353926
A = FDB641RJ (FDB641RJB1)
B = FDB641RJ (FDB641RJS1)
POS. NO PART NO DESCRIPTION
1 # 154209301 A B Tub assy,w/frame parts
2 154211601 A B Strike-door
3 # 154211801 A B Gasket-tub
4 154200602 A B Screw,10-16 x 3/8 ,hex
5 154333901 A B Roller-tub
6 5303943103 A B Screw w/washer,(8)
22 154239801 A B Tubing-water inlet
23 5303318539 A B Clamp-tubing,(2)
24 # 154225602 A B Hose-drain
25 # 154209701 A B Float
28 # 154225501 A B Switch-float
28A 154386601 A B Bracket-float switch
28A* 154333301 A B Screw,bracket mtg ,ph truss head
29 # 154290204 A B Thermostat,re-settable
30 154241101 A B Retainer-thermostat
30* 154297701 A B Screw,retainer-thermo
* 154238304 A B Insulation,tub
* 5300807270 A B Screw,(2) ,countertop mtg.
* 154041001 A B Screw,plask #1 ,10-10 x 9/16
* 154200701 A B Screw-#10-32 x 3/8
* 154200601 A B Screw-#10-16 x 3/8
TUB
05/01 8
Publication No. FDB641RJ
5995353926
MOTOR & PUMP
# = Fast Moving Part 9 05/01
* = Non-Illustrated Part
FDB641RJ Publication No.
5995353926
A = FDB641RJ (FDB641RJB1)
B = FDB641RJ (FDB641RJS1)
POS. NO PART NO DESCRIPTION
1 # 154247601 A B Heater
1* 154106201 A B Nut-heater,(2)
1* 154289801 A B Shield-heater terminal
2 154359701 A B Bracket-heater,(2)
10 154245501 A B Cover-volute
13 154246801 A B Gasket-sump
14 154365902 A B Housing-sump
16 154246502 A B Retainer,sump
24 154250801 A B Spray arm-lower
24A 154313601 A B Spray arm-center
24A* 154252001 A B Nut-spray arm
32 154251701 A B Tube-delivery
32A 154358901 A B Gasket-delivery tube
40 154348401 A B Clamp,red ,pump
40 154348501 A B Clamp,silver ,pump
40* 154106801 A B Clamp-hose,(2)
54 154234401 A B Hose-connector
55 154362301 A B Bracket-motor
55* 5303316032 A B Screw,truss ss ,8 .625
58 154246402 A B Check ball
59 154246901 A B O-ring,rear
59A 154247001 A B O-ring,front
60 154247502 A B Drain Pump Assy
60* 154234501 A B Bracket-motor,drain
61 154359501 A B Nozzle,2nd level ,spray arm
62 154294101 A B Support-spray arm
63 154252201 A B Base-soil director
64 154252301 A B Filter-soil director
65 154252401 A B Filter-polypro
66 154252701 A B Trap-glass
70 # 154395402 A B Motor assembly,circulation ,w/o o’rings
* 154338601 A B Clamp-P,nylon
* 154200601 A B Screw-#10-16 x 3/8
MOTOR & PUMP
05/01 10
Publication No. FDB641RJ
5995353926
FRAME
