Frigidaire FDB2321RE User manual
P30L0058.eps P30C0152.eps P30B0032.eps P30U0018.eps P30M0033.eps P30F0022.eps
P30R0090.eps
Product No. FDB2321REC0
Series Built-in 24"
Color stainless
Owner's Guide English 154482801
Owner's Guide Spanish 154483301
Service Data Sheet 154476001
Energy Guide 154540018
Installation Instructions 154427301
Market North America
Electrolux Major Appliances
North & Latin America
P.O. BOX 212378
AUGUSTA, GA 30917
Publication No.
5995442950
05/07/27
(EN/SERVICE/ECL)
821
24-INCH BUILT-IN
DISHWASHER
Model No.
FDB2321RE
Copyright ©2005 Electrolux Home Products, Inc.
All rights reserved.
Publication No: 5995442950 FDB2321REC0
07/05 2
CONTROL PANEL
FDB2321REC0 Publication No: 5995442950
# Functional Parts 3 07/05
* Non-Illustrated Parts
CONTROL PANEL
POS. NO PART NO. DESCRIPTION
1 154486003 Panel, control, black
2 154525403 Insert, control panel, black
3 # 154470603 Control, w/display
3* 154200401 Screw, 6-10 x 3/8, pan plask
4 154554601 Cover, control
4* 154478901 Gasket, cover
8 # 154475801 Switch, selector, 9 pad w/display
8* 5303318719 Screw, mtg.
8A 154486201 Shield, tactile switch
20 154433001 Vent assy, static dry
20* 154436201 Screw, dry duct, (3)
28 154474401 Adapter, vent
* # 154476401 Wiring Harness
* 154227501 Thermistor
* 154540018 Energy guide label
Publication No: 5995442950 FDB2321REC0
07/05 4

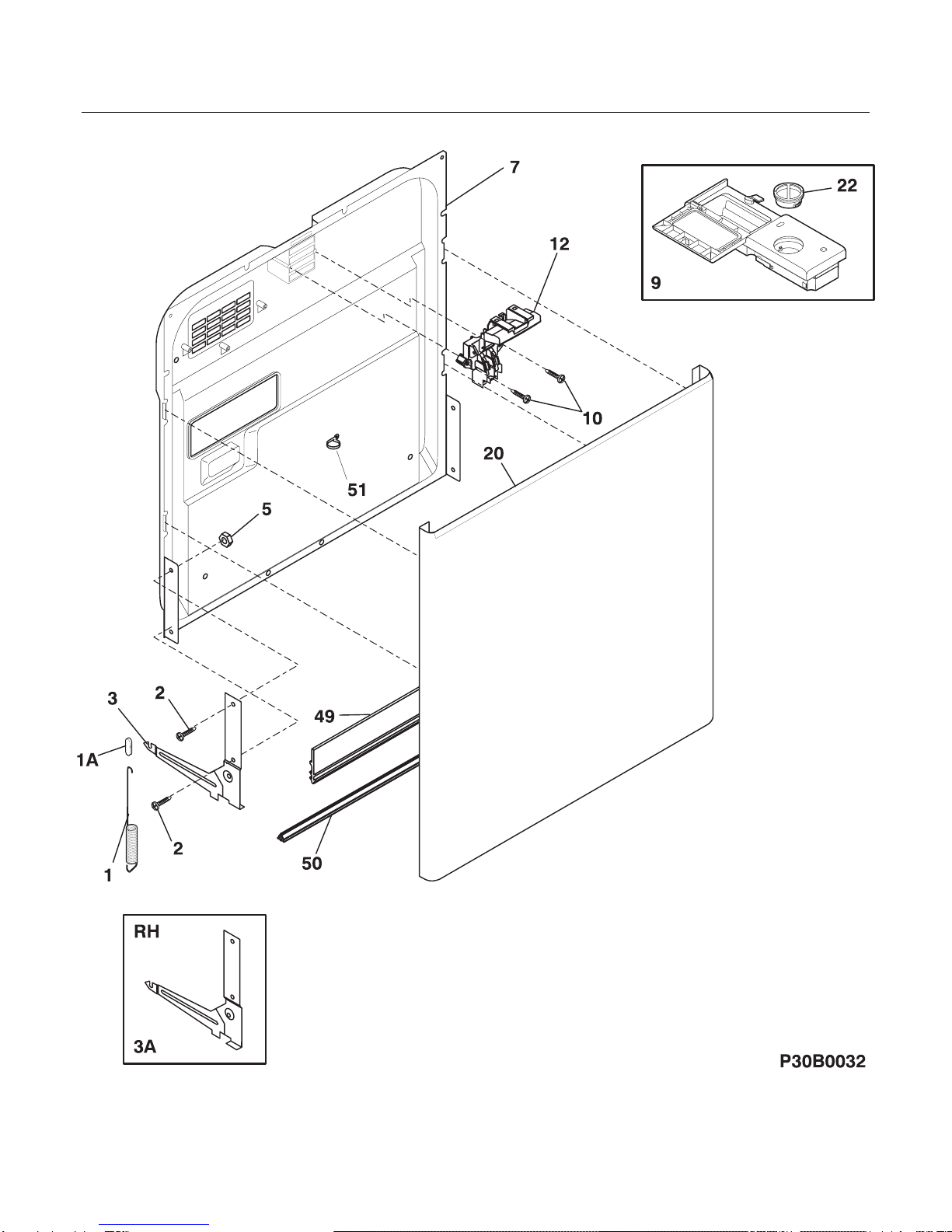

DOOR
FDB2321REC0 Publication No: 5995442950
# Functional Parts 5 07/05
* Non-Illustrated Parts
DOOR
POS. NO PART NO. DESCRIPTION
1 154430501 Spring, door, (2)
1A 154325201 Linkage, door spring, (2)
2 154093301 Screw, armassy, (4)
3 154325302 Arm Assy, LH
3 154558103 Arm Assy, LH
3A 154558503 Arm Assy, RH
* 154529101 Pin, arm assy
5 154079601 Nut, arm assy, and handle mtg.
7 154299004 Door, inner assy
9 154230103 Dispenser, det/rinse aid, includes #22
9* 154294701 Screw, #7 plas .375, (6), disp. assy.
10 154103702 Screw, latch mtg, (2)
12 # 154529403 Latch assy, black
20 154534401 Door, stainless
20* 5304428306 Screw, door mtg., (2)
22 154388801 Cap, Rinse aid
49 154297603 Gasket, door, bottom
50 154211401 Support, door hinge
51 154320301 Clamp, drip loop, wire
* 154200601 Screw, #10-16 x 3/8
Publication No: 5995442950 FDB2321REC0
07/05 6
TUB
FDB2321REC0 Publication No: 5995442950
# Functional Parts 7 07/05
* Non-Illustrated Parts
TUB
POS. NO PART NO. DESCRIPTION
1 # 154209301 Tub assy, w/frame parts
2 154429101 Strike, door
3 # 154561001 Gasket, tub
4 154200602 Screw, 10-16 x 3/8, hex
5 154333902 Roller, tub
6 5303943103 Screw, w/washer, (8)
22 154446001 Tubing, water inlet
23 5303318539 Clamp, tubing, (2)
24 # 154525301 Hose, drain
25 # 154209701 Float
28 154408701 Switch Assy, float
29 # 154290204 Thermostat, re-settable
30 154241101 Retainer, thermostat
30* 154297701 Screw, retainer-thermo
* 154447102 Insulation, blanket
* 154041001 Screw, plask #1, 10-10 x 9/16
* 5300807270 Screw, (2), countertop mtg.
Publication No: 5995442950 FDB2321REC0
07/05 8
MOTOR & PUMP
FDB2321REC0 Publication No: 5995442950
# Functional Parts 9 07/05
* Non-Illustrated Parts
MOTOR & PUMP
POS. NO PART NO. DESCRIPTION
1 # 154247601 Heater
1* 154106201 Nut, heater, (2)
1* 154289801 Shield, heater terminal
2 154479601 Bracket, heater, (2)
10 154245501 Cover, volute
13 154246801 Gasket, sump
14 154365902 Housing, sump
16 154246502 Retainer, sump
24 154414101 Spray arm, lower, w/heat shield
24A 154313601 Spray arm, center
24A* 154252001 Nut, spray arm, center
32 154406601 Tube, delivery
32A 154406401 Gasket, delivery tube
40 154348401 Clamp, red, pump
40 154348502 Clamp, red, pump
40* 154106801 Clamp, hose, (2)
40* 154380601 Clamp, hose, (1)
54 154234401 Hose, connector
55 154362301 Bracket, motor, askoll
55* 5303316032 Screw, truss ss, 8 .625
58 154246402 Check ball
59 154246901 O-ring, rear
59A 154247001 O-ring, front
60 154474101 Drain Pump Assy
60* 154426201 Bracket, motor, drain
60* 5303318719 Screw, mtg.
61 154406501 Nozzle, 3rd level, spray arm
62 154294101 Support, spray arm, lower
63 154252201 Base, soil director
64 154252301 Filter, soil director, white
65 154252401 Filter, polypro
66 154252701 Trap, glass
70 # 154536101 Motor assembly, circulation, w/o o'rings
* 154200601 Screw, #10-16 x 3/8
Publication No: 5995442950 FDB2321REC0
07/05 10
FRAME
