Frigidaire FDB2320RE User manual

P30L0058.eps P30C0152.eps P30B0032.eps P30U0018.eps P30M0033.eps P30F0022.eps

P30R0066.eps

Product No. FDB2320REB0 FDB2320REC0 FDB2320RES0

Series Built-in 24" Built-in 24" Built-in 24"

Color black stainless white

Owner's Guide English 154482801 154482801 154482801

Owner's Guide Spanish 154483301 154483301 154483301

Service Data Sheet 154476001 154476001 154476001

Energy Guide 154540018 154540018 154540018

Installation Instructions 154427301 154427301 154427301

Market North America North America North America

Electrolux Major Appliances

North & Latin America

P.O. BOX 212378

AUGUSTA, GA 30917

Publication No.

5995437653

05/05/25

(EN/SERVICE/ECL)

821

24-INCH BUILT-IN

DISHWASHER

Model No.

FDB2320RE

Publication No: 5995437653 FDB2320RE

05/05 2

CONTROL PANEL

FDB2320RE Publication No: 5995437653

# Functional Parts 3 05/05

* Non-Illustrated Parts

CONTROL PANEL

Model Index: AFDB2320RE (FDB2320REB0)

BFDB2320RE (FDB2320REC0)

CFDB2320RE (FDB2320RES0)

POS. NO PART NO. DESCRIPTION

1 154486003 A B - Panel, control, black

1 154486001 - - C Panel, control, white

2 154525403 A B - Insert, control panel, black

2 154525401 - - C Insert, control panel, white

3 # 154470603 A B C Control, w/display

3* 154200401 A B C Screw, 6-10 x 3/8, pan plask

4 154554601 A B C Cover, control

4* 154478901 A B C Gasket, cover

8 # 154475801 A B C Switch, selector, 9 pad w/display

8* 5303318719 A B C Screw, mtg.

8A 154486201 A B C Shield, tactile switch

20 154433001 A B C Vent assy, static dry

20* 154436201 A B C Screw, dry duct, (3)

28 154474401 A B C Adapter, vent

* # 154476401 A B C Wiring Harness

* 154227501 A B C Thermistor

* 154540018 A B C Energy guide label

Publication No: 5995437653 FDB2320RE

05/05 4

DOOR

FDB2320RE Publication No: 5995437653

# Functional Parts 5 05/05

* Non-Illustrated Parts

DOOR

Model Index: AFDB2320RE (FDB2320REB0)

BFDB2320RE (FDB2320REC0)

CFDB2320RE (FDB2320RES0)

POS. NO PART NO. DESCRIPTION

1 154430501 A B C Spring, door, (2)

1A 154325201 A B C Linkage, door spring, (2)

2 154093301 A B C Screw, arm assy, (4)

3 154325302 A B C Arm Assy, LH

3A 154325301 A B C Arm Assy, RH

* 154529101 A B C Pin, arm assy

5 154079601 A B C Nut, arm assy, and handle mtg.

7 154299004 A B C Door, inner assy

9 154230103 A B C Dispenser, det/rinse aid, includes #22

9* 154294701 A B C Screw, #7 plas .375, (6), disp. assy.

10 154103702 A B C Screw, latch mtg, (2)

12 # 154529403 A B - Latchassy,black

12 # 154529401 - - C Latch assy, white

12* 154532701 A B C Spacer, latch

20 154359007 A - - Door, black

20 154534401 - B - Door, stainless

20 154359006 - - C Door, white

20* 5304428306 A B - Screw, door mtg., (2)

22 154388801 A B C Cap, Rinse aid

49 154297603 A B C Gasket, door, bottom

50 154211401 A B C Support, door hinge

51 154320301 A B C Clamp, drip loop, wire

* 154200601 A B C Screw, #10-16 x 3/8

Publication No: 5995437653 FDB2320RE

05/05 6

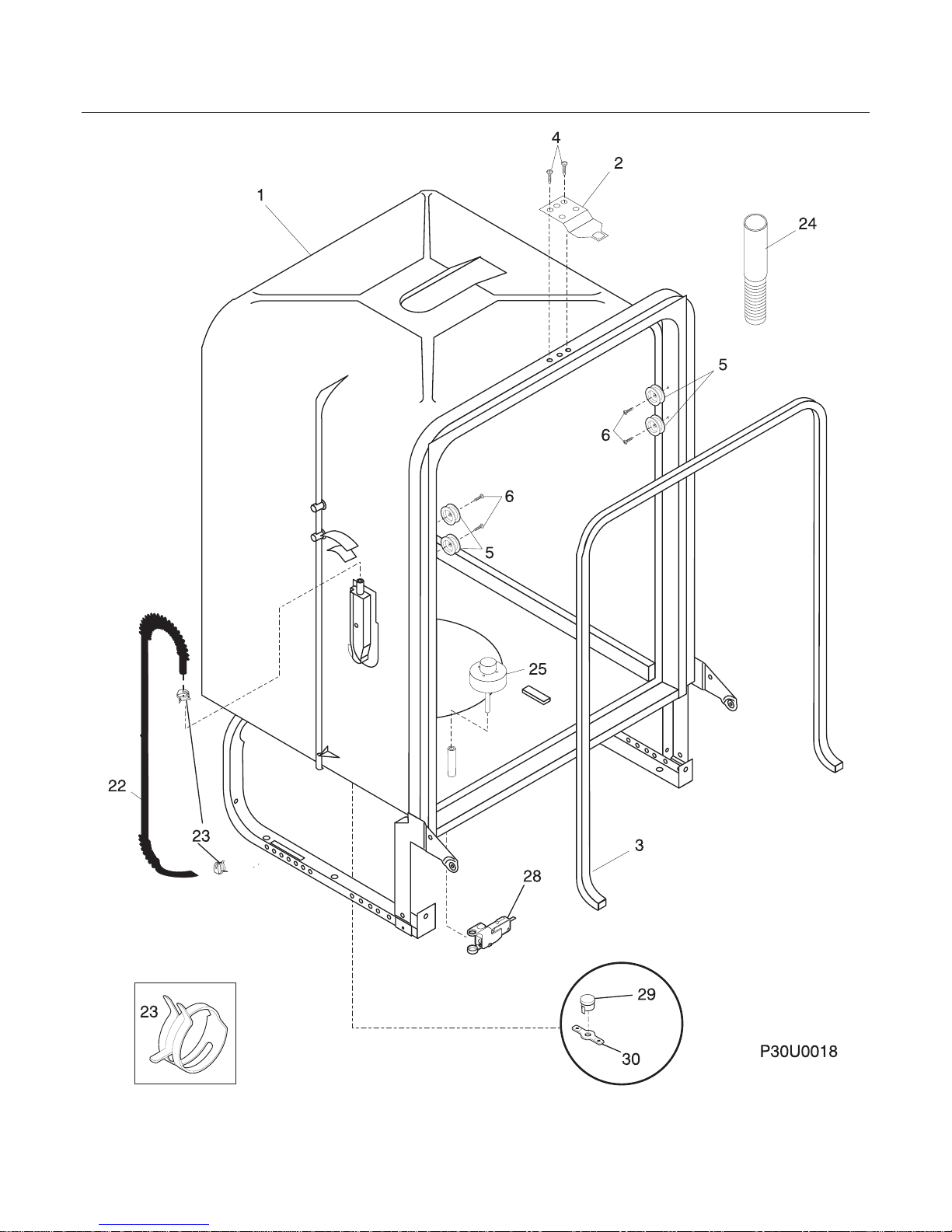

TUB

FDB2320RE Publication No: 5995437653

# Functional Parts 7 05/05

* Non-Illustrated Parts

TUB

Model Index: AFDB2320RE (FDB2320REB0)

BFDB2320RE (FDB2320REC0)

CFDB2320RE (FDB2320RES0)

POS. NO PART NO. DESCRIPTION

1 # 154209301 A B C Tub assy, w/frame parts

2 154429101 A B C Strike, door

3 # 154211801 A B C Gasket, tub

4 154200602 A B C Screw, 10-16 x 3/8, hex

5 154333902 A B C Roller, tub

6 5303943103 A B C Screw, w/washer, (8)

22 154446001 A B C Tubing, water inlet

23 5303318539 A B C Clamp, tubing, (2)

24 # 154525301 A B C Hose, drain

25 # 154209701 A B C Float

28 154408701 A B C SwitchAssy,float

29 # 154290204 A B C Thermostat, re-settable

30 154241101 A B C Retainer, thermostat

30* 154297701 A B C Screw, retainer-thermo

* 154447102 A B C Insulation,blanket

* 154041001 A B C Screw, plask #1, 10-10 x 9/16

* 5300807270 A B C Screw, (2), countertop mtg.

Publication No: 5995437653 FDB2320RE

05/05 8

MOTOR & PUMP

FDB2320RE Publication No: 5995437653

# Functional Parts 9 05/05

* Non-Illustrated Parts

MOTOR & PUMP

Model Index: AFDB2320RE (FDB2320REB0)

BFDB2320RE (FDB2320REC0)

CFDB2320RE (FDB2320RES0)

POS. NO PART NO. DESCRIPTION

1 # 154247601 A B C Heater

1* 154106201 A B C Nut, heater, (2)

1* 154289801 A B C Shield, heater terminal

2 154479601 A B C Bracket, heater, (2)

10 154245501 A B C Cover, volute

13 154246801 A B C Gasket, sump

14 154365902 A B C Housing, sump

16 154246502 A B C Retainer, sump

24 154414101 A B C Spray arm, lower, w/heat shield

24A 154313601 A B C Spray arm, center

24A* 154252001 A B C Nut, spray arm, center

32 154406601 A B C Tube, delivery

32A 154406401 A B C Gasket, delivery tube

40 154348401 A B C Clamp, red, pump

40 154348502 A B C Clamp, red, pump

40* 154106801 A B C Clamp, hose, (2)

40* 154380601 A B C Clamp, hose, (1)

54 154234401 A B C Hose, connector

55 154362301 A B C Bracket, motor, askoll

55* 5303316032 A B C Screw, truss ss, 8 .625

58 154246402 A B C Check ball

59 154246901 A B C O-ring, rear

59A 154247001 A B C O-ring, front

60 154474101 A B C Drain Pump Assy

60* 154426201 A B C Bracket, motor, drain

60* 5303318719 A B C Screw, mtg.

61 154406501 A B C Nozzle, 3rd level, spray arm

62 154294101 A B C Support, spray arm, lower

63 154252201 A B C Base, soil director

64 154252301 A B C Filter, soil director, white

65 154252401 A B C Filter, polypro

66 154252701 A B C Trap, glass

70 # 154536101 A B C Motor assembly, circulation, w/o o'rings

* 154200601 A B C Screw, #10-16 x 3/8

Publication No: 5995437653 FDB2320RE

05/05 10

FRAME
