Tiger 2 - 15 kW

Original instructions

SE Denna produkt är endast lämpad för välisolerade utrymmen eller sporadisk användning.

GB This product is only suitable for well insulated spaces or occasional use.

NO Dette produktet er bare egnet for velisolerte rom eller sporadisk bruk.

FR Ce produit ne peut être utilisé que dans des locaux bien isolés ou de manière occasionnelle.

DE Dieses Produkt ist nur für gut isolierte Räume oder für den gelegentlichen Gebrauch geeignet.

FI Tämä tuote soveltuu ainoastaan hyvin eristettyihin tiloihin tai satunnaiseen käyttöön.

IT Il presente prodotto è adatto solo a ambienti correttamente isolati o ad un uso occasionale.

NL Dit product is uitsluitend geschikt voor goed geïsoleerde plaatsen of voor incidenteel gebruik.

PL Ten produkt jest odpowiedni tylko do sporadycznego użytku lub do stosowania w dobrze izolowanych pomieszczeniach.

RU Прибор пригоден к применению в местах с достаточной степенью теплоизоляции или для периодического обогрева.

okW

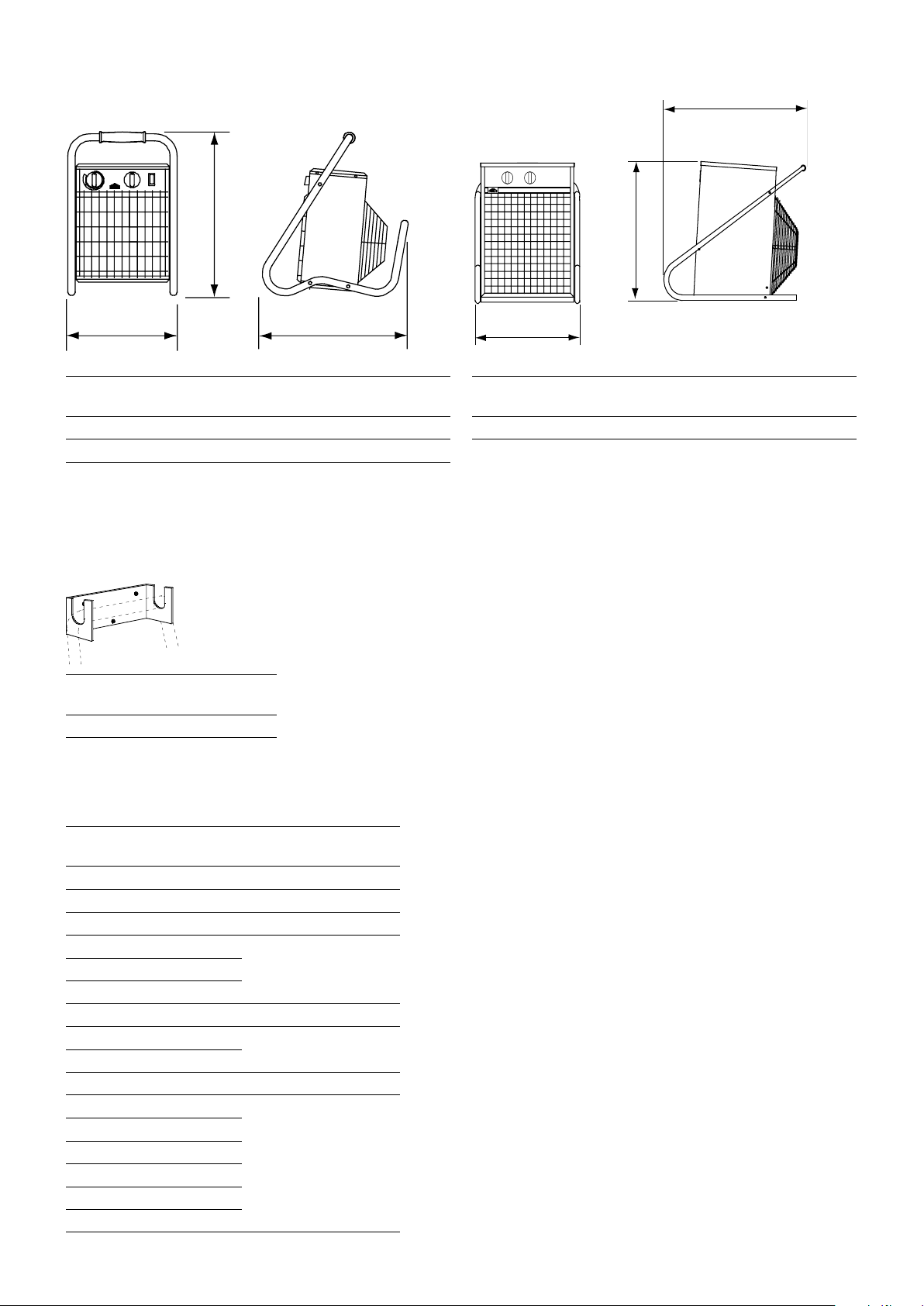

Tiger 2 - 15 kW

[mm]

P21, P31, P51, P33, P53 290 450 390

P93 350 530 480

[mm]

P153 410 510 530

Tiger 2 - 9 kW Tiger 15 kW

SE: Väggfäste för förvaring av Tiger 2-15 kW

NO: Veggkonsoll for lagring av Tiger 2-15 kW

FR : Console murale pour rangement duTiger 2-15 kW

DE: Wandhalterung fürTiger 2-15 kW (bei Nichtgebrauch)

FI: SeinäkannakeTiger 2-15 kW:n säilytykseen

ES: Soporte mural para el almacenamiento deTiger 2-15 kW

IT: Staffa per installazione a parete,Tiger 2-15 kW

NL: Muurbeugel voor opslag vanTiger 2-15 kW

PL: Uchwyt ścienny do zawieszenia nagrzewnic Tiger 2-15 kW

RU: Настенная скоба для подвески моделей Tiger 2-15кВт при хранении

HxWxD

[mm]

LT22406 45x128x40

Wallbracket for storage ofTiger 2-15 kW

Item

number

Type Cable CEE

3082 P21 4G1,5x2m CEE7

3083 P31 3G1,5x2m CEE7

3 119 P51 3G2,5x2m -

3 11 8 P33-0

4G1,5x2m CP 416-63120 P53-0

3121 P93-0

3091 P153 4G4x2m CP 432-6

3084 P3323 230V3~ 4G1,5x2m CP 316-9

3086 P5323 230V3~

3088 P9323 230V3~ 4G2,5x2m CP 332-9

10680 P33

5G1,5x2m CP 416-6

10681 P53

10742 P93

3085 P33B

3087 P53B

3089 P93B

∼

°C

2kW

3kW

2 kW

Tiger 2 / 3 kW 230V~

230V~

°C

321

LLL

321

LLL

2a1a

°C

∼

230V 3~400V 3N~

Tiger 3 / 5 / 9 kW 230V3~/400V3N~

∼

°C

LL L

123

Tiger 15 kW P153 230V3~/400V3~

400V 3~ / 230V 3~

400V 3~

230V 3~

400V 3~

°C

Tiger 2 - 15 kW

Wiring diagram

Tiger 5 kW 230V~

Tiger 2 - 15 kW

GB: Technical speciﬁcations

SE: Tekniska data

NO: Tekniske data

FR: Caractéristiques techniques

DE: Technische daten

FI: Tekniset tiedot

IT: Dati tecnici

NL: Technische speciﬁcaties

PL: Dane techniczne

RU: Технические характеристики

GB: Output steps

SE: Effektsteg

NO: Effekttrinn

FR: Puissances

DE: Abgabestufen

FI: Tehoportaat

IT: Stadi potenza

NL: Capaciteit

PL: Stopnie mocy

RU: Ур. мощности

GB: Airﬂow

SE: Luftﬂöde

NO: Luftstrøm

FR: Débit d’air

DE: Luftmenge

FI: Ilmavirta

IT: Portata aria

NL: Luchtstroom

PL: Wydajność powietrza

RU: Расх.возд.

GB: Sound level

SE: Ljudnivå

NO: Lydnivå

FR: Niveau sonore

DE: Geräuschpegel

FI: Melutaso

IT: Livello sonoro

NL: Geluidsniveau

PL: Poziom głośności

RU: Ур. шума

GB: Motor

SE: Motor

NO: Motor

FR: Moteur

DE: Motor

FI: Moottori

IT: Motore

NL: Motor

PL: Silnika

RU: двигатель

GB: Voltage

SE: Spänning

NO: Spenning

FR: Tension

DE: Spannung

FI: Jännite

IT: Tensione

NL: Voltage

PL: Napięcie

RU: Напряжение

GB: Amperage

SE: Ström

NO: Strøm

FR: Intensité

DE: Strom

FI: Virta

IT: Corrente

NL: Stroomsterkte

PL: Natężenie

RU: Сила тока

GB: Weight

SE: Vikt

NO: Vekt

FR: Poids

DE: Gewicht

FI: Paino

IT: Peso

NL: Gewicht

PL: Masa

RU: Вес

Fan heater Tiger, 2-9 kW 3

Type Output

steps

[kW]

Airﬂow

[m³/h]

Sound

level*1

[dB(A)]

∆t*2

[°C]

Motor

[W]

Voltage

[V]

Amperage

[A]

HxWxD

[mm]

Weight

[kg]

P21*40/2 280 41 22 30 230V~ 8.8 450x290x390 5.7

P31 0/2/3 280 41 32 30 230V~ 13 450x290x390 6.0

P33 0/1.5/3 280 41 32 30 400V3N~*34.4 450x290x390 6.3

P3323 0/1.5/3 280 41 32 30 230V3~ 7. 6 450x290x390 6.3

P51 0/3.4/5 480 40 31 55 230V~ 21.8 450x290x390 6.7

P53 0/2.5/5 480 40 31 55 400V3N~*37. 3 450x290x390 6.7

P5323 0/2.5/5 480 41 31 55 230V3~ 12.6 450x290x390 6.7

P93 0/4.5/9 720 44 37 60 400V3N~*313 530x350x480 10

P9323 0/4.5/9 720 44 32 60 230V3~ 23 530x350x480 10

*1) Conditions: Distance to the unit 3 metres. Directional factor: 2. Equivalent absorption area: 200 m².

*2) ∆t = temperature rise of passing air at maximum heat output and lowest/highest air ﬂow.

*3) Also available without neutral and are then called P33-0, P53-0 and P93-0.These models do not have the 230V socket

on the reverse and are equipped with P416-6 connectors.

*4) Also available as P21CH. P21CH is supplied with plug for Switzerland.

Protection class: IP44.

CE compliant.

Fan heater Tiger, 15 kW 3

Type Output

steps

[kW]

Airﬂow

[m³/h]

Sound

level*1

[dB(A)]

∆t*2

[°C]

Motor

[W]

Voltage

[V]

Amperage

[A]

HxWxD

[mm]

Weight

[kg]

P153 0/7.5/15 112 0 47 40 80 400V3~ 21.9 510x410x530 16

P15323 0/7,5/15 112 0 47 40 80 230V3~ 38 510x410x530 16

Technical speciﬁcations

Tiger 2 - 15 kW

*1) Förutsättningar: Avstånd till aggregat 3 meter. Riktningsfaktor: 2. Ekvivalent absorptionsarea 200 m².

*2) ∆t = temperaturhöjning på genomgående luft vid maximal värmeeffekt och lägst respektive högst luftﬂöde.

*3) Finns även utan nolla och har då typbeteckningarna P33-0, P53-0 och P93-0. Dessa modeller saknar 230V-uttag på

baksidan och är försedda med anslutningsdon P416-6.

Kapslingsklass: IP44. CE-märkt.

*1) Betingelser: Avstand til aggregat 3 meter. Retningsfaktor: 2. Ekvivalent absorpsjonsareal: 200 m².

*2) ∆t = temperaturøkning på gjennomstrømmende luft ved maksimal varmeeffekt og lav/høy luftmengde.

*3) Finnes også uten nulleder og har da typebetegnelse P33-0, P53-0 og P93-0. Disse modellene har ikke 230 V uttak på

baksiden og er utstyrt med P416-6-kontakter.

Kapslingsklasse: IP44. CE-merket.

*1) Conditions : Distance de l’appareil : 3 mètres. Facteur directionnel : 2. Surface d’absorption : 200 m².

*2) ∆t = augmentation de température sous un débit d’air mini / maxi et une puissance maximale.

*3) Egalement disponible sans neutre. Leurs références sont alors P33-0, P53-0 et P93-0. Ces modèles ne disposent pas

de la prise 230 V à l’arrière mais sont équipés des connecteurs P416-6.

Indice de protection: IP44. Marquage CE.

*1) Bedingungen: Abstand zum Gerät: 3 Meter. Richtungsfaktor: 2. Entsprechende Absorptionsﬂäche: 200 m².

*2) ∆t =Temperaturanstieg bei maximaler Heizleistung und hohem/niedrigem Volumenstrom.

*3) Auch ohne Nullleiter erhältlich und heißen dann P33-0, P53-0 und P93-0. Diese Modelle haben keinen

230-V-Anschluss auf der Rückseite und sind mit P416-6-Steckern versehen.

*4) Auch als P21CH erhältlich. P21CH wird mit Stecker für die Schweiz geliefert.

Schutzart: IP44. CE-konform.

*1) Mittausjärjestelyt: Etäisyys laitteeseen 3 m. Suuntaavuuskerroin 2. Ekvivalentti absorptioala: 200 m².

*2) ∆t = läpivirtaavan ilman lämpötilan nousu suurimmalla lämpöteholla ja pienellä/suurella ilmavirralla.

*3) Saatavana myös ilman nollajohdinta, jolloin tyyppi on P33-0, P53-0 ja P93-0. Näissä malleissa ei ole 230 V~

pistorasiaa takapuolella.

Kotelointiluokka: IP44. CE-merkitty.

*1) Condities: Afstand tot de unit 3 meter. Richtingsfactor: 2. Equivalent absorptiegebied: 200 m².

*2) ∆t =Temperatuurstijging van de passerende lucht op maximale verwarming en laagste/hoogste luchtstroom.

*3) Ook verkrijgbaar zonder nul en wordt dan P33-0, P53-0 en P93-0 genoemd. Deze modellen hebben geen 230V~

stopcontact aan de achterzijde.

*4) Ook leverbaar als P21CH. P21CH wordt voor Zwitserland met stekker geleverd.

Beschermingsklasse: IP44. Voldoet aan CE.

*1) Условия: Расстояние до прибора 3 метров. Фактор направленности 2. Эквивалентная площадь звукопоглощения 200 м2.

*2) ∆t = Увеличение температуры проходящего воздуха при полной выходной мощности и min/max расходе воздуха.

*3) Возможно исполнение без нейтрали и тогда модели маркируются соответственно Р33-0, Р53-0 и Р93-0. У этих моделей

на задней панели нет розетки на 220В.

Класс защиты: IP44. Cертифицированы ГОСТ, стандарт CE.

*1) Condizioni: distanza dall’unità 3 metri. Fattore direzionale: 2. Superﬁcie di assorbimento equivalente: 200 m².

*2) ∆t = innalzamento della temperatura dell’aria in transito alla massima potenza termica.

*3) Disponibili senza Neutro, modelli P33-0, P53-0 e P93-0. Questi modelli non sono dotati di presa 230 V sul retro e

presentano connettori P416-6.

Classe di protezione: IP44. Conformità CE.

*1) Warunki: Odległość do urządzenia 3 m. Współczynnik kierunkowy: 2. Powierzchnia absorpcji: 200 m².

*2) ∆t = przyrost temperatury przy maksymalnej mocy grzewczej.

*3) Występują także w wersjach bez przewodu zerowego, oznaczonych P33-0, P53-0 i P93-0. Te modele nie mają z tyłu gniazda 230 V i są

wyposażone w złącza P416-6.

Stopień ochrony: IP44. Certyfikat CE.

°C

Tiger 2 - 15 kW

General Instructions

Read these instructions carefully before

installation and use. Keep this manual for

future reference.

The product may only be used as set out in

the assembly and operating instructions. The

guarantee is only valid if the product is used

in the manner intended and in accordance

with the instructions.

Application

Tiger is a range of robust and compact fan

heaters for professionals with high demands.

Tiger 2-9 kW are intended for heating and

drying areas such as garages, workshops and

shops. Enclosure: Splash proof design, IP44.

Electrical connection

The Tiger fan heater is equipped with a 1.8

metre long connection cable.

• P21 and P31 have cords with plugs for

connection to earthed outlet sockets (P21

requires 10 A fuse protection, P31 requires

16 A fuse protection).

• P51 is supplied with a cable without a plug.

• P33, P53, P93 and P153 all have a CEE plug

ﬁtted on the connection cable. There is

a 230V-outlet socket of type F at the rear

of P33, P53 and P93. The socket gives the

possibility to connect, for example, lighting

or a charger for cordless tools. Products

with 230V-outlet socket of type E are also

available for ordering.

The outlet cannot be loaded with more than

the following currents:

Output

steps

3 kW,

400V3N~

5 kW,

400V3N~

9 kW,

400V3N~

1/2 16 A 16 A 16 A

1/1 11.7 A 8.8 A 3 A

The heater must be protected by a 16 A-fuse.

Start-up

When the unit is used for the ﬁrst time or

after a long period of disuse, smoke or odour

may result from dust or dirt that has collected

on the element. This is completely normal

and disappears after a short time.

Function

Tiger 2–15:

Output steps, see technical data.

Tiger 2–15:

Adjustable range of the thermostat, 5–35 °C.

Tiger 2–9:

With the switch in position °C the fan blows

continuously and the thermostat only regula-

tes the heat. In position °C the thermostat

will also regulate the fan.

Overheating

The built-in temperature limiter is triggered

if the temperature rises in the fan heater.

After rectiﬁcation of the fault and cooling of

the appliance the overheating protection can

be reset by pushing in the button on top of

the appliance. In case of repeated trouble a

qualiﬁed electrician should be contacted.

Maintenance

The fan heater are more or less maintenance-

free. Dust and dirt may cause overheating and

danger of ﬁre. The appliance must therefore

be cleaned regularly.

Regulation

The unit is equipped with mechanic

thermostat room temperature control and can

be used as a local space heater according to

Ecodesign Regulation (EU) 2015/1188.

Tiger, 2–9 kW

The built-in thermostat controls fan speed

and heat, or heat only. The choice is made

with the mode selector. When operating with

heat only the fan blows constantly and the

thermostat only controls the heat output.

Thermostat with setting range 5–35°C.

Output is set via the output selector.

Tiger, 15 kW

Built-in thermostat with setting range 5–35°C.

Output is set via the output selector, for steps

see table.

Assembly and operating instructions

Tiger 2 - 15 kW GB

Residual current circuit breaker

When the installation is protected by means

of a residual current circuit breaker, which

trips when the appliance is connected,

this may be due to moisture in the heating

element. When an appliance containing a

heater element has not been used for a long

period or stored in a damp environment,

moisture can enter the element.

This should not be seen as a fault, but is

simply rectiﬁed by connecting the appliance

to the mains supply via a socket without a

safety cut-out, so that the moisture can be

eliminated from the element. The drying

time can vary from a few hours to a few days.

As a preventive measure, the unit should

occasionally be run for a short time when it is

not being used for extended periods of time.

Packaging

Packaging materials are chosen with

consideration to environment and are

therefore recyclable.

Handling of product at end of working life

This product may contain substances

necessary for functionality of product but

potentially dangerous for the environment.

The product should not be disposed

mixed with general household waste but

delivered to a designated collection point for

environmental recycling. Please contact local

authority for further details of your nearest

designated collection point. Recycling of used

products saves earth's resources and reduces

global footprint.

Push the button on top of the unit to

make sure the temperature limiter has

not been triggered during transport!

Safety

• For all installations of electrically heated

products should a residual current circuit

breaker 300 mA for ﬁre protection be used.

• The appliance must not be used in the

immediate vicinity of bathtubs, showers,

wash basins or swimming pools!

• The appliance has hot surfaces during

operation!

• The appliance must not be placed so that

inﬂammable material can be ignited.

• The appliance must not be covered either

with clothes or similar material, since

overheating of the appliance can result in

ﬁre hazard!

• The appliance must not be placed directly

under a wall-outlet!

• Do not use the heater in a room with a

ﬂoor area of less than 4m²!

• This appliance can be used by children

aged from 8 years and above and persons

with reduced physical, sensory or

mental capabilities or lack of experience

and knowledge if they have been given

supervision or instruction concerning

use of the appliance in a safe way and

understand the hazards involved. Children

shall not play with the appliance. Cleaning

and user maintenance shall not be made

by children without supervision.

• Children of less than 3 years should be

kept away unless continuously supervised.

• Children aged from 3 years and less than 8

years shall only switch on/off the appliance

provided that it has been placed or

installed in its intended normal operating

position and they have been given

supervision or instruction concerning

use of the appliance in a safe way and

understand the hazards involved.

• Children aged from 3 years and less

than 8 years shall not plug in, regulate

and clean the appliance or perform user

maintenance.

CAUTION — Some parts of this product can

become very hot and cause burns. Particular

attention has to be given where children and

vulnerable people are present.

Main oﬃ ce

Frico AB Tel: +46 31 336 86 00

Industrivägen 41

SE-433 61 Sävedalen [email protected]

Sweden www.frico.net

For latest updated information and information

about your local contact: www.frico.net

Art.nr: 201221 2019-01-30 HH/CH

This manual suits for next models

Table of contents

Other Frico Heater manuals

Frico

Frico AGS5500 User manual

Frico

Frico Infraflex Series User manual

Frico

Frico Elztrip EZ300 Series Service manual

Frico

Frico Thermozone AR300 Series User manual

Frico

Frico Thermozone AD Corinte W ADCS Series User manual

Frico

Frico Infratower IHA30BP User manual

Frico

Frico PF Smart User manual

Frico

Frico AR3200C User manual

Frico

Frico Cat User manual

Frico

Frico Thermozone ADA Series User manual

Frico

Frico Thermozone AC 200XL User manual

Frico

Frico Tiger 2 kW User manual

Frico

Frico Thermozone WAC 300 Series User manual

Frico

Frico Ruwen User manual

Frico

Frico CIR105 User manual

Frico

Frico Thermocassette HP Series User manual

Frico

Frico Arden 3200 User manual

Frico

Frico Tiger 20 kW User manual

Frico

Frico PFSE4 User manual

Frico

Frico Thermozone AGV 4000 A Series User manual

Frico

Frico Tiger P21 User manual

Frico

Frico Thermocassette HP300 User manual

Frico

Frico IRC13 User manual

Frico

Frico AGS5500 User manual

Popular Heater manuals by other brands

oventrop

oventrop Regucor Series quick start guide

Blaze King

Blaze King CLARITY CL2118.IPI.1 Operation & installation manual

ELMEKO

ELMEKO ML 150 Installation and operating manual

BN Thermic

BN Thermic 830T instructions

KING

KING K Series Installation, operation & maintenance instructions

Empire Comfort Systems

Empire Comfort Systems RH-50-5 Installation instructions and owner's manual

Well Straler

Well Straler RC-16B user guide

EUROM

EUROM 333299 instruction manual

Heylo

Heylo K 170 operating instructions

Eterna

Eterna TR70W installation instructions

Clarke

Clarke GRH15 Operation & maintenance instructions

IRSAP

IRSAP The Radiator Company Ovali Fitting instructions

Empire Heating Systems

Empire Heating Systems WCC65 Installation and owner's instructions

Wetekom

Wetekom 92 86 43 Original instructions

Desa

Desa SPC170-F owner's manual

Watlow

Watlow Watrod Electric Tubular Heaters Specifications

Haverland

Haverland ECO-DRY GPS Series Instruction & installation manual

Stelpro

Stelpro ASILVC2060 Series user guide
