Fortress Technologies FJW50A11P User manual
USER’S
Automatic
1
Fortress service department page 21.........................
1
CONTENTS
Safety precautions..................................................2
Parts identification of the washer............................5
Explanation of washer operating panel...................6
Installation of washer..............................................8
Preparation before washing...................................10
Operation of normal wash program........................11
Operation of agitating wash program.....................12
Operation of tub-cleaning program........................13
Operation of customized program..........................14
Operation of other fully automatic wash program...15
Setting washing capacity and water level..............16
washing powder, softener and bleacher
Amount ..................................................................16
Maintenance of washer..........................................17
Troubleshooting of washer.....................................18
Following phenomena are not faults of washer......19
Specifications and technical parameters
of washer................................................................19
FIRSTLY
You should know
SECONDLY
When you want to use
FURTHER
Easier for your operation
If
You are in trouble
2
SAFETY AND PRECAUTIONS
Read the following items in order to prevent personal injuries and
property :damage
Please read the following icons.
！
！
！
！
Warning
Warning
Caution
This indicates that serious injuries or loss of life may be caused.
This indicates that bodily injuries or property damage may be caused.
Please do not directly rinse the
machine with water when
cleaning.
Please do not install the washer under
damp or raining environment to aviod
electric shock, fire,failure or accidents.
No dismantling No touching
No dampness No rinsing
!
This icon indicates [operation prohibited].Detail prohibitive actions are shown inside.
This icon indicates a [warning or reminder note].Detail warnings are shown inside.
This icon indicates executions are shown inside.[forcible executions], Necessary
Please do not
disassemble or
assemble the
washer without
authorization.
Please do not touch the spin barrel
before it is fully stopped.
3
Please do not let children climb the
machine or peer into the rotating
spin barrel to avoid accidents.
It is prohibited to wash items contaminated
with kerosene,gasoline,alcohol and other
flammable substances.
Please do not damage power cord
and plug to aviod electric shock,short
circuit or fire.
Regularly clean the power plug to
remove dust and dirt to avoid contact
failure.
Please unplug the plug from the socket
if the machine is not in use.
Please well connect the earth line of
socket to avoid electric shock by
accidental leakage.
Please plug the plug firmly.
！
!
!
Prohibited Prohibited
Smoke and fire prohibited
Earthing
Pull out the plug
Warning
Please do not place lighted candles,
incense,cigarettes and other flammable
items such as electric
stove,heating fan or
other heat sources on
top of the washer.
Warning
4
Please use 220V power source. Please do not plug-in or unplug the plug with wet
hands to avoid electric shock.
Please ensure that the water inlet pipe
is connected and the tap is turned
on before washing
clothes.
Users are not allowed to change
the power cord without
permission.
It is strictly prohibited to place
children or lay
weights on the
washer.
Please do not pull the power cord
when unplug the
plug.
Please do not wash raincoat, fishing
coat and waterprool items in the washer.
！
!
!
!
Wet hands are
prohibited
220V
+
+
Below
50 C
The water temperature should not exceed
50 when washing℃
with warm water.
Prohibited
Prohibited Prohibited
Prohibited
Caution
5
Parts identification of the washer
Inlet hose 1pc
Accessories
Water inlet valve
Softener inlet
Filtering bag
Bleacher inlet
Control panel
Handle of lid
Handle
Power cord
Adjustable
foot knob
Cabinet
Impeller
(On the top rim of the barrel)
(Back of lid)
Upper drain hose 1pc
Upper drain hose
()
()
/
( )
()
()
3

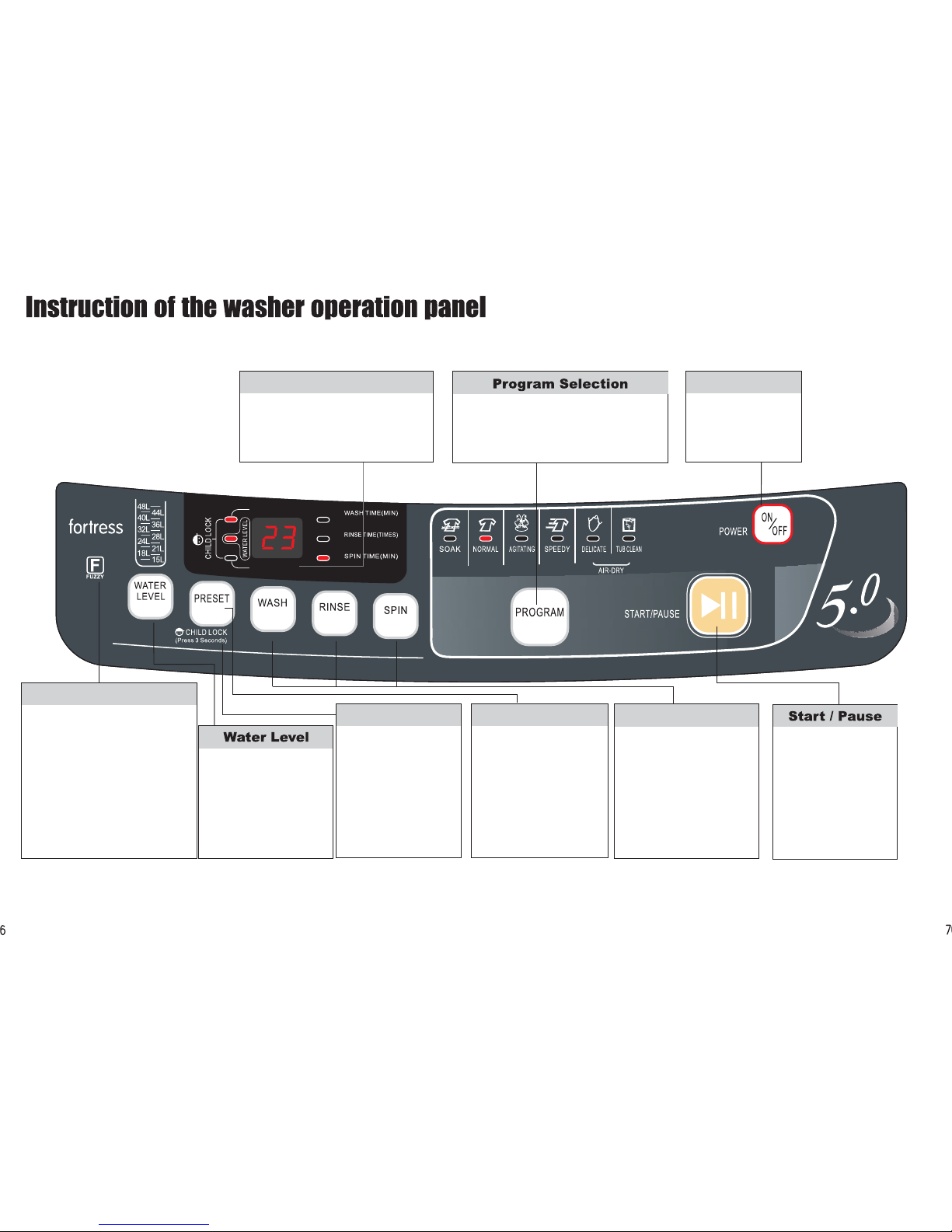

PRESET TIME HOUR()
REMAIN TIME MIN()
FJW50A11P
Water level selection button
is used by user to select and
change water level inside
the washer. Continuously
pressing this button, the
figures circularly display
will be varied from 15L to
48L.
User can preset the washing
duration from 1 to 24 hours.
After the time you set runs
out, this machine will start to
work with the set program.
When the indicator of
PRESET TIME is on showing,
the figures displayed on the
LED is showing the preset
time set.
PRESET
Use the child lock if
necessary.
button for 3
seconds to turn on the
child lock.
Press and hold
the PRESET
CHILD LOCK WASH/RINSE/SPIN
[WASH] [RINSE] and [SPIN],、
these three buttons represent
the process of washing. Press
WASH button, the indicator of
WASH TIME will be on and
continuously press this button
can change the wash time.
Press RINSE button can select
rinse times. And press [SPIN]
button can determine the spin
time.
Continuously press
this button, the machine
will be switched between
start and pause.
Fuzzy Control
Turn on the power. Then press
[START/PAUSE] button in the default
program, the fuzzy control system will
work automatically. It can select the
water level automatically according to
the laundry amount. If pressing any
other buttons except the [Start/Pause]
button, the Fuzzy function will exit
when the Fuzzy Control is set, there
is water inlet and the water level is
shown in the digital tube.
The remaining time will be shown
when water inlet is finished.
Before starting, continuously press this button
for switching over among [SOAK], [NORMAL],
[AGITATING], [SPEEDY], [DELICATE],
[TUB CLEAN] and [AIR-DRY] programs.
After the machine running, the indicator to
REMAIN TIME is on showing.
The remaining time will be displayed on
the LED according to the washing program
chosen.
Remain Time
Press this button to turn
on or off the power
supply.
Power
8
Installation of the washer
Remove package
!.Take out the washer and placeRemove the package
on the protective foam cover.it
!Open the lid of washer's door and take out accessories.
!A trial operation or washing on the protective foam base
strictly forbidden.is
Base foamed cushion
Installation of drain hose
!Completely seat the drain hose over the
drain connector. Install water
inlet hose.
!Fix and tighten it with a hoop. ( As shown
in the figure, and you can use a pliers to
finish it.)
9
Installation of washer
Installation of water inlet pipe
at
10
Preparation before washing
1.Adjust the adjustable foot to place the
washer stably.
(Slightly incline the washer first and
loosen the adjustable foot knob.
Adjust the adjustable foot so as to
ensure four corners of washer be
steadily contacted with the ground.
Then tighten the adjustable foot knob
and lock it. If the ground is obviously
rough and uneven , correction should be
the ground surface, otherwise themade on
washer barrel will incline and knock
the cabinet)
2. water inlet hose.Install the
3.Connect with power source.
4.Turn on the water tap.
5.Hang the upper drain hose
on the pond.
6.Put in clothes and suitable
amount of washing powder.
Before washing, please take out coins,
keys and other hard items, and zip up clothes to
prevent washing items and barrel from damage.
+
+
2
34
1
Adjustable foot
(extend when clockwise
rotating and shorten when
anticlockwise rotating)
5
>750mm
Note:
The water will overflow
when the height of the
drain hose under 750mm.
