Forest garden FGCLGSTHD User manual
REMINDER
Always pre-drill before
screwing.
IMPORTANT
Assembly requires 2+
adults.
Tape Measure Drill & 2-3mm
Drill Bits
Pozidrive
Screwdriver
Rubber Mallet
25MM
SCREWS
Forest Garden, Oak Drive, Hartlebury Trading Estate, Hartlebury, Worcestershire, DY10 4JB
EU Authorised Representative: Authorised Representative Service, 77 Camden Street Lower Dublin, D02 XE80, Ireland
Missing something or need more information?
Call our aftersales team on
0333 321 3142
Visit our website for spare instructions and
more information
www.forestgarden.co.uk
CORNER LOG STORE
INSTRUCTIONS
ISSUE: 0122
We recommend using the following
tools (not supplied):
FIXING PACK CONTAINS:
FIXING PACK CODE: CLGSTFP
PLEASE KEEP PLASTIC BAGS AND SMALL PARTS
AWAY FROM CHILDREN
4 x 60mm Screws
QTY: 23
4 x 50mm Screws
QTY: 14
3.5 x 30mm Screws
QTY: 18
3.5 x 25mm Screws
QTY: 8
50mm L-Brackets
QTY: 2

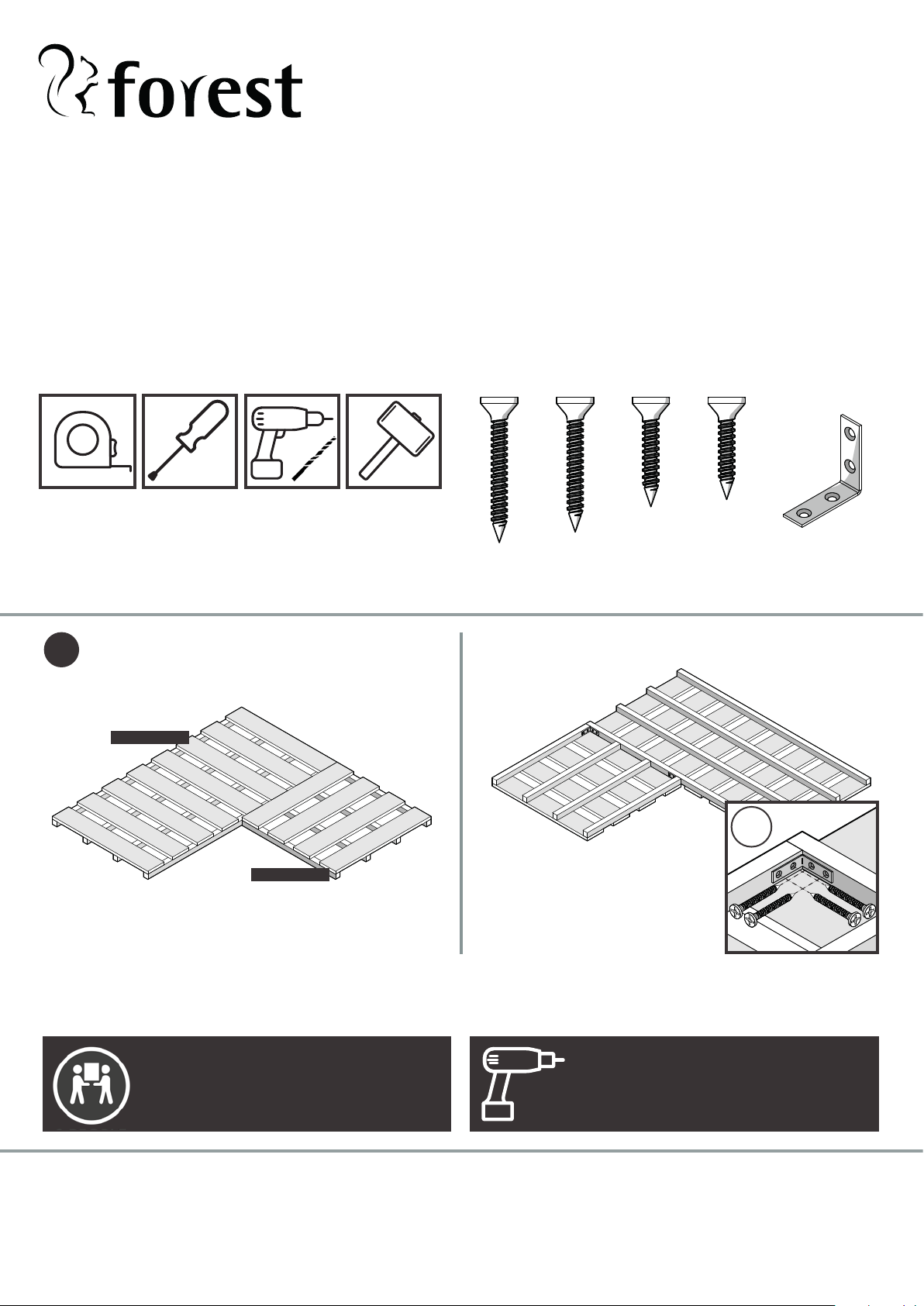

Turn the oors upside down. Position and secure 2 x
L-brackets to the corners of the Small Floor as shown
above to secure the oors together.
Position the oors in your desired location. Your log
store must be built on a solid and level base.
1
CHECK AND TIGHTEN ALL THE FIXINGS APPLIED TO THIS
PRODUCT ON A REGULAR BASIS.
LARGE FLOOR
SMALL FLOOR
Making British gardens great
60MM
SCREWS
60MM
SCREWS
60MM
SCREWS
60MM
SCREWS
30MM
SCREWS
50MM
SCREWS
50MM
SCREWS 50MM
SCREWS
30MM
SCREWS
3
4
6
Attach the Left Side Panel to the Front Panel and Large
Floor as shown above. Use 60mm screws for the oor
and 50mm screws for securing the panels together.
Attach the Back Panel to the side panel and oors as
shown above. Use 60mm screws for the oor and 50mm
screws for securing the panels together.
Attach the Right Side Panel to the Back Panel and
Small Floor as shown above. Use 60mm screws for the
oor and 50mm screws for securing the panels together.
Secure the Front Cover Strip and Middle Cover Strip.
Ensure the strips are ush to the bottom board on the
panels.
5
BACK PANEL
BACK COVER STRIP
MIDDLE COVER STRIP
Secure the Back Cover Strips. Ensure the strips are
ush to the bottom board on the panels.
2
Secure the Front Panel. Screw into the bearers of the
oor beneath. Ensure the panel is ush to the edges of
the oor.
FRONT PANEL
LEFT SIDE PANEL
RIGHT SIDE PANEL
FRONT COVER STRIP
7
50MM
SCREWS
60MM
SCREWS
60MM
SCREWS
30MM
SCREWS 30MM
SCREWS
50MM
SCREWS
910
Once the roof panels have been slotted together, turn
them upside down and secure the roof panels together
as shown above.
Position and attach the assembled roof panels to the
panels. Ensure the roof is pushed up against the Left
Side Panel and Front Panel to secure into place.
Secure the assmbled roof panels to the Cover strips,
Back Panel and Right Side Panel as shown above.
Screw through the top batten of the Back Panel into the
roof battens that are resting on the Back Panel.
Attach the Left and Right Fascias to the roof panels as
shown above. Ensure they are ush to the Side Fascias.
Attach the Side Fascias. Ensure the fascias are ush
to the inside roof face as shown above. There will be a
slight overhang from the Side Fascia’s.
8
Tap the Small Roof into the Large Roof with a mallet.
Ensure the battens are ush together when slotting
together. If a mallet is not available, use a wide piece of
wood to protect the product when hammering.
11 12
SMALL ROOF
LARGE ROOF
SIDE FASCIA
LEFT FASCIA RIGHT FASCIA
Use the labelled components to help identify the part code and description.
CHECK YOU HAVE ALL YOUR PARTS PRIOR TO ASSEMBLY.
(The parts do not have codes on them. They are listed below should you need to order one.)
Timber is a natural material of which will shrink and swell as a result of varying moisture content.
Assembly of damaged parts may be deemed to be acceptance and this may affect the remedies you are entitled to. If the product is not constructed
in accordance with the instructions, or is altered in anyway (e.g. painted), the manufacturer cannot be held liable for any resulting damage.
The components provided may be heavy. Please lift with caution and with a minimum of 2 people.
Label Part Code Description No.
ACLGSTBASELG Large Floor 600x1190mm 1
BCLGSTBASESM Small Floor 590x600mm 1
CCLGSTFRONT Front Panel 600x1299mm 1
DCLGSTLHSIDE Left Side Panel 1162x1299mm 1
ECLGSTBACK Back Panel 1134x1171mm 1
FCLGSTRHSIDE Right Side Panel 600x1250mm 1
G44161195PT Back Cover Strip 44x16x1195mm 2
H44161250PT Middle Cover Strip 44x16x1250mm 1
I44161295PT Front Cover Strip 44x16x1295mm 2
JCLGSTRFLG Large Roof 724x1287mm 1
KCLGSTRFSM Small Roof 565x729mm 1
L59120730PPT Side Fascia 59x12x730mm 2
M59120570PPT Left Fascia 59x12x570mm 1
N59120558PPT Right Fascia 59x12x558mm 1
Corner Log Store (CLGST)
A B C D E F
G H I J K L M N
HEALTH & SAFETY
THE ROOF OF THIS LOG STORE IS NOT A LOAD BEARING STRUCTURE
We strongly recommend that PPE (Personal Protective Equipment) is used throughout your build to ensure you are
protected from any potential health and safety risks. Do not exempt yourself from wearing PPE.
TREATED TIMBER CONTAINING A BIOCIDAL PRODUCT
CONTROL OF WOOD DESTROYING ORGANISMS
Active Ingredients - Propiconazole, Tebuconazole, IPBC, Permethrine, Benzyl-C12-16-Alkyldimethyl Chlorides. (Dip Treated)
Basic Copper Carbonate, DDA Carbonate, DDA Chloride. (Pressure Treated)
Wear gloves when handling. Avoid inhalation of sawdust. Do not use in contact with drinking water or food. Do not use for animal
bedding or in sh ponds. Dispose of treated wood responsibly.
