Fisher & Paykel WH2424F Mounting instructions

US CA

INSTALLATION INSTRUCTIONS

USER GUIDE

INSTRUCTIONS D’INSTALLATION

GUIDE D’UTILISATION

Front Loading Clothes Washer

Laveuse à Chargement Frontal

WH2424F and WH2424P models

Modèles WH2424F et WH2424P

English Page 1 – 52

Français

Page 55 – 106

CONTENTS

Introduction 3

Safety and warnings 4

Installation instructions 7

Before you do your first wash 17

Getting started 18

Washer controls 22

Safety features 23

Sorting and loading 24

Detergent and fabric softener 26

Wash cycles 30

Wash cycle options 32

Customizing wash cycles 36

Caring for your washer 37

Before you call for service 40

Fault codes 42

Troubleshooting 43

Limited warranty 49

IMPORTANT!

SAVE THESE INSTRUCTIONS

The models shown in this User guide may

not be available in all markets and are

subject to change at any time. For current

details about model and specification

availability in your country, please go to

our website www.fisherpaykel.com or

contact your local Fisher & Paykel dealer.

Registration

provide you with the best service possible.

To register your product visit our website:

www.fisherpaykel.com

INTRODUCTION

Welcome

Thank you for buying a Fisher & Paykel clothes washer. We are proud of this washer

and trust it will serve you well for many years.

At Fisher & Paykel we aim to provide innovative products that are simple to use,

ergonomic and kind to the environment. Your washer has numerous wash cycles

and options so you can perform every wash task with ease and the knowledge your

clothes are receiving the best possible care.

Please take the time to read these instructions carefully before you begin using your

machine.

Following the advice in this User guide will ensure you get the performance you

expect from your machine and that you get the best possible wash results. Keep these

instructions for future reference.

We hope you enjoy your new washer. We have certainly enjoyed designing it for you.

Front loading washer models

SAFETY AND WARNINGS

Read all safety information before using

Many washers are located near a gas dryer or a water heater in the home.

!WARNING!

Risk of Fire Hazard

 For your safety the information in this manual must be followed to

minimize the risk of fire or explosion or to prevent property damage,

personal injury or loss of life.

 Do not store or use gasoline or other flammable vapors and liquids in

the vicinity of this or any other appliance.

 Installation and service must be performed by a qualified installer,

service agency or the gas supplier.

What to do if you smell gas

 DO NOT try to light any appliance.

 DO NOT touch an electrical switch; do not use any phone in your building.

 Clear the room, building or area of all occupants.

 Immediately call your gas supplier from your neighbor’s phone.

Follow the gas supplier’s instructions.

 If you cannot reach your gas supplier, call the fire department.

Water heater safety

Under certain conditions Hydrogen gas may be produced in a water heater that has not

been used for two weeks or more.

HYDROGEN GAS CAN BE EXPLOSIVE UNDER THESE CIRCUMSTANCES.

If the hot water has not been used for two weeks or more, prevent the possibility of

damage or injury by turning on all hot water faucets and allowing them to run for

several minutes before using any electrical appliance which is connected to the hot

water system. This will allow any hydrogen gas to escape. Since the gas is flammable, do

not smoke or use an open flame or appliance during this process.

SAVE THESE INSTRUCTIONS

SAFETY AND WARNINGS

!WARNING!

Risk of Fire, Electric Shock and Injury to Persons Hazards

 Follow the safety precautions outlined in this User guide.

 Failure to do so can result in death, electric shock, fire or injury to

persons.

IMPORTANT SAFETY INSTRUCTIONS

WARNING! When using your clothes washer, follow basic precautions, including

thefollowing:

 Read all instructions before using the appliance.

 DO NOT wash or dry articles that have been previously cleaned in, washed in, soaked

in or spotted with gasoline, dry-cleaning solvents, or other flammable or explosive

substances, as they give off vapors that could ignite or explode.

 DO NOT add gasoline, dry-cleaning solvents, or other flammable or explosive

substances to the wash water. These substances give off vapors that could ignite or

explode.

 Under certain conditions, hydrogen gas may be produced in a hot-water system that

has not been used for 2 weeks or more. HYDROGEN GAS IS EXPLOSIVE. If the hot

water system has not been used for such a period, before using a washing machine,

turn on all hot-water faucets and let the water flow from each for several minutes.

This will release any accumulated hydrogen gas. As the gas is flammable, DO NOT

smoke or use an open flame during this time.

 DO NOT allow children to play on or in this appliance. Close supervision of children

is necessary when this appliance is used near children. Before the washer is removed

from service or discarded, remove the door. Failure to follow these instructions may

result in death or injury to persons.

 DO NOT reach into the appliance if the tub or agitator is moving to prevent

accidental entanglement.

 DO NOT install or store this appliance where it will be exposed to the weather.

 DO NOT tamper with controls, repair or replace any part of the appliance or attempt

any servicing unless specifically recommended in this User guide or in published user

repair instructions that you understand and have skills to carry out.

 DO NOT operate this appliance if it is damaged, malfunctioning, partially

disassembled, or has missing or broken parts including a damaged cord or plug.

 Unplug the appliance or turn off the circuit breaker before servicing. Pressing the

Power button DOES NOT disconnect power.

 Refer to the ‘Electrical connection’ section located in the installation instructions for

grounding instructions.

SAVE THESE INSTRUCTIONS

SAFETY AND WARNINGS

 Use this appliance only for its intended purpose as described in this User guide.

 Connect to a properly rated, protected and sized power supply circuit to avoid

electrical overload.

 Connect to adequate plumbing and drain facilities as described in the Installation

Instructions.

 When disconnecting the appliance pull by the plug rather than the cord or junction of

cord to avoid damage to the cord or junction of the cord and plug.

 Make sure that the cord is located so that it will not be stepped on, tripped over or

otherwise subject to damage or stress.

 Keep all laundry aids (such as detergents, bleach, fabric softener, etc.) out of the

reach of children, preferably in a locked cabinet. Observe all warnings on container

labels to avoid personal injury.

 Keep the area around/underneath your appliance free from the accumulation of

combustible materials, such as lint, paper, rags, chemicals, etc.

 Keep the floor around your appliance clean and dry to reduce the possibility of

slipping.

 Before unloading or adding clothes, press and wait until the washer has completely

stopped before opening the door.

 Do not leave washer door open during the cycle. The washer will not function. To start

close door and press .

 The laundry process can reduce the flame retardancy of fabrics. To avoid such a

result, the garment manufacturer’s care instructions should be followed very carefully.

 Do not mix chlorine bleach with ammonia or acid such as vinegar and/or rust remover.

Mixing can produce a toxic gas which may cause death.

 Never climb on or stand on the washer top.

 Do not wash fiberglass articles in your washer. Skin irritation could result from the

remaining particles that may be picked up by clothing during subsequent washer use.

 Do not touch the glass part of the door during a cycle as the door can become hot.

SAVE THESE INSTRUCTIONS

INSTALLATION INSTRUCTIONS

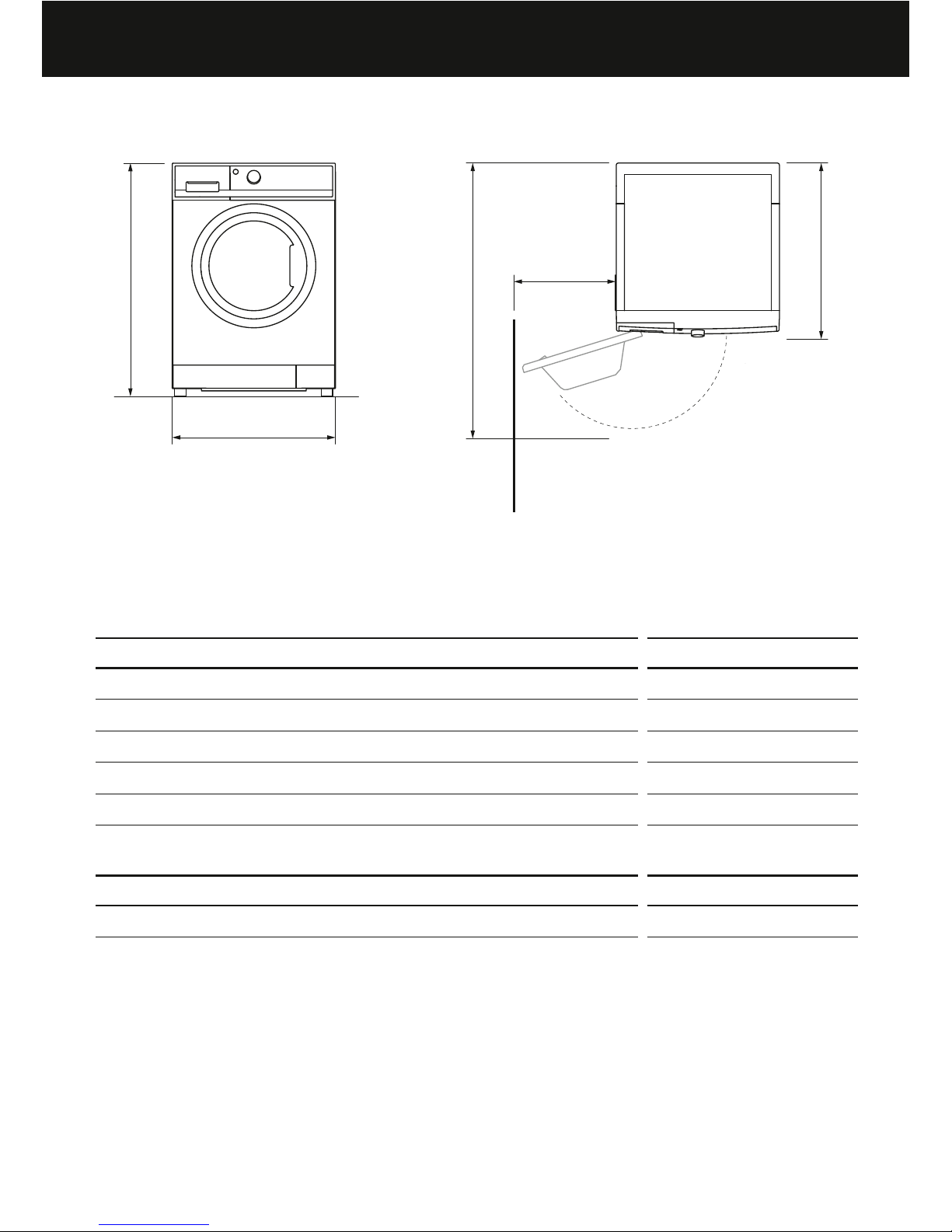

Product dimensions

WH2424F

WH2424P

PRODUCT DIMENSIONS inches (mm)

AOverall height of product 331/2” (850)

BOverall width of product 235/8” (600)

COverall depth of product (including dial and door whenclosed) 255/8” (645)

DDepth of door open 42” (1065)

EMinimum door clearance to adjacent wall 13” (330)

Standpipe height min. 311/2” – 471/4”

(min. 800–1200)

CAPACITY

2.4 cu ft

Note: the exact height of your washer is dependent on how far the feet are extended

from the base of the machine. The space where you install your washer needs to be at

least 13/5” (40mm) wider and 3/4” (20mm) deeper than its dimensions.

 Electrical supply: 2 wire plus ground, 120V, single phase, 60Hz, alternating current.

 Inlet water static pressure: Max. (120psi), Min. 10psi.

 Inlet water flow rate at faucet: Min. 11/2 gallons/min (6liters/min).

TOP VIEWWallFRONT VIEW

INSTALLATION INSTRUCTIONS

Accessories

Please check you received the following accessories with your Fisher & Paykel washer.

You will find them inside the drum or attached to the packaging.

 2 x Inlet hoses

 1 x Drain hose guide

 1 x Installation instructions and User guide

 1 x Wrench

 1 x Installation leaflet (attached to the top of the washer)

Unpacking

WARNING!

Recycle or destroy the carton and plastic bags after the washer is unpacked. Make

materials inaccessible to children. Children might use them for play. Cartons covered with

rugs, bedspreads or plastic sheets can become airtight chambers causing suffocation.

To ensure the best performance from your new washer please follow the instructions below.

Removing the packaging:

1Remove the outer packaging. Note: a small amount of water may be seen inside the

packaging and inside the washer. This is the result of factory testing and is normal.

2Tilt the machine backwards and ‘walk’ it off the base one foot at a time. Not doing so

may cause damage to your floor and washer.

3Remove all packaging and accessories from inside the drum. Note: DO NOT remove the

screw or clip holding the hose.

Removing the transit bolts

The clothes washer is fitted with 4 transit bolts at the rear to avoid damage during

transportation.

IMPORTANT!

The 4 transit bolts MUST be removed prior to operation of the machine. Failure to

remove these will result in damage to the machine.
