USER’S MANUAL

SMOKE AND FIRE* ALARM

10 YEAR SEALED BATTERY OPERATED PHOTOELECTRIC

SMOKE ALARM WITH SILENCE FEATURE

IMPORTANT! PLEASE READ CAREFULLY AND SAVE.

This user’s manual contains important information about your Smoke

Alarm’s operation. If you are installing this Smoke Alarm for use by

others, you must leave this manual—or a copy of it—with the end user.

Printed in Mexico

M08-0466-156401 K1 10/17

CONFORMS TO UL STD 217

Model P1210

Brands, Inc. is a subsidiary of Newell Brands Inc. (NYSE:NWL) •First Alert®is

registered trademark of The First Alert Trust •3901 Liberty Street, Aurora, IL 60504-

8122 •Consumer Affairs: (800) 323-9005 •www.firstalert.com •www.brkelectronics.com

INTRODUCTION

Thank you for choosing First Alert®for your Smoke Alarm needs. You

have purchased a state of the art Smoke Alarm designed to provide you

with early warning of a fire. Please take the time to read this manual and

make the Smoke Alarm an integral part of your family’s safety plan.

All First Alert®and BRK®Smoke Alarms conform to regulatory requirements,

including UL217 and are designed to detect particles of combustion.

Smoke particles of varying number and size are produced in all fires.

Ionization technology is generally more sensitive than photoelectric

technology at detecting small particles, which tend to be produced

in greater amounts by flaming fires, which consume combustible

materials rapidly and spread quickly. Sources of these fires may include

paper burning in a wastebasket, or a grease fire in the kitchen.

Photoelectric technology is generally more sensitive than ionization technology

at detecting large particles, which tend to be produced in greater amounts

by smoldering fires, which may smolder for hours before bursting into flame.

Sources of these fires may include cigarettes burning in couches or bedding.

For maximum protection, use both types of Smoke Alarms

on each level and in every bedroom of your home.

Key Features of the P1210 Smoke Alarm:

Photoelectric Sensing Technology: Photoelectric Sensors are

generally more sensitive than ionization sensors in detecting smoldering

fires which commonly occur in couches or bedding.

OptiPath 360 Technology™: Patented technology provides

360° of direct access to the smoke sensor.

Single Test/Silence Button: Allows you to test the Alarm or silence

nuisance alarms. Testing the Alarm assures you that the unit is functioning

correctly and ready to protect you and your family. The Alarm can be

silenced for up to 9 minutes in the event of a nuisance alarm.

10 Year End of Life Indicator: 3 horn pulses every 43

seconds alerts you that the unit must be replaced.

Local Alarm Memory: Green LED flashes 3 times every 43 seconds for

24 hours. After 24 hours the unit will chirp rapidly while the Test button

is pressed. Memory is cleared when the button is released.

Low battery warning: The Alarm will sound a “chirp” once per

minute when the Smoke Alarm needs to be replaced.

Low battery silence: The Alarm can be silenced for 8 hours.

Red Blinking Power Indicator every 6 minutes: Confirms

that the Smoke Alarm is receiving power.

FIRE SAFETY TIPS

Follow safety rules and prevent hazardous situations: 1) Use smoking materials

properly. Never smoke in bed. 2) Keep matches or lighters away from children; 3)

Store flammable materials in proper containers; 4) Keep electrical appliances in

good condition and don’t overload electrical circuits; 5) Keep stoves, barbecue

grills, fireplaces and chimneys grease- and debris-free; 6) Never leave anything

cooking on the stove unattended; 7) Keep portable heaters and open flames, like

candles, away from flammable materials; 8) Don’t let rubbish accumulate.

Keep alarms clean, and test them weekly. Replace alarms immediately if

they are not working properly. Smoke Alarms that do not work cannot alert

you to a fire. Keep at least one working fire extinguisher on every floor, and

an additional one in the kitchen. Have fire escape ladders or other reliable

means of escape from an upper floor in case stairs are blocked.

BEFORE YOU INSTALL THIS SMOKE ALARM

Important! Read “Recommended Locations for Smoke Alarms” and “Locations to Avoid

for Smoke Alarms” before beginning. This unit monitors the air, and when smoke reaches

its sensing chamber, it alarms. It can give you more time to escape before fire spreads.

This unit can ONLY give an early warning of developing fires if it is installed, maintained and

located where smoke can reach it, and where all residents can hear it, as described in this

manual. This unit will not sense gas, heat, or flame. It cannot prevent or extinguish fires.

Understand The Different Type of Smoke Alarms

Battery powered or electrical? Different Smoke Alarms provide different

types of protection. See “About Smoke Alarms” for details.

Know Where To Install Your Smoke Alarms

Fire Safety Professionals recommend at least one Smoke Alarm on every

level of your home, in every bedroom, and in every bedroom hallway

or separate sleeping area. See “Recommended Locations For Smoke

Alarms” and “Locations To Avoid For Smoke Alarms” for details.

Know What Smoke Alarms Can and Can’t Do

A Smoke Alarm can help alert you to fire, giving you precious time

to escape. It can only sound an alarm once smoke reaches the

sensor. See “Limitations of Smoke Alarms” for details.

Check Your Local Building Codes

This Smoke Alarm is designed to be used in a typical single-family home. It

alone will not meet requirements for boarding houses, apartment buildings,

hotels or motels. See “Special Compliance Considerations” for details.

BEFORE YOU INSTALL THIS SMOKE ALARM (CONTINUED)...

• This unit will not alert hearing impaired residents. It is

recommended that you install special units which use devices

like flashing strobe lights to alert hearing impaired residents.

• Do not connect this unit to any other Alarm or auxiliary device. It is a

single-station unit that cannot be linked to other devices. Connecting

anything else to this unit may prevent it from working properly.

• Unit will not operate without battery power. The Smoke Alarm

cannot work until you activate the battery power pack.

• Do not install this unit over an electrical junction box. Air currents

around junction boxes can prevent smoke from reaching the

sensing chamber and prevent the unit from alarming. Only AC

powered units are intended for installation over junction boxes.

• Do not stand too close to the unit when the alarm is

sounding. It is loud to wake you in an emergency. Exposure

to the horn at close range may harm your hearing.

• Do not paint over the unit. Paint may clog the openings to the

sensing chamber and prevent the unit from operating properly.

WEEKLY TESTING

• NEVER use an open flame of any kind to test this unit. You might

accidentally damage or set fire to the unit or to your home.

• If the Alarm ever fails to test properly, replace it immediately.

Products under warranty may be returned to the manufacturer

for replacement. See “Limited Warranty” for details.

• DO NOT stand close to the Alarm when the horn is sounding.

Exposure at close range may be harmful to your hearing.

When testing, step away when horn starts sounding.

It is important to test this unit every week to make sure it is working properly.

Using the Test/Silence button is the recommended way to test this Smoke Alarm.

Press and hold the Test/Silence button on the cover of the unit until the alarm

sounds (the unit may continue to alarm for a few seconds after you release the

button). If it does not alarm, make sure the unit is receiving power and test it again.

If it still does not alarm, replace it immediately. During testing you will hear a loud,

repeating horn pattern: 3 beeps, pause, 3 beeps, pause. Red LED flashes rapidly.

REGULAR MAINTENANCE

This unit has been designed to be as maintenance free as possible, but

there are a few simple things you must do to keep it working properly.

• Test it at least once a week.

• Clean the Smoke Alarm at least once a month; gently vacuum off any dust using

your household vacuum’s soft brush attachment, and test the Smoke Alarm after

cleaning. Never use water, cleaners or solvents since they may damage the unit.

• If the Smoke Alarm becomes contaminated by excessive dirt, dust and/or grime,

and cannot be cleaned to avoid unwanted alarms, replace the unit immediately.

• Relocate the unit if it sounds frequent unwanted alarms. See

“Locations to Avoid For Smoke Alarms” for details.

• When the battery becomes weak, the Smoke Alarm unit will “chirp” approximately once

a minute (the Low Battery warning). This low battery warning should last for up to 30

days, but you should replace the Smoke Alarm immediately to continue your protection.

Actual service life depends on the Smoke Alarm and the environment in

which it is installed. You MUST replace the Smoke Alarm immediately

once the unit starts “chirping” (the “low battery warning”).

HOW TO INSTALL THIS SMOKE ALARM

THE PARTS OF THIS SMOKE ALARM

1. Test/Silence button

2. Dual Power indicator light and

Alarm indicator: Green LED

provides visual indication of an

Alarm Memory condition; Red

LED provides visual indication

of an Alarm and Hush modes

1. Mounting bracket

2. Mounting slots

3. Turn this way to remove

4. Turn this way to attach

TOOLS YOU WILL NEED:

This unit is designed to be mounted on the ceiling, or on the wall if necessary.

• Pencil

• Drill with 3/16” (5 mm) drill bit

• Standard flathead screwdriver

• Hammer

FOLLOW THESE SIMPLE STEPS

1. Hold the mounting bracket against

the ceiling (or wall) so the two

clusters of universal mounting holes

are aligned approximately at the

9:00 and 3:00 o’clock positions.

See image. Choose one of the three

sets of holes shown, A, B or C (see

image) and trace around one of the

sets. Be sure to choose a top and

bottom slot on opposite sides so you

can rotate the universal mounting

bracket into position later. This

will make it easier in the future to

remove the mounting bracket without

completely removing the screws.

Mounting Hole Sets

MOUNTING HOLE SETS

WARNING! Do not install this Smoke Alarm over an existing electrical box.

Only AC powered units are intended for installation over electrical boxes.

2. Put the unit where it won’t get covered with dust when you drill the mounting holes.

3. Using a 3/16” (5 mm) drill bit, drill a hole through the

center of the oval outlines you traced.

4. Insert the plastic screw anchors (in the plastic bag with screws)

into the holes. Tap the screw anchors gently with a hammer, if

necessary, until they are flush with the ceiling or wall.

5. Install the screws but do not tighten completely. Attach the mounting

bracket by aligning the screws in the open portion of the universal

mounting slots and rotating the bracket into place. Tighten the screws

until they are snug to secure the bracket. Do not over tighten.

FOLLOW THESE SIMPLE STEPS (CONTINUED)...

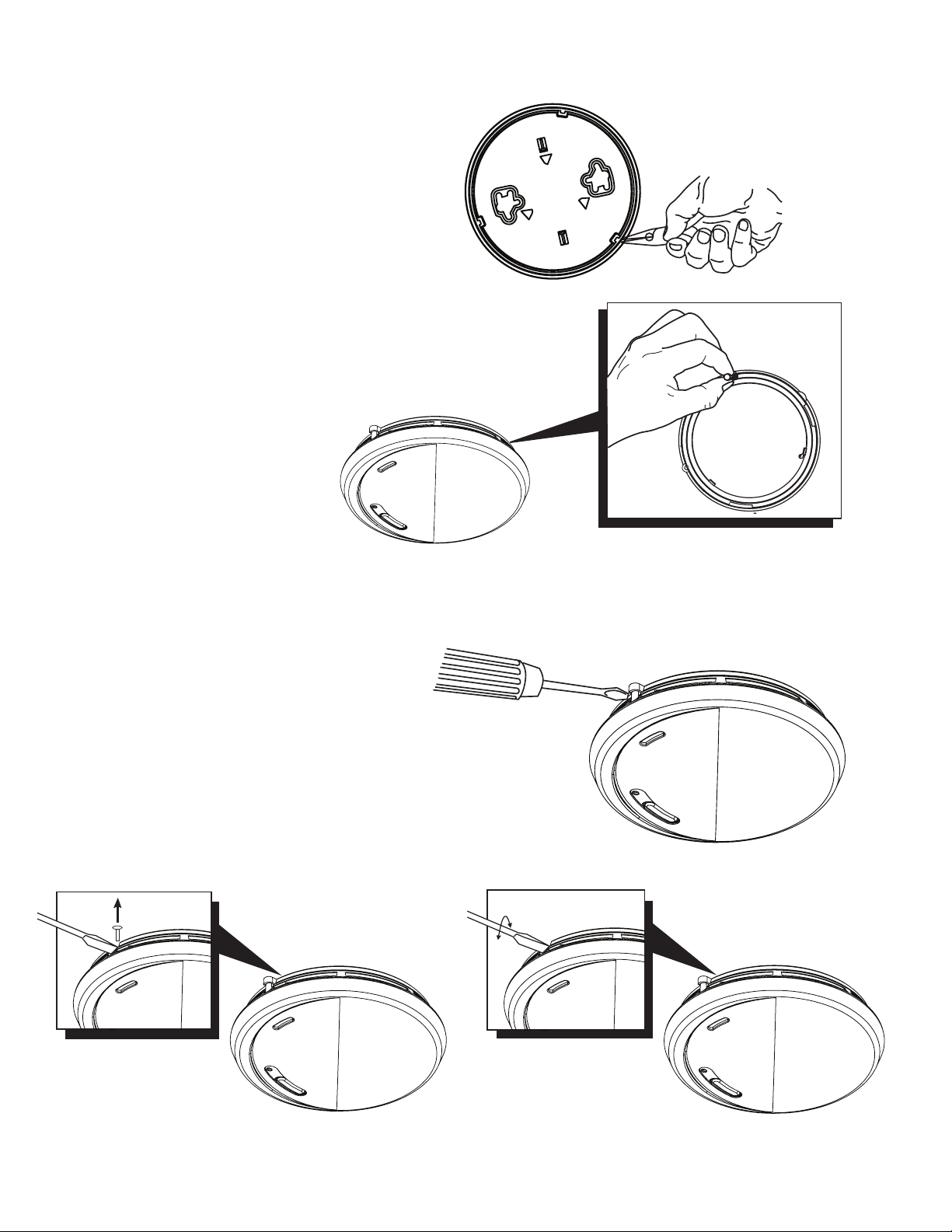

6. Activating the battery. Mount alarm to mounting bracket to

activate. Once unit is activated, it cannot be turned off.

NOTE: After you activate the battery, the power indicator light may

flash. (If the unit alarms, the light will blink rapidly, and the horn will

repeatedly sound 3 beeps, pause, 3 beeps.) Once the Smoke Alarm is

on the bracket, you can rotate the Alarm to adjust the alignment.

7. Test the Smoke Alarm. See “Weekly Testing.”

NOTE: At end of life or low battery indication (chirp): unit must be put into

deactivation mode to deactivate remaining stored energy in battery. Unit will

no longer function once put into this mode. Unit will resist re-mounting.

8. After 10 years of operation

or Low Battery warning,

deactivate the Smoke Alarm:

Insert a tool below edge

where shown and break

tab. Then slide activation

switch to deactivate mode.

ON - DEACTIVATE

OPTIONAL LOCKING FEATURE

Loc

king Pin

LOCKING PIN

The optional locking feature is designed to prevent unauthorized removal

of the alarm. It is not necessary to activate the lock in single-family

households where unauthorized alarm removal is not a concern.

Tools you will need: Needle-nose pliers or utility knife • Standard flathead screwdriver

The feature uses a locking pin which is molded into the mounting bracket.

Remove locking pin by using needle-nose pliers or a utility knife.

To permanently remove the locking pin, insert a flathead screwdriver

between the locking pin and the lock and pry the pin out of the lock.

TO LOCK THE MOUNTING BRACKET

1. Using needle-nose pliers,

detach the pin from the

mounting bracket.

2. Insert the locking pin

through the hole on the

back of the smoke alarm

as shown in the diagram.

3. When you attach the alarm

to the mounting bracket the

locking pin’s head will fit into

a notch on the bracket.

TO UNLOCK THE MOUNTING BRACKET

1. Insert a flathead screwdriver

in between the mounting

bracket and the locking pin.

2. Pry the alarm away from

the bracket by pushing up

the screwdriver and turning

the alarm counterclockwise

(left) at the same time.

IF THIS SMOKE ALARM SOUNDS

RESPONDING TO AN ALARM

During an alarm, you will hear a loud, repeating horn pattern: 3

beeps, pause, 3 beeps, pause. The Red LED flashes rapidly.

• If the unit alarms get everyone out of the house immediately.

• If the unit alarms and you are not testing the unit, it is warning you of a

potentially dangerous situation that requires your immediate attention.

NEVER ignore any alarm. Ignoring the alarm may result in injury or death.

• Never remove the batteries from a battery operated Smoke Alarm to stop an

unwanted alarm (caused by cooking smoke, etc.). Removing batteries disables

the alarm so it cannot sense smoke, and removes your protection. Instead open a

window or fan the smoke away from the unit. The alarm will reset automatically.

WHAT TO DO IN CASE OF FIRE

• Don’t panic; stay calm. Follow your family escape plan.

• Get out of the house as quickly as possible. Don’t

stop to get dressed or collect anything.

• Feel doors with the back of your hand before opening them. If a

door is cool, open it slowly. Don’t open a hot door. Keep doors and

windows closed, unless you must escape through them.

• Cover your nose and mouth with a cloth (preferably damp). Take short, shallow breaths.

• Meet at your planned meeting place outside your home, and do

a head count to make sure everybody got out safely.

• Call the Fire Department as soon as possible from

outside. Give your address, then your name.

• Never go back inside a burning building for any reason.

• Contact your Fire Department for ideas on making your home safer.

Alarms have various limitations. See “Limitations of Smoke Alarms” for details.

Other manuals for P1210

Table of contents

Other First Alert Smoke Alarm manuals

First Alert

First Alert 7020b User manual

First Alert

First Alert 7020BSL User manual

First Alert

First Alert P900 User manual

First Alert

First Alert PR710-6BR User manual

First Alert

First Alert UL STD 217 User manual

First Alert

First Alert ZCOMBO-G User manual

First Alert

First Alert SCO500A User manual

First Alert

First Alert 9120 Series User manual

First Alert

First Alert ONELINK SCO500 User manual

First Alert

First Alert SA320CN-2 User manual

First Alert

First Alert 9120 Series User manual

First Alert

First Alert SA100B User manual

First Alert

First Alert SA4120 User manual

First Alert

First Alert SA150B User manual

First Alert

First Alert SA300 User manual

First Alert

First Alert SCO501CN-3ST User manual

First Alert

First Alert P1000 User manual

First Alert

First Alert SA3210 User manual

First Alert

First Alert SA302B User manual

First Alert

First Alert SM210 User manual

First Alert

First Alert SC7010B User manual

First Alert

First Alert SC05B User manual

First Alert

First Alert Heat ALarm HD6135F User manual

First Alert

First Alert SA303B User manual

Popular Smoke Alarm manuals by other brands

x-sense

x-sense SD19-W user manual

BRK electronic

BRK electronic First Alert P1010 quick start guide

FireAngel

FireAngel Thermoptek ST-622 user manual

teko

teko Astra-42A user guide

Safetec

Safetec SDS-2/6 Additional Fault Finding Instructions

Siemens

Siemens PE-11C installation instructions

System Sensor

System Sensor DH500ACDC Installation and maintenance instructions

Resolution Products

Resolution Products RE612 CryptiX quick start guide

Eminent

Eminent EM6590 E-Domotica user manual

Ei Electronics

Ei Electronics Ei Ei168RC user manual

Carrier

Carrier Kidde Quell Q301 user manual

VESDA

VESDA VLF-500 Product guide

ELRO

ELRO FS8110 instruction manual

Heiman

Heiman SMOKI NS-626PHS user manual

Regin

Regin SDD-S65 instruction manual

Family Gard

Family Gard FG225 user manual

Greystone

Greystone DSD120 Installation and maintenance instructions

Aparton

Aparton ASD-10 Instructions for use
