123456

ABOUT SMOKE ALARMS

Battery (DC) operated Smoke Alarms: Provide protection even when electricity fails, provided

the batteries are fresh and correctly installed. Units are easy to install, and do not require

professional installation. They do not, however, provide interconnected functionality.

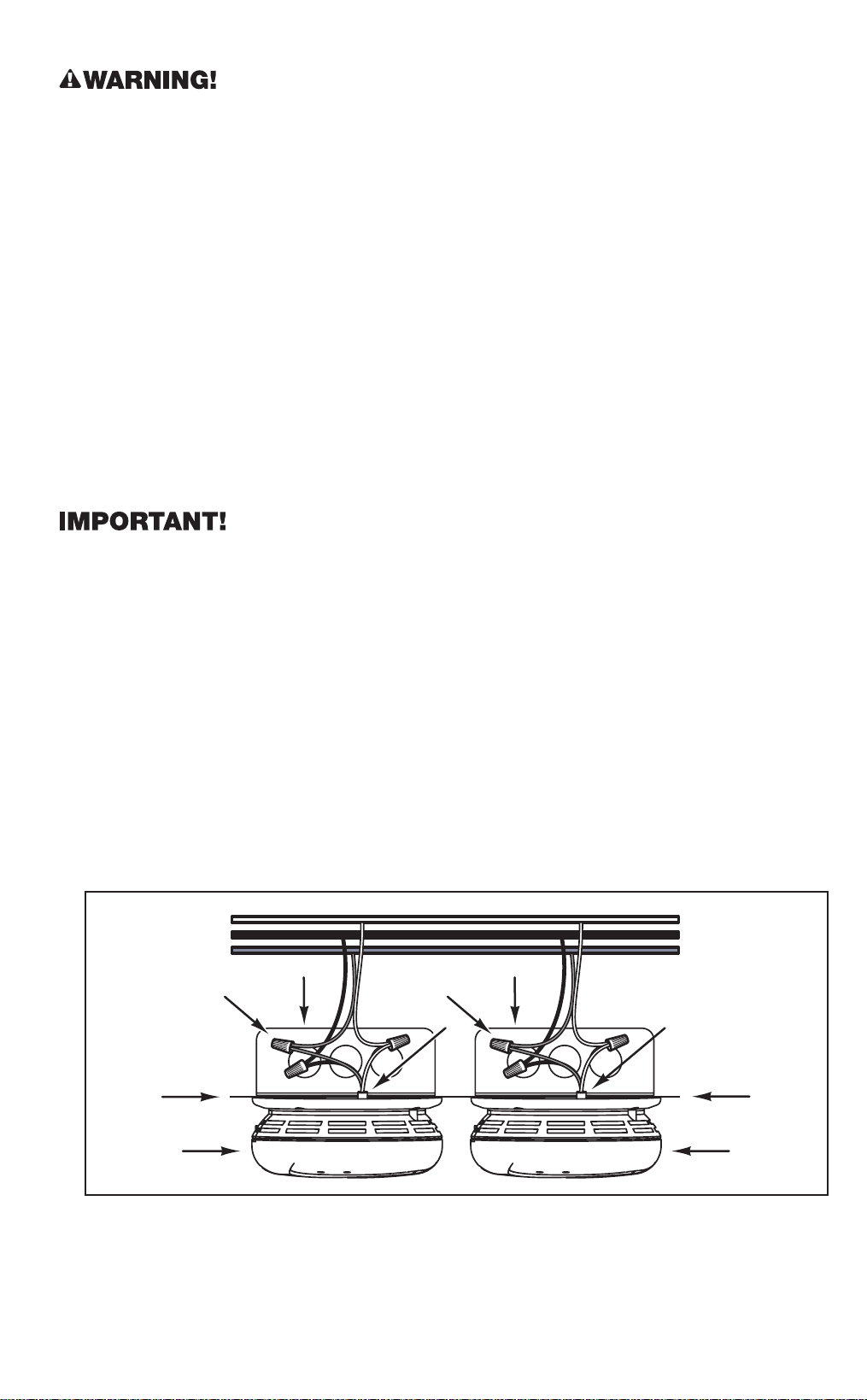

AC powered Smoke Alarms: Can be interconnected so if one unit senses smoke,

all units alarm. They do not operate if electricity fails. AC with battery (DC) back-

up: will operate if electricity fails, provided the batteries are fresh and correctly

installed. AC and AC/DC units must be installed by a qualified electrician.

Wireless Interconnected Alarms: Offer the same interconnected functionality as with hardwired

alarms, without wires. Units are easy to install and do not require professional installation. They

provide protection even when electricity fails, provided the batteries are fresh and correctly installed.

Smoke Alarms for Solar or Wind Energy users and battery backup power systems:

AC powered Smoke Alarms should only be operated with true or pure sine wave inverters.

Operating this Smoke Alarm with most battery- powered UPS (uninterruptible power supply)

products or square wave or “quasi sine wave” inverters will damage the Alarm. If you are

not sure about your inverter or UPS type, please consult with the manufacturer to verify.

Smoke Alarms for the hearing impaired: Special purpose Smoke Alarms should

be installed for the hearing impaired. They include a visual alarm and an audible

alarm horn, and meet the requirements of the Americans With Disabilities Act. These

units can be interconnected so if one unit senses smoke, all units alarm.

Smoke alarms are not to be used with detector guards unless the

combination has been evaluated and found suitable for that purpose.

All these Smoke Alarms are designed to provide early warning of fires if located, installed

and cared for as described in the user’s manual, and if smoke reaches the Alarm. If you are

unsure which type of unit to install, refer to NFPA (National Fire Protection Association) 72

(National Fire Alarm and Signaling Code) and NFPA 101 (Life Safety Code). National Fire

Protection Association, One Batterymarch Park, Quincy, MA 02269-9101. Local building codes

may also require specific units in new construction or in different areas of the home.

SPECIAL COMPLIANCE CONSIDERATIONS

This Smoke Alarm is suitable for use in apartments, condominiums, townhouses, hospitals, day

care facilities, health care facilities, boarding houses, group homes and dormitories provided

a primary fire detection system already exists to meet fire detection requirements in common

areas like lobbies, hallways, or porches. Using this Smoke Alarm in common areas may not

provide sufficient warning to all residents or meet local fire protection ordinances/regulations.

This Smoke Alarm alone is not a suitable substitute for complete fire detection systems

in places housing many people—like apartment buildings, condominiums, hotels, motels,

dormitories, hospitals, health care facilities, nursing homes, day care facilities, or group homes

of any kind. It is not a suitable substitute for complete fire detection systems in warehouses,

industrial facilities, commercial buildings, and special-purpose non-residential buildings which

require special fire detection and alarm systems. Depending on the building codes in your

area, this Smoke Alarm may be used to provide additional protection in these facilities.

In new construction, most building codes require the use of AC or AC/DC powered Smoke

Alarms only. In existing construction, AC, AC/DC, or DC powered Smoke Alarms can be used

as specified by local building codes. Refer to NFPA 72 (National Fire Alarm and Signaling

Code) and NFPA 101 (Life Safety Code), local building codes, or consult your Fire Department

for detailed fire protection requirements in buildings not defined as “households”.

LIMITATIONS OF SMOKE ALARMS

Smoke Alarms have played a key role in reducing deaths resulting from home fires worldwide.

However, like any warning device, Smoke Alarms can only work if they are properly located,

installed, and maintained, and if smoke reaches the Alarms. They are not foolproof.

Smoke alarms may not waken all individuals. Practice the escape plan at least twice a year,

making sure that everyone is involved – from kids to grandparents. Allow children to master fire

escape planning and practice before holding a fire drill at night when they are sleeping. If children

or others do not readily waken to the sound of the smoke alarm, or if there are infants or family

members with mobility limitations, make sure that someone is assigned to assist them in fire

drill and in the event of an emergency. It is recommended that you hold a fire drill while family

members are sleeping in order to determine their response to the sound of the smoke alarm while

sleeping and to determine whether they may need assistance in the event of an emergency.

Smoke Alarms cannot work without power. Battery operated units cannot work if the batteries

are missing, disconnected or dead, if the wrong type of batteries are used, or if the batteries are not

installed correctly. AC units cannot work if the AC power is cut off for any reason (open fuse or circuit

breaker, failure along a power line or at a power station, electrical fire that burns the electrical wires,

etc.). If you are concerned about the limitations of battery or AC power, install both types of units.

Smoke Alarms cannot detect fires if the smoke does not reach the Alarms. Smoke from fires in

chimneys or walls, on roofs, or on the other side of closed doors may not reach the sensing chamber

and set off the Alarm. That is why one unit should be installed inside each bedroom or sleeping area—

especially if bedroom or sleeping area doors are closed at night—and in the hallway between them.

Smoke Alarms may not detect fire on another floor or area of the dwelling. For example,

a stand-alone unit on the second floor may not detect smoke from a basement fire until the fire

spreads. This may not give you enough time to escape safely. That is why recommended minimum

protection is at least one unit in every sleeping area, and every bedroom on every level of your

dwelling. Even with a unit on every floor, stand-alone units may not provide as much protection as

interconnected units, especially if the fire starts in a remote area. Some safety experts recommend

installing interconnected AC powered units with battery back-up (see “About Smoke Alarms”) or

professional fire detection systems, so if one unit senses smoke, all units alarm. Interconnected units

may provide earlier warning than stand-alone units since all units alarm when one detects smoke.

Smoke Alarms may not be heard. Though the alarm horn in this unit meets or exceeds

current standards, it may not be heard if: 1) the unit is located outside a closed or

partially closed door, 2) residents recently consumed alcohol or drugs, 3) the Alarm is

drowned out by noise from stereo, TV, traffic, air conditioner or other appliances, 4)

residents are hearing impaired or sound sleepers. Special purpose units, like those with

visual and audible alarms, should be installed for hearing impaired residents.

Smoke Alarms may not have time to alarm before the fire itself causes damage,

injury, or death, since smoke from some fires may not reach the unit immediately.

Examples of this include persons smoking in bed, children playing with matches,

or fires caused by violent explosions resulting from escaping gas.

Smoke Alarms are not foolproof. Like any electronic device, Smoke Alarms are

made of components that can wear out or fail at any time. You must test the unit

weekly to ensure your continued protection. Smoke Alarms cannot prevent or

extinguish fires. They are not a substitute for property or life insurance.

Smoke Alarms have a limited life. The unit should be replaced immediately if it is not

operating properly. You should always replace a Smoke Alarm after 10 years from date

of purchase. Write the purchase date on the space provided on back of unit.

LIMITED WARRANTY

BRK Brands, Inc., (“BRK”) the maker of First Alert®brand and BRK®brand products, warrants

that for a period of ten years from the date of purchase, this product will be free from defects in

material and workmanship. BRK, at its option, will repair or replace this product or any component

of the product found to be defective during the warranty period. Replacement will be made with a

new or remanufactured product or component. If the product is no longer available, replacement

may be made with a similar product of equal or greater value. This is your exclusive warranty.

This warranty is valid for the original retail purchaser from the date of initial retail purchase

and is not transferable. Keep the original sales receipt. Proof of purchase is required to obtain

warranty performance. BRK dealers, service centers, or retail stores selling BRK products do not

have the right to alter, modify or any way change the terms and conditions of this warranty.

This warranty does not cover normal wear of parts or damage resulting from any of the

following: negligent use or misuse of the product, use on improper voltage or current, use

contrary to the operating instructions, disassembly, repair or alteration by anyone other than

BRK or an authorized service center. Further, the warranty does not cover Acts of God, such

as fire, flood, hurricanes and tornadoes or any batteries that are included with this unit.

BRK shall not be liable for any incidental or consequential damages caused by the breach of any

express or implied warranty. Except to the extent prohibited by applicable law, any implied warranty

of merchantability or fitness for a particular purpose is limited in duration to the duration of the

above warranty. Some states, provinces or jurisdictions do not allow the exclusion or limitation

of incidental or consequential damages or limitations on how long an implied warranty lasts, so

the above limitations or exclusion may not apply to you. This warranty gives you specific legal

rights, and you may also have other rights that vary from state to state or province to province.

How to Obtain Warranty Service

Service: If service is required, do not return the product to your retailer. In order to obtain

warranty service, contact the Consumer Affairs Division at 1-800-323-9005. To assist us in

serving you, please have the model number and date of purchase available when calling.

For Warranty Service return to:

BRK Brands, Inc., 1301 Joe Battle, El Paso, TX 79936

Battery: BRK Brands, Inc. make no warranty, express or implied, written or oral, including

that of merchantability or fitness for any particular purpose with respect to battery.

Visit www.firstalert.com for more information.

USER’S MANUAL

SMOKE ALARMS

IMPORTANT! PLEASE READ CAREFULLY AND SAVE.

This user’s manual contains important information about your Smoke

Alarm’s operation. If you are installing this Smoke Alarm for use by others,

you must leave this manual—or a copy of it—with the end user.

AC Powered Photoelectric Smoke Alarms

Input: 120V AC ~, 60Hz, 0.05A

Model 7010LBL with 10 Year Lithium Battery

Backup* (Skus: 1042732, 1042735, 1042736)

Printed in Mexico

M08-0050-166047 K1 02/19

CONFORMS TO

UL STD 217 Model 7010LBL

INTRODUCTION

Thank you for choosing First Alert®for your Smoke Alarm needs. You have purchased a state of

the art Smoke Alarm designed to provide you with an early warning of a fire. Please take the time

to read this manual and make this Smoke Alarm an integral part of your family’s safety plan.

Key Features of this Smoke Alarm:

Photoelectric Smoke Sensing Technology: Generally more sensitive at detecting large

particles, which tend to be produced in greater amounts by smoldering fires.

Single Button Test/Silence: One touch button combines both features.

Alarm Latch: Remembers which unit initiated an alarm.

Perfect Mount: Mounting bracket keeps alarm secure over a

wide rotation range to allow for perfect alignment.

10 Year Factory Locked Battery Backup*: Keep alarm functioning during power interruption.

*Note: Warranted to last 10 years under normal operating conditions.

subsidiary of Newell Brands Inc. (NYSE:NWL) •3901 Liberty Street, Aurora, IL 60504-8122 •Customer

Service Team: 1-(800) 323-9005 •Made in Mexico •www.firstalert.com •www.brkelectronics.com

All First Alert®and BRK®Smoke Alarms conform to regulatory requirements,

including UL217 and are designed to detect particles of combustion.

Smoke particles of varying number and size are produced in all fires.

Ionization technology is generally more sensitive than photoelectric technology at

detecting small particles, which tend to be produced in greater amounts by flaming

fires, which consume combustible materials rapidly and spread quickly. Sources of

these fires may include paper burning in a wastebasket, or a grease fire in the kitchen.

Photoelectric technology is generally more sensitive than ionization technology

at detecting large particles, which tend to be produced in greater amounts

by smoldering fires, which may smolder for hours before bursting into flame.

Sources of these fires may include cigarettes burning in couches or bedding.

For maximum protection, use both types of Smoke Alarms on

each level and in every bedroom of your home.

FIRE SAFETY TIPS

Follow safety rules and prevent hazardous situations: 1) Use smoking materials properly. Never

smoke in bed. 2) Keep matches or lighters away from children; 3) Store flammable materials in

proper containers; 4) Keep electrical appliances in good condition and don’t overload electrical

circuits; 5) Keep stoves, barbecue grills, fireplaces and chimneys grease- and debris-free; 6)

Never leave anything cooking on the stove unattended; 7) Keep portable heaters and open

flames, like candles, away from flammable materials; 8) Don’t let rubbish accumulate.

Keep alarms clean, and test them weekly. Replace alarms immediately if they are not working

properly. Smoke Alarms that do not work cannot alert you to a fire. Keep at least one working

fire extinguisher on every floor, and an additional one in the kitchen. Have fire escape ladders

or other reliable means of escape from an upper floor in case stairs are blocked.

BEFORE YOU INSTALL THIS SMOKE ALARM

Important! Read “Recommended Locations for Smoke Alarms” and “Locations to Avoid for

Smoke Alarms” before beginning. This unit monitors the air, and when smoke reaches its

sensing chamber, it alarms. It can give you more time to escape before fire spreads. This

unit can ONLY give an early warning of developing fires if it is installed, maintained and

located where smoke can reach it, and where all residents can hear it, as described in this

manual. This unit will not sense gas, heat, or flame. It cannot prevent or extinguish fires.

Understand The Different Type of Smoke Alarms

Battery powered or electrical? Different Smoke Alarms provide different

types of protection. See “About Smoke Alarms” for details.

Know Where To Install Your Smoke Alarms

Fire Safety Professionals recommend at least one Smoke Alarm on every level of your home, in

every bedroom, and in every bedroom hallway or separate sleeping area. See “Recommended

Locations For Smoke Alarms” and “Locations To Avoid For Smoke Alarms” for details.

Know What Smoke Alarms Can and Can’t Do

A Smoke Alarm can help alert you to fire, giving you precious time to escape. It can only sound

an alarm once smoke reaches the sensor. See “Limitations of Smoke Alarms” for details.

Check Your Local Building Codes

This Smoke Alarm is designed to be used in a typical single-family home. It

alone will not meet requirements for boarding houses, apartment buildings,

hotels or motels. See “Special Compliance Considerations” for details.

ELECTRICAL SHOCK HAZARD. Turn off the power to the area where the Smoke

Alarm is installed before removing it from the mounting bracket. Failure to turn

off the power first may result in serious electrical shock, injury or death.

• This unit will not alert hearing impaired residents. It is recommended

that you install special units which use devices like flashing

strobe lights to alert hearing impaired residents.

• Installation of this unit must conform to the electrical codes in your area; Articles

210 and 300.3 (B) of NFPA 70 (NEC), NFPA 72, NFPA 101; SBC (SBCCI); UBC

(ICBO); NBC (BOCA); OTFDC (CABO), and any other local or building codes that

may apply. Wiring and installation must be performed by a licensed electrician.

Failure to follow these guidelines may result in injury or property damage.

• This unit must be powered by a 24-hour, 120VAC pure sine wave 60Hz

circuit. Be sure the circuit cannot be turned off by a switch, dimmer,

or ground fault circuit interrupter. Failure to connect this unit to a

24-hour circuit may prevent it from providing constant protection.

• This Smoke Alarm must have AC or battery power to operate.If the AC power

fails, battery back-up will allow the alarm to sound for at least 4 minutes. If AC

power fails and the battery is weak, protection should last for at least 7 days. If

AC power fails and the battery is dead or missing, the alarm cannot operate.

• Never disconnect the power from an AC powered unit to stop an unwanted

alarm. Doing so will disable the unit and remove your protection. In the

case of a true unwanted alarm open a window or fan the smoke away

from the unit. The alarm will reset automatically when it returns to normal

operation. Never remove the batteries from a battery operated unit to stop

an unwanted alarm (caused by cooking smoke, etc.). Instead open a window

or fan the smoke away from the unit. The alarm will reset automatically.

• Connect this unit ONLY to other compatible units. See “How To

Install This Smoke Alarm” for details. Do not connect it to any other

type of alarm or auxiliary device. Connecting anything else to this

unit may damage it or prevent it from operating properly.

• This Smoke Alarm has a battery drawer which resists closing unless a battery is

installed. This warns you the unit will not operate under DC power without a battery.

• Do not stand too close to the unit when the alarm is sounding. It is loud to wake you

in an emergency. Exposure to the horn at close range may harm your hearing.

• Do not paint over the unit. Paint may clog the openings to the sensing

chambers and prevent the unit from operating properly.

HOW TO INSTALL THIS SMOKE ALARM

This Smoke Alarm is designed to be mounted on any standard wiring junction box up to a 4-inch (10 cm) size, on either the ceiling or wall (if allowed by local

codes). Read “Recommended Locations For Smoke Alarms” and “Locations to Avoid For Smoke Alarms” before you begin installation.

Tools you will need:

• Needle-nose pliers or utility knife

• Standard Flathead screwdriver.

Make sure the Alarm is not receiving excessively noisy power. Examples of noisy power could be major appliances on the same circuit, power from a generator

or solar power, light dimmer on the same circuit or mounted near fluorescent lighting. Excessively noisy power may cause damage to your Alarm.

UNDERSTANDING THE INDICATOR LIGHTS

AND ALARM HORN PATTERNS

AC Power DC Power

Normal Operation

Constant Green LED

Flashing Red LED

approx. once/minute

No Audible Alarm

Green LED Off

Flashing Red LED

approx. once/minute

No Audible Alarm

Test Condition

Constant Green LED

Rapidly Flashing Red LED

Audible Alarm

Green LED Off

Rapidly Flashing Red LED

Audible Alarm

Alarm Condition*

(Initiating Unit)

Constant Green LED

Rapidly Flashing Red LED

Audible Alarm

Green LED Off

Rapidly Flashing Red LED

Audible Alarm

Silence Mode Red LED flashes once

every 10 seconds

Red LED flashes once

every 10 seconds

Malfunction Horn sounds 3 chirps

Pattern repeats once/minute

Horn sounds 3 chirps

Pattern repeats once/minute

Battery End of Life** Alarm “chirp’’ approx.

once/minute

Alarm “chirp’’ approx.

once/minute

Alarm Latch

Red LED will flash 3 times,

spaced one second apart.

Pattern repeats once/minute

Not Applicable

NOTE: When power is applied, unit(s) may alarm momentarily.

*When any Smoke Alarm in an interconnected series triggers an alarm, its red LED

will flash rapidly. The red LEDs will remain OFF on any remaining alarms in the

series. This feature helps responders identify which unit(s) triggered the alarm.

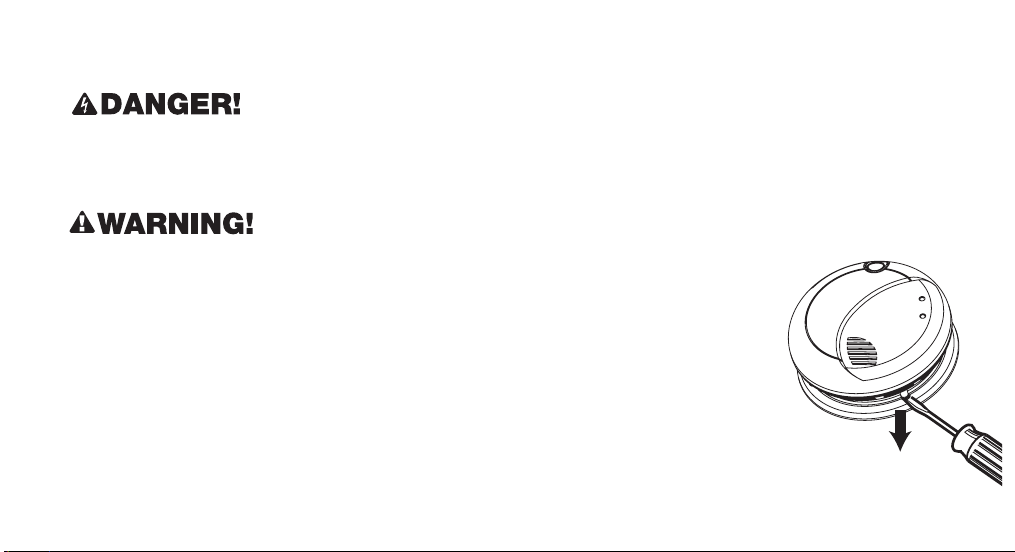

**At battery end of life signal, use tool to cut/disengage the locking pin located

at side of factory locked drawer and properly dispose of lithium battery (#10 in

diagram at left). DO NOT REPLACE BATTERY and dispose of alarm.

WEEKLY TESTING

• NEVER use an open flame of any kind to test this unit. You might accidentally

damage or set fire to the unit or to your home. The built-in test switch accurately

tests the unit’s operation as required by Underwriters Laboratories, Inc. (UL).

• If the Alarm ever fails to test properly, replace it immediately.

Products under warranty may be returned to the manufacturer for

replacement. See “Limited Warranty” at the end of this manual.

DO NOT stand close to the Alarm when the horn is sounding. Exposure at close range

may be harmful to your hearing. When testing, step away when horn starts sounding.

It is important to test this unit every week to make sure it is working properly. Using

the test button is the recommended way to test this Smoke Alarm. Press and hold the

Test/Silence button on the cover of the unit until the alarm sounds (the unit may continue to

alarm for a few seconds after you release the button). If it does not alarm, make sure the unit

is receiving power and test it again. If it still does not alarm, replace it immediately. During

testing, you will hear a loud, repeating horn pattern: 3 beeps, pause, 3 beeps, pause.

When testing a series of interconnected units you must test each unit

individually. Make sure all units alarm when each one is tested.

REGULAR MAINTENANCE

This unit has been designed to be as maintenance-free as possible, but there

are a few simple things you must do to keep it working properly:

• Test it at least once a week.

• Clean the Smoke Alarm at least once a month; gently vacuum the outside of the

Smoke Alarm using your household vacuum’s soft brush attachment. Test the Smoke

Alarm. Never use water, cleaners or solvents since they may damage the unit.

• If the Smoke Alarm becomes contaminated by excessive dirt, dust and/or grime, and

cannot be cleaned to avoid unwanted alarms, replace the unit immediately.

• Relocate the unit if it sounds frequent unwanted alarms. See

“Locations To Avoid For Smoke Alarms” for details.

• When the battery backup reach its end of life, the Smoke Alarm will “chirp”

about once a minute. The warning should last 7 days, but you should

replace the alarm immediately to continue your protection.

• Alarm is supplied with lithium battery (factory locked in battery drawer) that is capable

of providing backup battery function for the recommended life of the alarm.

• At battery end of life signal, use tool to cut/disengage the locking pin located

at side of factory locked drawer and properly dispose of lithium battery

(#10 in diagram at left) DO NOT REPLACE BATTERY and alarm.

NOTE: Please dispose of, or recycle used batteries properly, following any

local regulations. Consult your local waste management authority or recycling

organization to find an electronics recycling facility in your area. DO NOT

DISPOSE OF BATTERIES IN FIRE. BATTERIES MAY EXPLODE OR LEAK.

• Keep battery out of reach of children. In the event a battery is swallowed,

immediately contact your poison control center, your physician, or the National

Battery Ingestion hotline at 202-625-3333 as serious injury may occur.

Actual battery service life depends on the smoke alarm and the environment in which it is installed.

At battery end of life signal, use tool to cut/disengage the locking pin located at side of factory

locked drawer and properly dispose of lithium battery (#10 in diagram at left) and alarm.

IF THIS SMOKE ALARM SOUNDS

RESPONDING TO AN ALARM

During an alarm, you will hear a loud, repeating horn pattern: 3 beeps, pause, 3 beeps, pause.

• If the unit alarms and you are not testing the unit, it is warning you of a

potentially dangerous situation that requires your immediate attention. NEVER

ignore any alarm. Ignoring the alarm may result in injury or death.

• Never disconnect the AC power to quiet an unwanted alarm. Disconnecting the power

disables the Alarm so it cannot sense smoke. This will remove your protection. Instead,

open a window or fan the smoke away from the unit. The Alarm will reset automatically.

• If the unit alarms get everyone out of the house immediately.

• ELECTRICAL SHOCK HAZARD: Attempting to disconnect the power connector from

the unit when the power is on may result in electrical shock, serious injury or death.

When an interconnected system of AC powered units is in alarm, the alarm indicator light on

the unit(s) that initiated the alarm will blink rapidly. It will remain OFF on any remaining units.

If the unit alarms, get everyone out of the dwelling immediately.

If the unit alarms and you are certain that the source of smoke is not a fire—cooking

smoke or an extremely dusty furnace, for example—open a nearby window or door and

fan the smoke away from the unit (Use the Silence Feature to silence the Alarm). This will

silence the alarm, and once the smoke clears the unit will reset itself automatically.

WHAT TO DO IN CASE OF FIRE

• Don’t panic; stay calm. Follow your family escape plan.

• Get out of the house as quickly as possible. Don’t stop to get dressed or collect anything.

• Feel doors with the back of your hand before opening them. If a door is cool, open it slowly.

Don’t open a hot door. Keep doors and windows closed, unless you must escape through them.

• Cover your nose and mouth with a cloth (preferably damp). Take short, shallow breaths.

• Meet at your planned meeting place outside your home, and do a

head count to make sure everybody got out safely.

• Call the Fire Department as soon as possible from outside. Give your address, then your name.

• Never go back inside a burning building for any reason.

• Contact your Fire Department for ideas on making your home safer.

Alarms have various limitations. See “Limitations of Smoke Alarms” for details.

USING THE SILENCE FEATURE

The Silence Feature can temporarily quiet an unwanted alarm for up to 15 minutes.

The Silence Feature does not disable the unit—it makes it temporarily less sensitive

to smoke. For your safety, if smoke around the unit is dense enough to suggest a

potentially dangerous situation, the unit will stay in alarm or may re-alarm quickly.

If you do not know the source of the smoke, do not assume it is an unwanted alarm.

Not responding to an alarm can result in property loss, injury, or death.

To silence Smoke Alarms in an interconnected series:

1. To silence multiple alarms in an interconnected series, you must press

the Test/Silence button on the unit(s) that triggered the alarm.

2. Once you activate the Silence feature, the Red LED will

flash approximately once every 10 seconds.

3. Pressing the Test/Silence button when in silence will restart the silence timer.

The Silence Feature on these units can temporarily quiet an unwanted alarm for

up to 15 minutes. To use this feature, press the Test/Silence button on the cover.

If the unit will not silence and no heavy smoke is present, or if it stays in

silence mode continuously, it should be replaced immediately.

LATCHING FEATURE

Alarm Latch is activated after an Alarm is exposed to alarm levels of smoke. After smoke drops

below alarm levels, the Red LED will flash 3 times, spaced one second apart. The pattern repeats

approximately every 45 seconds unless reset by Test/Silence button. In addition, instead of waiting

for up to 45 seconds to see if an alarm has had the Alarm Latch feature set, a unit with an active

Alarm Latch can be identified by pressing and holding (without releasing) the Test button. If a

unit has an active Alarm Latch, the Red light will blink rapidly (with no horn sound) until the Test

button is released. If the unit does not have an active Alarm Latch set, the unit will go through the

normal test cycle. Note: Once the Test button is released the Latching Feature will be reset.

This feature helps emergency responders, investigators, or service technicians identify which unit(s) in

your home were exposed to alarm levels of smoke. This can help investigators pinpoint the source of

smoke. The Alarm Latch stays ON until you clear it, so it can alert you to an alarm that occurred while

you were away from home, even though smoke present in the air has dropped below alarm levels.

IF YOU SUSPECT A PROBLEM

Smoke Alarms may not operate properly because of a build-up of dirt, dust or grease on the Smoke

Alarm cover, or installation in an improper location. Clean the Smoke Alarm as described in “Regular

Maintenance,” and install a fresh battery, then test the Smoke Alarm again. If it fails to test properly

when you use the test button, or if the problem persists, replace the Smoke Alarm immediately.

• If you hear a “chirp” approximately once a minute, replace the battery (Model 7010B only).

• If you hear 3 “chirps” approximately once a minute, replace the

alarm immediately. This is the malfunction indicator.

• If you experience frequent non-emergency alarms (like those caused

by cooking smoke), try relocating the Smoke Alarm.

• If the alarm sounds when no smoke is visible, try cleaning or

relocating the Smoke Alarm. The cover may be dirty.

• If the alarm does not sound during testing, make sure it is

receiving AC power from the household current.

Always discharge the branch circuit before servicing an AC or AC/DC Smoke

Alarm. First, turn off the AC power at the circuit breaker or fuse box. Next,

remove the battery from Smoke Alarms with battery back-up. Finally, press and

hold the test button for 5-10 seconds to discharge the branch circuit.

Do not try fixing the alarm yourself – this will void your warranty!

If the Smoke Alarm is still not operating properly, and it is still under warranty,

please see “How to Obtain Warranty Service” in the Limited Warranty.

RECOMMENDED LOCATIONS FOR SMOKE ALARMS

Installing Smoke Alarms in Single-Family Residences

The National Fire Protection Association (NFPA), recommends one Smoke Alarm on every floor, in

every sleeping area, and in every bedroom. In new construction, the Smoke Alarms must be AC

powered and interconnected. See “Agency Placement Recommendations” for details. For additional

coverage, it is recommended that you install a Smoke Alarm in all rooms, halls, storage areas,

finished attics, and basements, where temperatures normally remain between 40˚ F (4.4˚ C) and 100˚ F

(37.8˚ C). Make sure no door or other obstruction could keep smoke from reaching the Smoke Alarms.

More specifically, install Smoke Alarms:

• On every level of your home, including finished attics and basements.

• Inside every bedroom, especially if people sleep with the door partly or completely closed.

• In the hall near every sleeping area. If your home has multiple sleeping areas, install a

unit in each. If a hall is more than 40 feet long (12 meters), install a unit at each end.

• At the top of the first-to-second floor stairway, and at the bottom of the basement stairway.

Specific requirements for Smoke Alarm installation vary from state to state and from region

to region. Check with your local Fire Department for current requirements in your area. It

is recommended AC or AC/DC units be interconnected for added protection.

SpecificrequirementsforSmokeAlarminstallationvaryfromstate to state and from region to region. Check with your local Fire Department for current requirements in your area. It is recommended AC or AC/DC units be interconnected for added protection.

AGENCY PLACEMENT RECOMMENDATIONS

NFPA 72 Chapter 29

“For your information, the National Fire Alarm and Signaling Code, NFPA 72, reads as follows:”

29.5.1* Required Detection.

29.5.1.1* Where required by other governing laws, codes, or standards for a specific type of

occupancy, approved single and multiple-station smoke alarms shall be installed as follows:

(1) *In all sleeping rooms and guest rooms

(2) *Outside of each separate dwelling unit sleeping area, within 21 ft (6.4 m) of any

door to a sleeping room, with the distance measured along a path of travel

(3) On every level of a dwelling unit, including basements

(4) On every level of a residential board and care occupancy (small facility),

including basements and excluding crawl spaces and unfinished attics

(5) *In the living area(s) of a guest suite

(6) In the living area(s) of a residential board and care occupancy (small facility)

National Fire Protection Association, Quincy, MA 02269. This reprinted material is not the complete

and official position of the National Fire Protection Association, on the referenced subject which is

represented only by the standard in its entirety), (National Fire Alarm and Signaling Code®and NFPA

72®are registered trademarks of the National Fire Protection Association, Inc., Quincy, MA 02269).

California State Fire Marshal (CSFM)

Early warning detection is best achieved by the installation of fire detection equipment

in all rooms and areas of the household as follows: A Smoke Alarm installed in each

separate sleeping area (in the vicinity, but outside bedrooms), and Heat or Smoke Alarms

in the living rooms, dining rooms, bedrooms, kitchens, hallways, finished attics, furnace

rooms, closets, utility and storage rooms, basements, and attached garages.

LOCATIONS TO AVOID FOR SMOKE ALARMS

For best performance, AVOID installing Smoke Alarms in these areas:

• Where combustion particles are produced. Combustion particles form when something

burns. Areas to avoid include poorly ventilated kitchens, garages, and furnace rooms. Keep

units at least 20 feet (6 meters) from the sources of combustion particles (stove, furnace,

water heater, space heater) if possible. In areas where a 20-foot distance is not possible – in

modular, mobile, or smaller homes, for example – it is recommended the Smoke Alarm be

placed as far from these fuel-burning sources as possible. The placement recommendations

are intended to keep these Alarms at a reasonable distance from a fuel-burning source,

and thus reduce “unwanted” alarms. Unwanted alarms can occur if a Smoke Alarm is

placed directly next to a fuel-burning source. Ventilate these areas as much as possible.

• In air streams near kitchens. Air currents can draw cooking smoke into

the sensing chamber of a Smoke Alarm near the kitchen.

• In very damp, humid or steamy areas, or directly near bathrooms with showers. Keep

units at least 10 feet (3 meters) away from showers, saunas, dishwashers, etc.

• Where the temperatures are regularly below 40˚ F (4.4˚ C) or above 100˚ F (37.8˚ C) including

unheated buildings, outdoor rooms, porches, or unfinished attics or basements.

• In very dusty, dirty, or greasy areas. Do not install a Smoke Alarm directly over the

stove or range. Clean a laundry room unit frequently to keep it free of dust or lint.

• Near fresh air vents, ceiling fans, or in very drafty areas. Drafts can blow smoke

away from the unit, preventing it from reaching sensing chamber.

• In insect infested areas. Insects can clog openings to the

sensing chamber and cause unwanted alarms.

• Less than 12 inches (305 mm) away from fluorescent lights.

Electrical “noise” can interfere with the sensor.

• In “dead air” spaces. “Dead air” spaces may prevent smoke from reaching the Smoke Alarm.

AVOIDING DEAD AIR SPACES

“Dead air” spaces may prevent smoke from reaching the Smoke Alarm. To

avoid dead air spaces, follow the installation recommendations below.

On ceilings, install Smoke Alarms as close to the center of the ceiling as possible. If this is

not possible, install the Smoke Alarm at least 4 inches (102 mm) from the wall or corner.

For wall mounting (if allowed by building codes), the top edge of Smoke

Alarms should be placed between 4 inches (102 mm) and 12 inches (305

mm) from the wall/ceiling line, below typical “dead air” spaces.

On a peaked, gabled, or cathedral ceiling, install the first Smoke Alarm within 3

feet (0.9 meters) of the peak of the ceiling, measured horizontally. Additional Smoke

Alarms may be required depending on the length, angle, etc. of the ceiling’s slope.

Refer to NFPA 72 for details on requirements for sloped or peaked ceilings.

Printed in Mexico M08-0050-166047 K1 02/19

TO UNLOCK THE MOUNTING BRACKET

ELECTRICAL SHOCK HAZARD. Turn off the power to the area where the Smoke

Alarm is installed before removing it from the mounting bracket. Failure to turn

off the power first may result in serious electrical shock, injury or death.

Always discharge the branch circuit before servicing an AC or

AC/DC Smoke Alarm. First, turn off the AC power at the circuit

breaker or fuse box. Next, remove the battery from Smoke Alarms

with battery back-up. Finally, press and hold the Test/Silence

button for 5-10 seconds to discharge the branch circuit.

1. Insert a flathead screwdriver between the mounting

bracket pin and the mounting bracket.

2. Pry the Smoke Alarm away from the bracket by

turning both the screwdriver and the Smoke Alarm

counterclockwise (left) at the same time.

TO LOCK THE MOUNTING BRACKET

1. Using needle-nose pliers, detach one locking pin from mounting bracket.

2. Insert the locking pin into the lock located opposite from

the battery drawer as shown in the diagram.

3. When you attach the Smoke Alarm to the mounting bracket, the

locking pin’s head will fit into a notch on the bracket.

OPTIONAL LOCKING FEATURE

The locking feature is designed to discourage

unauthorized removal of the Alarm. It is not necessary

to activate the locks in single-family households

where unauthorized Alarm removal is not a concern.

Tools you will need: • Needle-nose pliers or

utility knife • Standard Flathead screwdriver.

FOLLOW THESE INSTALLATION STEPS

The basic installation of this Smoke Alarm is similar whether you want to install

one Smoke Alarm, or interconnect more than one Smoke Alarm. If you are

interconnecting more than one Smoke Alarm, you MUST read “Special Requirements

For Interconnected Smoke Alarms” below before you begin installation.

ELECTRICAL SHOCK HAZARD. Turn off power to the area where you will install this

unit at the circuit breaker or fuse box before beginning installation. Failure to turn off

the power before installation may result in serious electrical shock, injury or death.

1. Remove the mounting bracket from the base, and attach it to the junction box. Activate

the lithium battery back-up by removing the “Pull to Activate Battery Back-Up” tab.

Push and hold Test button until the alarm sounds: 3 beeps, pause, 3 beeps, pause.

2. Using wire nuts, connect the power connector to the household wiring.

3. Plug the power connector into the back of the Smoke Alarm.

4. Position the base of the Smoke Alarm over the mounting bracket and

turn. The Alarm can be positioned over the bracket every 90°. Turn

the Smoke Alarm clockwise (right) until the unit is in place.

5. Check all connections.

STAND-ALONE ALARM ONLY:

• Connect the white wire on the power connector to the neutral wire in the junction box.

• Connect the black wire on the power connector to the hot wire in the junction box.

• Tuck the orange wire inside the junction box. It is used for interconnect only.

INTERCONNECTED UNITS ONLY:

Strip off about 1/2” (12 mm) of the plastic coating on the orange wire on the power connector.

• Connect the white wire on the power connector to the neutral wire in the junction box.

• Connect the black wire on the power connector to the hot wire in the junction box.

• Connect the orange wire on the power connector to the interconnect wire in the junction box.

Repeat for each unit you are interconnecting. Never connect the hot or neutral wires in the

junction box to the orange interconnect wire. Never cross hot and neutral wires between Alarms.

Improper wiring of the power connector or the wiring leading to the power connector

will cause damage to the Alarm and may lead to a non-functioning Alarm.

STAND-ALONE ALARM ONLY:

• If you are only installing one Smoke Alarm, restore power to the junction box.

INTERCONNECTED UNITS ONLY:

• If you are interconnecting multiple Smoke Alarms, repeat steps 1-5 for each Smoke

Alarm in the series. When you are finished, restore power to the junction box.

ELECTRICAL SHOCK HAZARD. Do not restore power until all Smoke

Alarms are completely installed. Restoring power before installation is

complete may result in serious electrical shock, injury or death.

Alarms are completely installed. Restoring power before installation is

complete may result in serious electrical shock, injury or death.

6. Make sure the Smoke Alarm is receiving AC power. Under normal

operation, the Green power indicator light will shine continuously.

7. If the Green power indicator light does not light, TURN OFF POWER TO THE JUNCTION

BOX and recheck all connections. If all connections are correct and the Green power indicator

still does not light when you restore the power, the unit should be replaced immediately.

8. Test each Smoke Alarm. Press and hold the Test/Silence button until the unit

alarms. When testing a series of interconnected units you must test each

unit individually. Make sure all units alarm when each one is tested.

If any unit in the series does not alarm, TURN OFF POWER and recheck connections.

If it does not alarm when you restore power, replace it immediately

Special Requirements For Interconnected Smoke Alarms

• Failure to meet any of the above requirements could damage the units

and cause them to malfunction, removing your protection.

• AC and AC/DC Smoke Alarms can be interconnected. Under AC power, all units will alarm

when one senses smoke. When power is interrupted, only the AC/DC units in the series

will continue to send and receive signals. AC powered Smoke Alarms will not operate.

Interconnected units can provide earlier warning of fire than stand-alone units, especially

if a fire starts in a remote area of the dwelling. If any unit in the series senses smoke, all

units will alarm. To determine which Smoke Alarm initiated an alarm, see table:

During an Alarm:

On Initiating Alarm(s) Red LED(s) flashes (flash) rapidly

On All Other Alarms Red LED is Off

After an Alarm (Latching):

On Initiating Alarm(s) Red LED will flash 3 times, spaced one second

apart. The pattern repeats approximately every 45 seconds.

On All Other Alarms Green LED(s) On, Red LED(s) Off

Interconnect units within a single family residence only. Otherwise all households will

experience unwanted alarms when you test any unit in the series. Interconnected units will

only work if they are wired to compatible units and all requirements are met. This unit is

designed to be compatible with: BRK®Smoke Alarm Models 9120B, SC9120B, 7010B,

7020B, SC7010B, SC7010BV, BRK®CO Alarm Models CO5120BN, CO5120PDBN; BRK®

Heat Alarm Models HD6135FB; BRK®Auxiliary Devices Model RM4 (Relay Modules), SL177,

SLED177 (Strobe Light). See www.brkelectronics.com for most current interconnect list.

Interconnected units must meet ALL of the following requirements:

• A maximum of 18 compatible units may be interconnected (Maximum of 12 Smoke Alarms).

• The same fuse or circuit breaker must power all interconnected units.

• The total length of wire interconnecting the units should be less than 1000 feet (300 meters).

This type of wire is commonly available at Hardware and Electrical Supply stores.

• All wiring must conform to all local electrical codes and NFPA 70 (NEC). Refer to NFPA

72, NFPA 101, and/or your local building code for further connection requirements.

}

4 4

A. Unswitched 120VAC 60 Hz source B. To additional units; Maximum = 18

total (Maximum 12 Smoke Alarms)

1. Smoke Alarm 4. Wire Nut 7. Interconnect Wire (Orange)

2. Ceiling or Wall 5. Junction Box

3. Power Connector 6. Neutral Wire (Wht) 8. Hot Wire (Blk)

THE PARTS OF THIS SMOKE ALARM

The Mounting Bracket: To remove the mounting bracket

from the Smoke Alarm base, hold the Smoke Alarm base

firmly and twist the mounting bracket counterclockwise.

The mounting bracket installs onto the junction box.

It has a variety of screw slots to fit most boxes.

The Power Connector: The power connector

plugs into a power input block on the Smoke

Alarm. It supplies the unit with AC power.

• The black wire is “hot.”

• The white wire is neutral.

• The orange wire is used for interconnect.

If you need to remove the power connector, turn POWER

OFF first. Insert a flat screwdriver blade between the power

connector and the security tab inside the power input block.

Gently pry back the tab and pull the connector free.

The Parts of This Unit

1. Mounting Bracket

2. Mounting Slots

3. Locking Pins

(break out of bracket)

4. Hot (Black) AC Wire

5. Neutral (White) AC Wire

6. Interconnect (Orange) Wire

7. Quick-Connect Power Connector

8. Turn this way to remove from bracket

9. Turn this way to attach to bracket

10. Lithium Battery Backup (Features

Factory Locked Battery Drawer)
