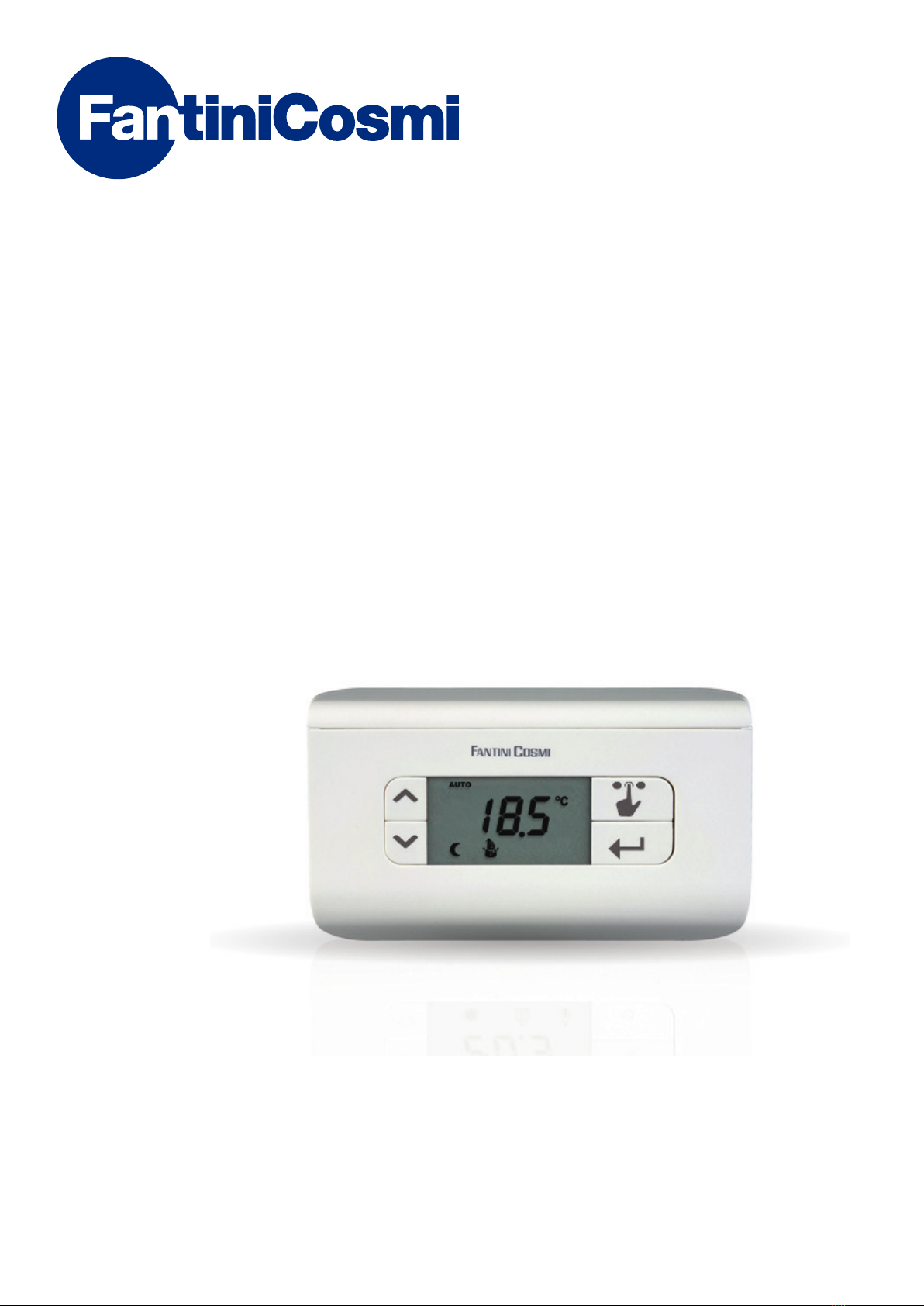

Fantini Cosmi CH119NFC User manual

CH119NFC

NFC WEEKLY

PROGRAMMABLE THERMOSTAT

INSTRUCTIONS FOR USE

FANTINI COSMI S.p.A.

Via dell’Osio, 6 20090 Caleppio di Settala, Milan – ITALY

Tel. +39 02 956821 | Fax +39 02 95307006 | info@fantinicosmi.it

www.fantinicosmi.it

NFC WEEKLY PROGRAMMABLE THERMOSTAT

CH119NFC

Thank you for purchasing a FANTINI COSMI S.p.A. product.

Please read this instruction manual carefully and always keep it at hand should you need to consult it for any reason.

The documentation reﬂects the characteristics of the product. However, for regulatory or commercial developments,

customers should verify the availability of updates relating to this documentation on the FANTINI COSMI S.p.A.

website: pdf.fantinicosmi.it

OPERATION

The CH119NFC is a two-temperature + antifreeze temperature weekly programmable thermostat that allows you to

adjust the room temperature in both heating and cooling.

CONTENTS OF PACKAGE

■1 programmable thermostat

■2 6/32UNC American standard thread screws to secure onto 503 recessed box (approximately Ø 3.5mm)

■1 quick guide

NFC WEEKLY PROGRAMMABLE THERMOSTAT

CH119NFC

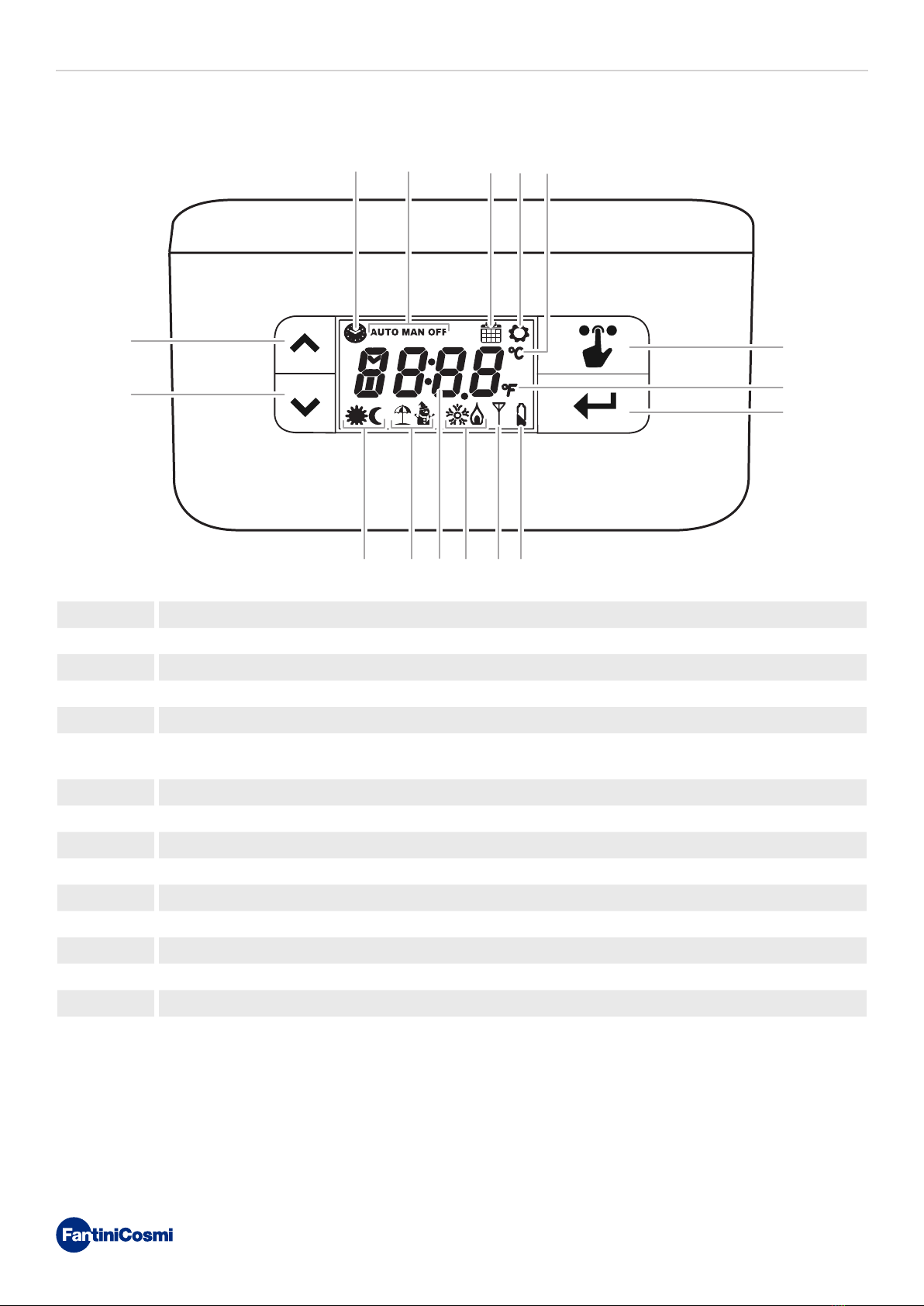

DESCRIPTION OF DISPLAY KEYS

1 Date and time setting

2 Operating mode: AUTO - MAN - OFF

3 Hourly programming setting (proﬁle)

4 Conﬁgurations

5 Room temperature Celsius

6 Menu selection key

Press and hold: ESC (the already changed values are still assigned).

7 Room temperature Fahrenheit

8 On/ Off - Conﬁrm

9 Flat battery

10 NFC phone connection

11 Activation status: air conditioning or heating

12 Temperature read

13 Activation status: Summer or Winter

14 Activation status: economy or comfort

15 DOWN arrow - Decreases

16 UP arrow - Increases

1 3 4 5

91011121314

NFC WEEKLY PROGRAMMABLE THERMOSTAT

CH119NFC

TECHNICAL FEATURES

Battery power supply 2 AA 1.5V alkaline batteries

Battery life >1 year

Temperature regulation scale 2 - 40 °C, increase 0.1°C

Measurement scale/room T display - 50 to + 50 °C, resolution 0.1°C

Type of internal sensor NTC

Relay output with potential-free changeover contacts 5(3)A 230 V~

Terminals COM relay, NC relay, NO relay,

Type of action 1B (micro disconnection)

Conductor rated cross-section for ﬂexible cables: from 0.5 to 1mm2

Connection of cables to terminals Type X

Minimum regulation differential STD (from 0.1 to 0.4 K variable over time)

Reference thermal gradient 4 K/h

Maximum room temperature 45°C

Storage temperature -10°C to +60°C

Rated pulse voltage 4000V

Software class A

NFC yes

Insulation class Class II

Protection rating IP20

Degree of pollution 2

Number of operating cycles for manual actions 3000

Number of operating cycles for automatic actions 10000

Wall-mounting or on recessed box

Dimensions 135 x 83 x 21 mm

Weight 0.100 kg

Compliant with ■EN 60730-1 and second parts

■Directive 2014/53/EU (RED)

■Directive 2014/30/EU (EMC)

■Directive 2014/35/EU (LVD)

ErP classiﬁcation according to Reg. EU 811/2013 - 813/2013 Class IV; 2%

Product not made in Italy

NFC WEEKLY PROGRAMMABLE THERMOSTAT

CH119NFC

Contents

OPERATION ..................................................................... 2

CONTENTS OF PACKAGE................................................. 2

DESCRIPTION OF DISPLAY KEYS .................................... 3

TECHNICAL FEATURES ................................................... 4

1 - INSTALLATION ........................................................... 6

1.1 - BATTERY REPLACEMENT ....................................................7

2 - ELECTRICAL CONNECTION........................................ 8

3 - PROGRAMMING GUIDE .............................................. 9

3.1 - DATE AND TIME SETTING ....................................................9

3.2 - HOURLY PROGRAMMING SETTING (PROFILE)..................10

4 - OPERATION .............................................................. 11

4.1 - OPERATING PROGRAMS ....................................................11

4.2 - SELECTING THE OPERATING PROGRAM...........................11

4.3 - SETTING THE “AUTO” PROGRAM tE/tC TEMPERATURE ...12

4.4 - SETTING THE “MAN” PROGRAM TEMPERATURE .............12

4.5 - DISPLAYING THE TEMPERATURE WITH THE PROGRAM

“OFF”...........................................................................................12

5 - CONFIGURATION MENU........................................... 13

5.1 - SUMMER/WINTER (default = Winter).................................13

5.2 - CELSIUS / FAHRENHEIT (default = Celsius)......................13

5.3 - DAYLIGHT SAVING / STANDARD TIME (default = Auto) .....14

5.4 - ANTIFREEZE TEMPERATURE (default = 5.0°C) .................14

5.5 - SCREEN LOCK WITH PASSWORD (default = OFF) .............15

5.6 - OFFSET TEMPERATURE (default = 0.0°C) .........................16

5.7 - MAX WINTER TEMPERATURE LIMIT (default = 40°C)........16

5.8 - MIN WINTER TEMPERATURE LIMIT (default = 2°C)..........16

5.9 - MAX SUMMER TEMPERATURE LIMIT (default = 40°C)......17

5.10 - MIN SUMMER TEMPERATURE LIMIT (default = 2°C) ......17

5.11 - RESETTING DEFAULT PARAMETERS (default = rS 0)......18

6 - PROGRAMMING VIA APP.......................................... 19

6.1 - INSTALLATION PROCEDURE .............................................19

6.2 - PROGRAMMING CH119NFC...............................................20

6.3 - GENERAL CH119NFC SETTINGS .......................................22

6.4 - HOME SETTINGS ................................................................30

6.5 - APP SETTINGS: PUSH NOTIFICATIONS .............................30

7 - DISPOSAL................................................................. 31

8 - GENERAL WARRANTY CONDITIONS ........................ 31

NFC WEEKLY PROGRAMMABLE THERMOSTAT

CH119NFC

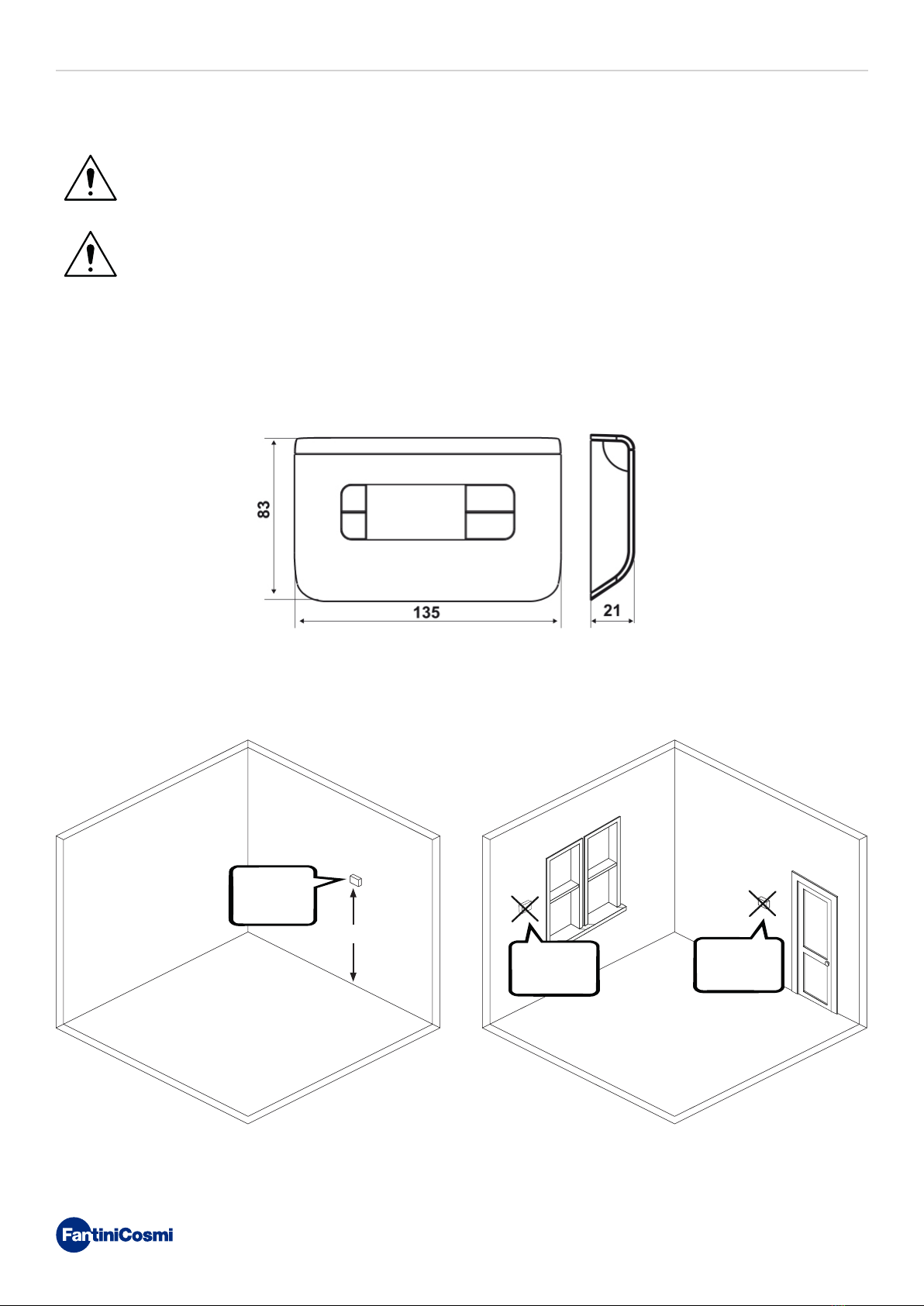

1 - INSTALLATION

ATTENTION!

Installation must be carried out by qualiﬁed personnel in compliance with the requirements concerning

the installation of electrical equipment.

ATTENTION!

Installation operations must be performed with the system’s power disconnected.

The CH119NFC programmable thermostat comes with a panel suitable for wall-mounting or on recessed boxes, with 3

modules or round. It must be installed at a height of about 1.5m from the ﬂoor, in a suitable position to detect the room

temperature correctly.

1.5 m

NO NO

3 4

1 2 3

NFC WEEKLY PROGRAMMABLE THERMOSTAT

CH119NFC

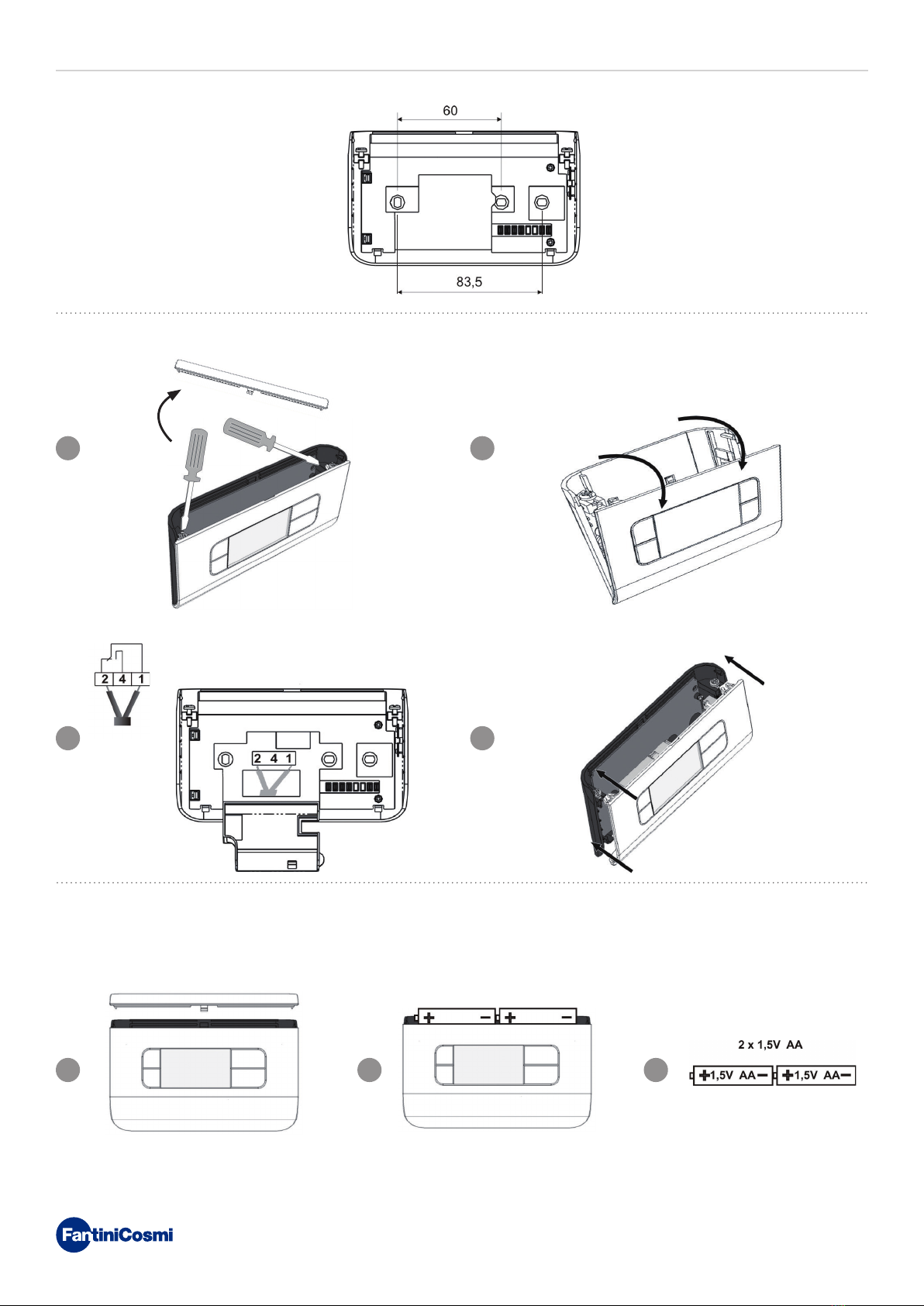

Undo the screw as shown in ﬁgure 1 and release the panel from the appliance.

1.1 - BATTERY REPLACEMENT

Connect to

terminals 1-2

NFC WEEKLY PROGRAMMABLE THERMOSTAT

CH119NFC

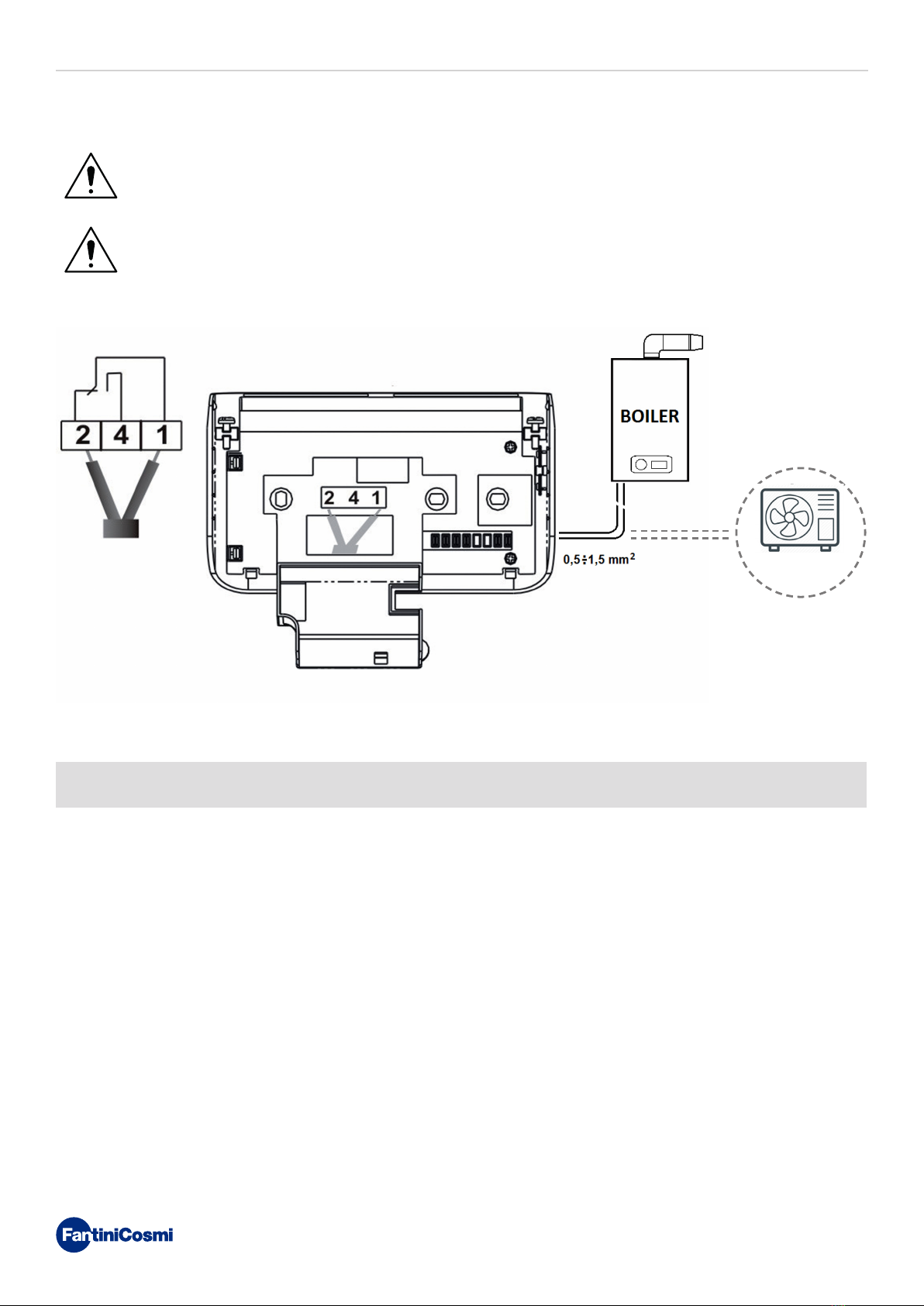

2 - ELECTRICAL CONNECTION

ATTENTION!

Electrical connections must be made by qualiﬁed personnel.

ATTENTION!

Electrical connection operations must be done with the system’s power disconnected.

Electrical connections must be made by making reference to the following diagram.

During potential blackouts, the parameters will not be lost as the settings are stored in a non-volatile memory. Even

when there are long power failures, the time/date remain stored thanks to an internal battery.

Heat

pump

Connect to

terminals 1-2

NFC WEEKLY PROGRAMMABLE THERMOSTAT

CH119NFC

3 - PROGRAMMING GUIDE

The ﬁrst time any key is pressed has no effect, but only activates the functions of the buttons.

After 30 seconds of no interaction, the display goes back to the main screen.

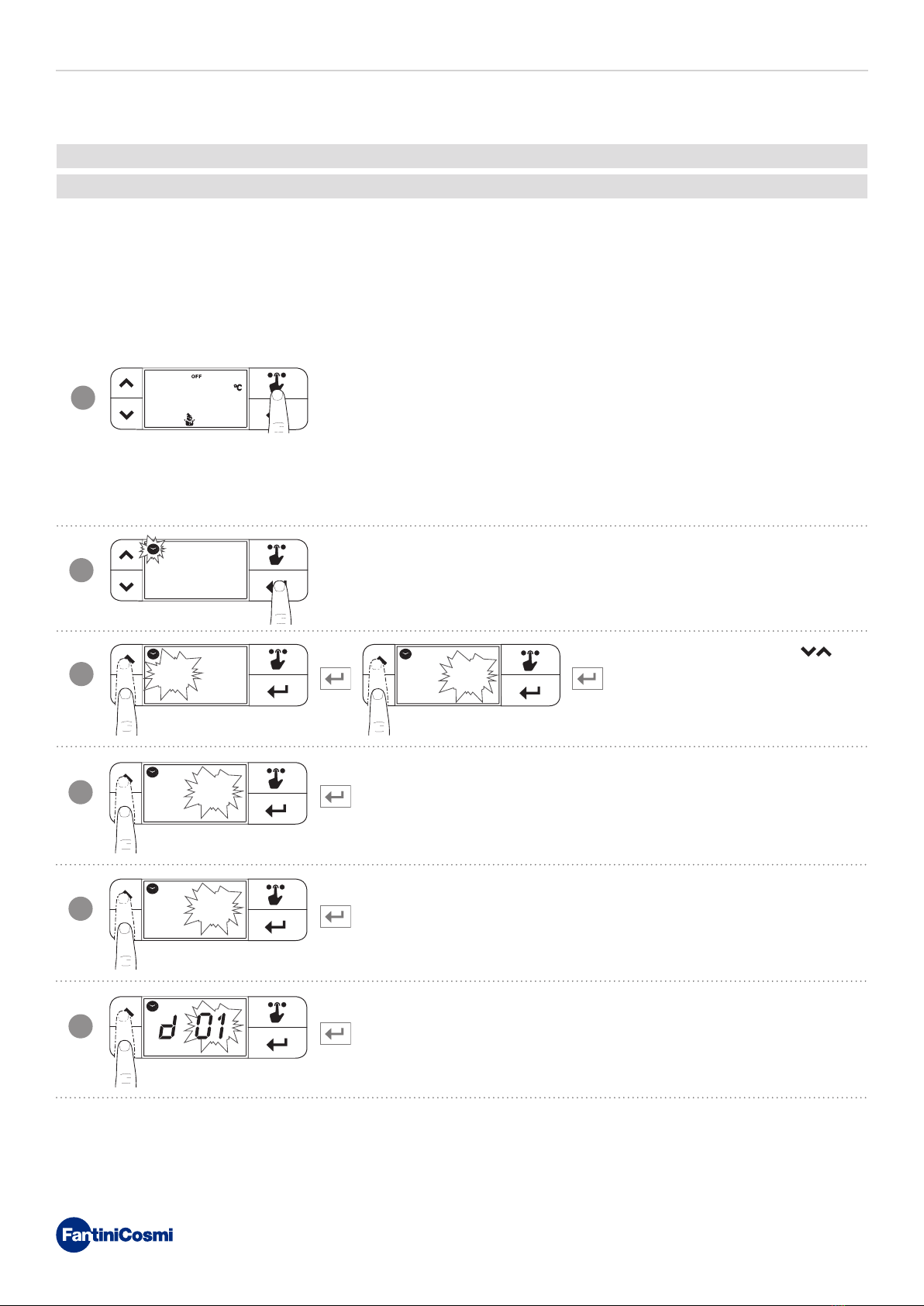

3.1 - DATE AND TIME SETTING

Note: the SELECTION key makes the icons at the top of the display ﬂash cyclically every time it is pressed. The

icon ﬂashes for 3 seconds, after which, if nothing has been pressed, it goes back to the “initial” mode.

Use the SELECTION key to go to the CLOCK icon and press ENTER.

To edit the HOUR, use the keys

and press ENTER.

Repeat the same operations to edit

the SECONDS.

Repeat the same operations to edit the YEAR.

Repeat the same operations to edit the MONTH.

Repeat the same operations to edit the DAY.

18:30

24.7

:30

10 10:

4Y 18

5m 01

PRESS

NFC WEEKLY PROGRAMMABLE THERMOSTAT

CH119NFC

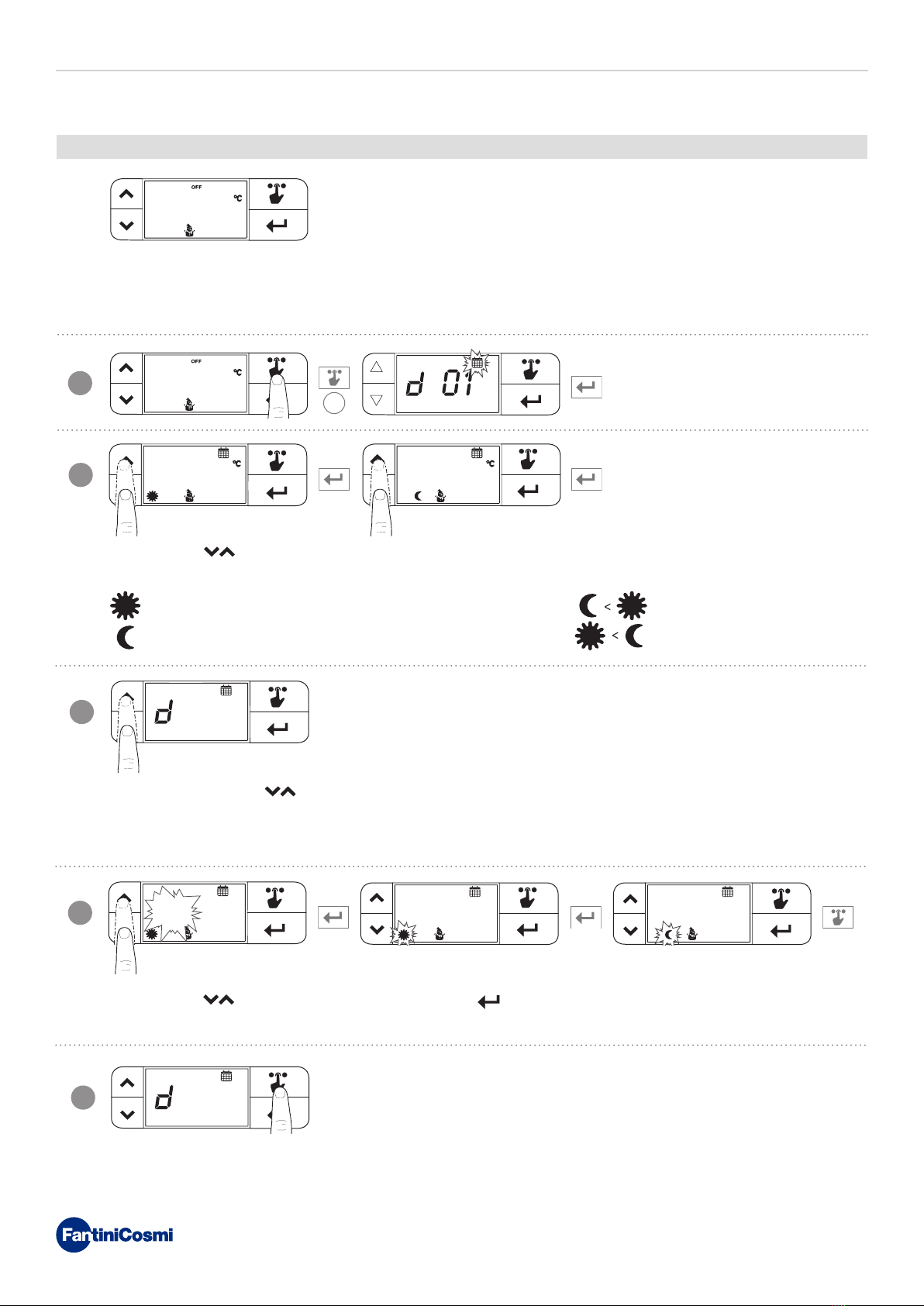

3.2 - HOURLY PROGRAMMING SETTING (PROFILE)

The proﬁles are set based on whether the WINTER or SUMMER mode is selected.

Note: the SELECTION key makes the icons at the top of the display ﬂash cyclically every time it is pressed. The

icon ﬂashes for 3 seconds, after which, if nothing has been pressed, it goes back to the “initial” mode.

Note: use the arrows to change the time. Use the key to select tE or tC according to the chosen time. By

scrolling through all 24 hours, the next day is displayed.

Note: by pressing the arrows from the day display screen you can choose the day on which to make the

settings directly.

Press the CONFIRM key for 2 seconds to copy the programming of the previous day.

Note: press and hold for 2 seconds to go back to the main screen.

Note: use the arrows to choose the desired comfort temperature. Press CONFIRM to switch to the economy

temperature.

d 01 = Monday

d 02 = Tuesday

d 03 = Wednesday

d 04 = Thursday

d 05 = Friday

d 06 = Saturday

d 07 = Sunday

= Comfort Temperature (tC)

= Economy Temperature (tE)

In Winter

In Summer

Press the SELECTION key 5 times,

then press CONFIRM.

124.7

PRESS

220.0

00:00 00:00

400:00

PRESS

303

20.0

PRESS

24.7
