Fagor FA-4812 Manual
32
33
34
40
51
53
56
MISES EN GARDE ET CONSIGNES
DE SÉCURITÉ
SPÉCIFICATIONS
INSTALLATION ET MONTAGE
UTILISATION DE L’APPAREIL
ET CONSEILS PRATIQUES
ENTRETIEN ET NETTOYAGE
DE L’APPAREIL
SÉCURITÉ ET DÉPANNAGE
MISES EN GARDE CONCERNANT
L’ENVIRONNEMENT
6
7
8
14
25
27
30
WARNINGS AND SAFETY
INSTRUCTIONS
SPECIFICATIONS
INSTALLATION AND SETUP
MACHINE OPERATION
AND USEFUL TIPS
MAINTENANCE AND
CLEANING
SAFETY AND TROUBLESHOOTING
ENVIRONMENTAL WARNINGS
washing machine
table of contents
laveuse
table des matières
58
59
60
66
77
79
82
ADVERTENCIAS E INSTRUCCIONES
DE SEGURIDAD
ESPECIFICACIONES
INSTALACIÓN Y MONTAJE
USO DEL APARATO
Y CONSEJOS PRÁCTICOS
MANTENIMIENTO
Y LIMPIEZA DEL APARATO
SEGURIDAD Y SOLUCIÓN DE PROBLEMAS
ADVERTENCIAS SOBRE
EL MEDIO AMBIENTE
lavadora índice
5
thank you for placing your trust in us
ALWAYS WITH INNOVATION IN MIND
LCD displays.
• Continuous display of washing cycles and
times.
Detergent dispenser designed for
maximum ease of use.
• Easy removal for cleaning.
• Allows the use of liquid detergents.
The new line of washing machines is designed to make your life easier:
ALWAYS KEEPING YOUR COMFORT IN
MIND
Large door.
Maximum opening.
• Higher than a standard axle and a tilted
drum for maximum ergonomics.
• Maximum opening makes loading clothes
easier.
Easy-access filter.
• Easy cleaning and maintenance.
ALWAYS WITH SAVINGS IN MIND
7 kg - 15.43 lb capacity.
• Fewer wash cycles means greater savings.
Timer delays.
• Takes advantage of energy rates.
6
safety instructions
Under certain conditions, hydrogen gas
may be produced in a hot-water system that
has not been used for two weeks or more.
Hydrogen gas is explosive. If the hot-water
system has not been used for two weeks or
more, turn on the hot-water faucets and let
water flow for a few minutes before operating
the washing machine. This will cause any
built-up hydrogen gas to dissipate. Since
the gas is flammable, do not smoke or keep
an open flame on while the faucets are
running.
Do not allow children to play over or inside
the machine. Strict supervision is required
when using the machine around children.
The door must be removed before the
machine is disposed of or taken out of
service.
Do not access the inside of the machine
if the drum or the agitator are moving.
warnings
The washing machine comes with a
manual, which includes installation, operation,
and maintenance instructions. Please read
all instructions carefully before using the
washing machine.
Do not wash garments that have been
previously cleaned, washed, soaked or
treated with gasoline, dry-cleaning solvents,
or other flammable or explosive substances.
They could give off vapors that may ignite
or explode.
Do not add gasoline, dry-cleaning solvents
or any other flammable or explosive
substances to the wash water, since these
give off vapors that may ignite or explode.
Do not attempt to repair the machine,
replace any of its components, or service it
in any way, unless it is recommended in the
maintenance instructions included in the
manual.
Do not climb over the machine or lean on
the open door.
Do not use an extension or adapter to
connect the washing machine to the wall
outlet.
The machine may only be used for its
intended purposes.
Follow the washing instructions
recommended by the garment manufacturer.
Before operating the machine, ensure that:
• It has been installed according to the
installation instructions.
• All water lines, drain tubes, electrical
connections and ground lines are
connected according to local laws and/or
other applicable regulations.
To avoid fire hazards, electric shocks, personal injury, or other types of damage, take the
following precautions when using your washing machine:
7
washing machine
Water inlet hose
specifications
Drain hose
Top surface
Power
supply cable
Control
panel
Detergent
dispenser
Stainless
steel wash
drum Filter
Baseboard
Door
Back plugs
Open-end wrench
Drain tube bender
Leveling
feet
ACCESSORIES LOCATED
INSIDE THE DRUM
8
washing machine

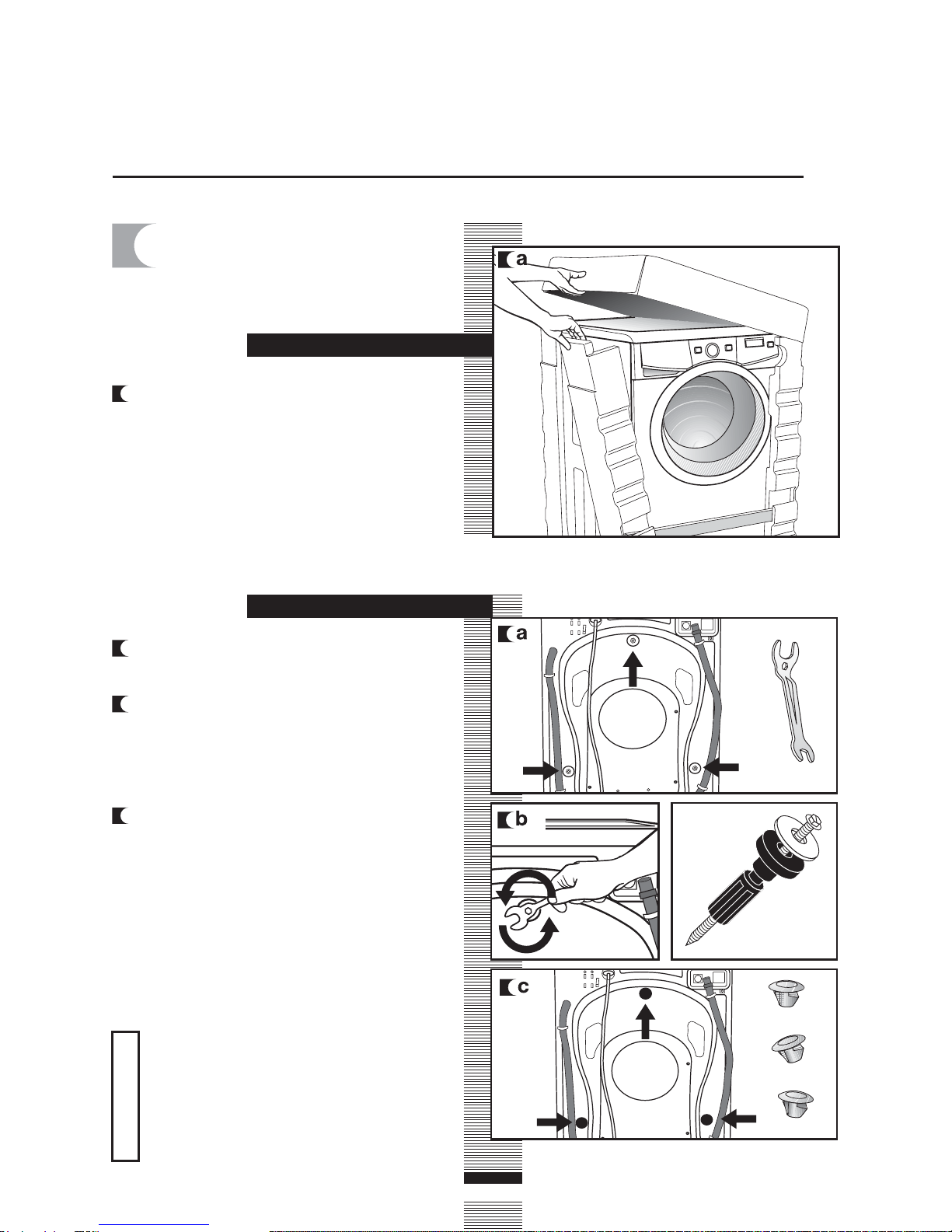

aThere are 3 locking screws located at
the back of the washing machine.
bUsing the wrench provided, loosen the
3 screws and remove them completely,
along with the metal washer and the
black rubber and plastic tubes which
make up the locking system.
cInsert the 3 plastic plugs provided in the
holes from which you removed the
locking screws.
installation and setup
Keep the locking screws in case you
need to move the machine in the future.
Important!
aRemove the base, corner protectors,
and the top cover.
1UNPACKING AND
UNLOCKING THE
WASHING MACHINE
UNLOCKING
UNPACKING
CONNECTING
DRAINAGE SYSTEM
9

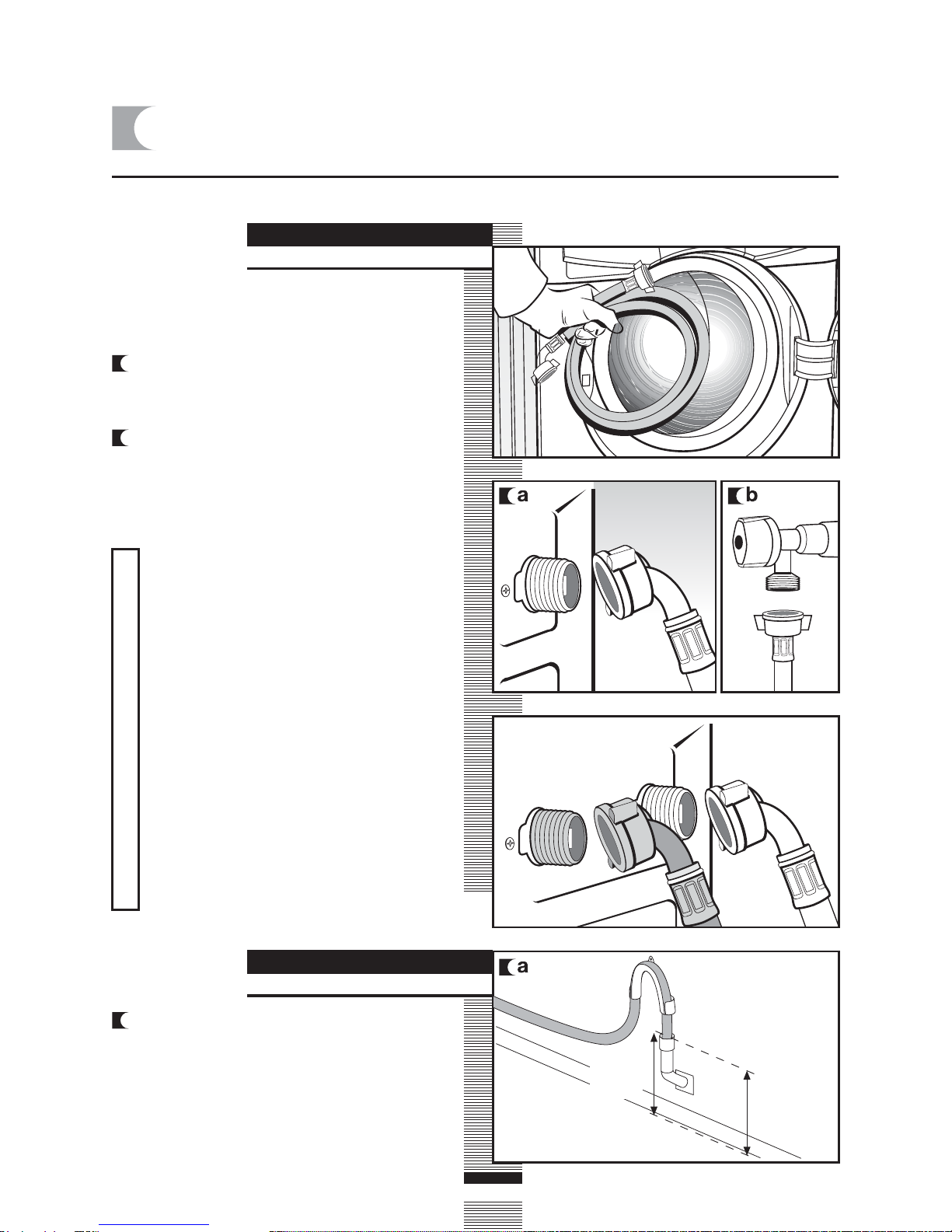

CONNECTING WATER AND
DRAINAGE SYSTEM
The water inlet tube is located inside the
drum:
aConnect the elbow end of the tube to
the threaded intake of the electro valve
located at the back of the machine.
bConnect the other end of the tube to
the water intake. Once you have
completed this operation, tighten the
connecting bolt firmly.
installation and setup
The elbow part of the drain tube must
be firmly connected to the outlet, so it
does not fall off, in order to avoid the
risk of flooding.
If your washing machine has an inlet for
hot water, connect the red threaded
tube to the hot water faucet, and to the
electro valve with a red filter.
The washing machine must be
connected to the water inlet system
using the new inlet tubes provided with
the machine. The previously used water
inlet tubes must not be used.
For the washing machine to function
properly, the water pressure should be
0.05-1MPa (0.5-10 kg/cm2/ 1.10-22.05
psi).
aIt is recommended to have a fixed drain
outlet, 50-70cm/19.69-27.56in from the
floor.
The supplied elbow should be used to
prevent the drain tube from being too
tight, bent or pinched.
2
Important!
max.
70 cm.
27,56” min.
50 cm.
19,69”
CONNECTING
WATER SYSTEM
Important!
10
LEVELING THE WASHING MACHINE AND CONNECTING
THE POWER SYSTEM installation and setup
3
Before making any electrical connections, refer
to the data indicated on the specifications
label attached to the machine’s door. Make
sure that the voltage supplied to the plug’s
base is the one indicated on the label.
Do not remove the specifications label, as the
information on it is important.
ELECTRICAL CONNECTION
LEVELING THE MACHINE
The washing machine must be connected
to a properly grounded power outlet.
The electrical installation, plug, outlet, fuses,
or automatic switch and counter must be
adjusted to the maximum power indicated
on the specifications label.
Do not insert the machine’s plug into the
outlet with wet or moist hands.
To remove the cable from the outlet, pull
out the pin body, do not pull from the cable.
If the power supply cable is damaged, it
must be replaced with a special cable or
assembly supplied by the manufacturer or
after-sales service department.
On recessed washing machines, the outlet
pin must be accessible after installation.
Connect to individual branch circuit.
aWe recommend seating and
leveling the back first. Once these
are well seated, firmly fix the metal
locknut to the top section.
bPlace the washing machine in the
recess. A wet floor may help you
drag the machine to its final
location.
cLevel and fix the front feet in the
same manner as the back feet.
Be sure to keep the supplied
wrench, you might need it again.
Important!
