EverFocus VANGUARD II 16x8H User manual

VANGUARD II 16x8H

16CH / H.265 / Hybrid DVR

Quick Installation Guide

Release Date: April 2022

All the images including product pictures or screen shots in this document are for example only. The images may

vary depending on the product and software version. Information contained in this document is subject to

change without notice.

EverFocus Taiwan:

2F., No.12, Ln. 270, Sec. 3, Beishen Rd., Shenkeng Dist., New Taipei City 222, Taiwan

TEL: +886 2 2662 2338 FAX: +886 2 2662 3632 www.everfocus.com.tw marketing@everfocus.com.tw

1. Overview

1.1 Front Panel

PWR HDD

No.

Name

Description

IR Receiver

Receiver for signals from the IR remote control.

LED Indicator

Power: When power is on, the LED will continue lighting in green.

HDD: When power is on, the LED will continue lighting in red. When

HDD is reading/writing data, the LED will flashes red.

USB2.0 Port

USB2.0 port for connecting to a mouse or an external storage device.

1.2 Rear Panel

1 2 4

3 5

6 7 8

910 11 12 13

No.

Name

Description

e-SATA Port

Connects to external HDD.

Audio Input

Connects to audio input devices, such as microphones. Note that the

microphones with a (built-in) amplifier and external power supply are

required.

Audio Input

(5-16)

Connect the supplied D-Sub Cable Harness to this port for audio input

(CH5-16) connection. Note the microphones with a (built-in) amplifier

and external power supplies are required.

CVBS

CVBS video output connection.

Audio Output

Connects to an audio output device, such as speakers. Note that the

speakers with a (built-in) amplifier and external power supply are

required.

Video Input

Connects the AHD/TVI/SD cameras to the Video Input.

VGA Port

Connects to a monitor using a VGA cable.

Terminal

Block

The Terminal Block provides alarm inputs, alarm output and RS-485

connection (see 3.1 Terminal Block).

HDMI Port

Connects to a monitor using a HDMI cable.

LAN

Connects to the Network.

USB2.0 Port

The USB2.0 port for connecting to a mouse or external storage device.

Power Port

Connects to a 12VDC power source.

Power Switch

Press to turn on or off the power.

1.3 Packing List

DVR x 1

Power Cord + Adaptor x 1

Mouse x 1

HDD Screw x 8

Quick Installation Guide x 1

IR Remote Control (with 2 AAA batteries) x 1 (see Note 3)

Note:

1. Equipment configurations and supplied accessories vary by country. Please consult your

local EverFocus office or agents for more information. Please also keep the shipping carton

for possible future use.

2. Contact the shipper if any items appear to have been damaged in the shipping process.

3. Risk of explosion if battery is replaced by an incorrect type. Dispose of used batteries

according to the instructions.

a. Use only two AAA dry cell batteries.

b. Do not dispose of the batteries in a fire as it may explode.

1.4 Dimensions

2. Basic Installation

2.1 Hard Disk Installation

You can install two 3.5”HDDs inside the DVR for recording videos. The maximum capacity of

each HDD is 8TB.

1. Make sure the DVR is power-off.

2. Unscrew the eight housing screws (4 on the rear panel, 2 on the left and right side each). To

remove the housing cover from the DVR, push the cover backward and then lift it.

3. Find the SATA cable and power cable inside the DVR, connect the SATA cable to the SATA

port on the HDD (left image) and then connect the power cable to the HDD (right image).

4. Place the HDDs inside the DVR, screw the HDDs from the bottom side of the DVR using the

supplied Screws.

5. Screw the housing cover back to the DVR.

2.2 Hard Disk Compatibility List

Please go to EverFocus’ Website www.everfocus.com.tw, and go to Support > Product Marketing

to search for and download the Storage Compatibility Table. It’s recommended to use the hard

disk models listed on the table to ensure your hard disks will be compatible.

Note: If using two or more hard disks, please choose the hard disks with the same capacity.

3. Basic Connection

The demonstration below shows the basic connections to the DVR.

Line Level

Audio Input

Line Level

Audio Out TVI/AHD/SD Camera

Main Monitor

(VGA)

Main Monitor

(HDMI)

Network

Web Remote Client

IP Cameras

VANGUARD CMS

Mouse / USB Storage

Power Supply

Main Monitor

(CVBS)

External

HDD

3.1 Terminal Block

Alarm Input: 16

Alarm Output: 1

RS-485: 1

4. Turning On / Off the Power

Before powering on the DVR, please make sure the internal HDD have been installed properly.

Once you have completed the basic cable connections, you are ready to turn on the DVR.

Simply plug in the power source and then press the Power Switch on the rear panel of the DVR.

The POWER LED will light up if power is normal and the DVR will enter the System Initialization

process.

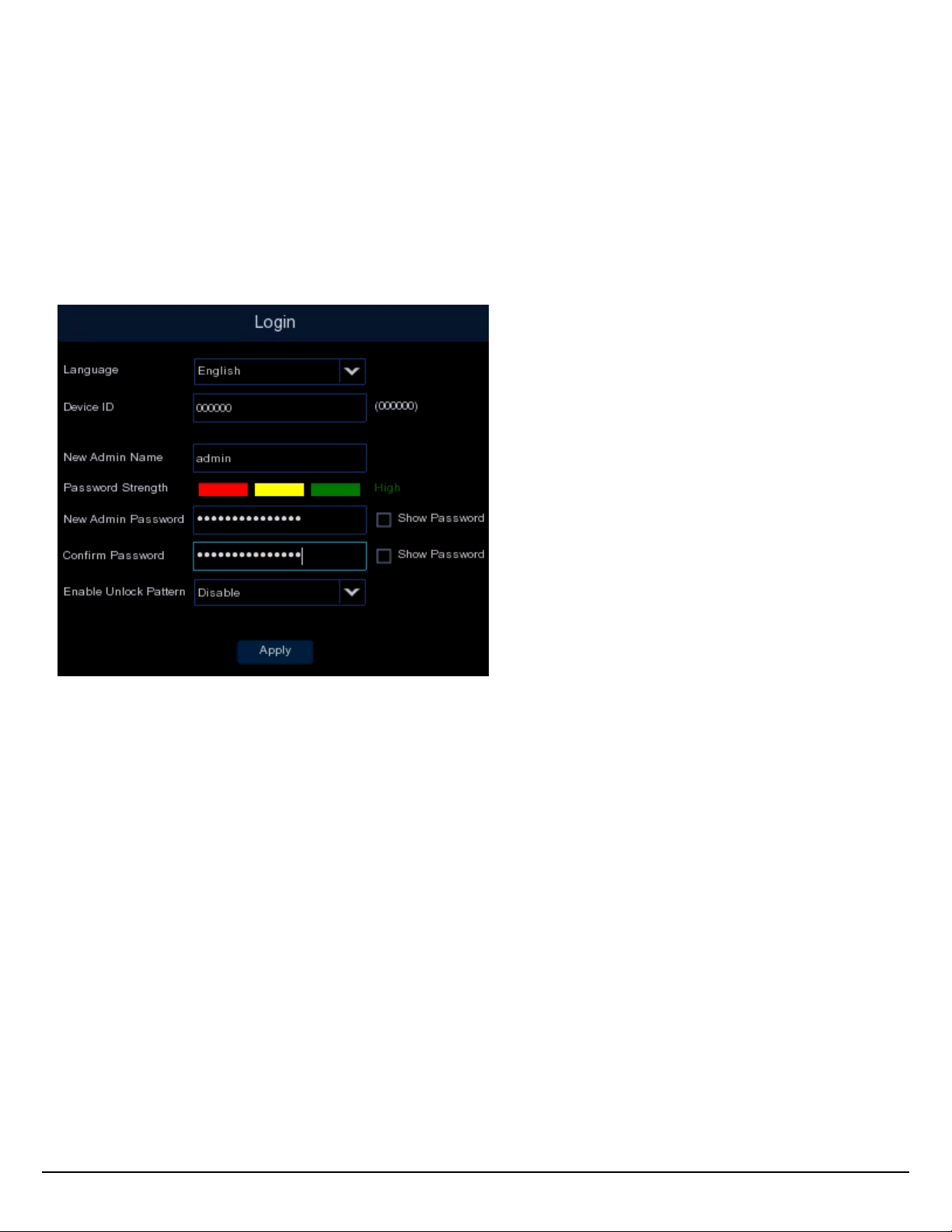

When the process is done, it’s required to set up a password for the administrator account

immediately in order to protect your privacy.

To turn off the power, click the Shutdown button on the Exit page (OSD menu > Exit >

Shutdown) and then press the Power Switch on the rear panel of the DVR.

5. P2P Function

The P2P function allows users to add DVRs to EverFocus’ eFVMS App through QR code.

1. Install EverFocus eFVMS App. For Android users, go to Google Play Store. For iOS users, go to

Apple Store. After the installation process is complete, start eFVMS App.

EverFocus eFVMS eFVMS by EverFocus

2. To add a DVR through P2P, tap Menu > Device List, and then tap the “+” button on the

upper-right corner.

3. Scan the DVR’s QR code on the System Info page of the DVR OSD menu. Input the DVR ID,

password and Media Port 8000. Tap the Save button.

……

4. The DVR is now added and connected to the App. You can start accessing the DVR.

VANGUARD II 8x4H

VANGUARD II 8x4H –CH1 [P2P]

VANGUARD II 8x4H

6. IR Remote Control

Key1-8: Channel Select; Numeric Keys

Enter into Main Menu / Exit

Key9, 0: Numeric Keys

Enter into Submenu

Multiple Display Mode

Mute On / Off

1. Volume Increase / Decrease

2. Up / Down

1. Parameter Value Increase / Decrease

2. Left / Right

Select / Edit

ForwardRewind

Pause / Sequence

Record 1. Stop Manual Record

2. Stop Playback

1. Enter into Record Search Menu

2. Start Playback

P/N: 4605VAN1602006A
